Short Notice Auction of (3) Immaculate 2017 Campbell 930E250 5-Axis Creep Feed Grinders Surplus to GE Aerospace

Starts: 07 November 2025 at 05:00 GMT
Ends: 20 November 2025 at 20:00 GMT
Bulk Bid & Individual Lots Available! Assets Will Be Sold in the Manner That Brings the Highest Return for (3) 2017 Campbell 930E250 5-Axis CNC Creep Feed Grinders, 2017 Oberlin OPF12 Pressure Filtration System.
Register for auctionEssential Information
Share:
Showing 5 of 5 lots
  • 1-0_c7d1a101-cbcf-489f-b3f3-481567e53624
    1-1_dbrn9z
    1-2_w2q1ka
    1-3_croyo0
    1-4_z31syy
    1-5_hyjwcp
    1-6_eivoxg

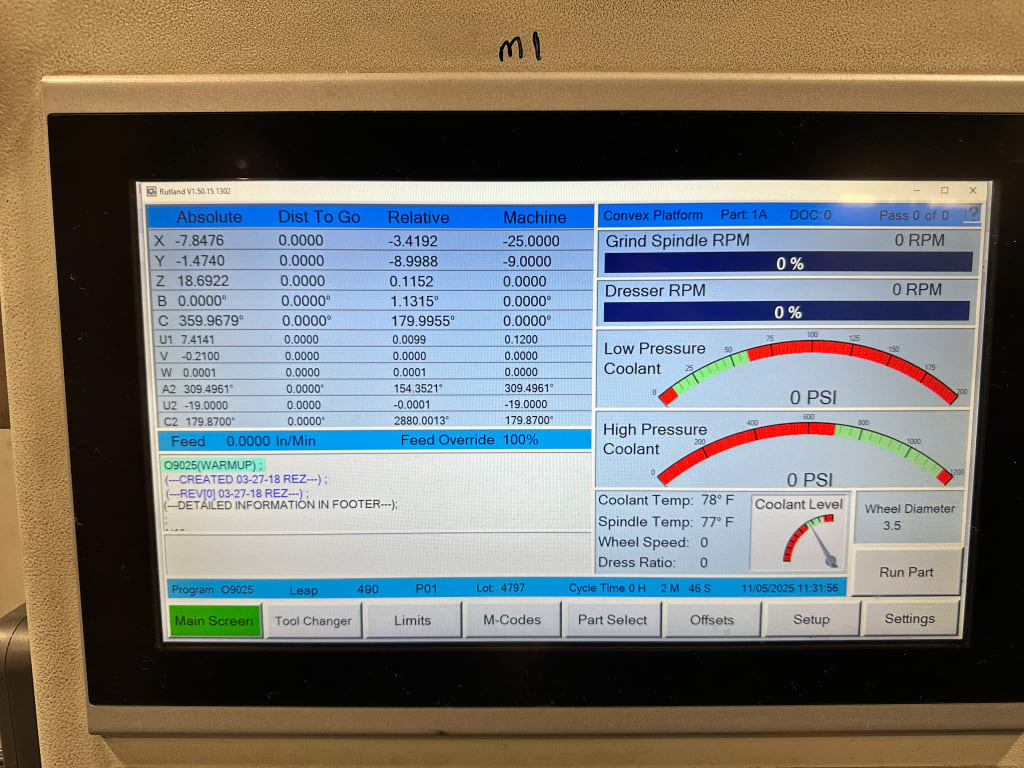

    1-7_n4lriu
    1-8_c6d7vh
    1-9_xuqwxi
    1-10_vldb5e
    1-11_qmuley
    1-12_zignvr
    1-13_rrufok
    1-14_tlrngk
    1-15_h7krxm
    1-16_q6usse
    1-17_nfy10q
    1-18_a3cayh
    1-19_foqihv
    1-20_cfpjqs
    1-21_jjbcvd
    1-22_j3tymo
    1-23_p3xhw4
    1-24_t15xhf
    1-27_k7zerv
    1-28_rct3oe
    1-29_wlufdw
    1-30_te78fh
    1-31_amqzg6
    1-32_vw5ac7
    1-33_acetxb
    1-34_vkwaap
    1-35_hjlw17
    1-36_sxcnx4
    1-37_de4wry
    1-38_vwmb9s
    1-39_sswmzp
    1-40_c8sjhy
    1-41_el81yj
    1-42_zrv0eb
    1-43_s5bdp9
    1-44_h2peey
    site
    LOT 1

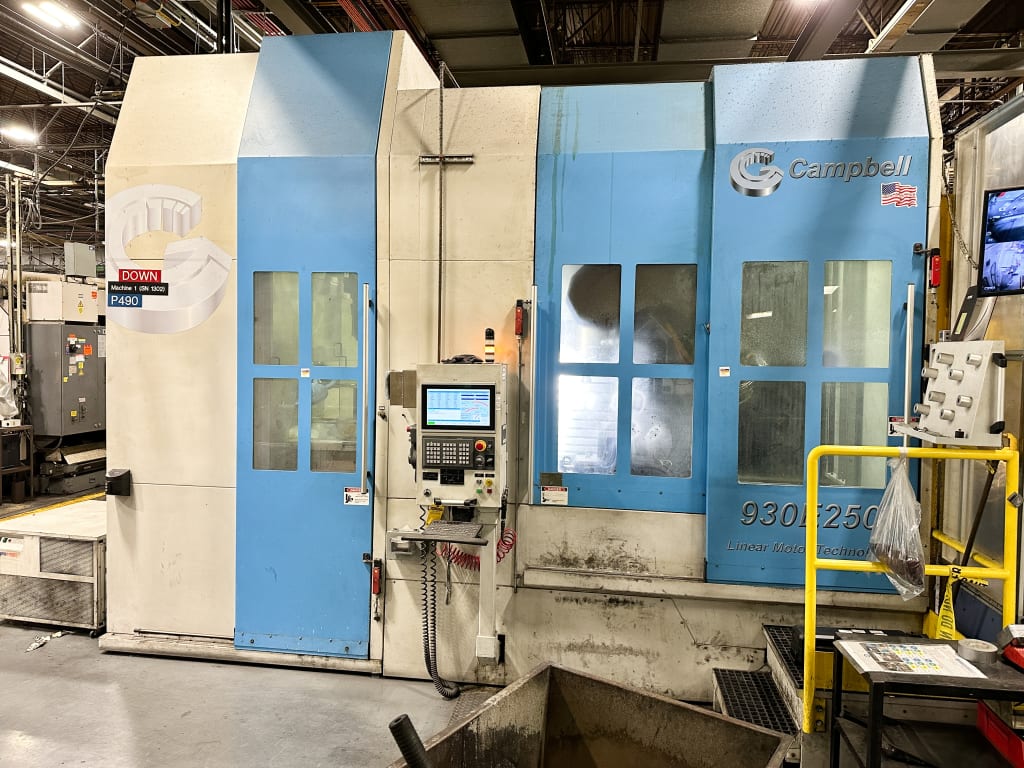

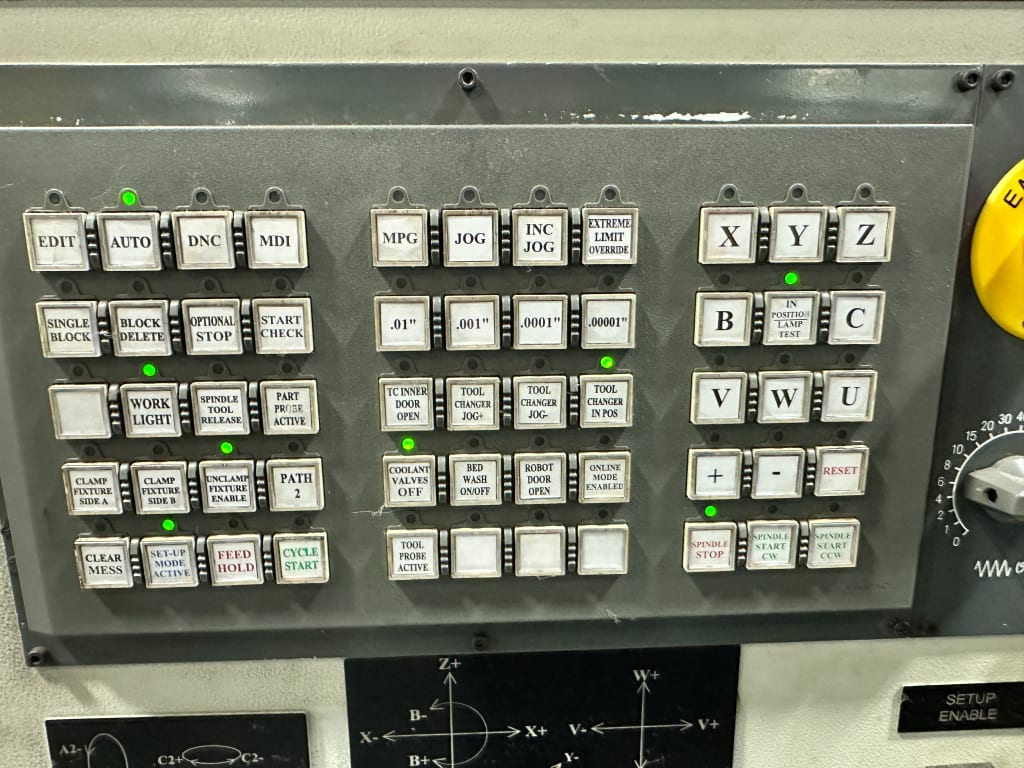

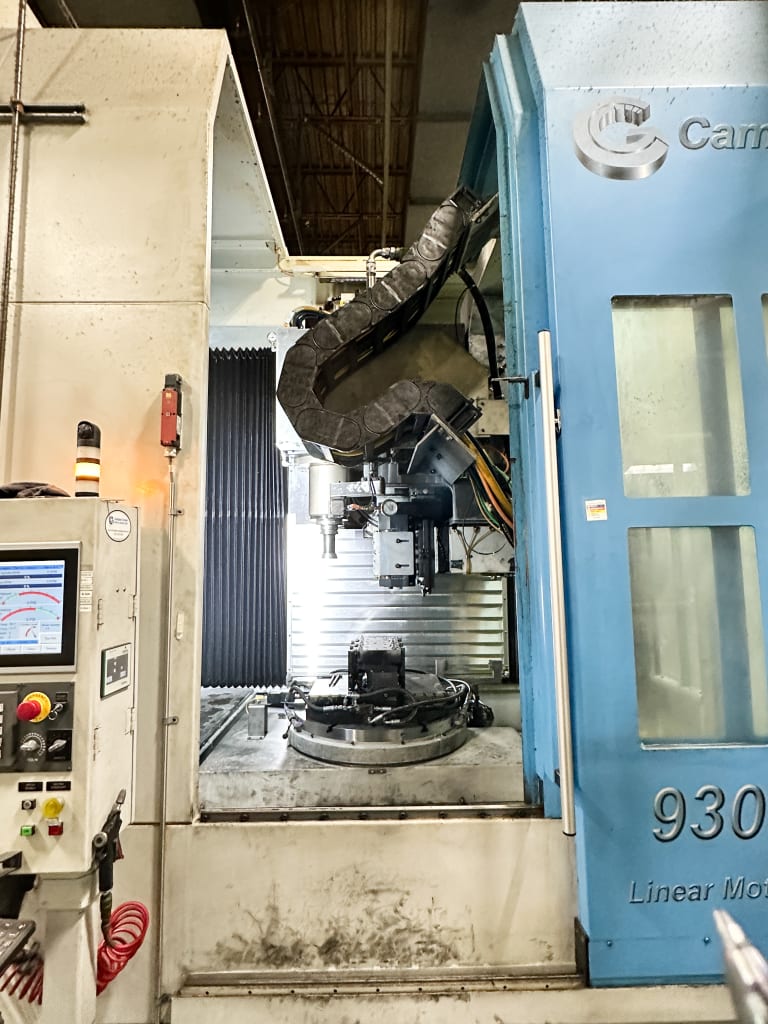

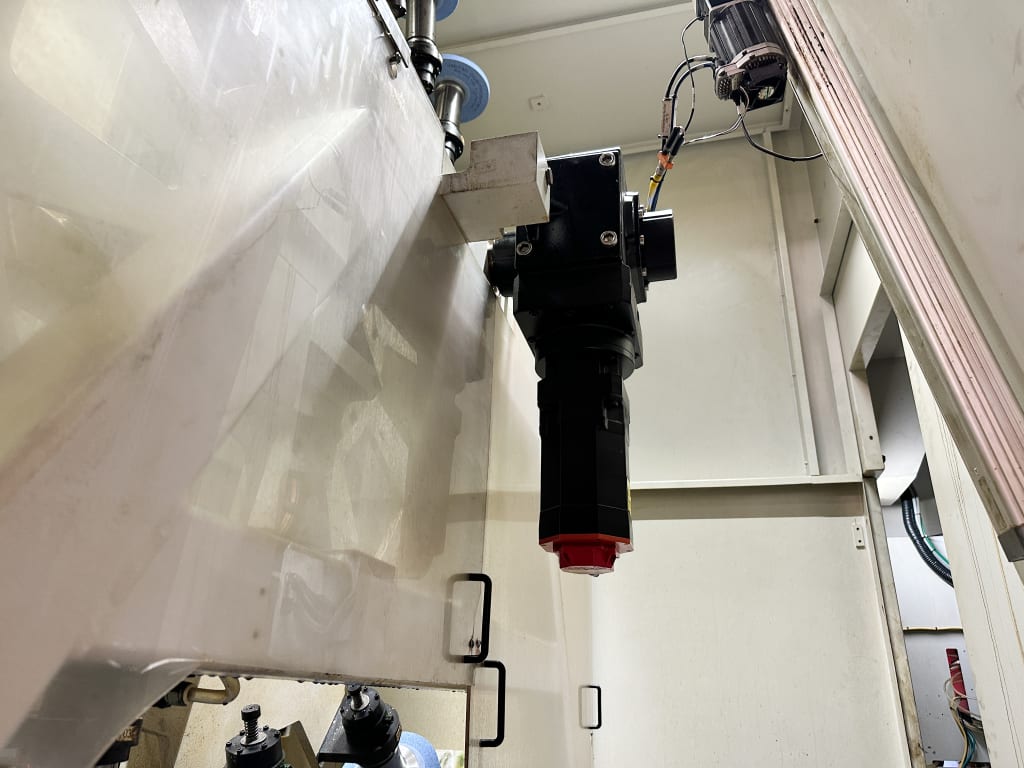

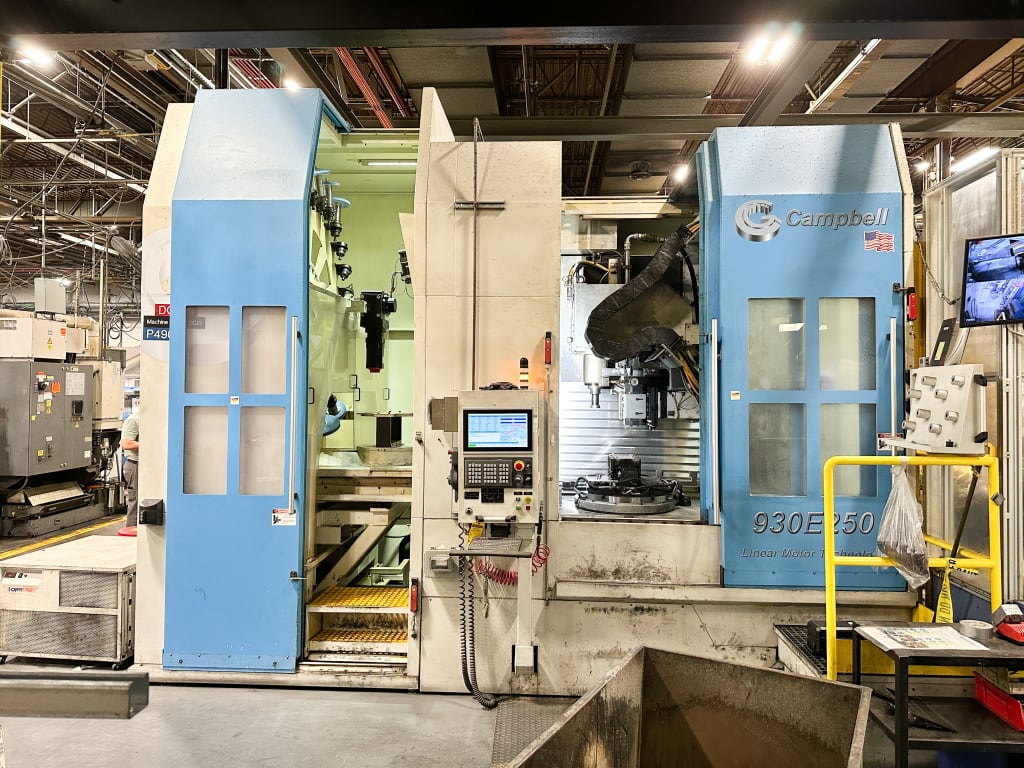

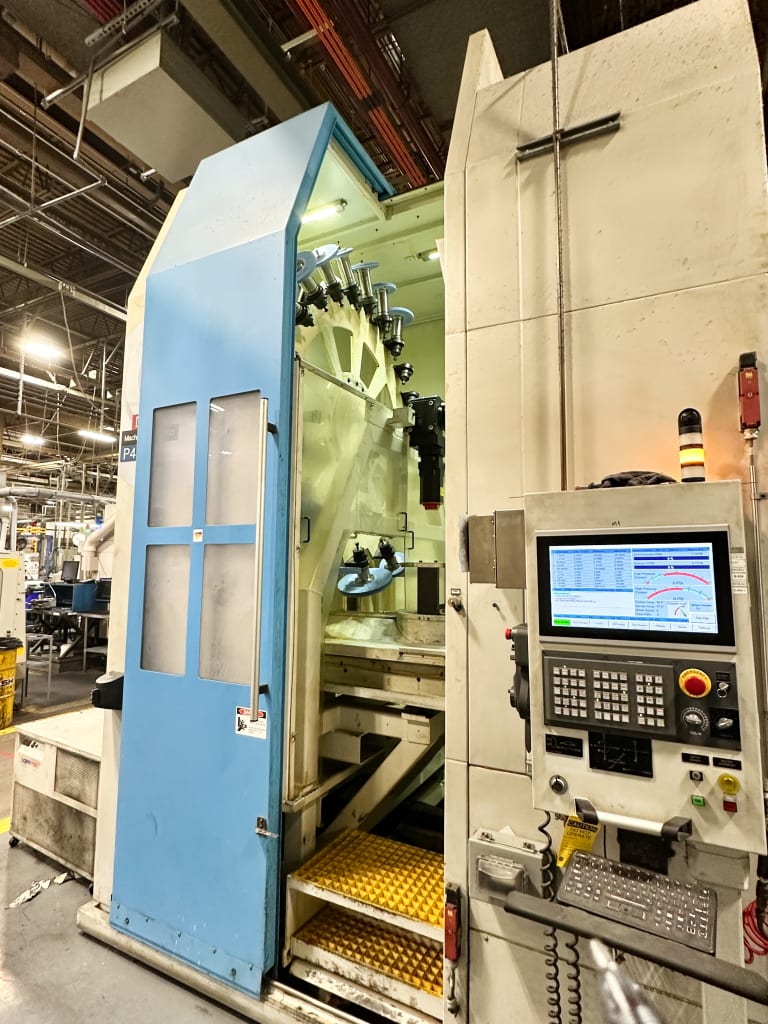

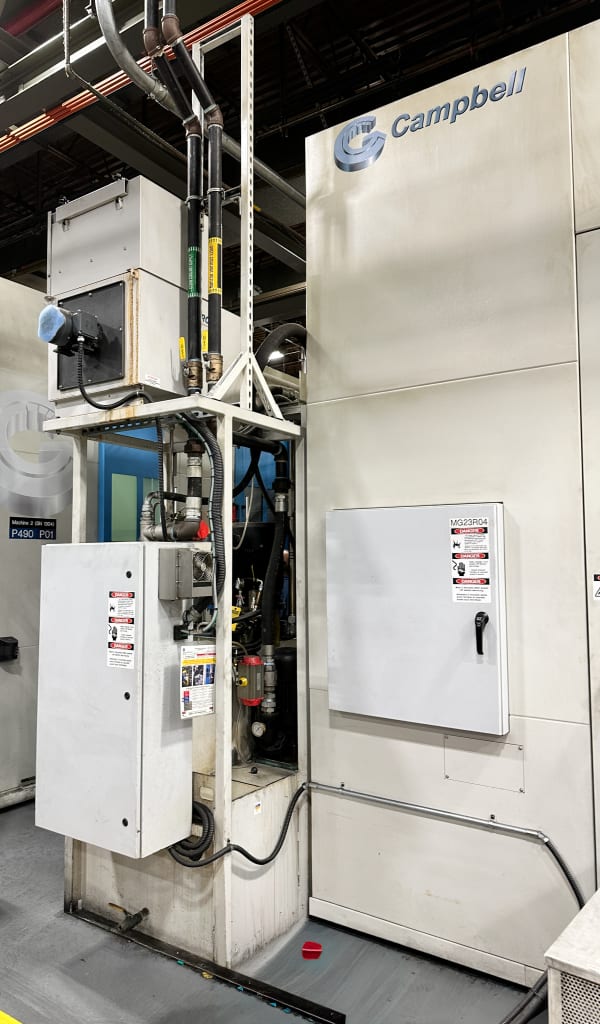

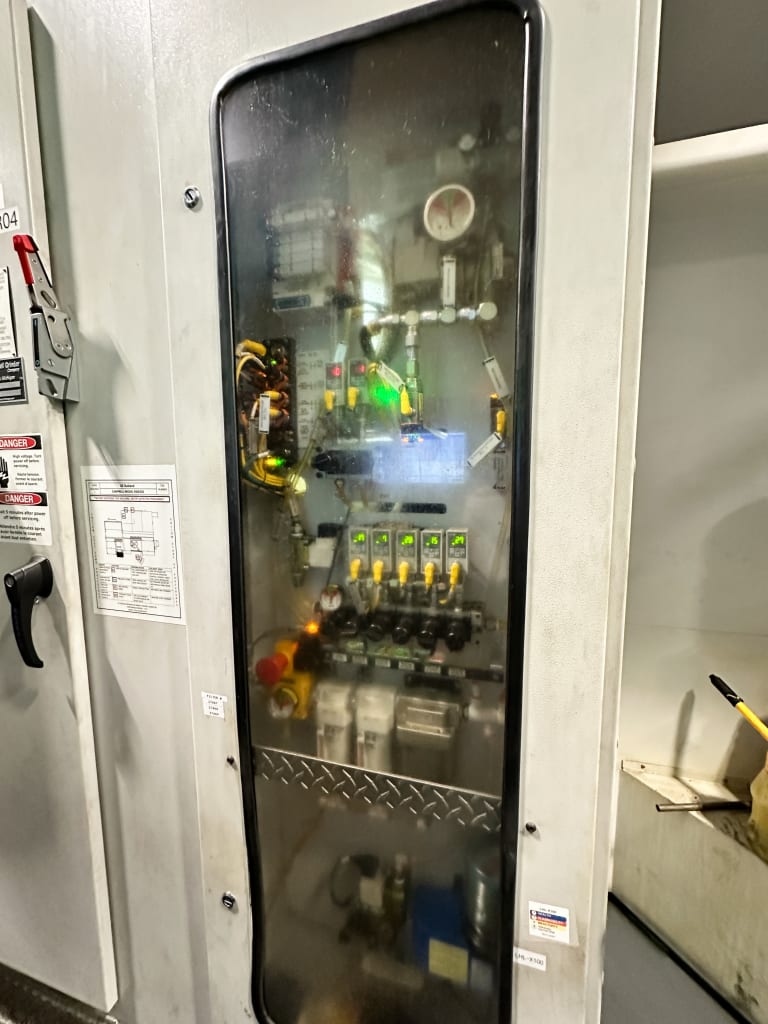

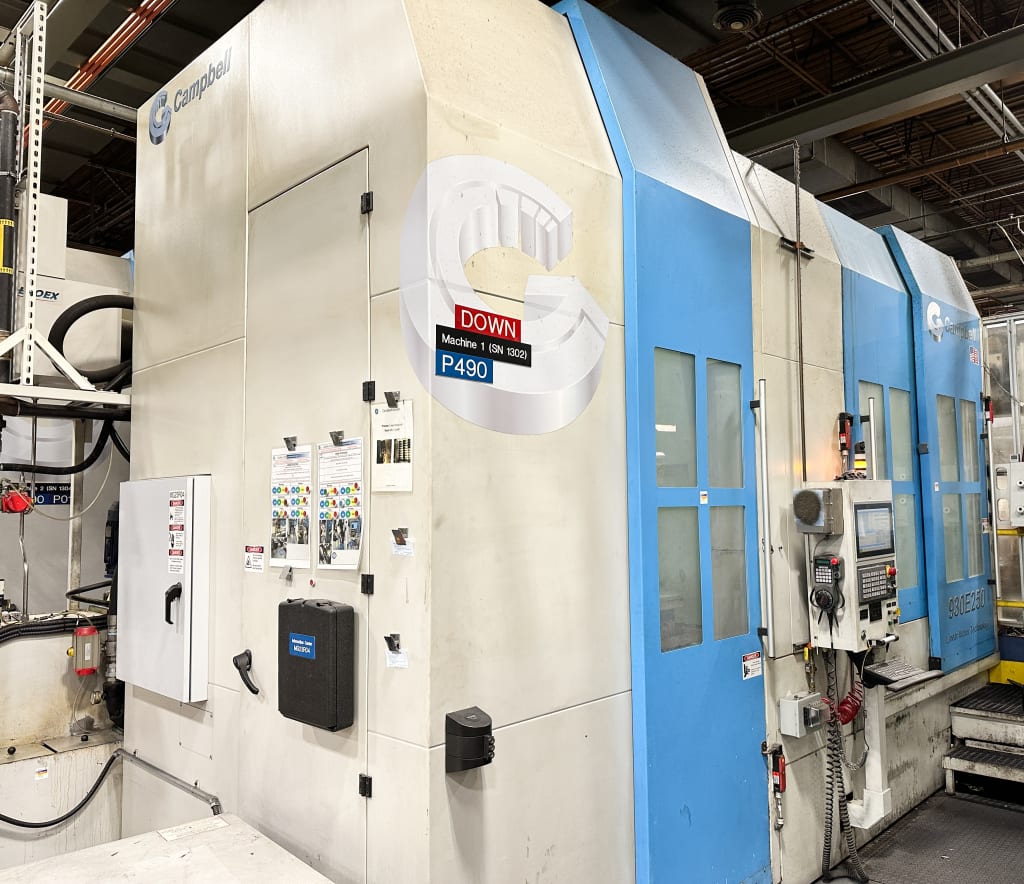

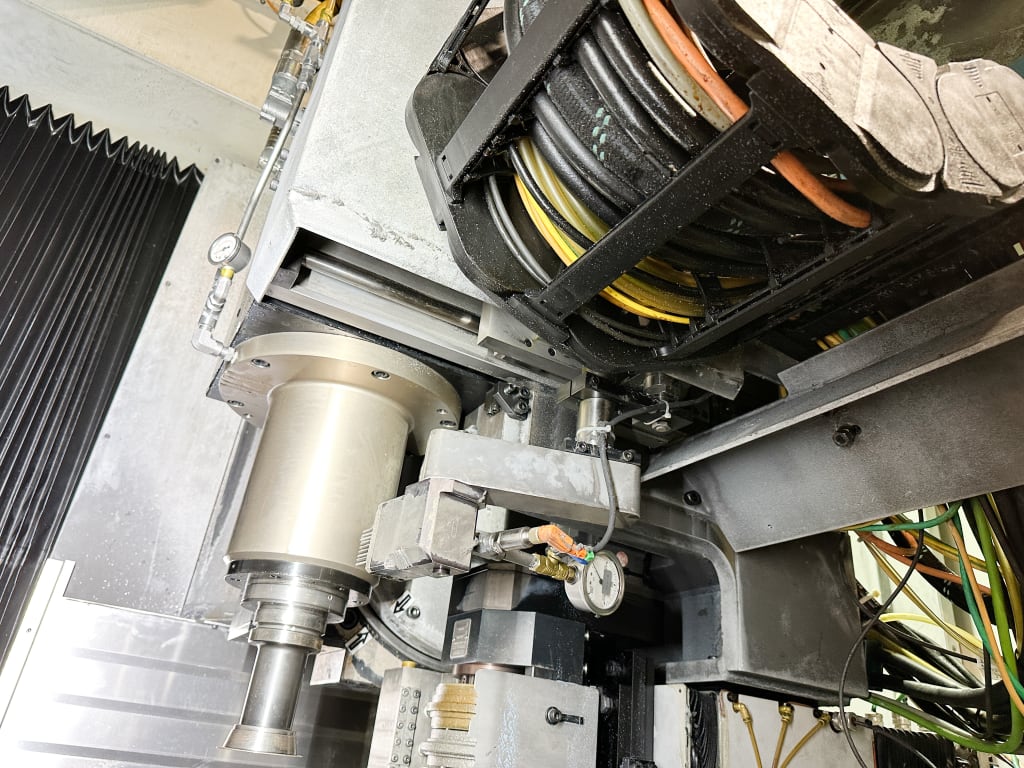

    2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder

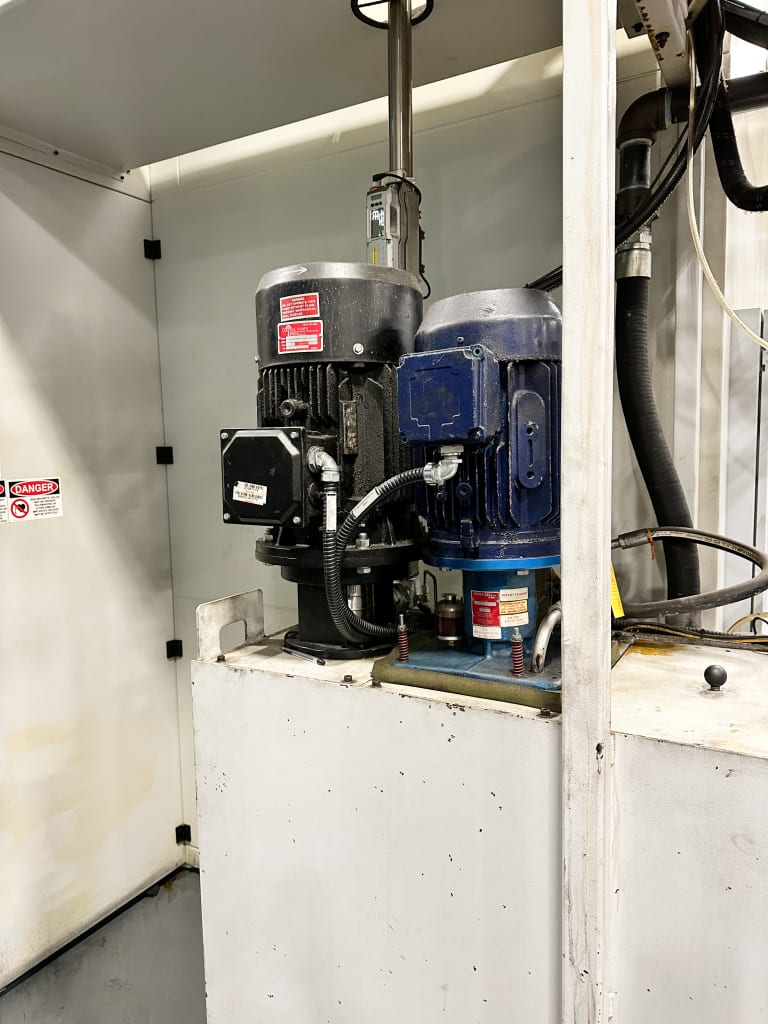

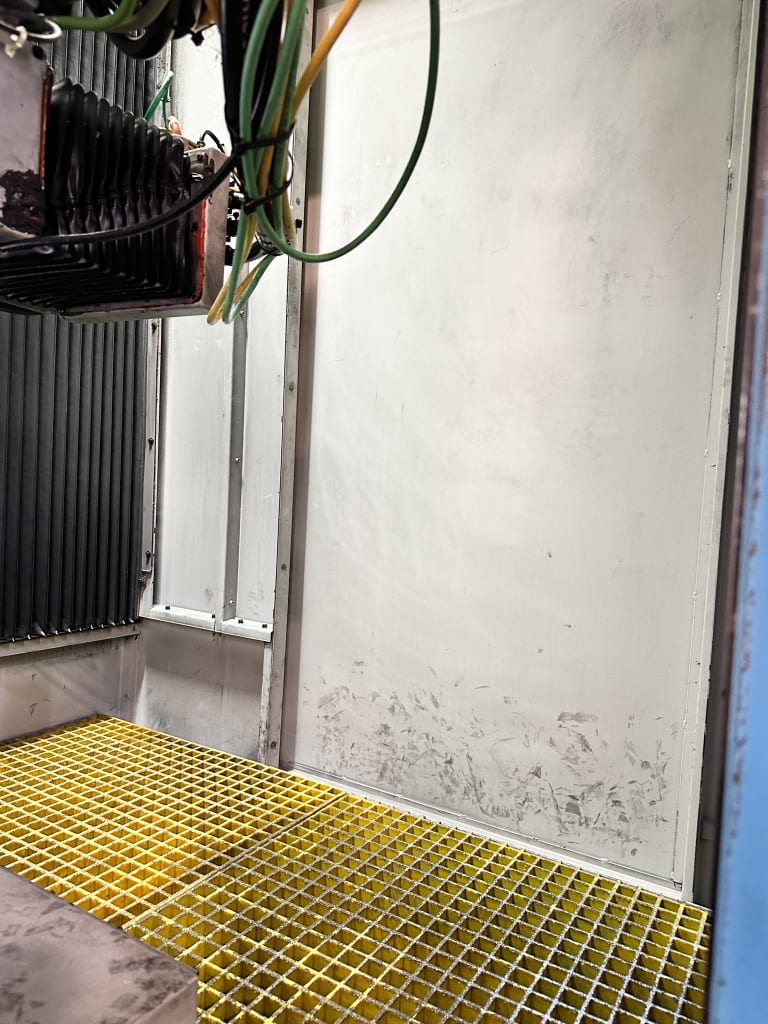

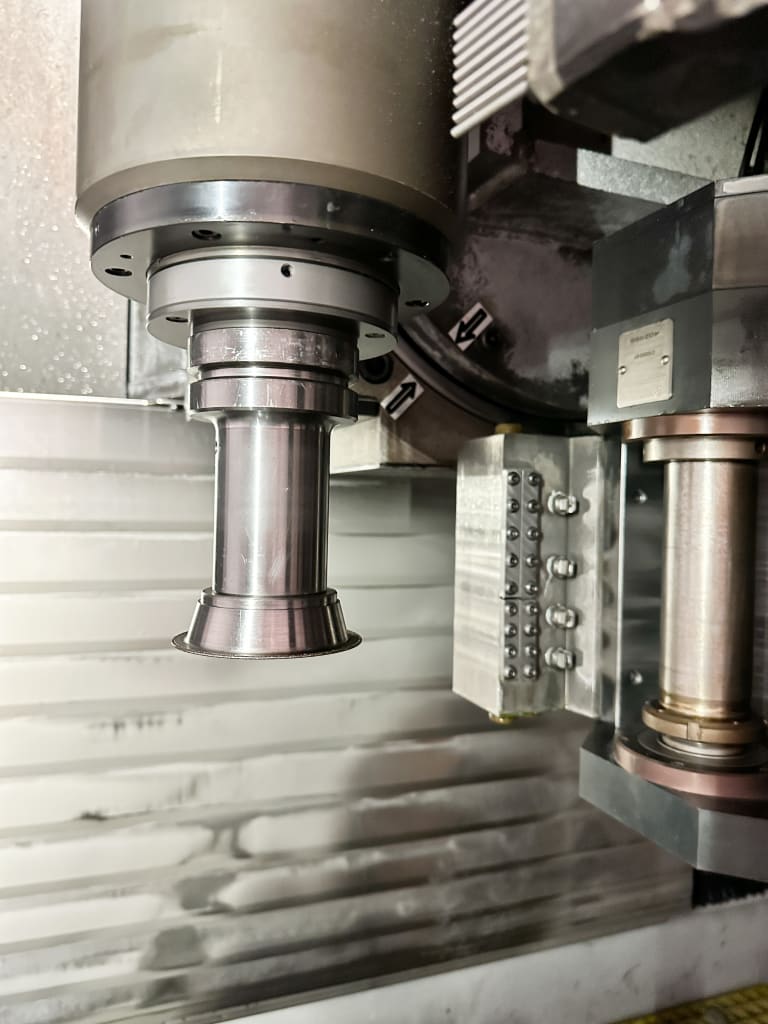

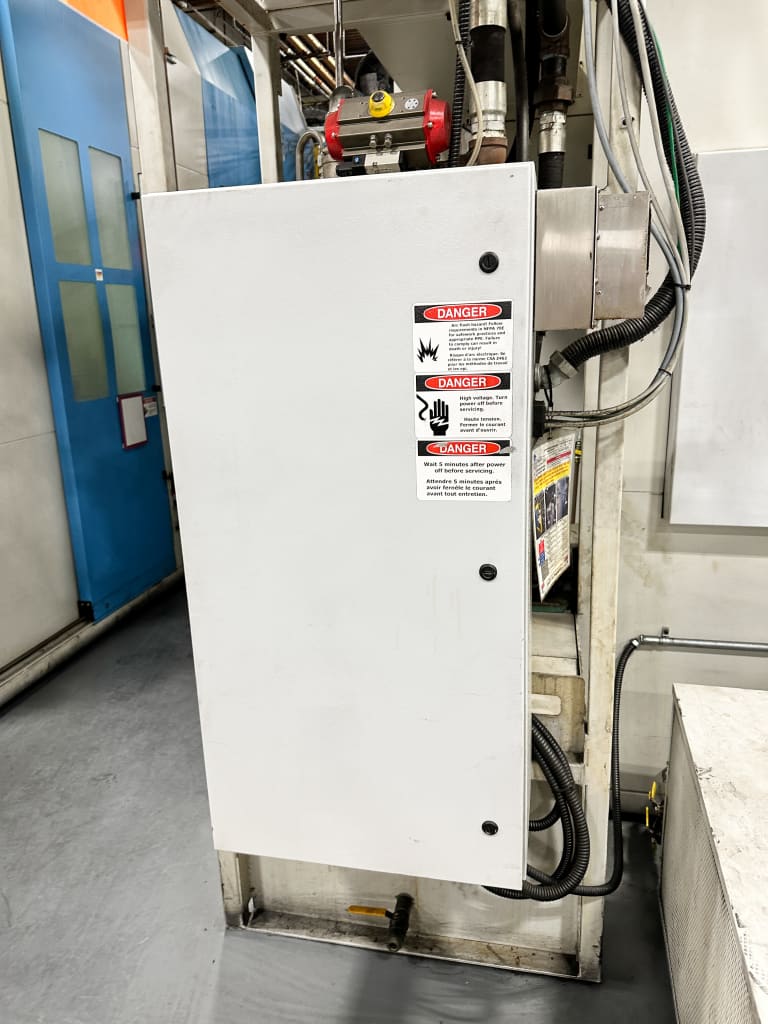

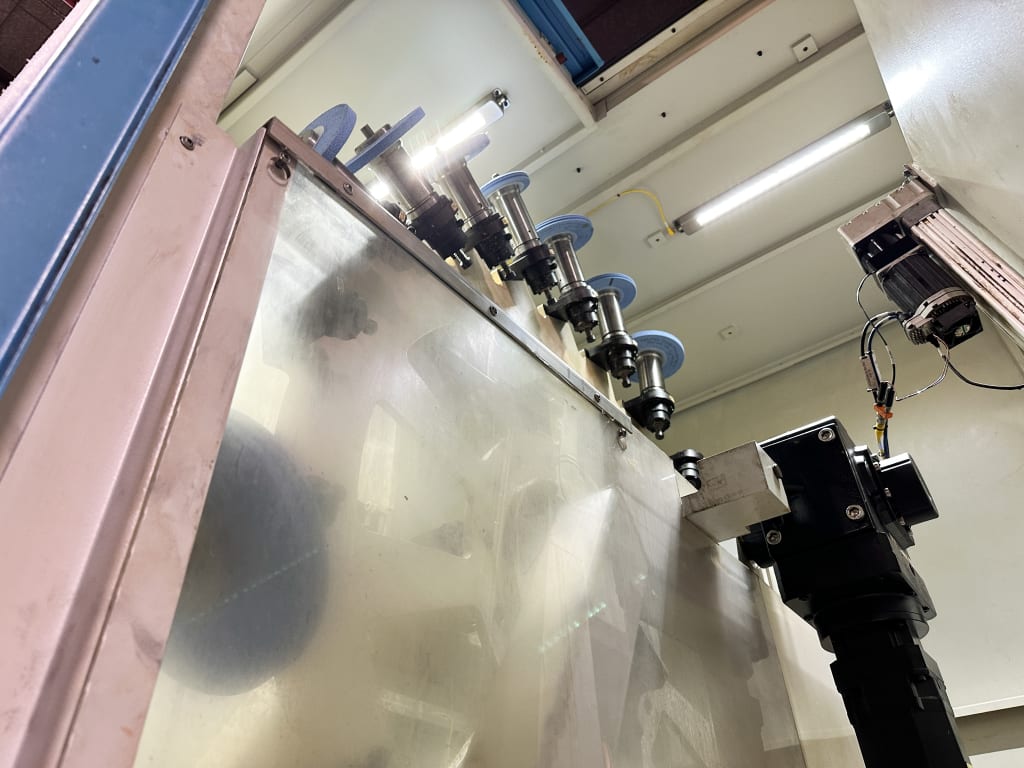

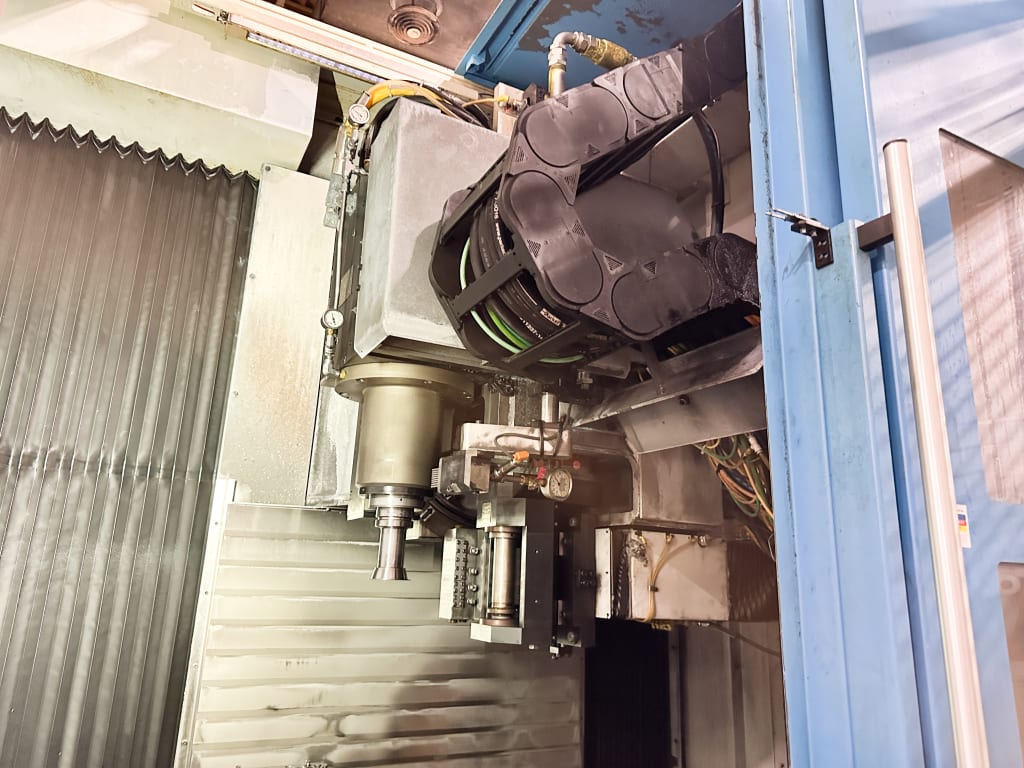

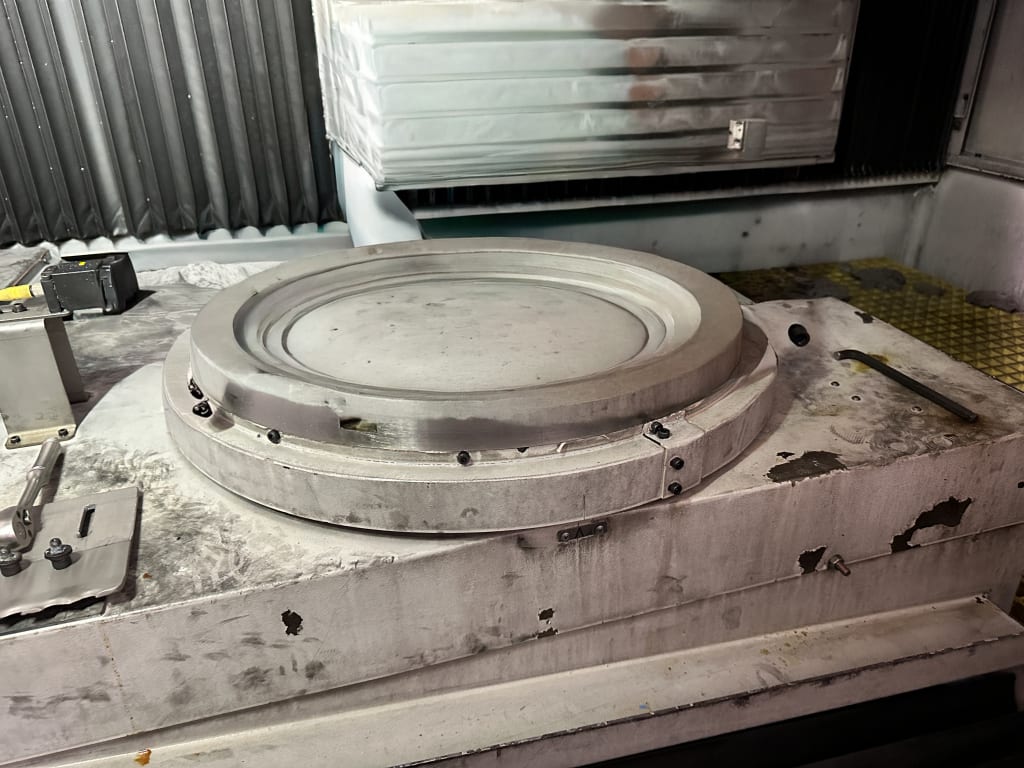

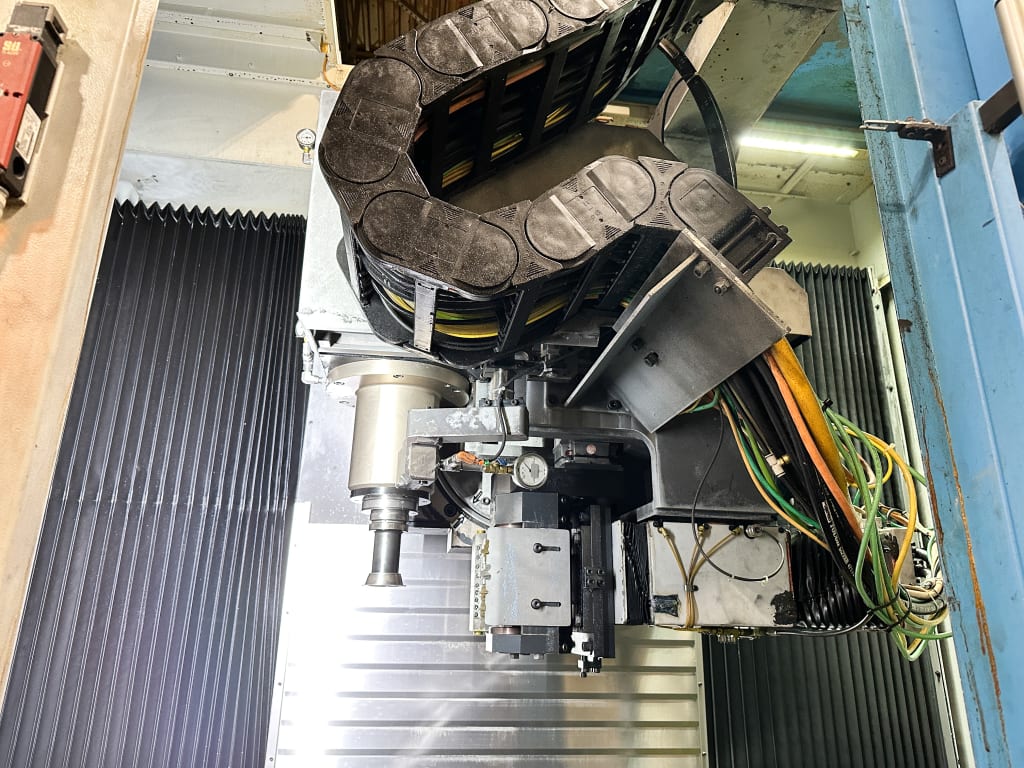

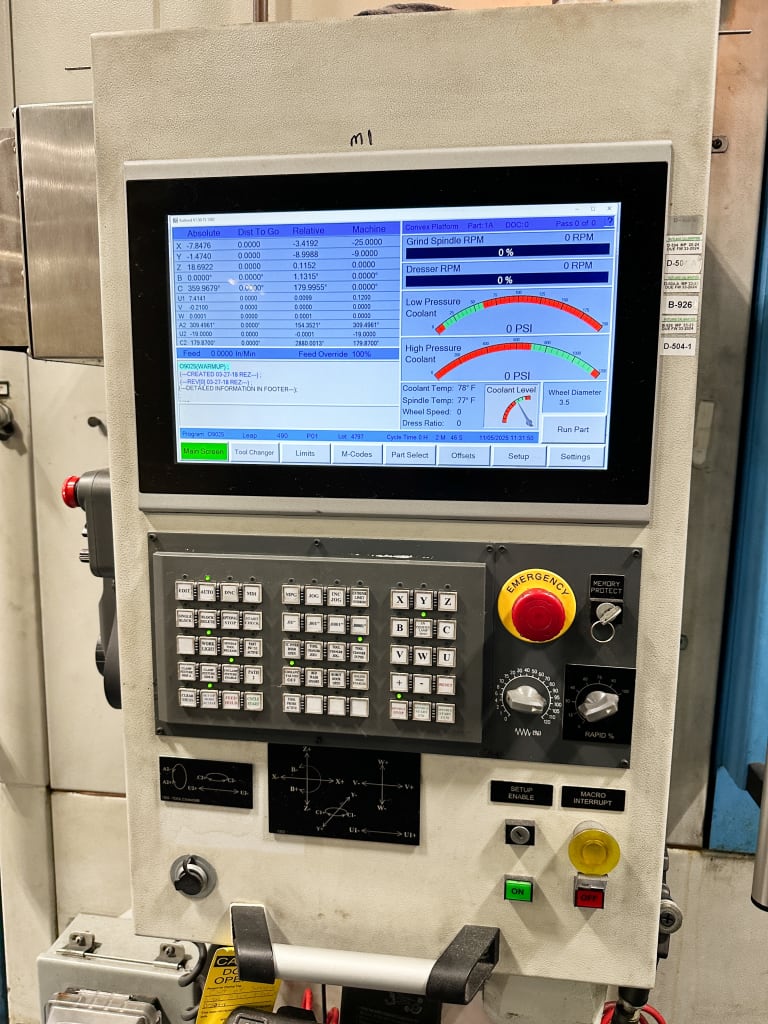

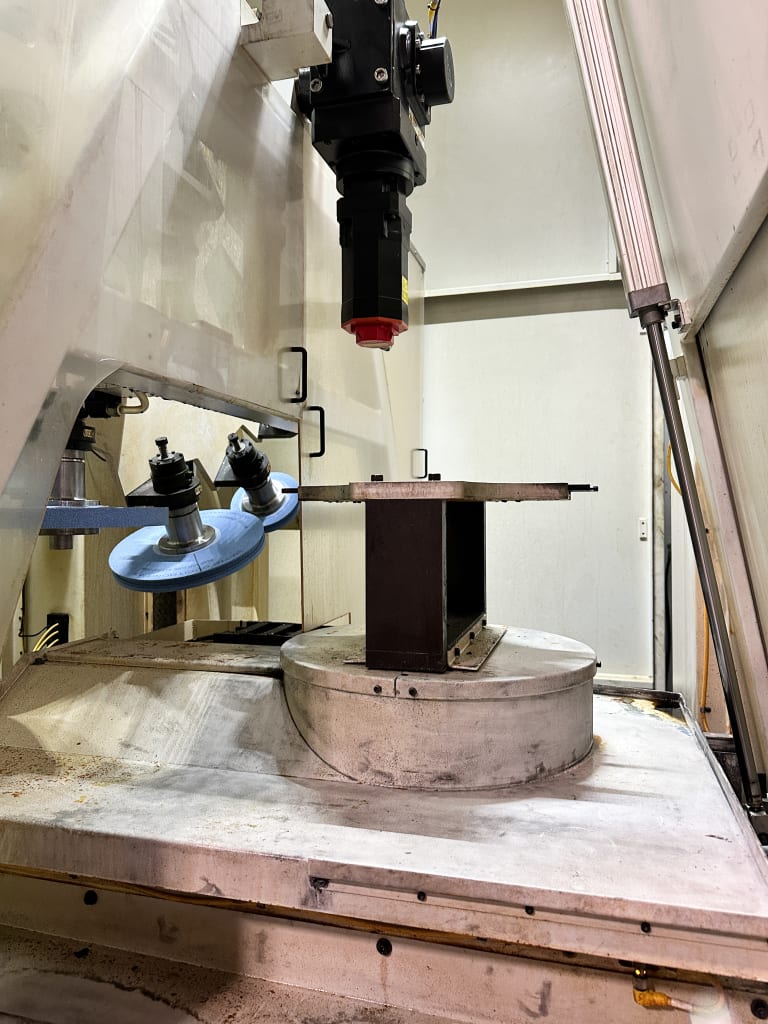

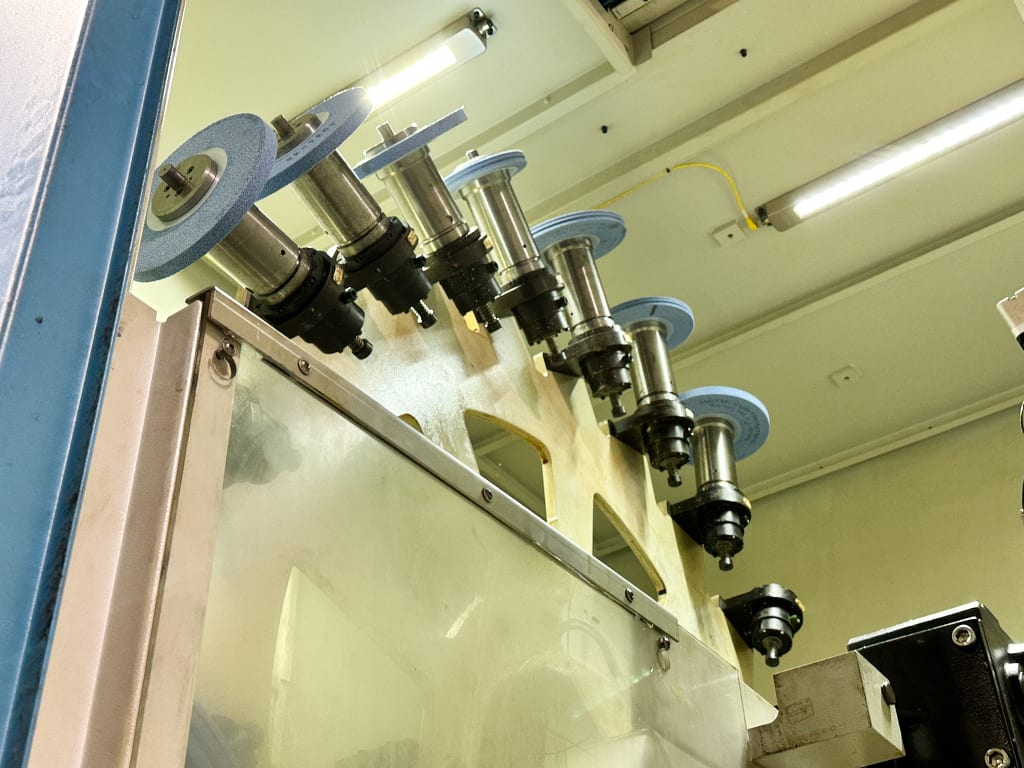

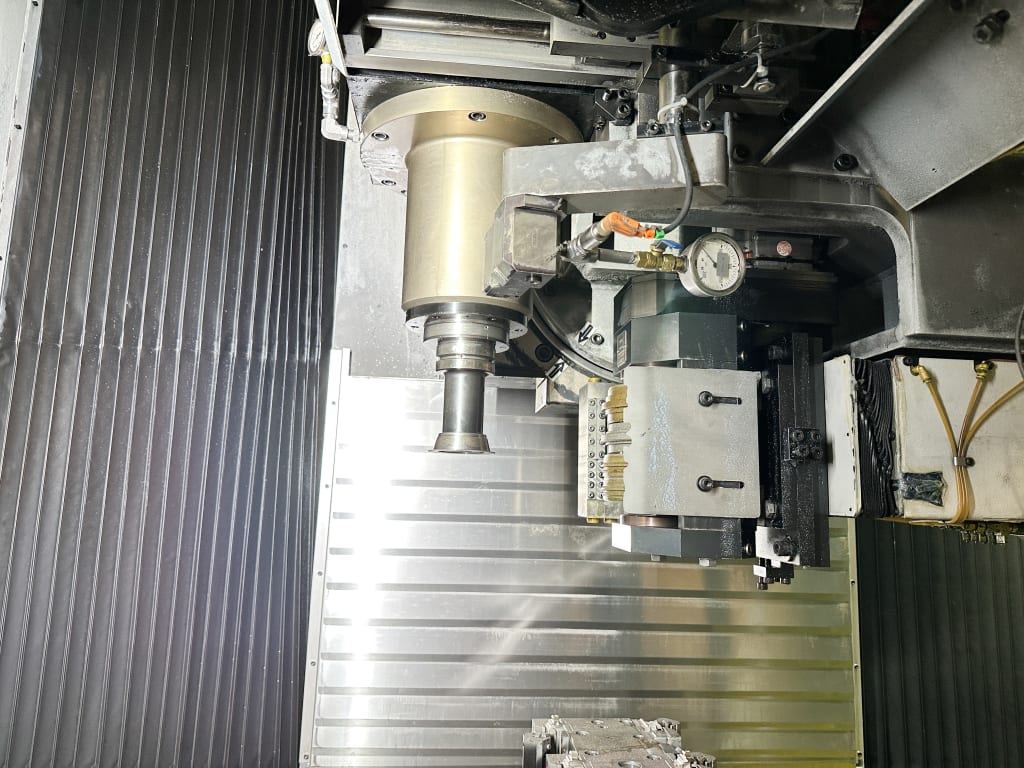

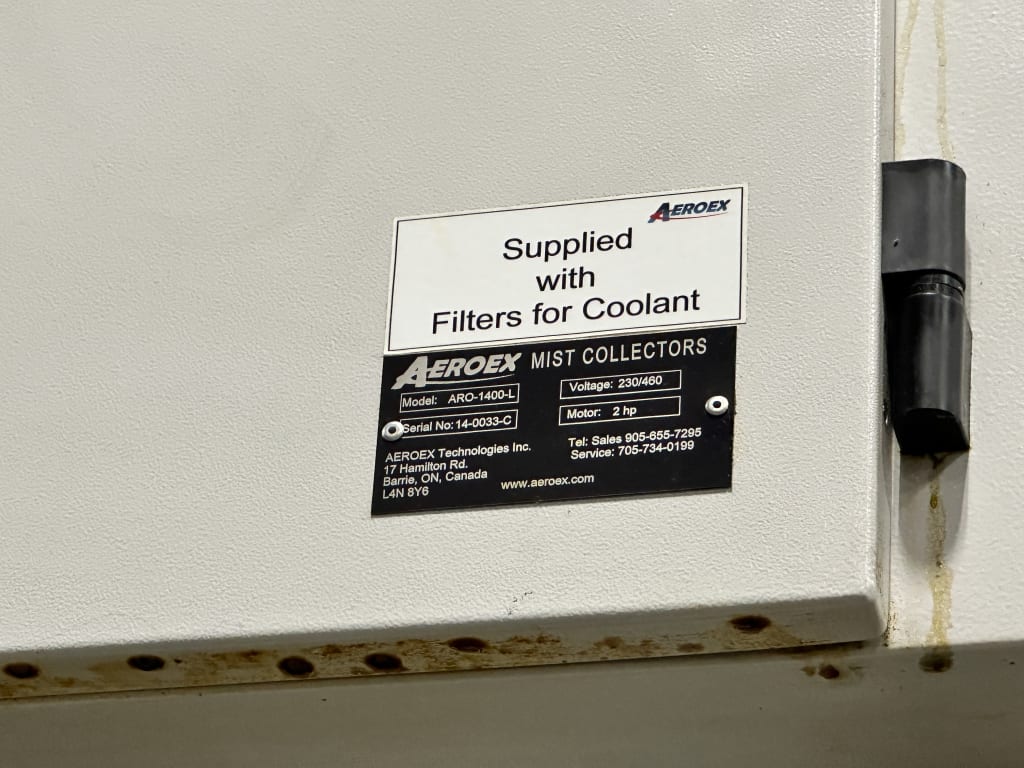

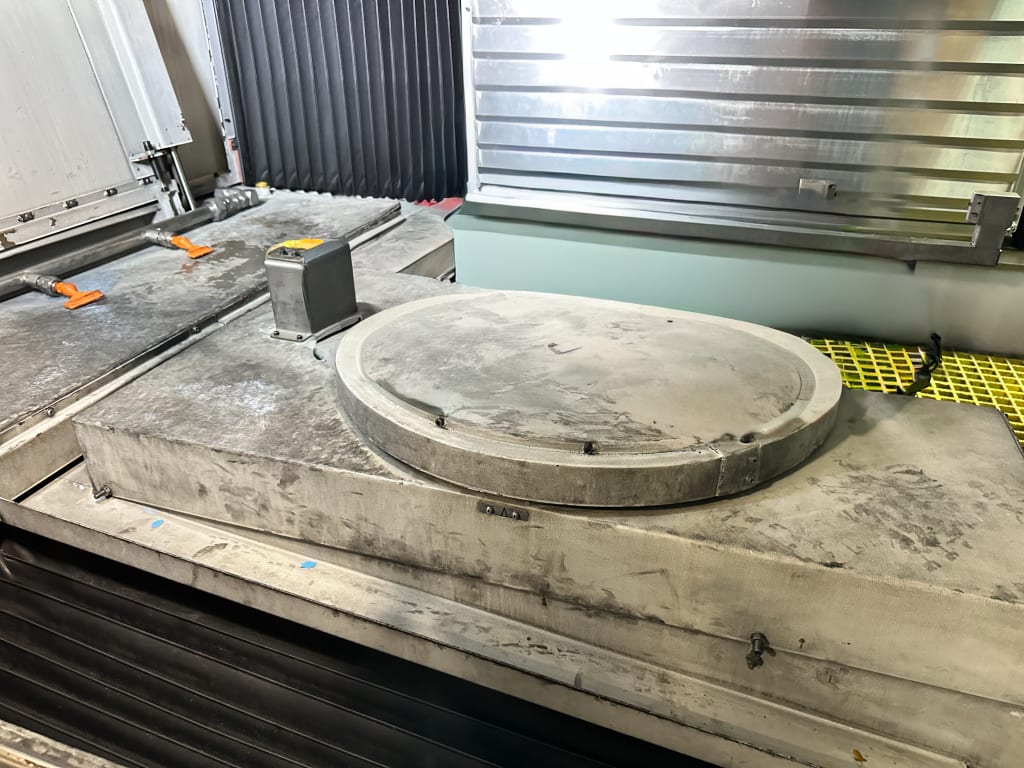

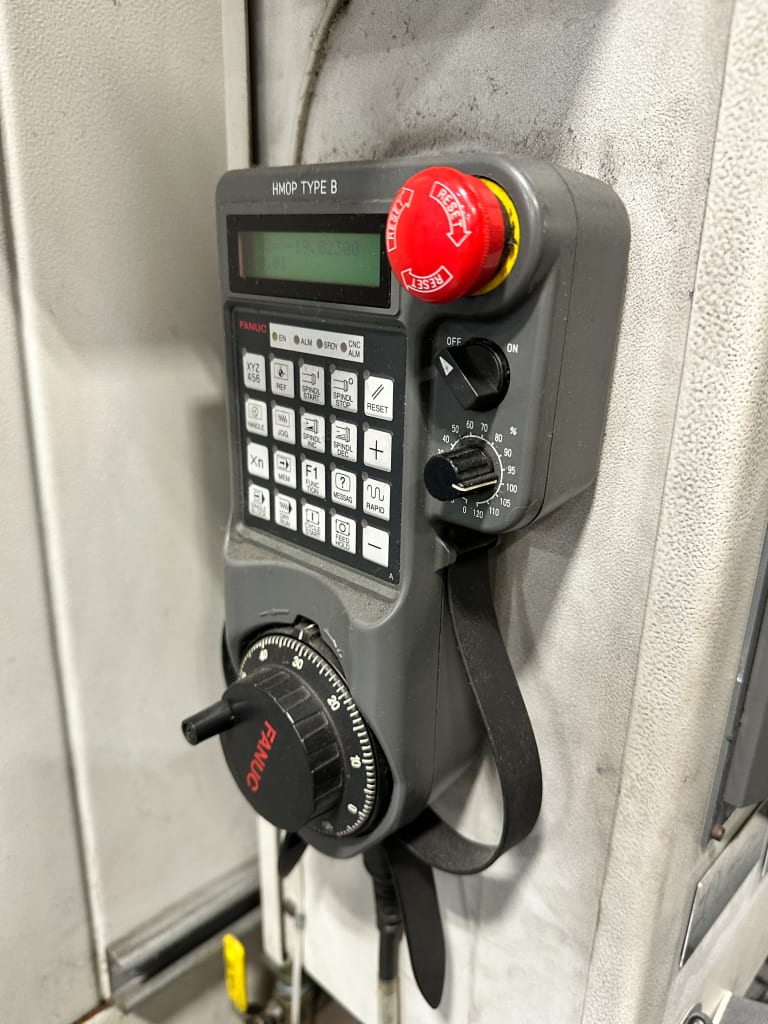

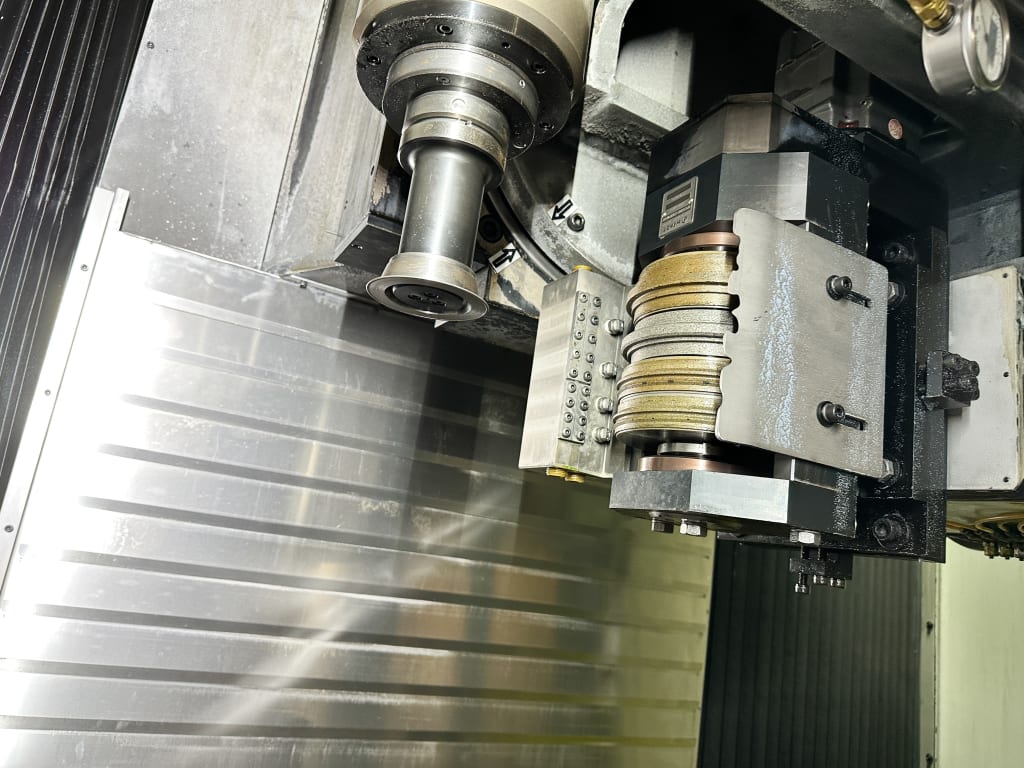

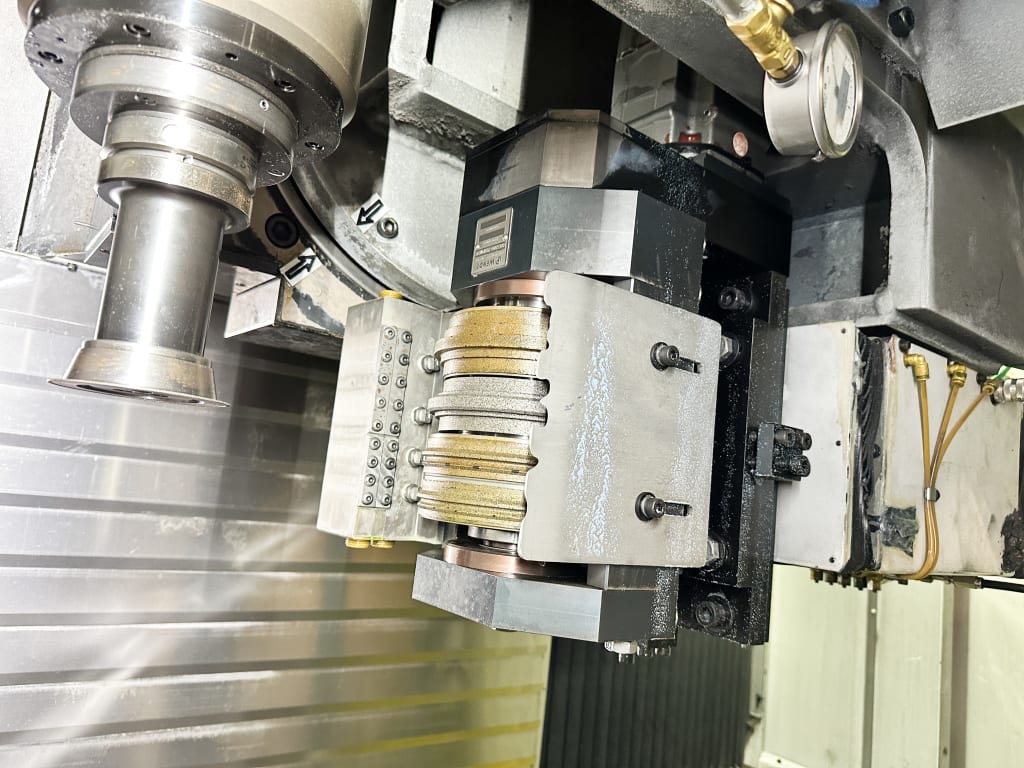

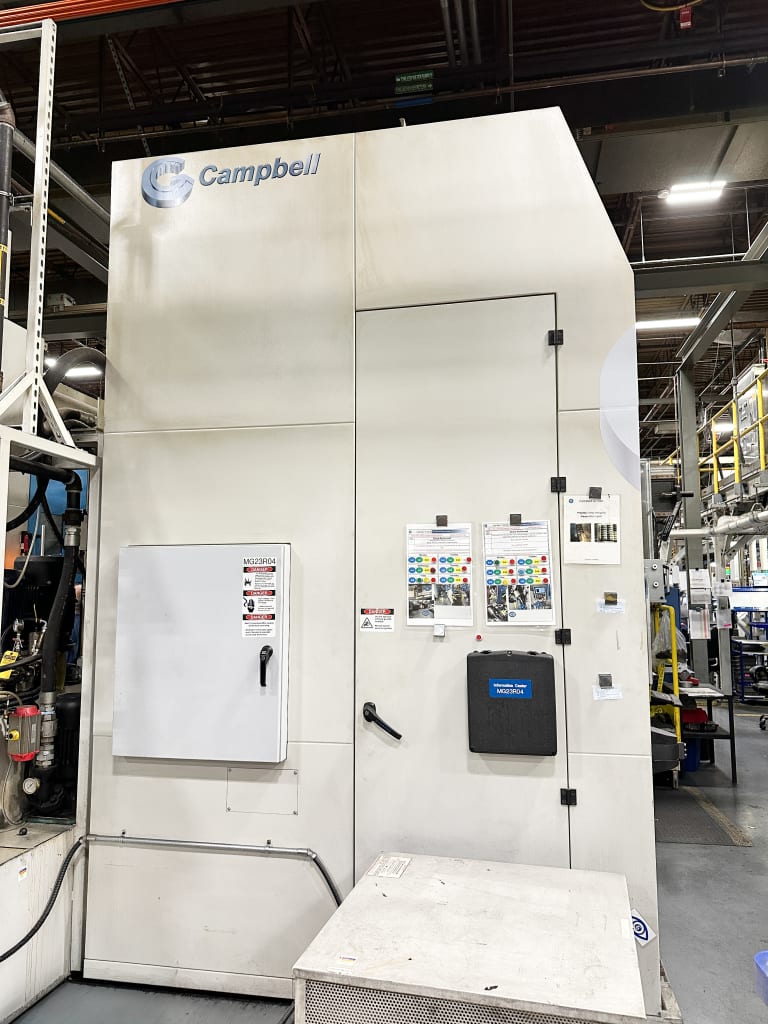

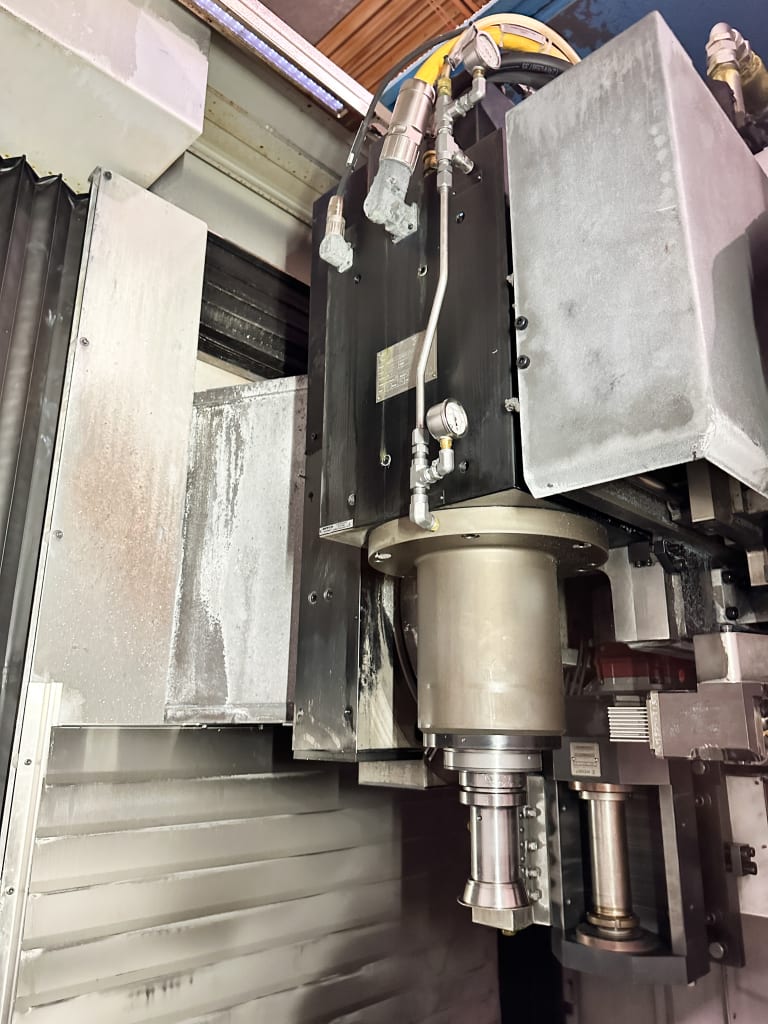

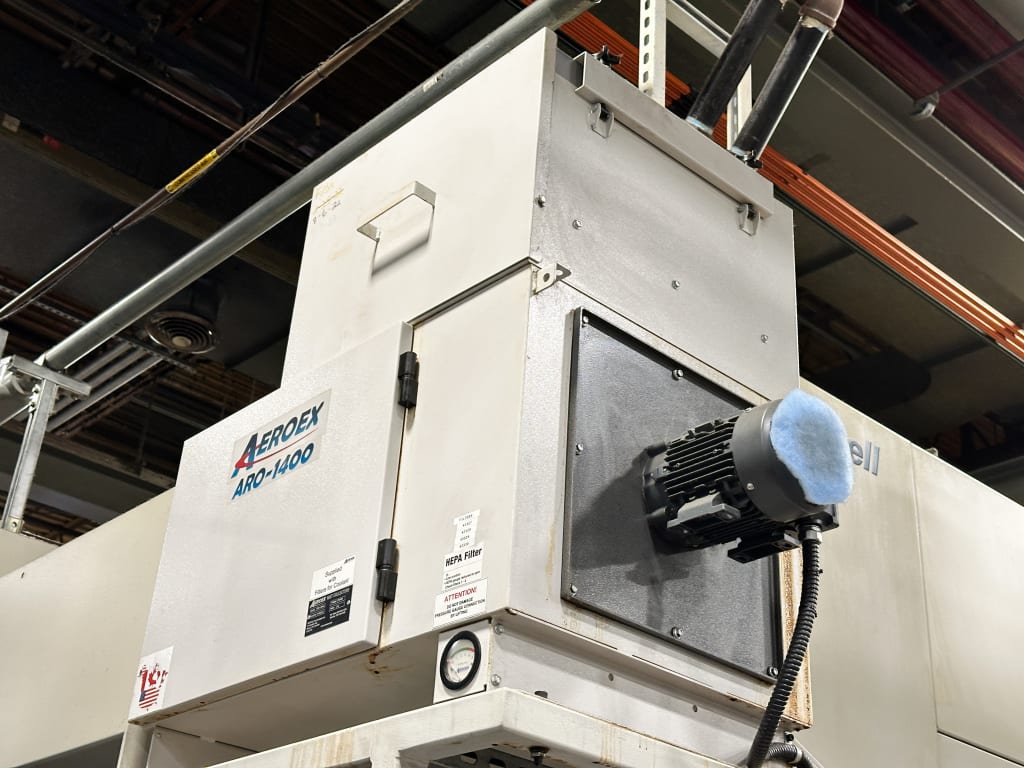

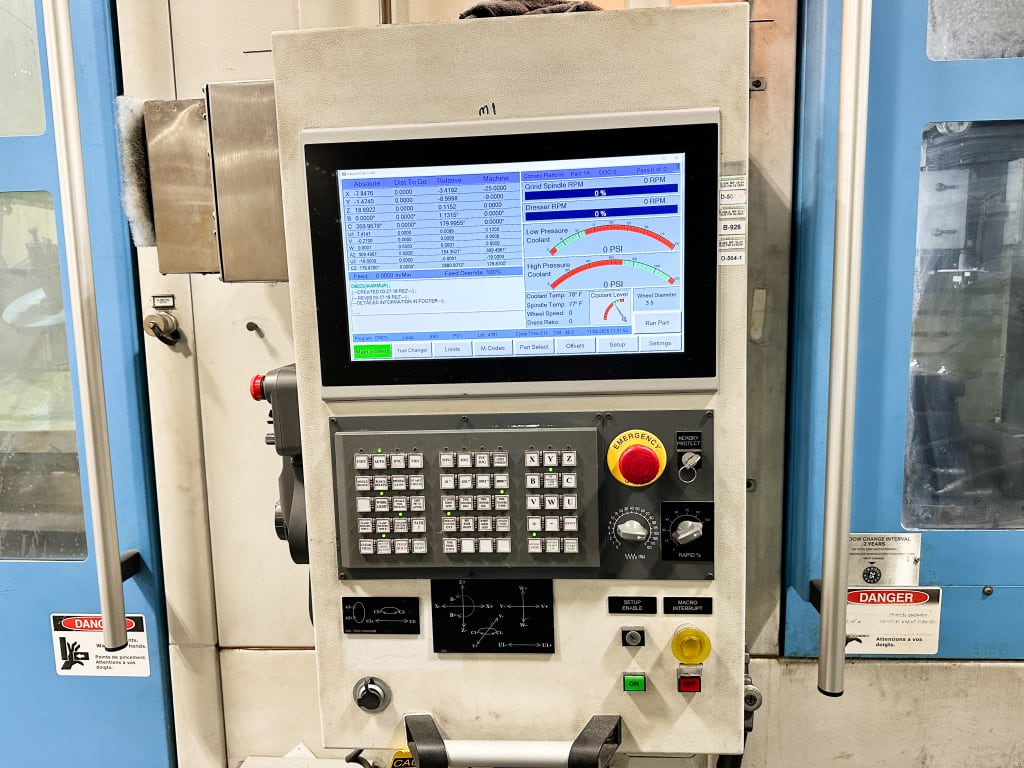

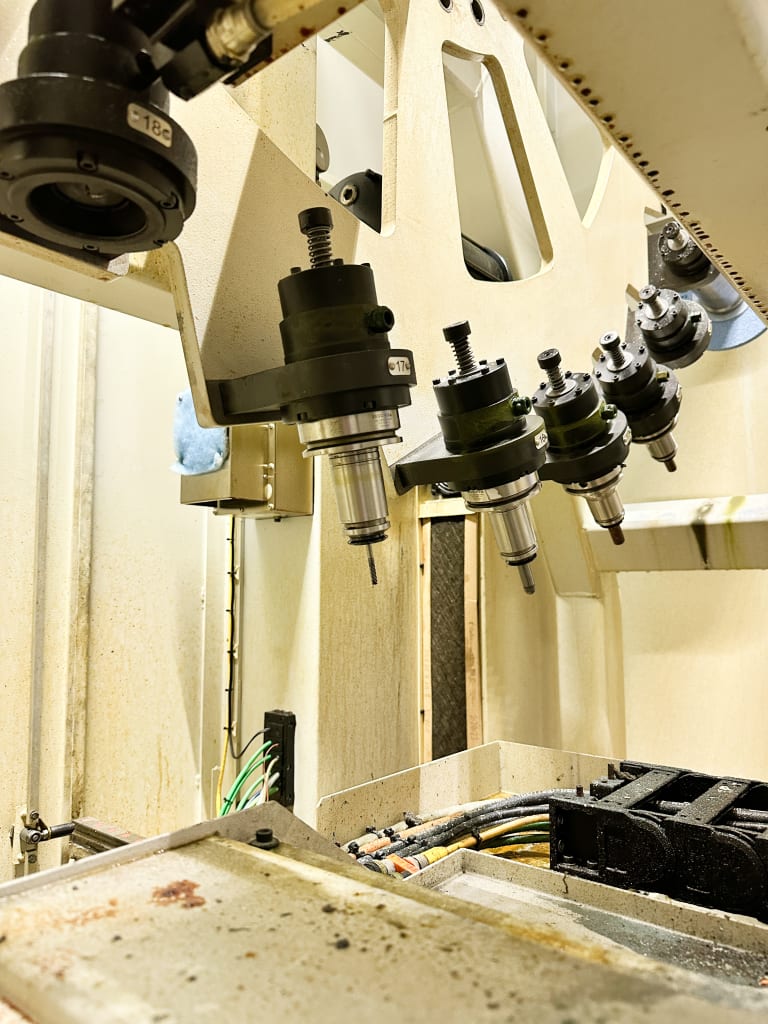

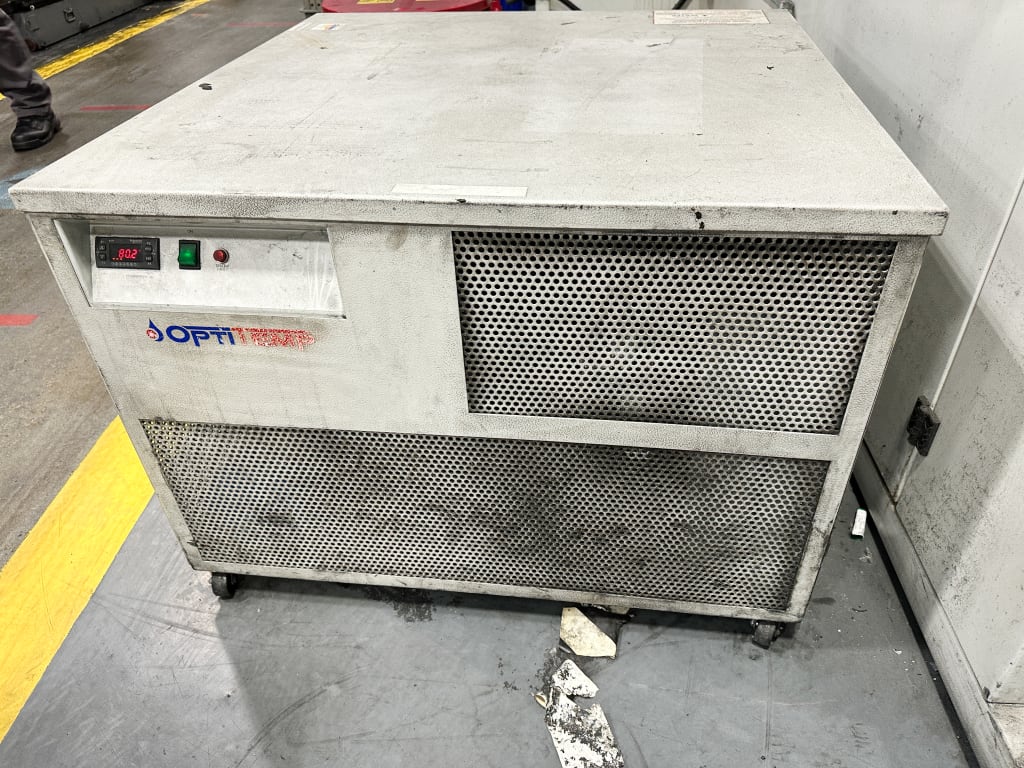

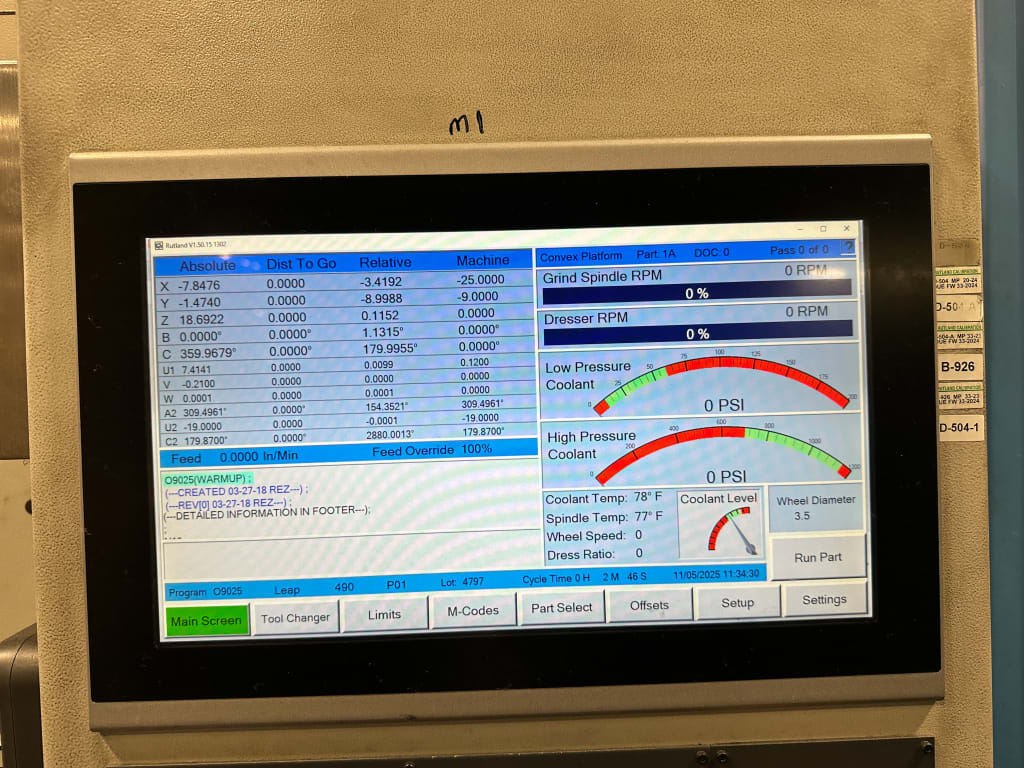

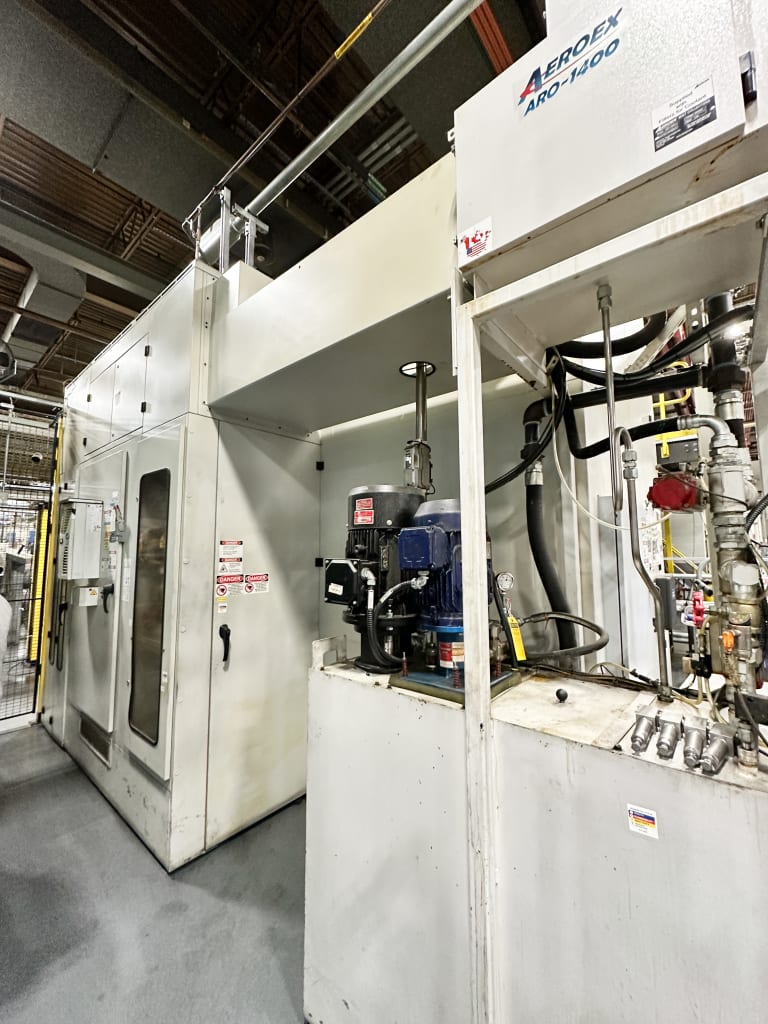

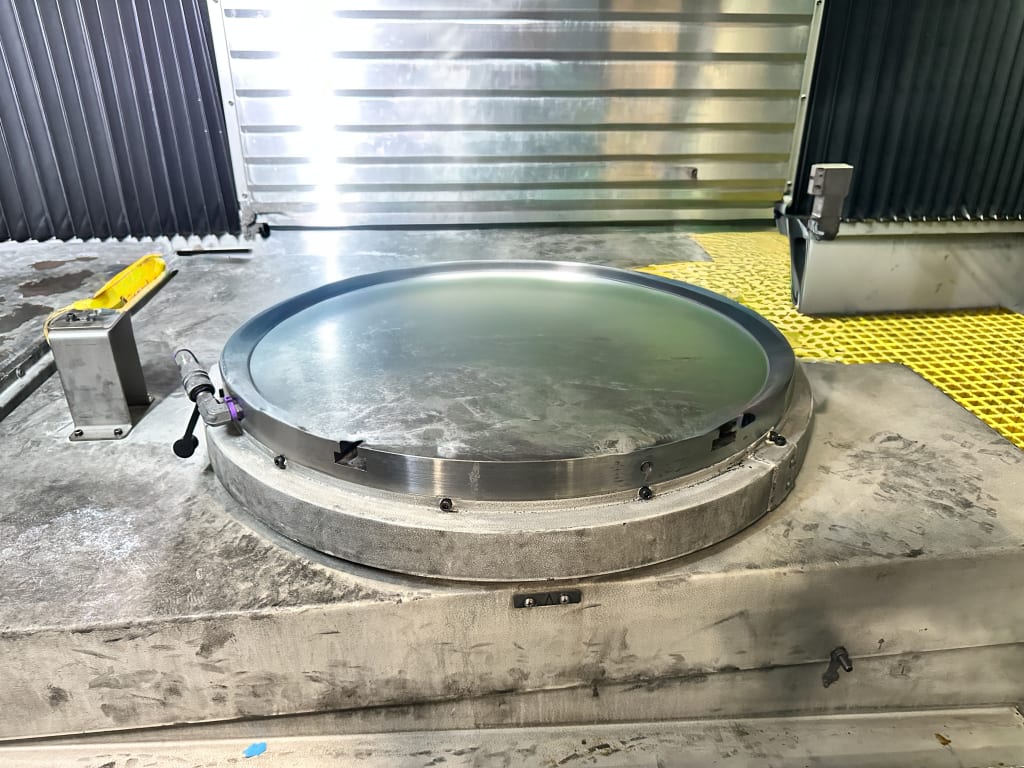

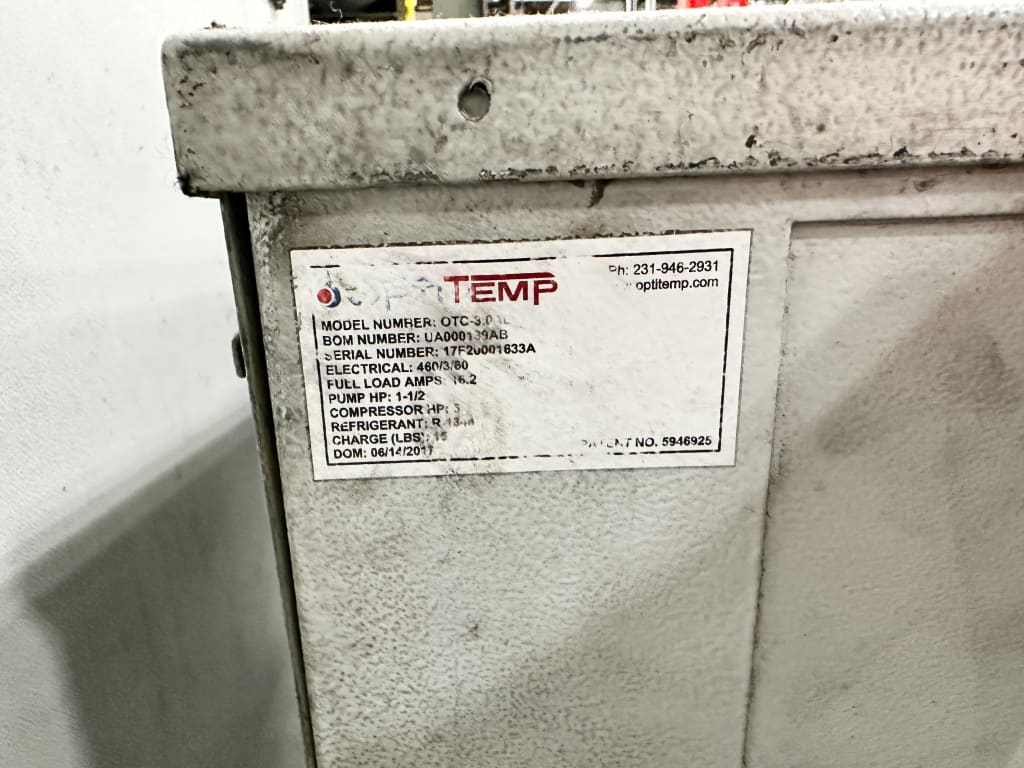

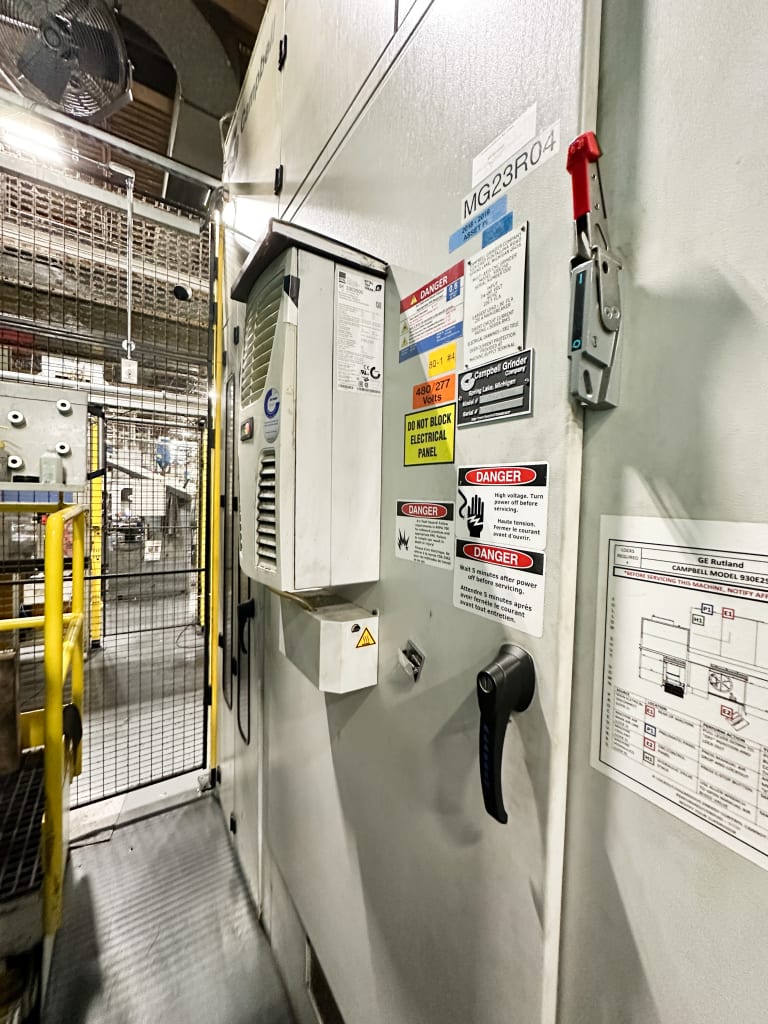

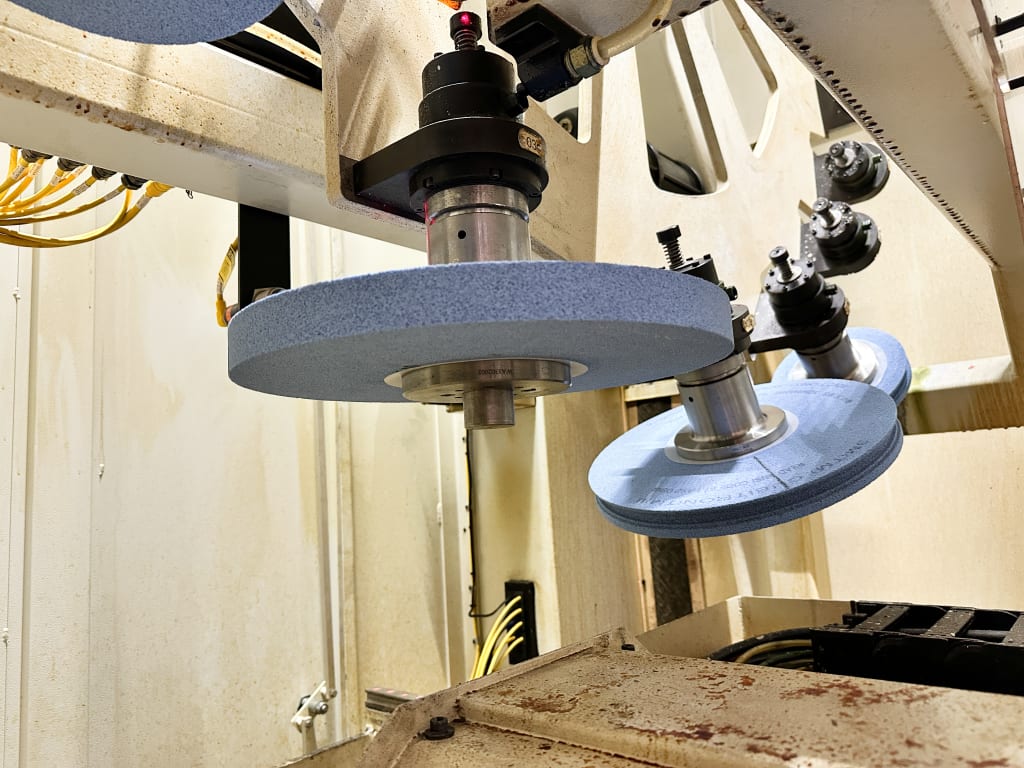

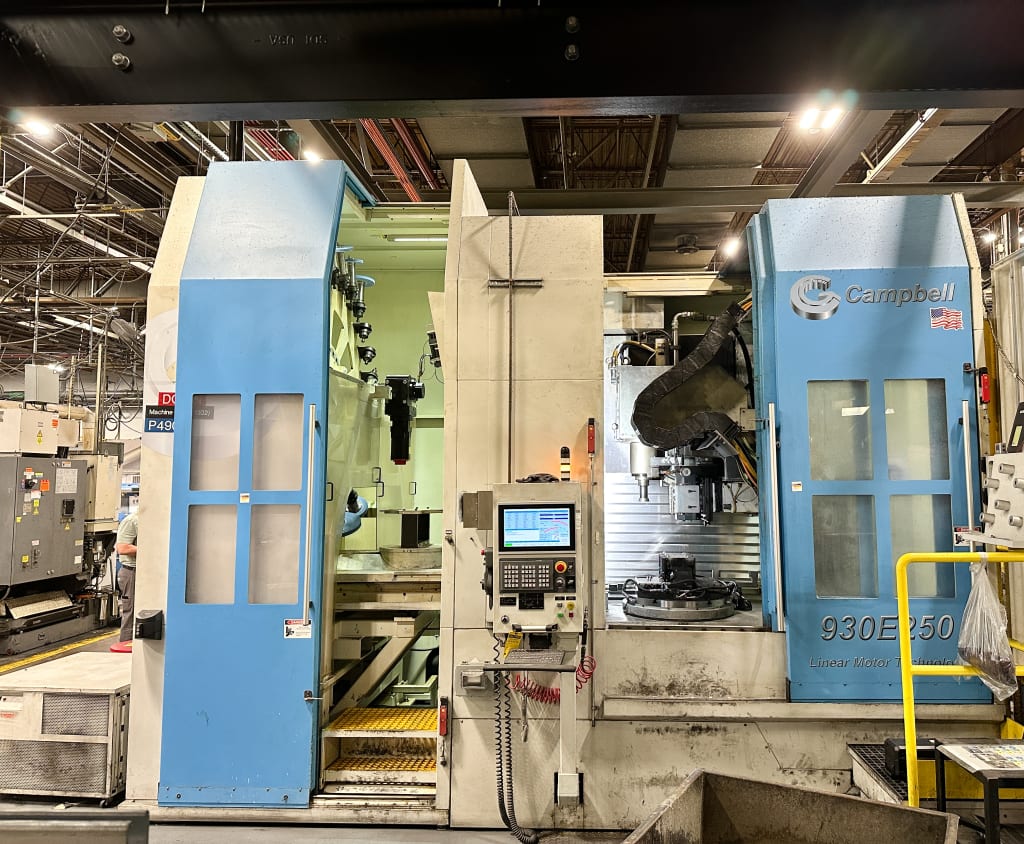

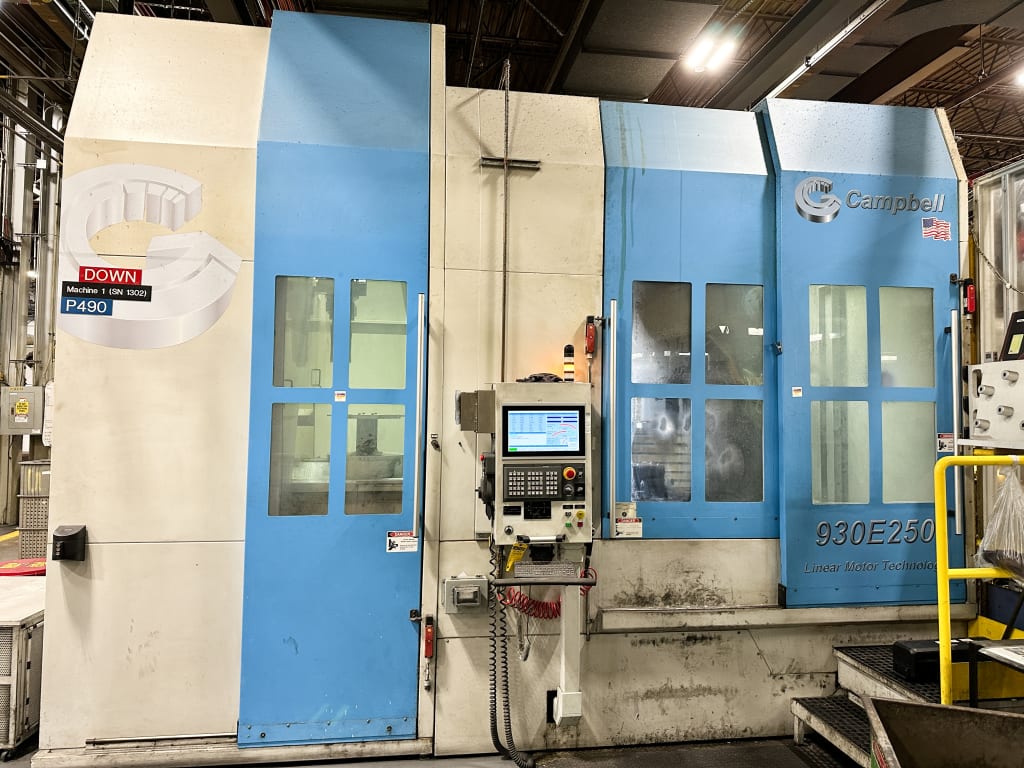

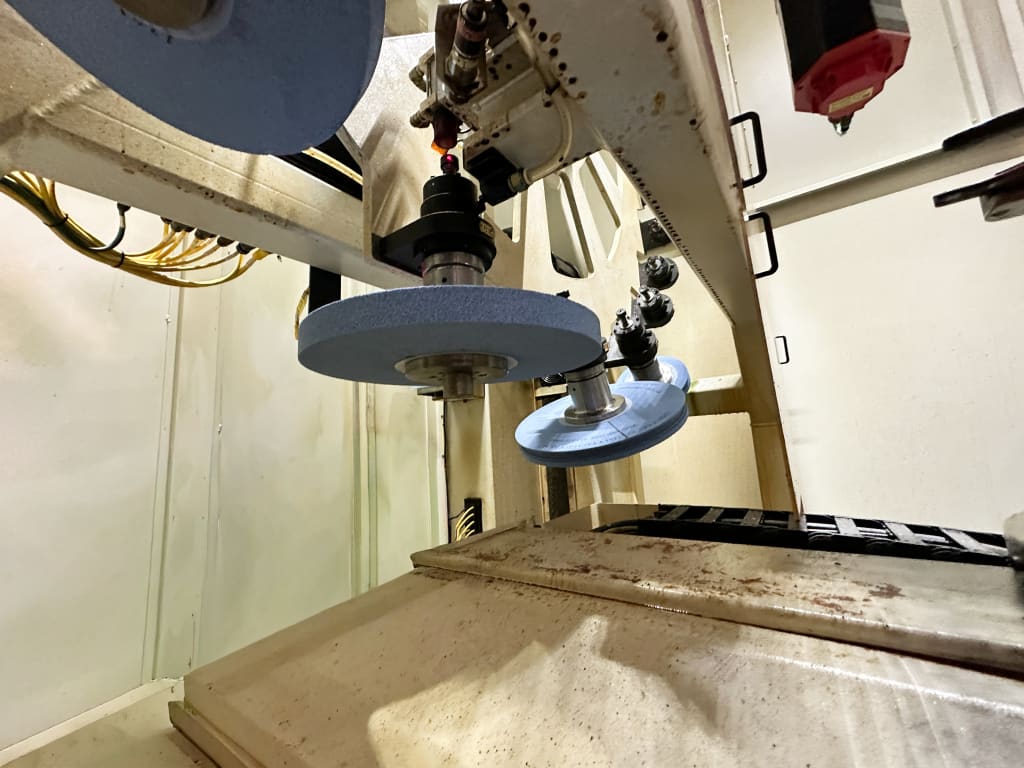

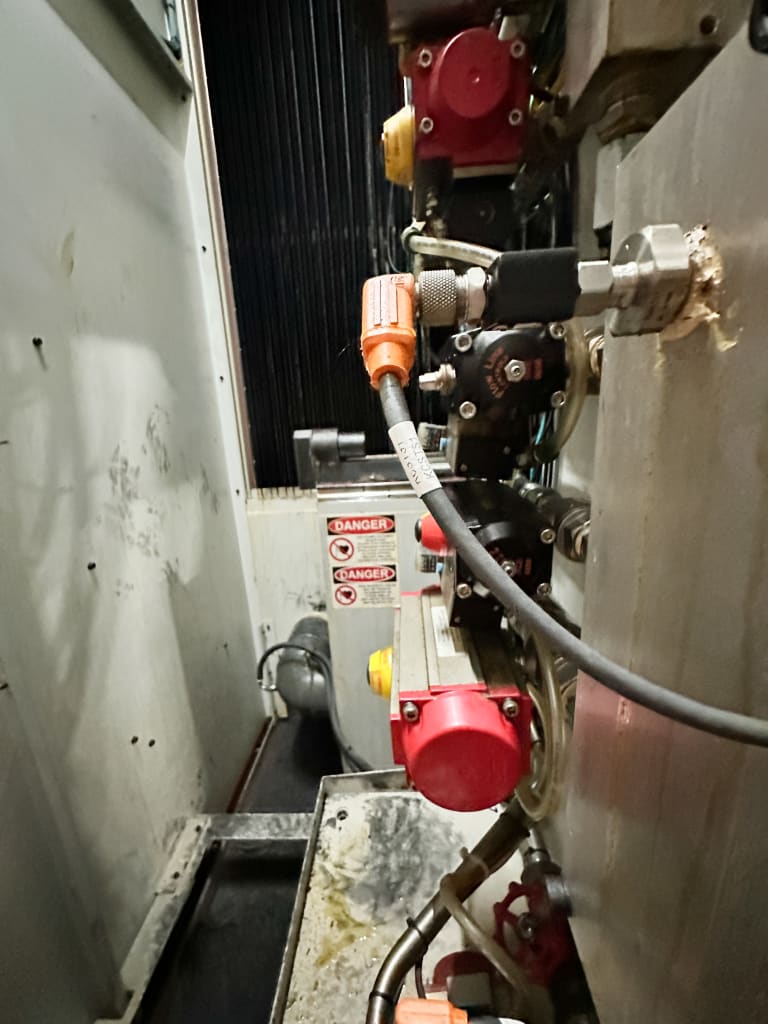

    2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder, Fanuc 32i CNC Controls 5-Axes of Motion, 5-Axes Simultaneous, 10" x 12" x 12" X/Y/Z Work Envelope, B (Spindle Swivel: 10 Arc Seconds, 2.5 Microns (0.002") measured 305mm (12") Above the Table Top CL, C (Rotary Table) 26" Diameter, 5 Arc Seconds, 2.5 Microns (0.002") measured 305mm (12") Above the Table Top CL, 300 IPM Rapid Traverse Speed, 300# Capacity, 30-HP, 1,500-10,000 RPM Grinding Spindle Speed, 2.5 Microns (0.001") Run Out Both Radially and Axially, HSK-80 Spindle Taper, Spindle Mounted Dresser: 0-5,500 RPM Speed, Roll Clamping: 6" Length for 4 Stacked Rolls, 52mm Arbor Diameter, Complete with 20-Positon Tool Changer, 14" Maximum Grinding Wheel, 8" Maximum Tool Length, 50# Capacity, Vertical Position Wheel Orientation, Complete with Precision Roller Ways - All Axes Through the Table Hydraulics, Direct Motorized Liquid Cooled Grinding Spindle, All Linear Motors, Direct Feedback (All Scales), Stacked Wheel Dresser, Aeroex ARO-1400-L 2-HP Mist Collector, OptiTemp OTCX-3.0AL Chiller, 8,507 Spindle Hours, S/N: 1302 (Note: Wire Harness Needs to be Replaced, Machine Will Come with Replacement Wire Harness, Chuck is Intact, we Removed GE IP from the Photos) (Subject to Bulk Bid)
    View Item
  • 2-1_igaizi
    2-4_creize
    2-5_zz7vn1
    2-6_kkt38w
    2-7_goyx4g
    2-8_rra4wa
    2-9_nfi0ho
    2-10_pbo9st
    2-11_laddyh

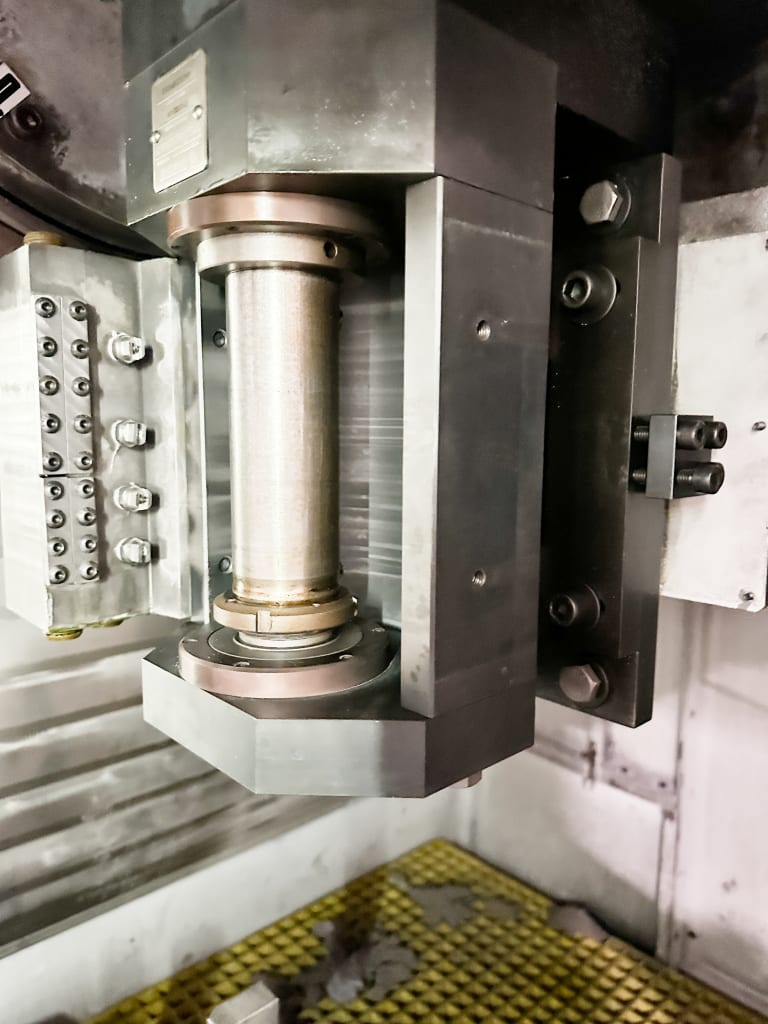

    2-12_ko2w1a
    2-13_yxxqjo
    2-14_uv3gve
    2-15_zxehtu
    2-16_iwzvzz
    2-17_fhgfrm
    2-18_h44ani
    2-19_vq8q56
    2-20_t7jkkz
    2-21_yoxstc
    2-22_it3vxa
    2-23_boxawz
    2-24_jk7zj5
    2-25_gyej69
    2-26_gr8itj
    2-27_zyrvmu
    2-28_lyfy3x
    2-29_dqn4sx
    2-30_ttfwvs
    2-31_iczorb
    2-32_dahvcj
    2-33_csqd1x
    2-34_bfuww6

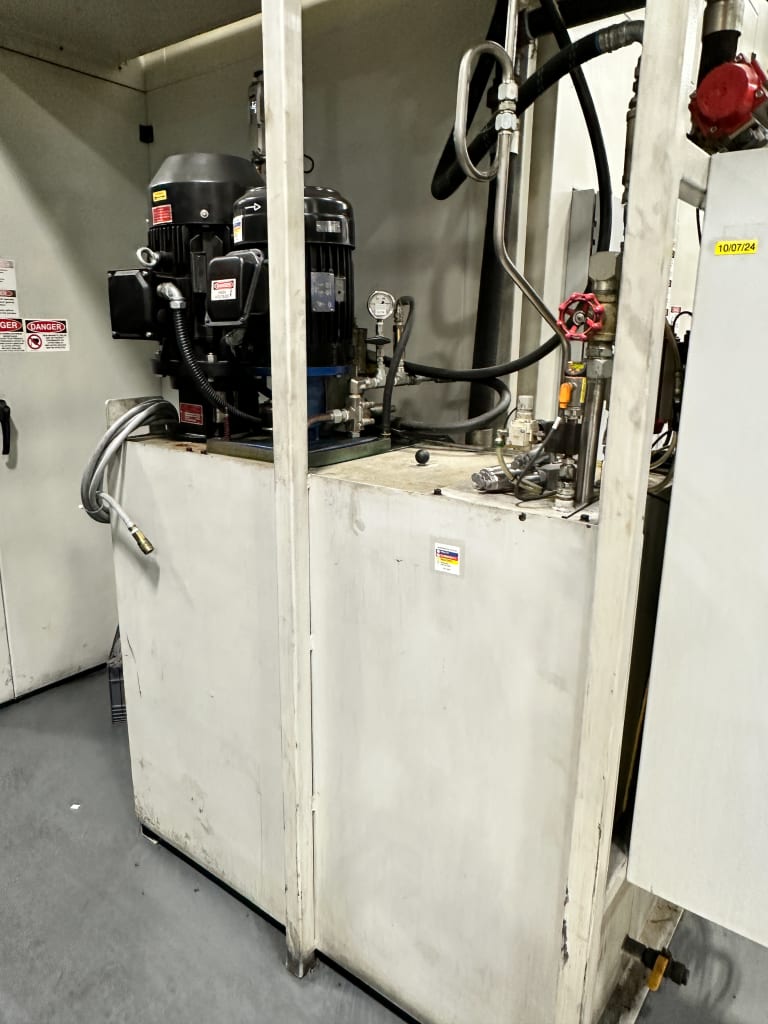

    2-35_wrevkg
    2-36_qnrarx
    2-37_t9me78
    2-38_c9n1xg
    2-39_rmooi0
    3-40_hauqtj
    site
    LOT 2

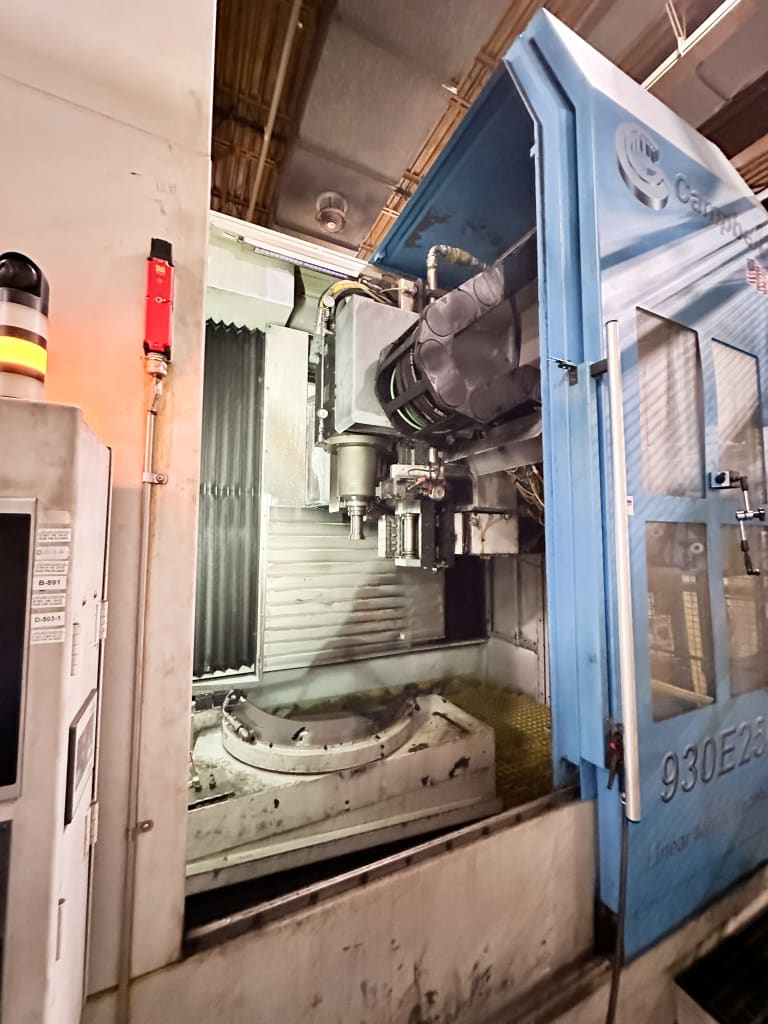

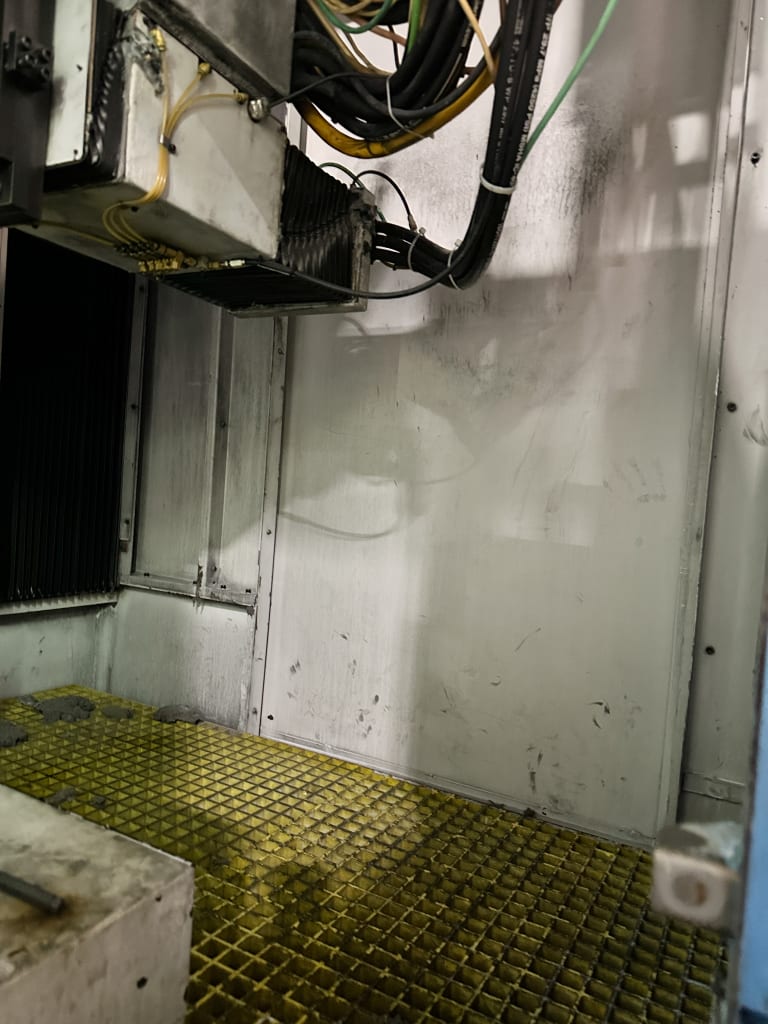

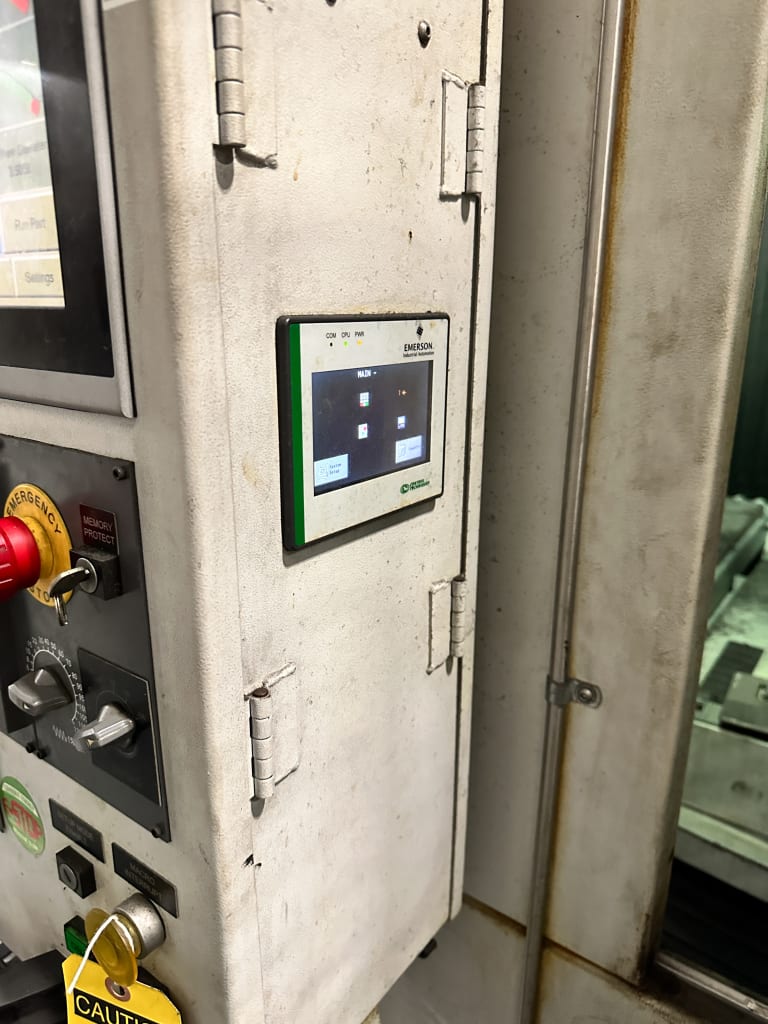

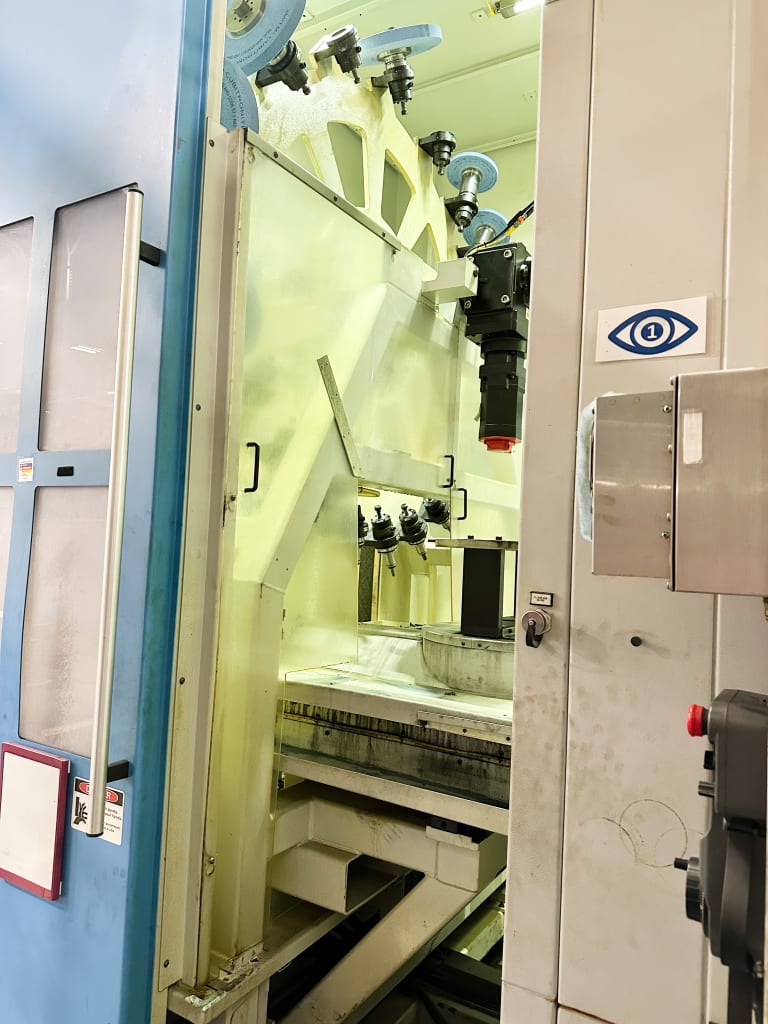

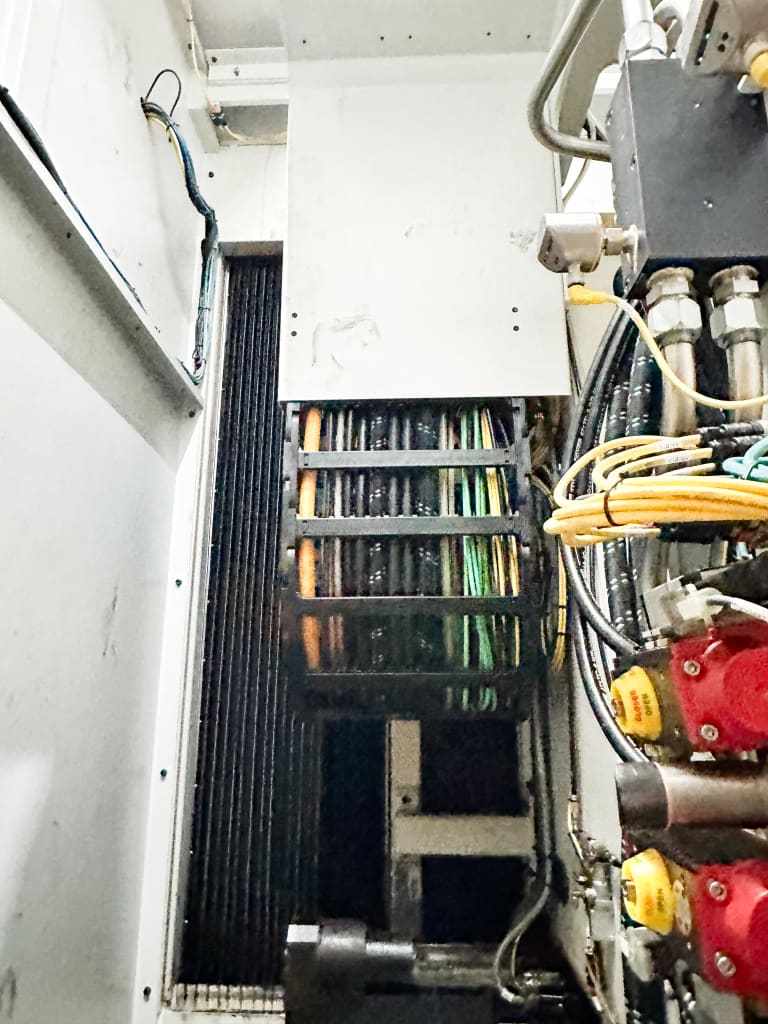

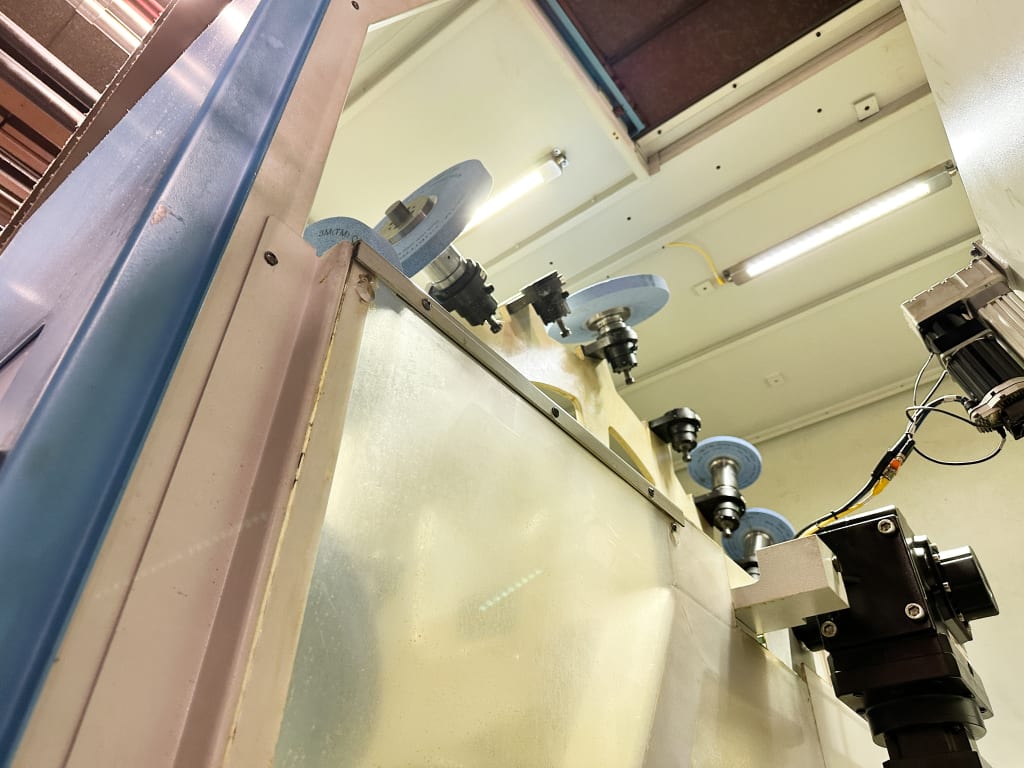

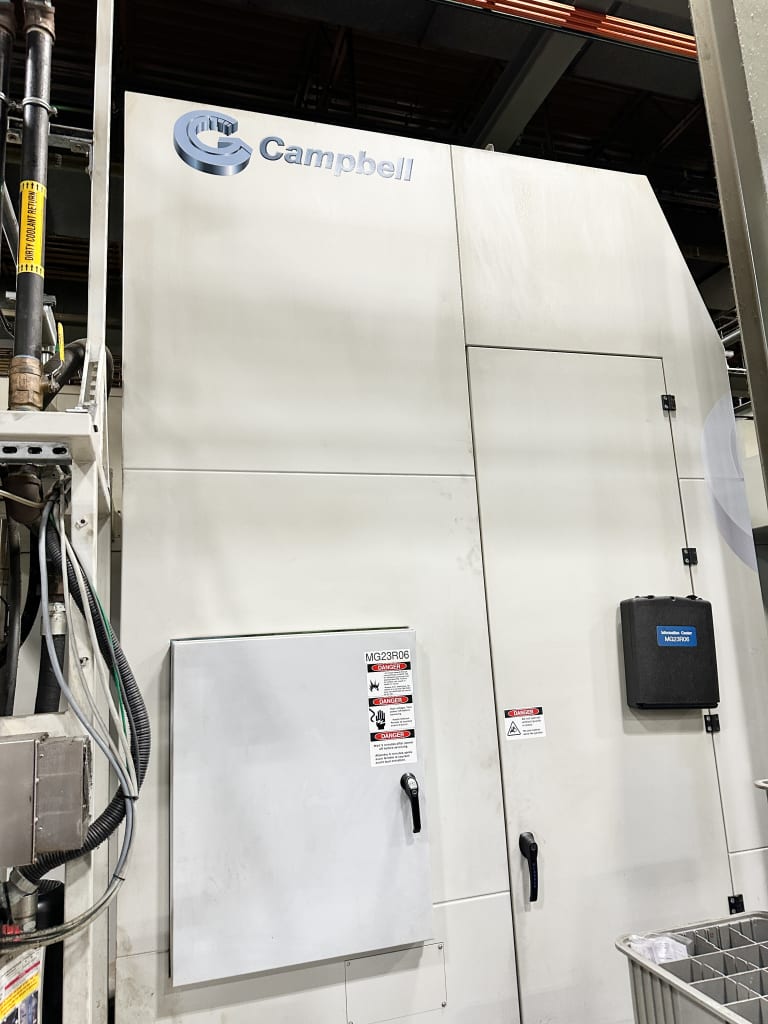

    2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder

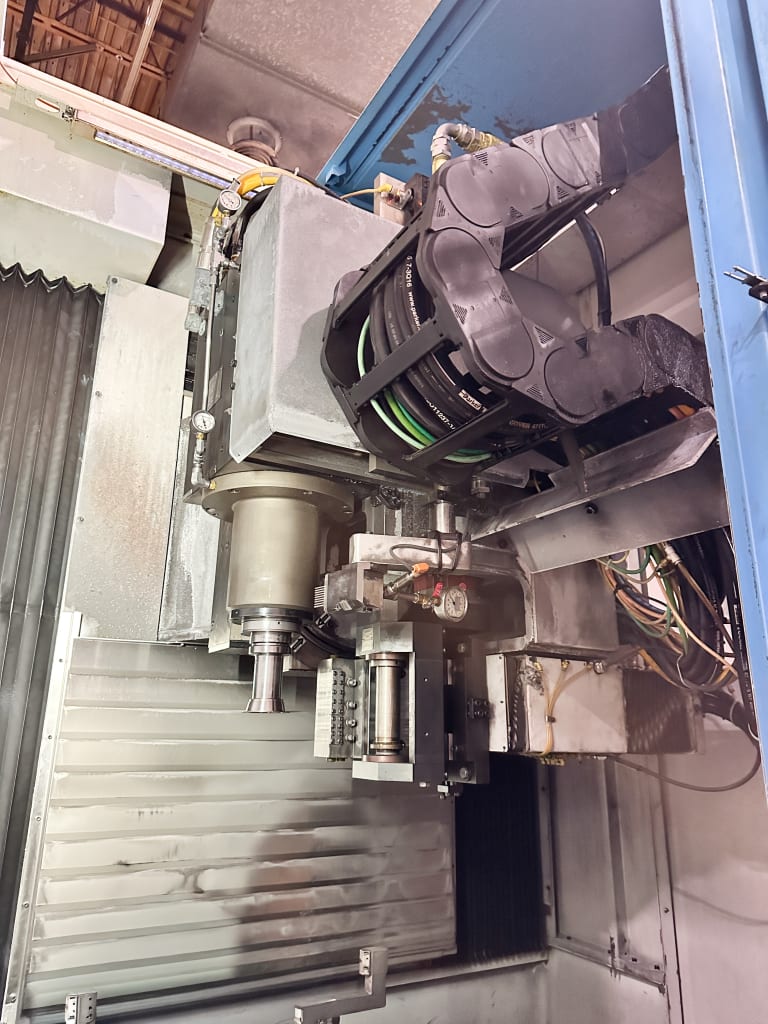

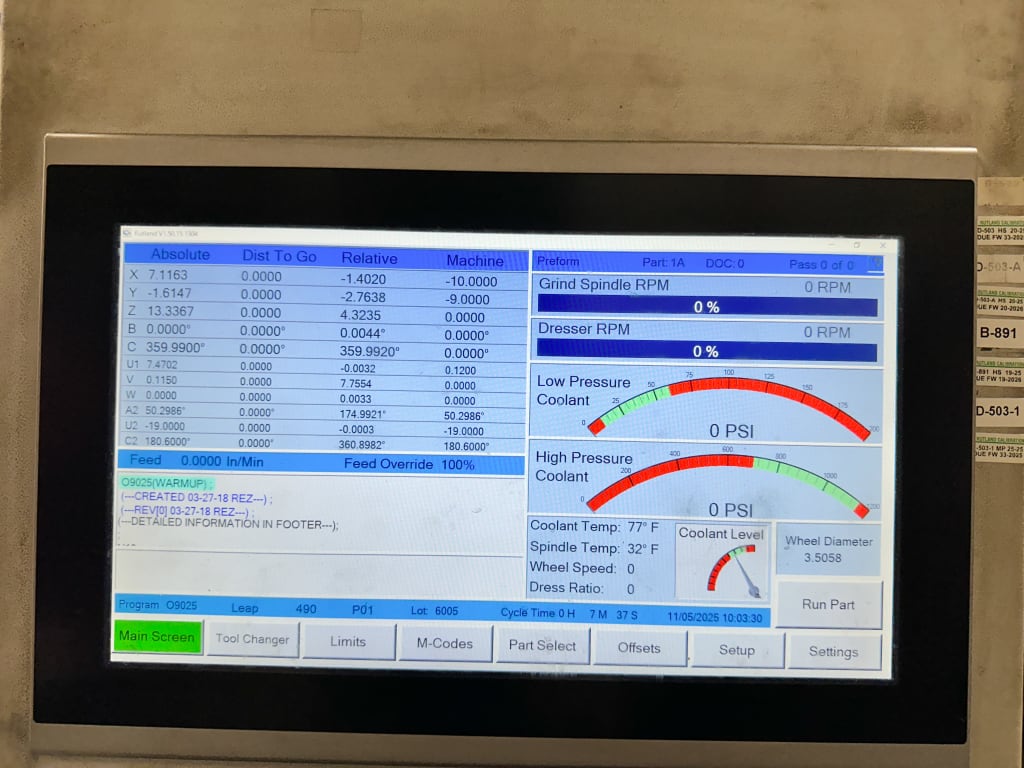

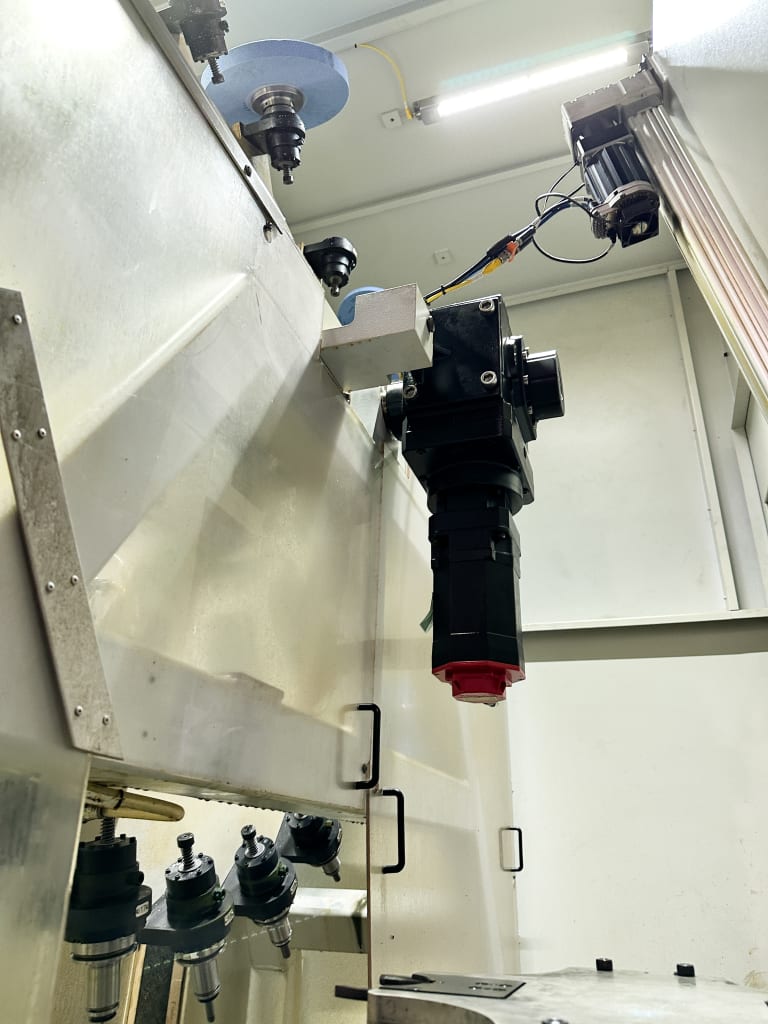

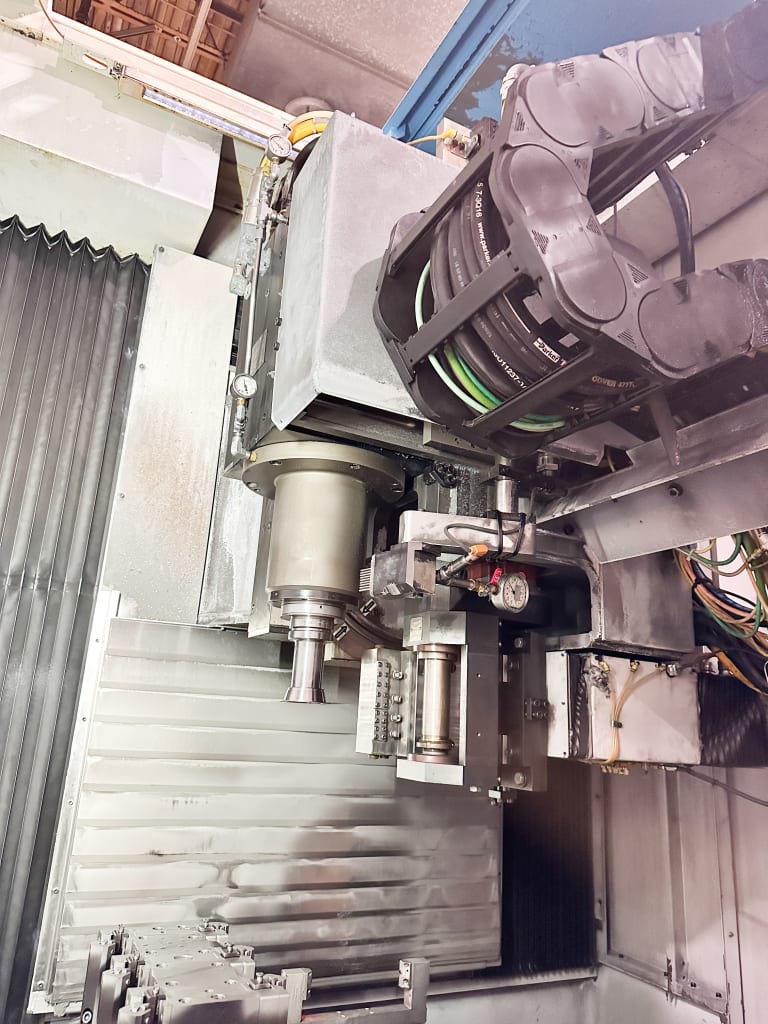

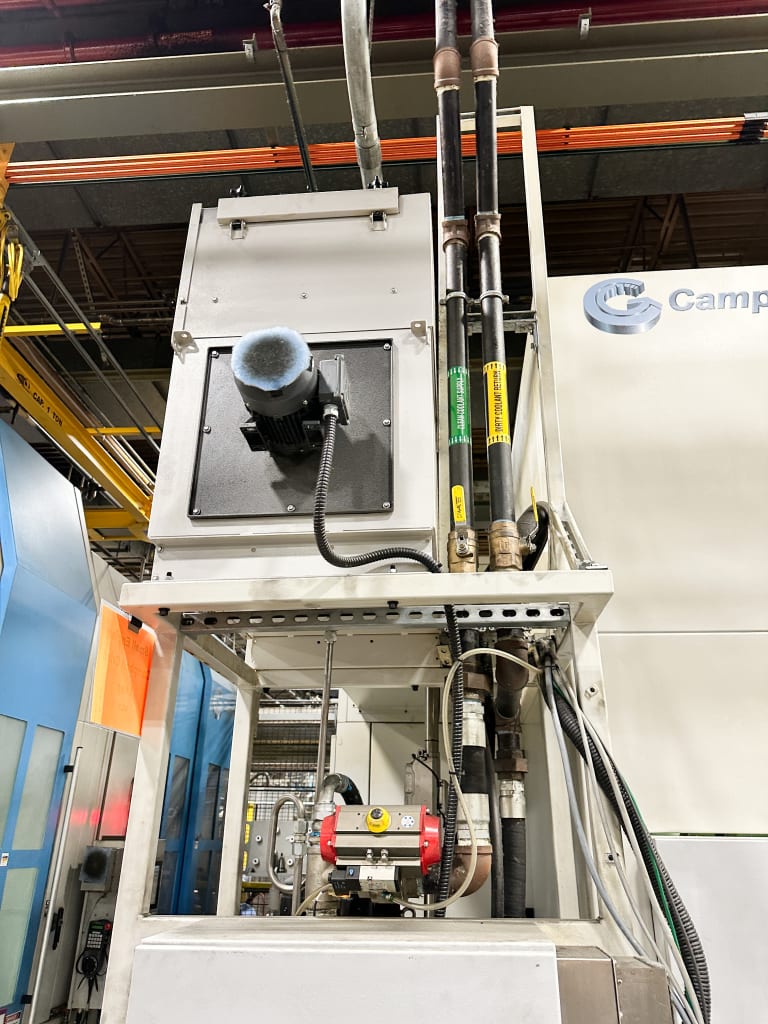

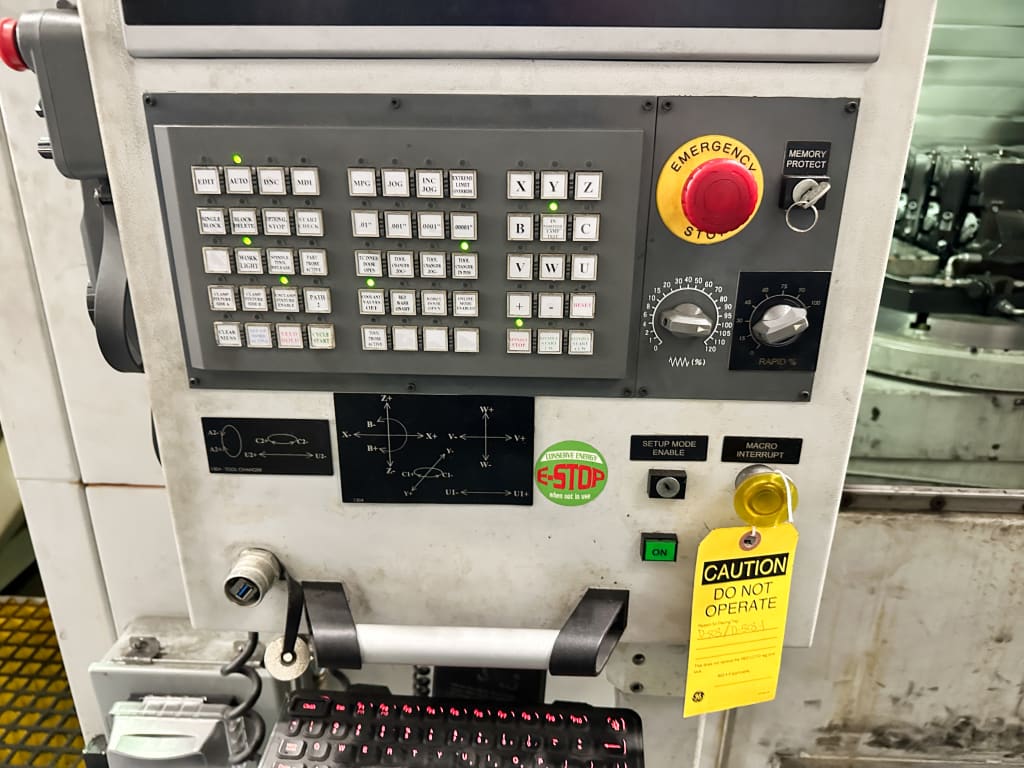

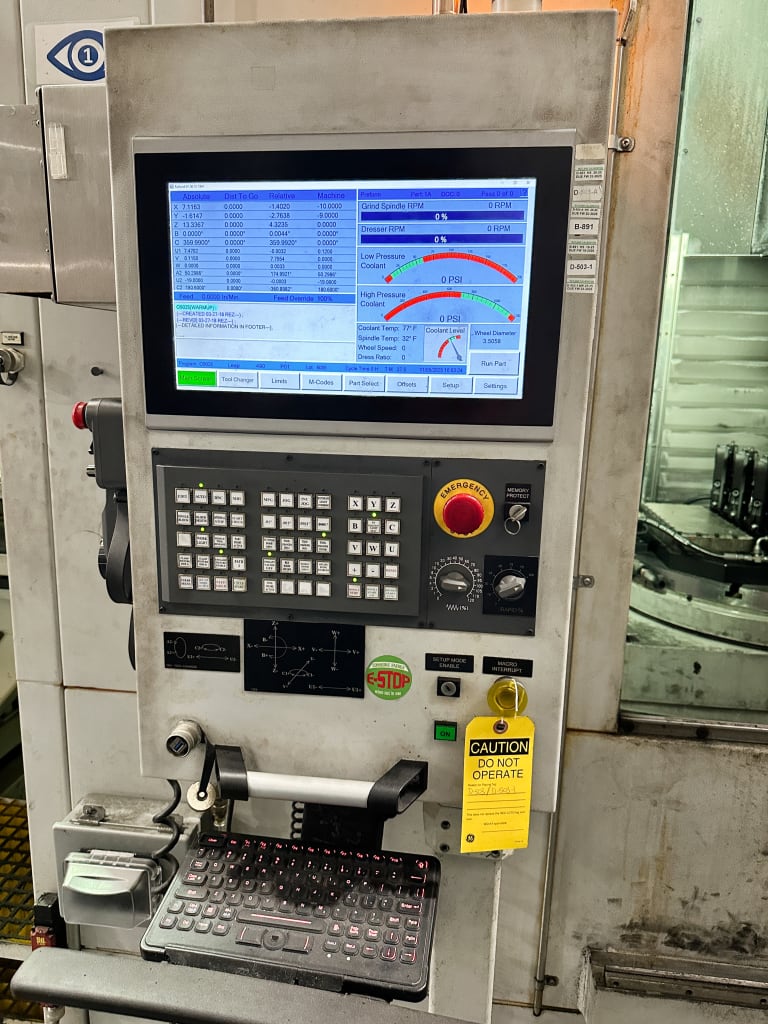

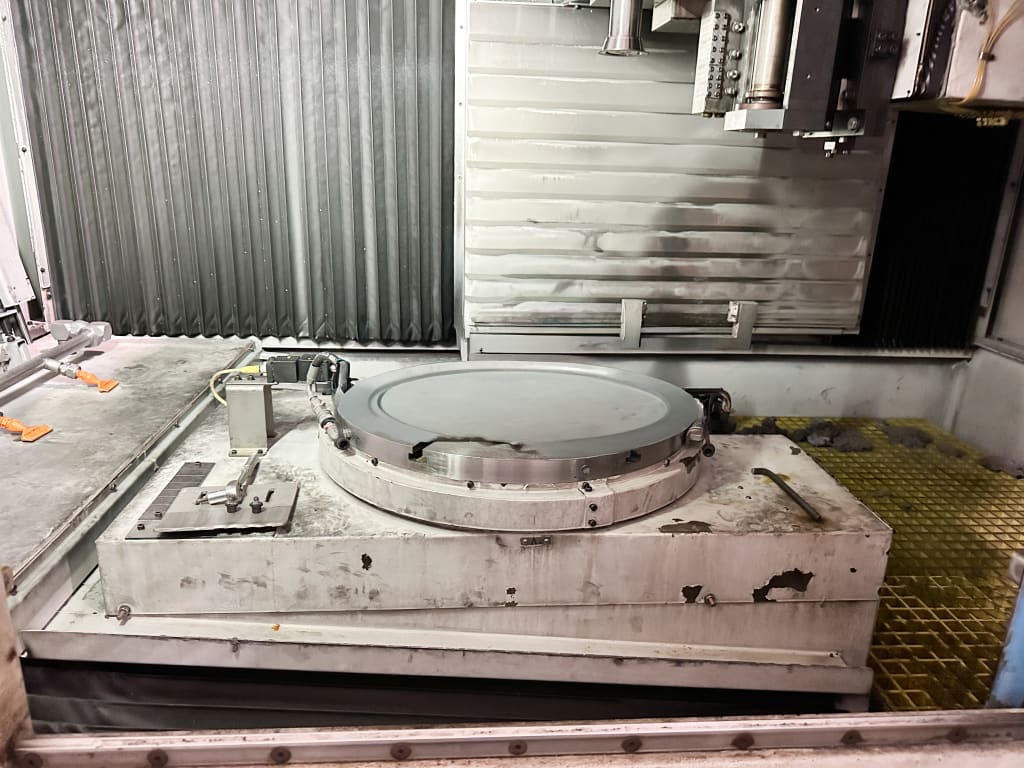

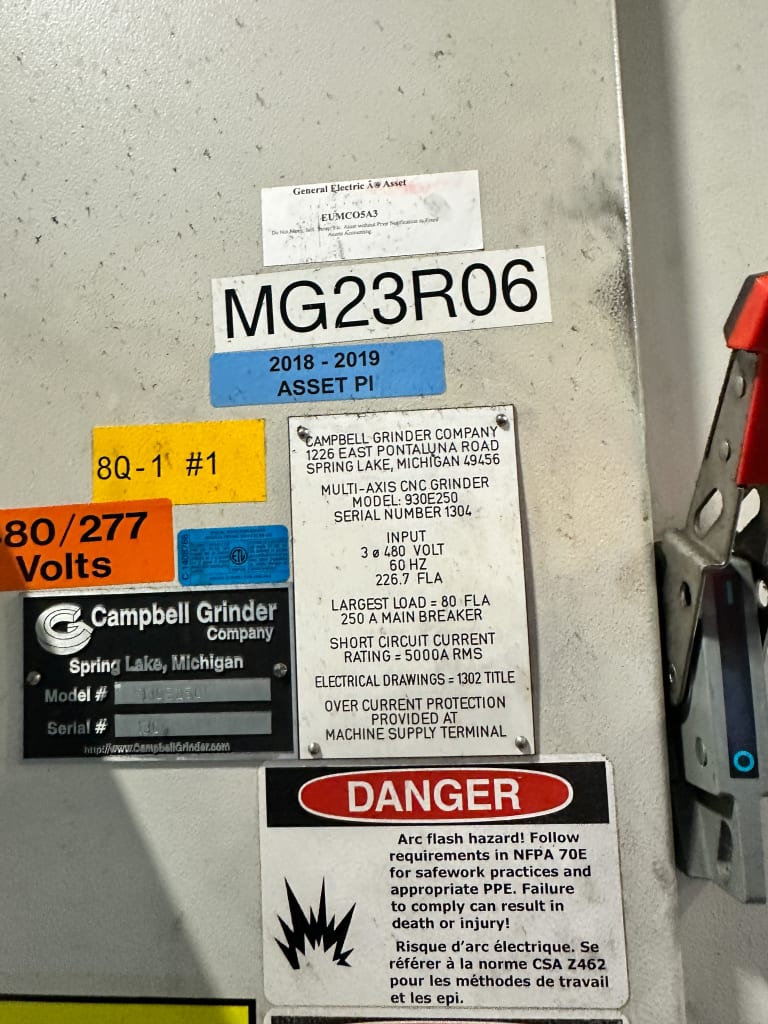

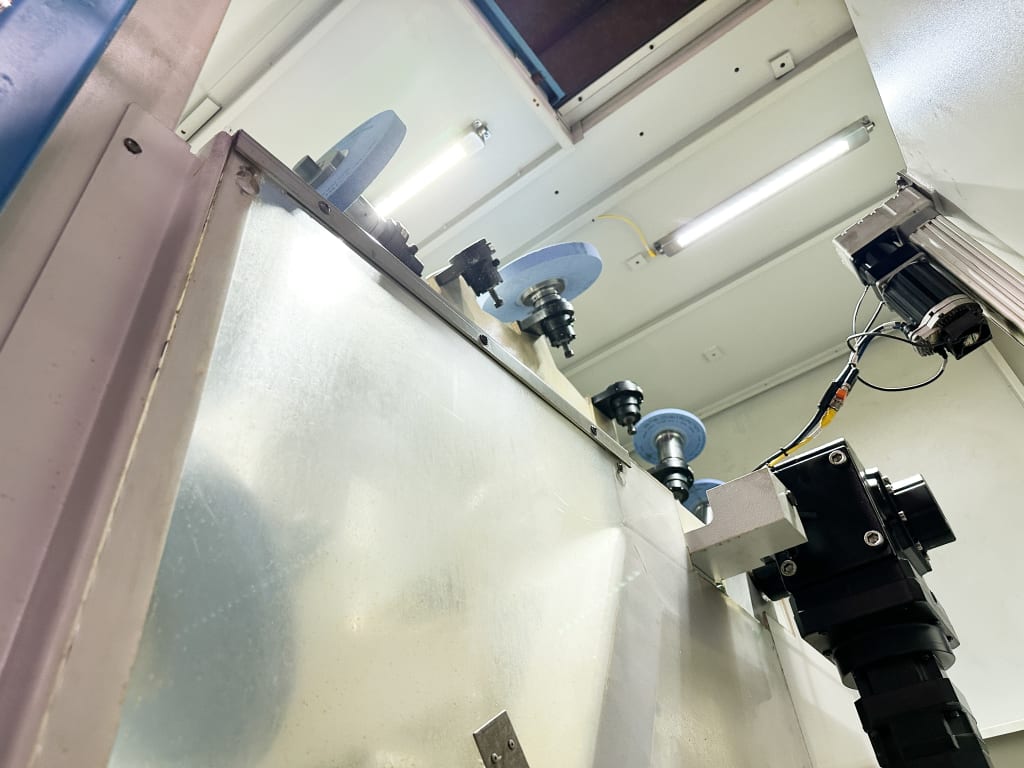

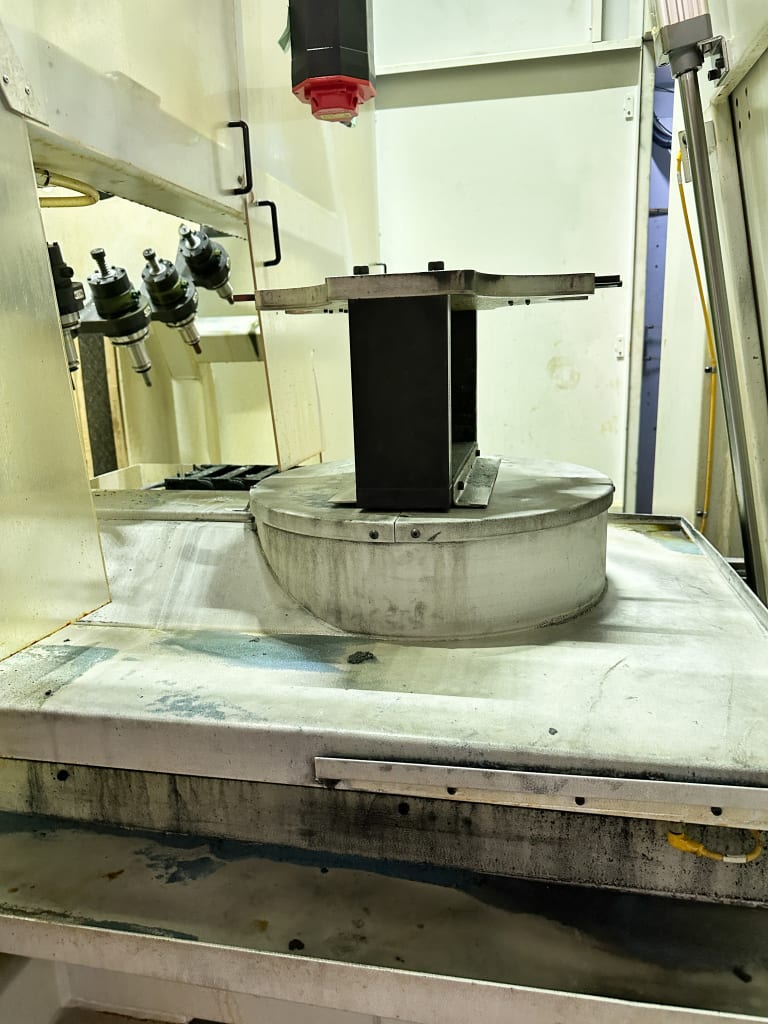

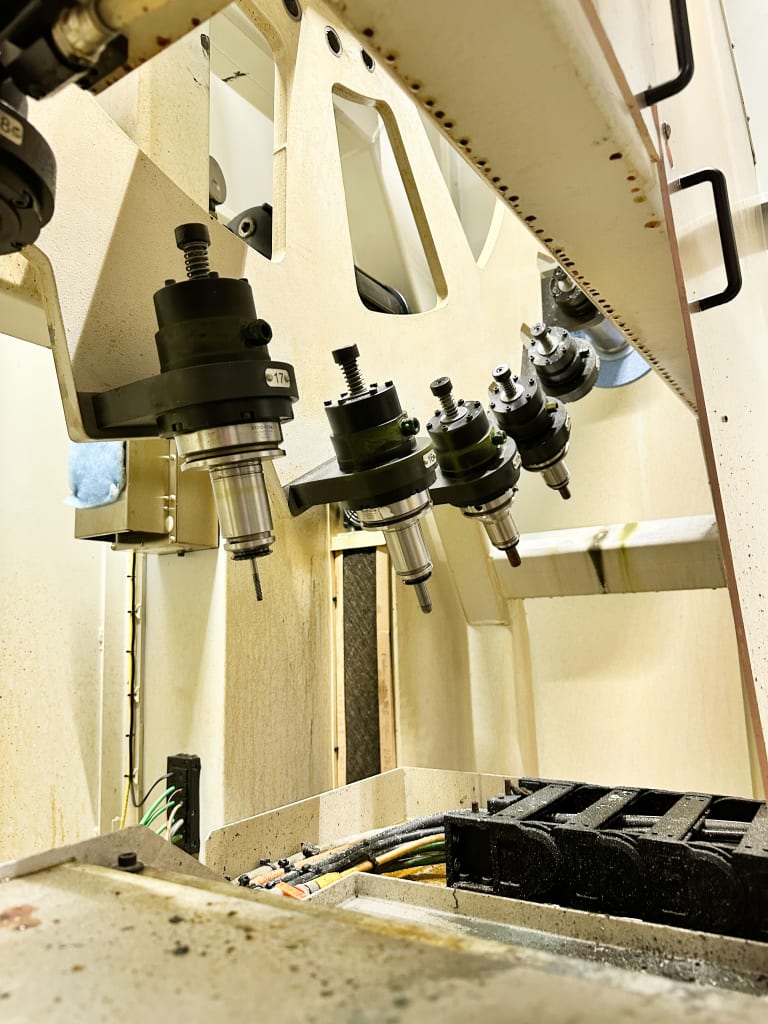

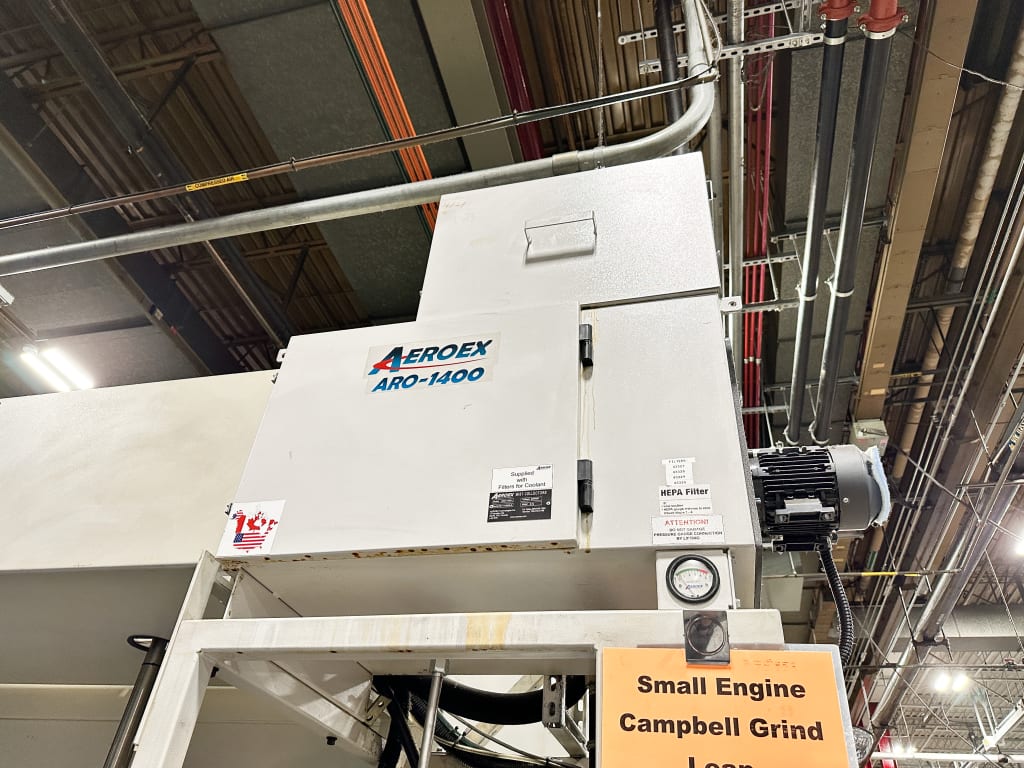

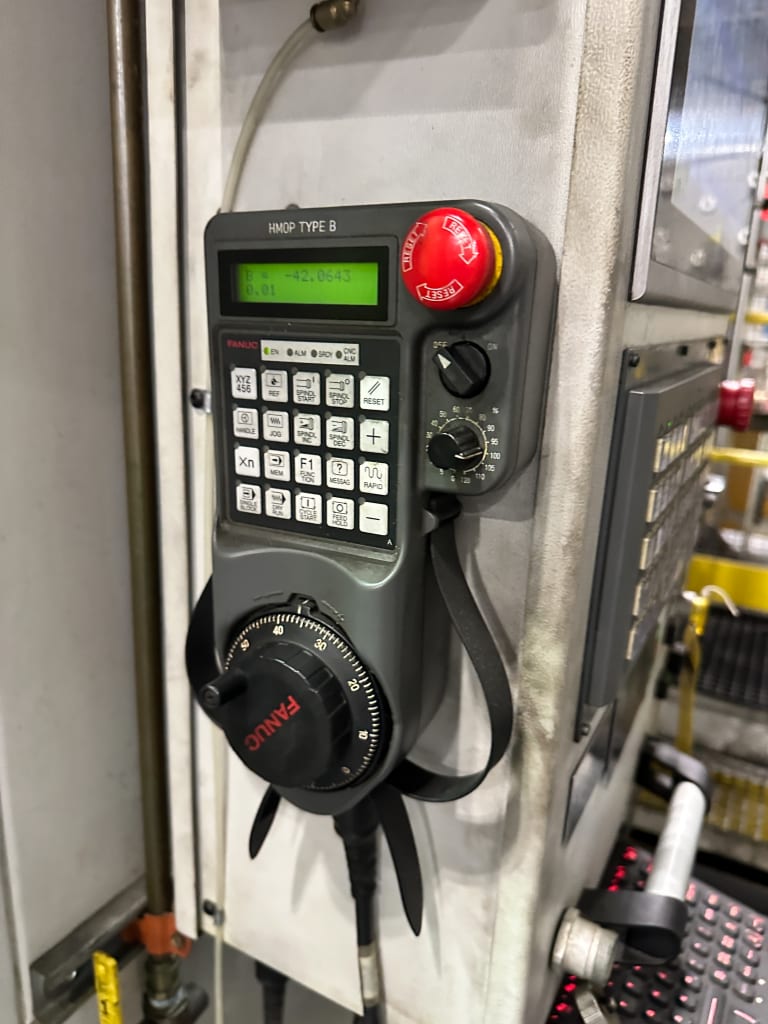

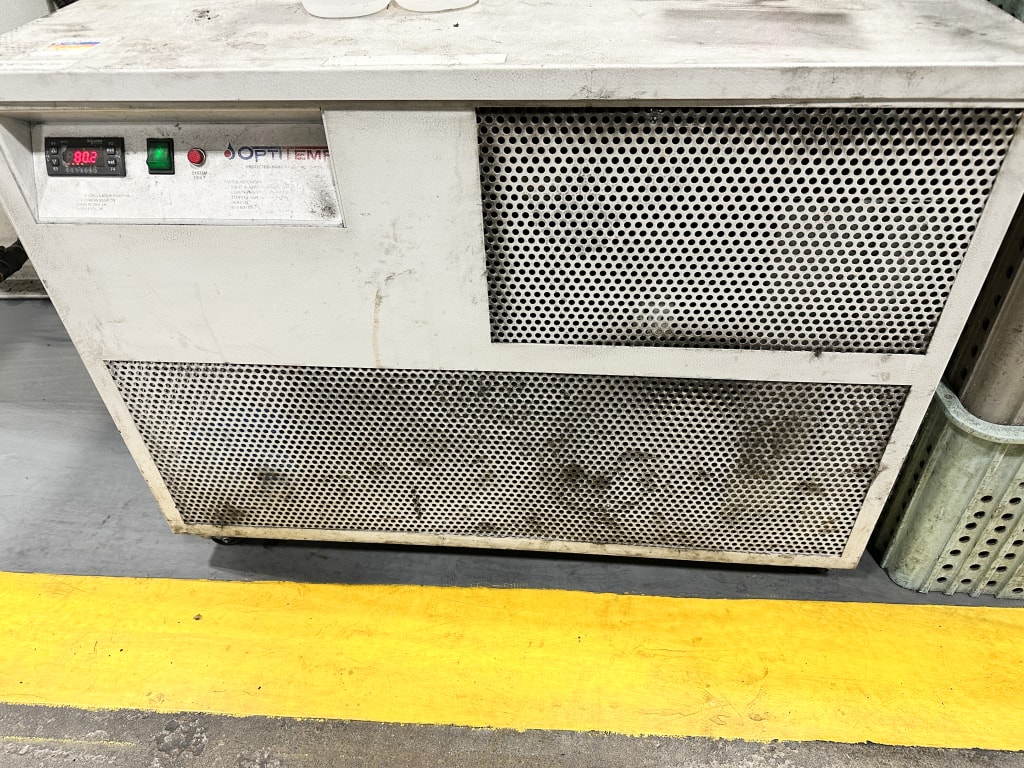

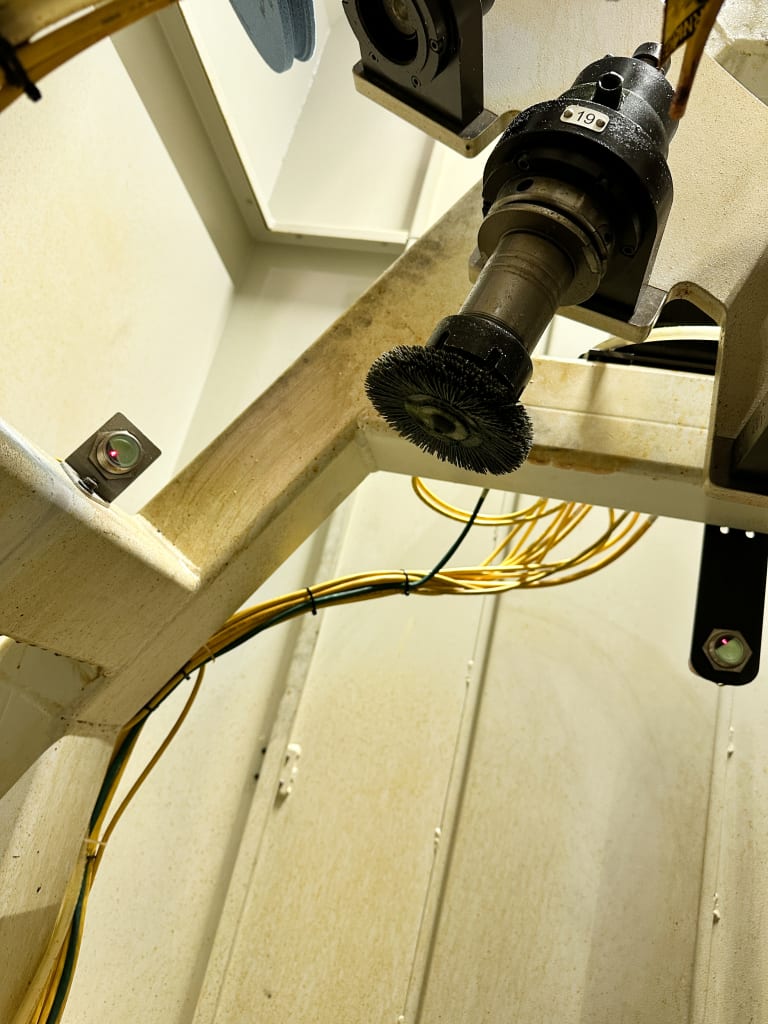

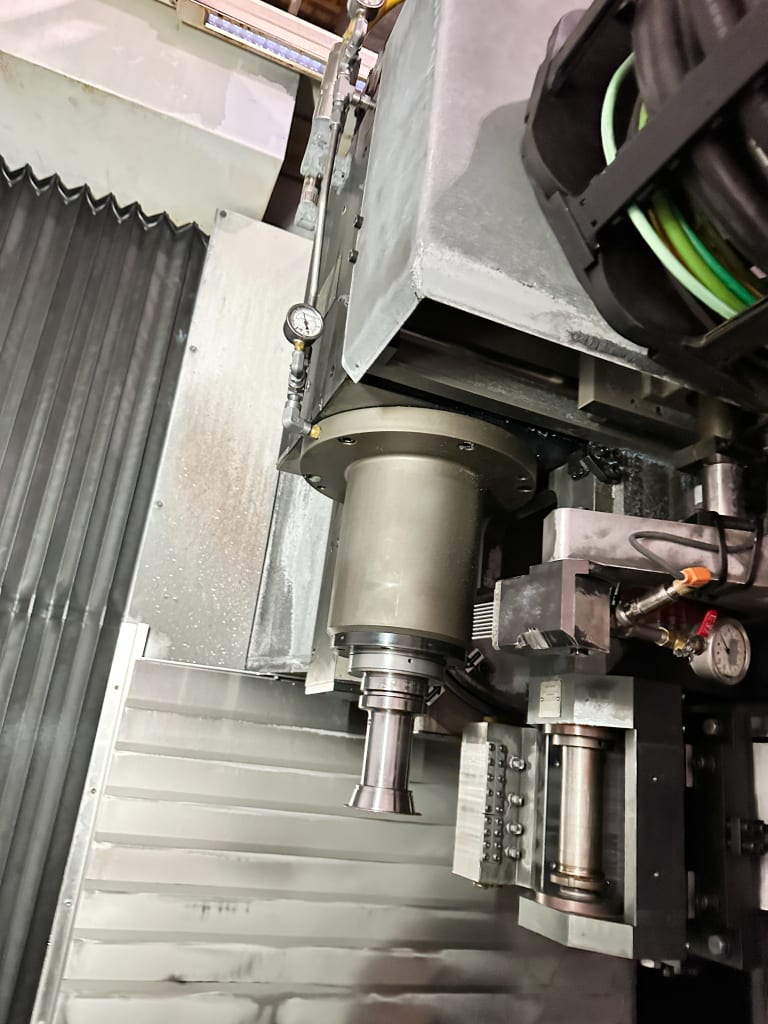

    2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder, Fanuc 32i CNC Controls 5-Axes of Motion, 5-Axes Simultaneous, 10" x 12" x 12" X/Y/Z Work Envelope, B (Spindle Swivel: 10 Arc Seconds, 2.5 Microns (0.002") measured 305mm (12") Above the Table Top CL, C (Rotary Table) 26" Diameter, 5 Arc Seconds, 2.5 Microns (0.002") measured 305mm (12") Above the Table Top CL, 300 IPM Rapid Traverse Speed, 300# Capacity, 30-HP, 1,500-10,000 RPM Grinding Spindle Speed, 2.5 Microns (0.001") Run Out Both Radially and Axially, HSK-80 Spindle Taper, Spindle Mounted Dresser: 0-5,500 RPM Speed, Roll Clamping: 6" Length for 4 Stacked Rolls, 52mm Arbor Diameter, Complete with 20-Positon Tool Changer, 14" Maximum Grinding Wheel, 8" Maximum Tool Length, 50# Capacity, Vertical Position Wheel Orientation, Complete with Precision Roller Ways - All Axes Through the Table Hydraulics, Direct Motorized Liquid Cooled Grinding Spindle, All Linear Motors, Direct Feedback (All Scales), Stacked Wheel Dresser, Aeroex ARO-1400-L 2-HP Mist Collector, OptiTemp OTCX-3.0AL Chiller, 5,036 Spindle Hours, S/N: 1304 (Note: Wire Harness Needs to be Replaced, Machine Will Come with Replacement Wire Harness, Chuck is Intact, we Removed GE IP from the Photos) (Subject to Bulk Bid)
    View Item
  • 4-1.jpg
    4-12A
    4-12B
    4-12C
    site
    LOT 3

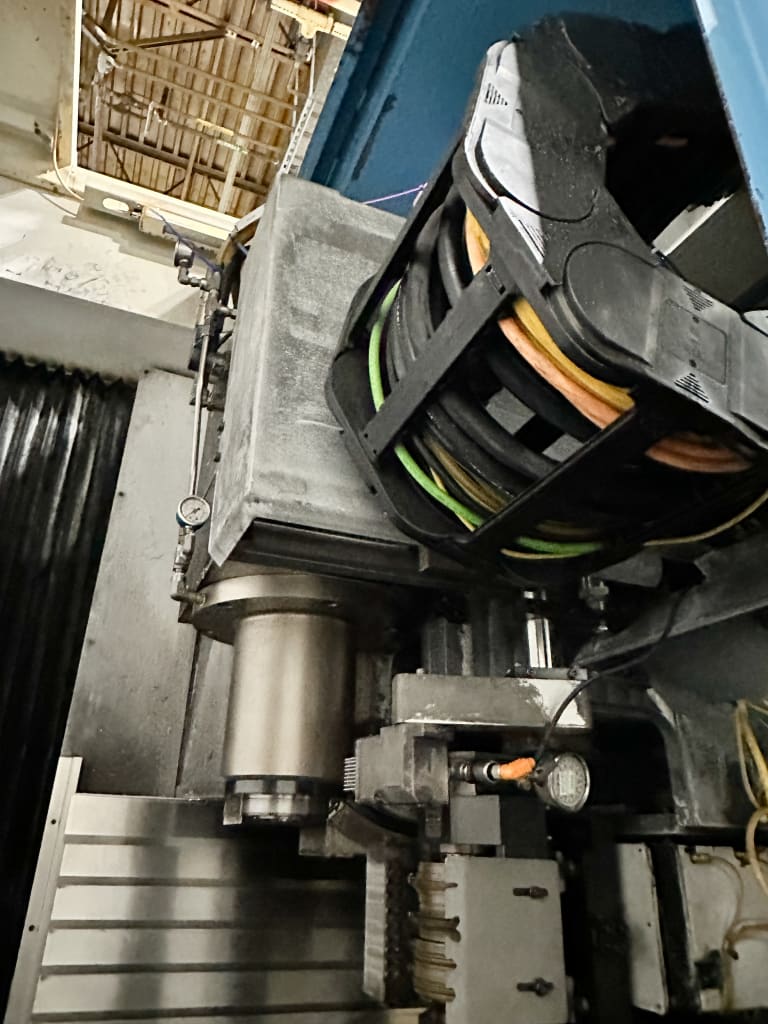

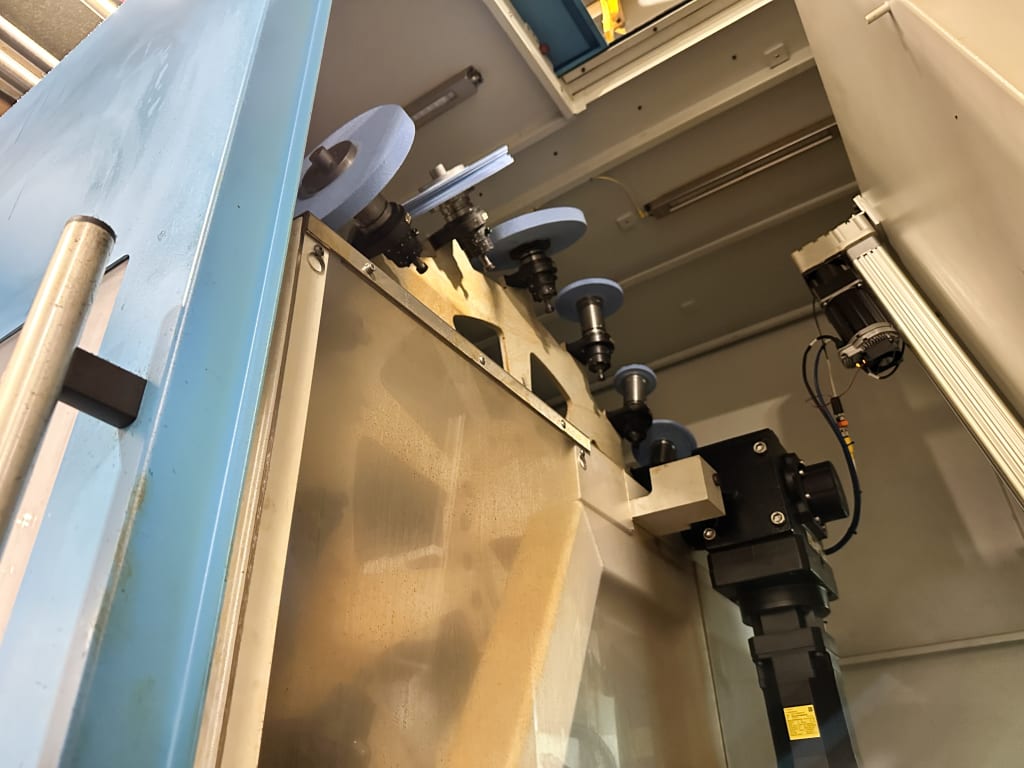

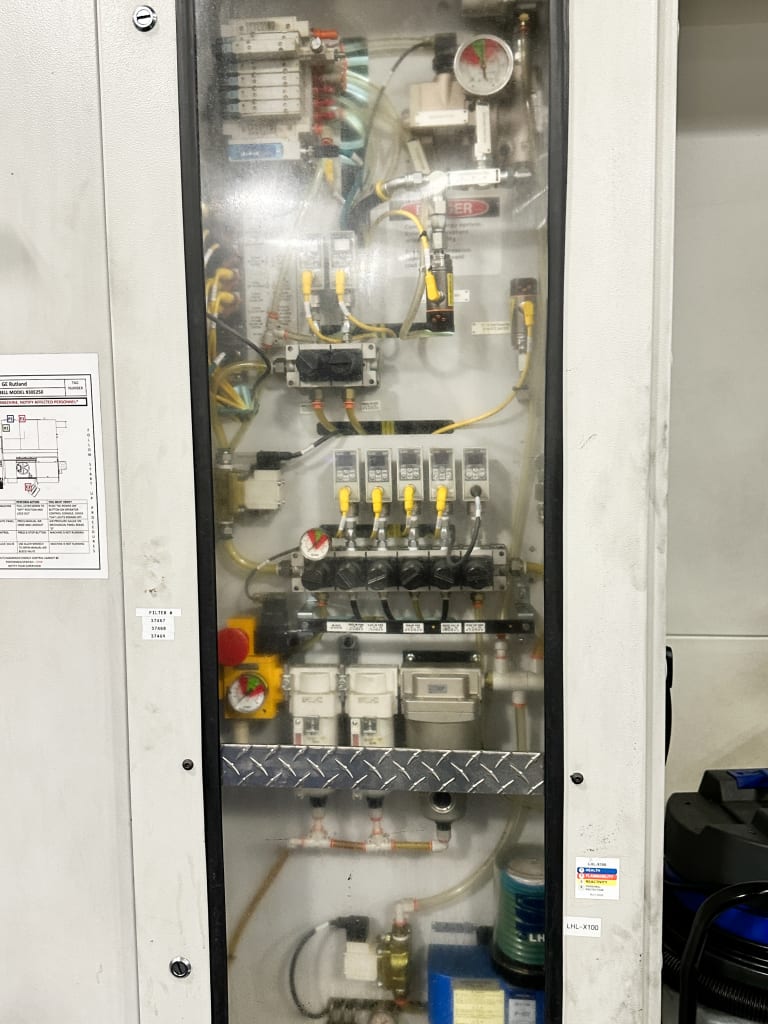

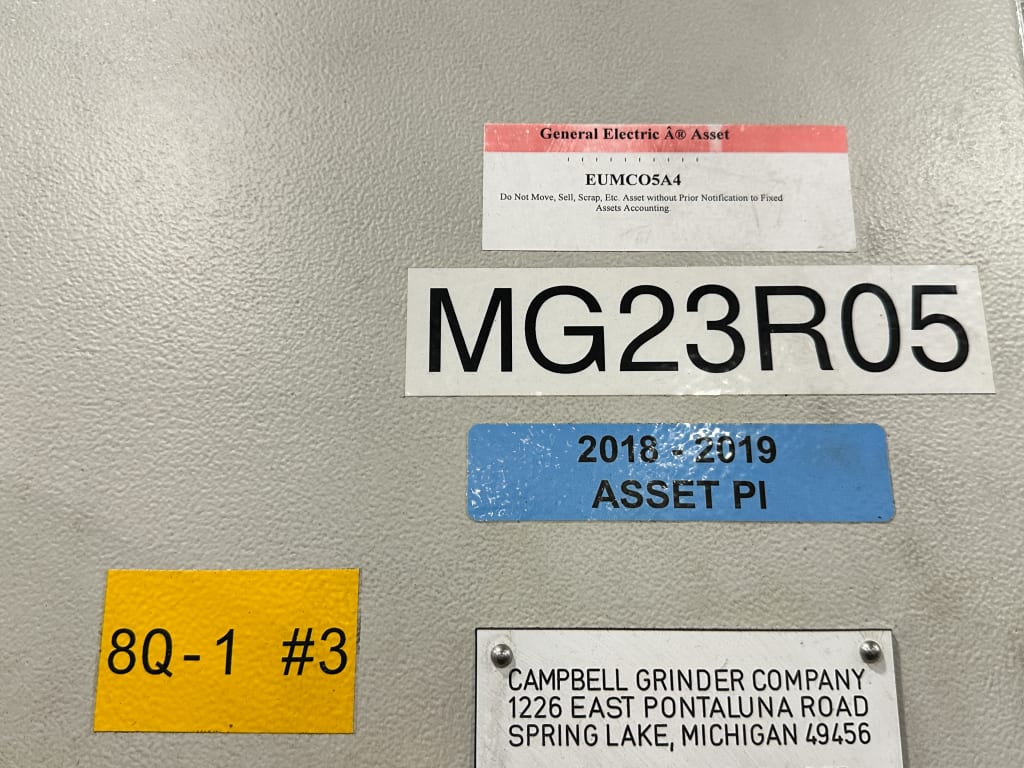

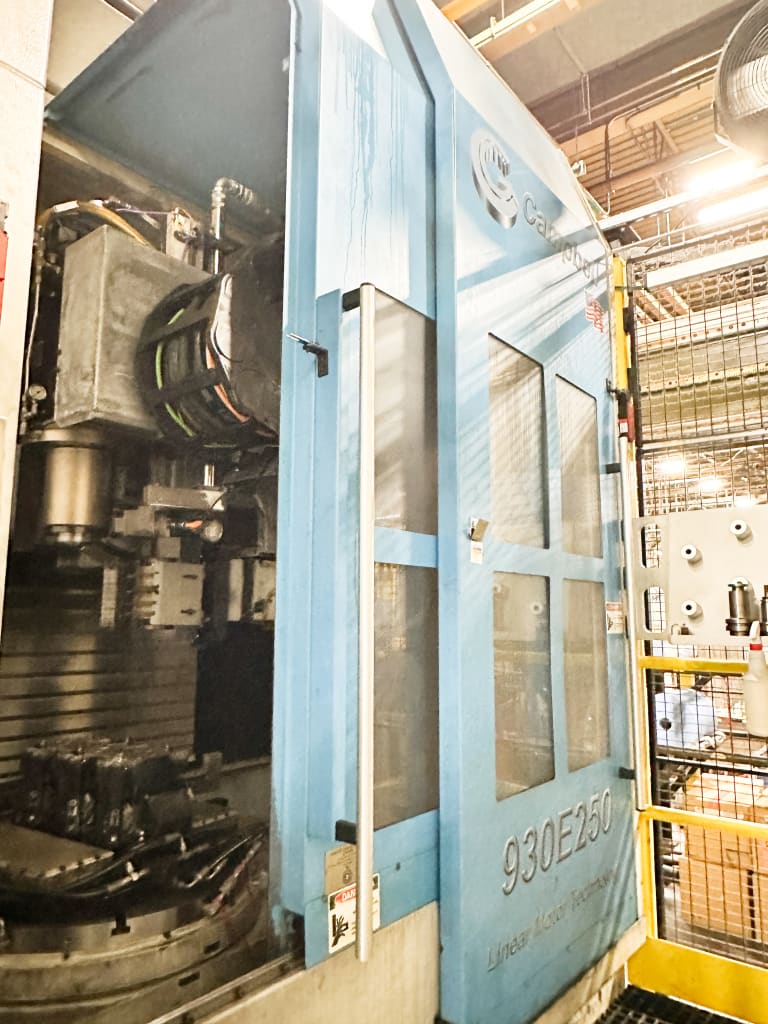

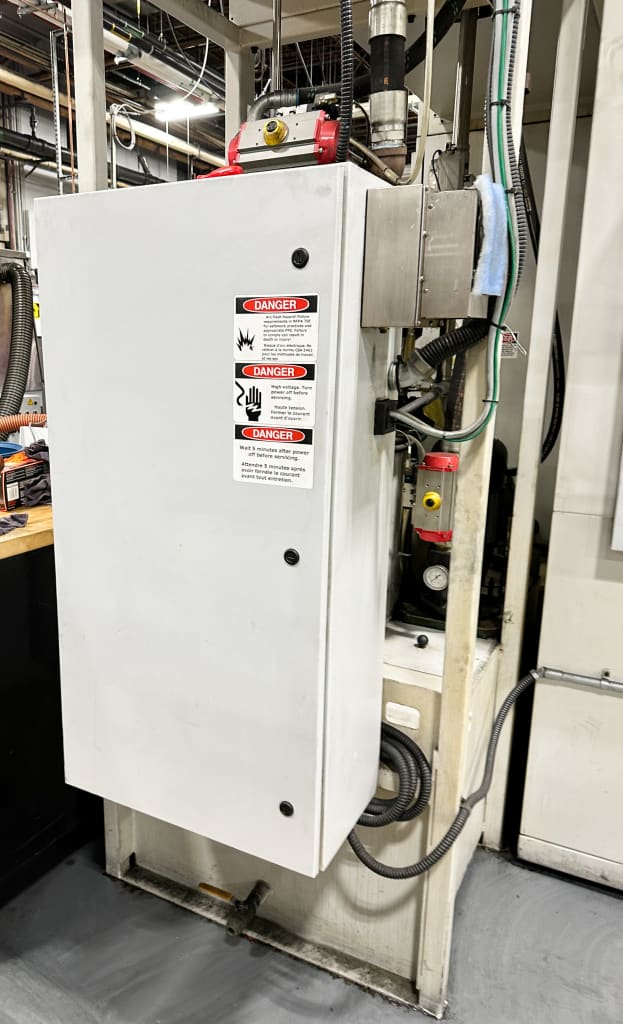

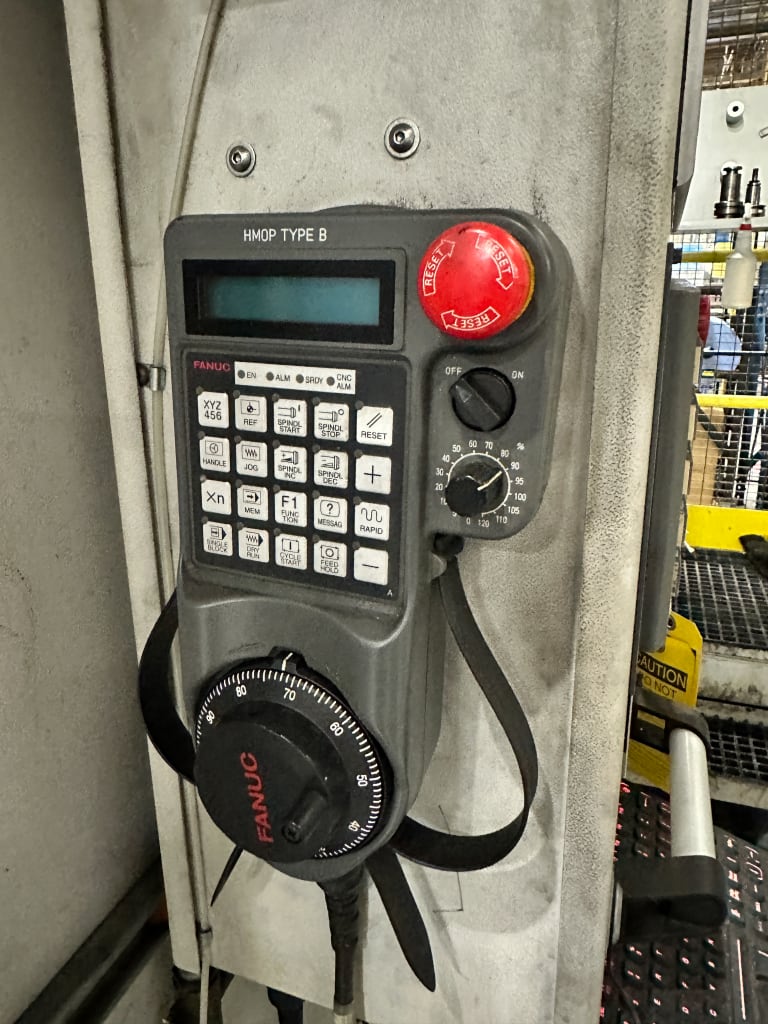

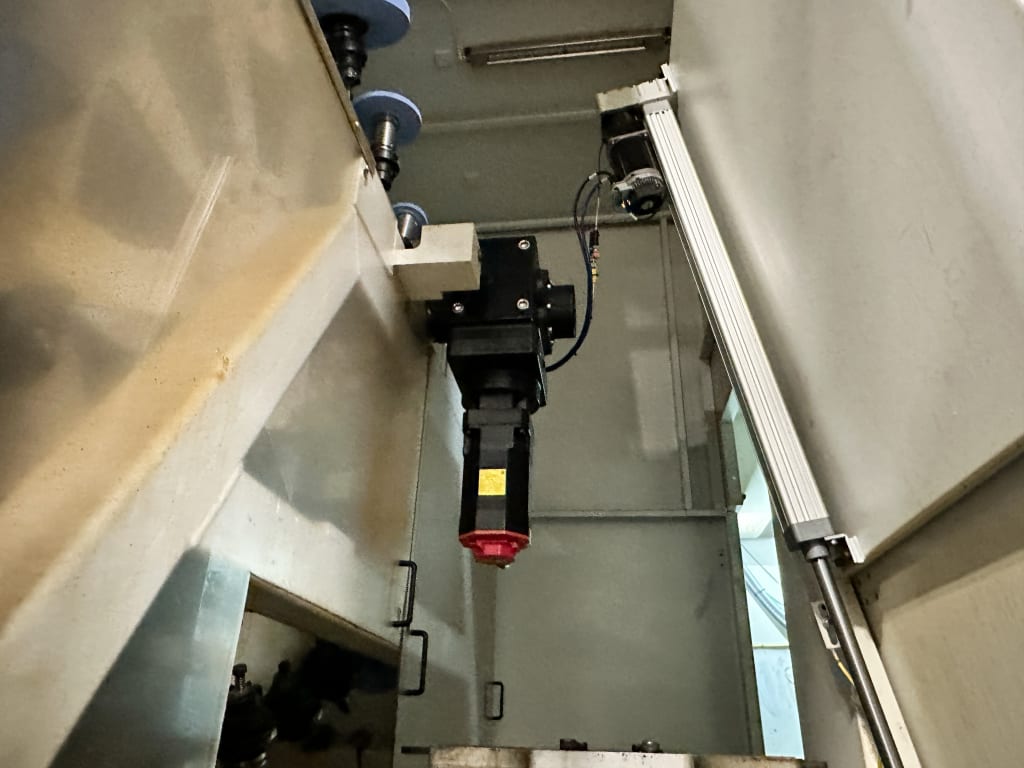

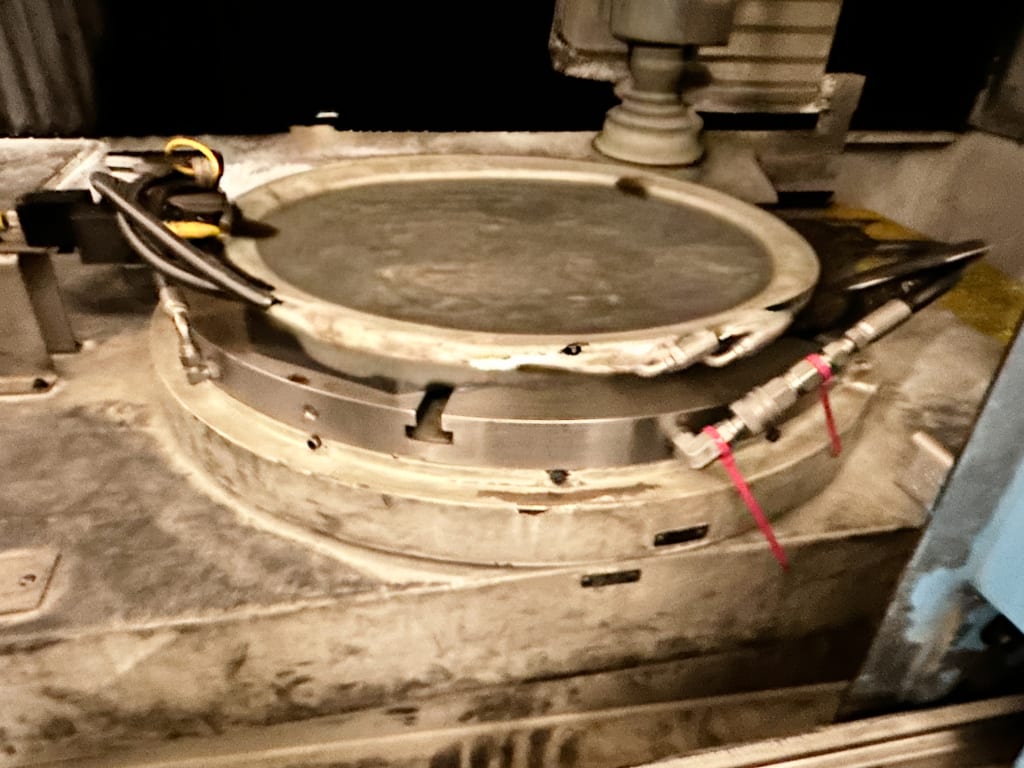

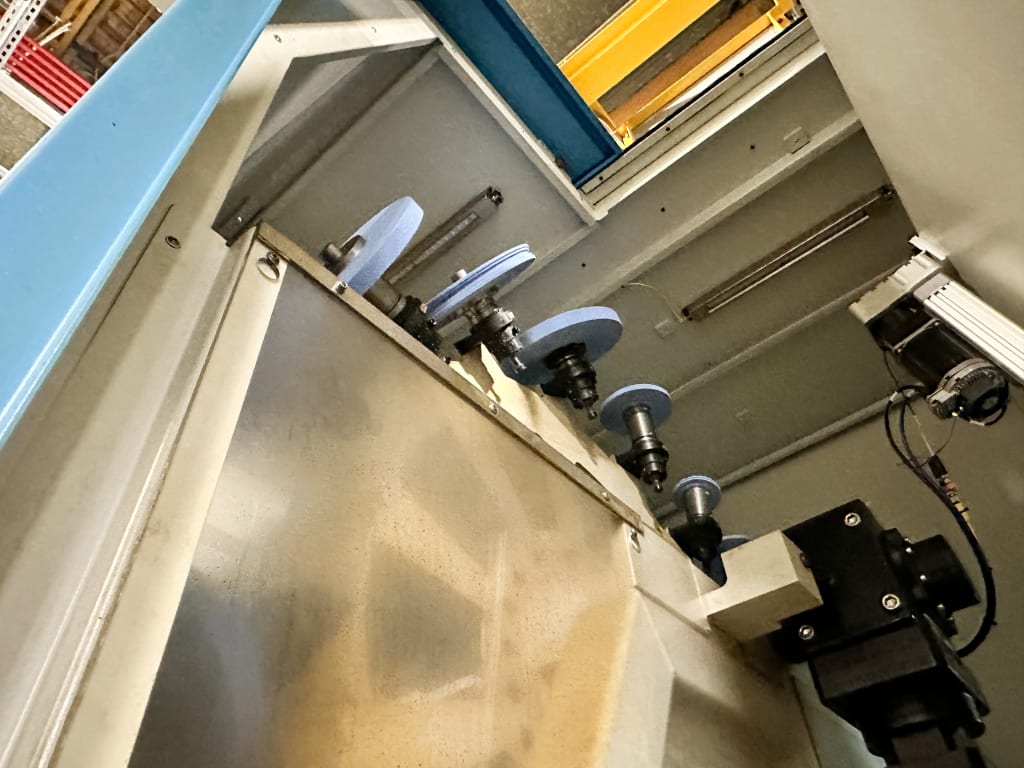

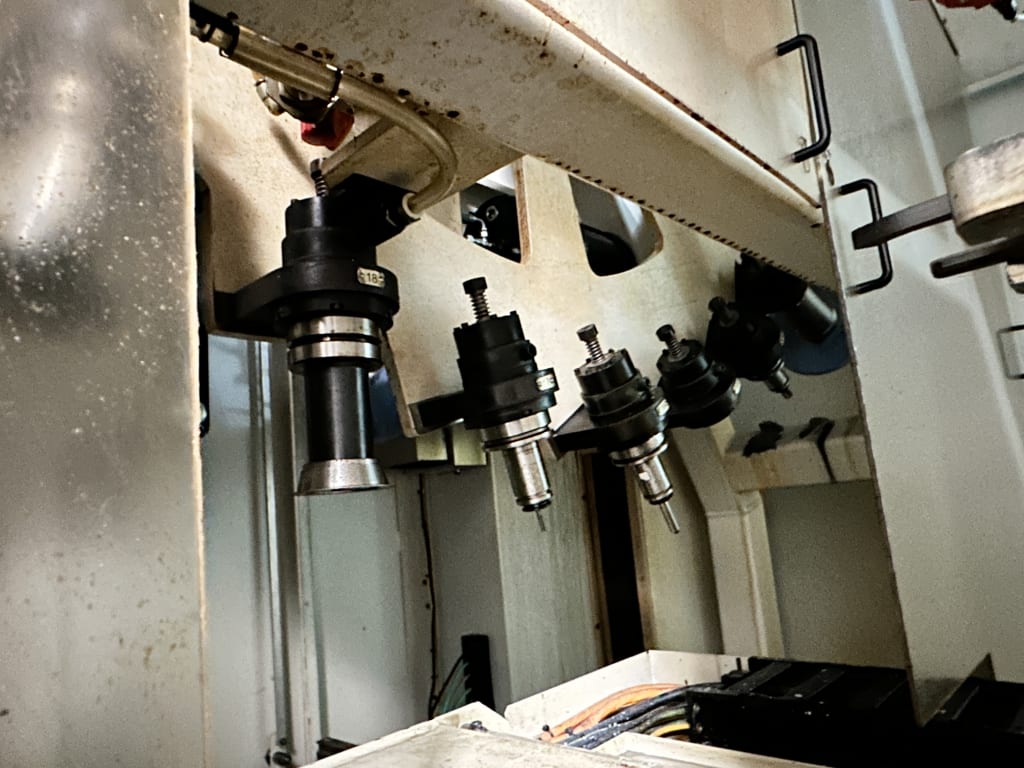

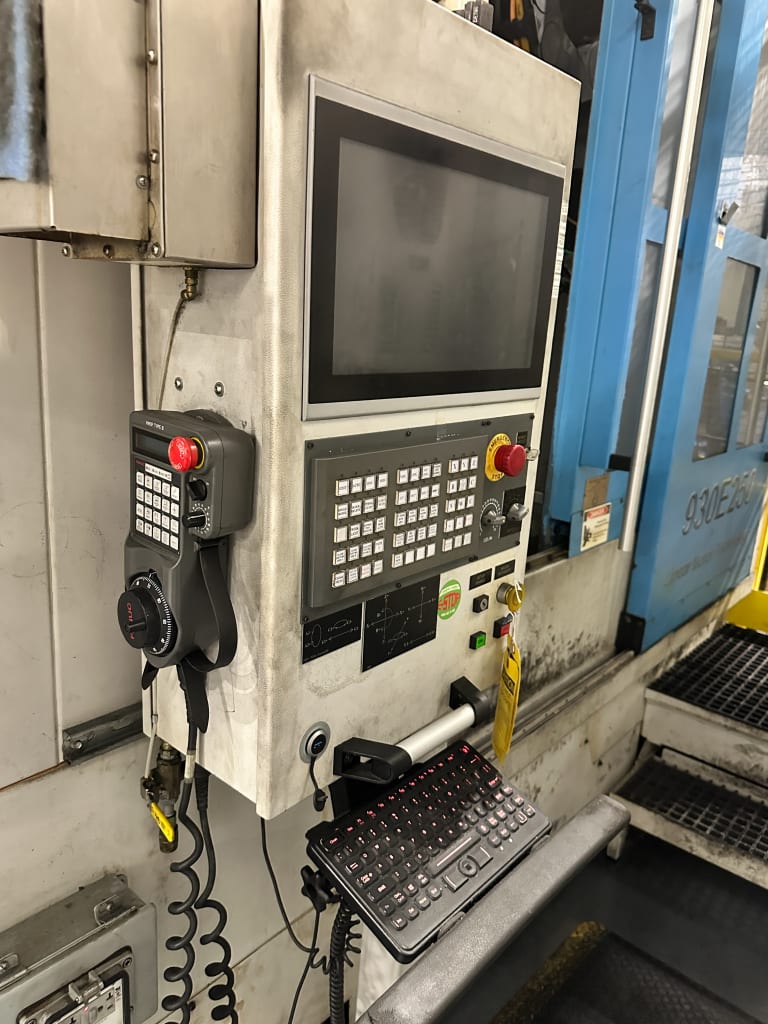

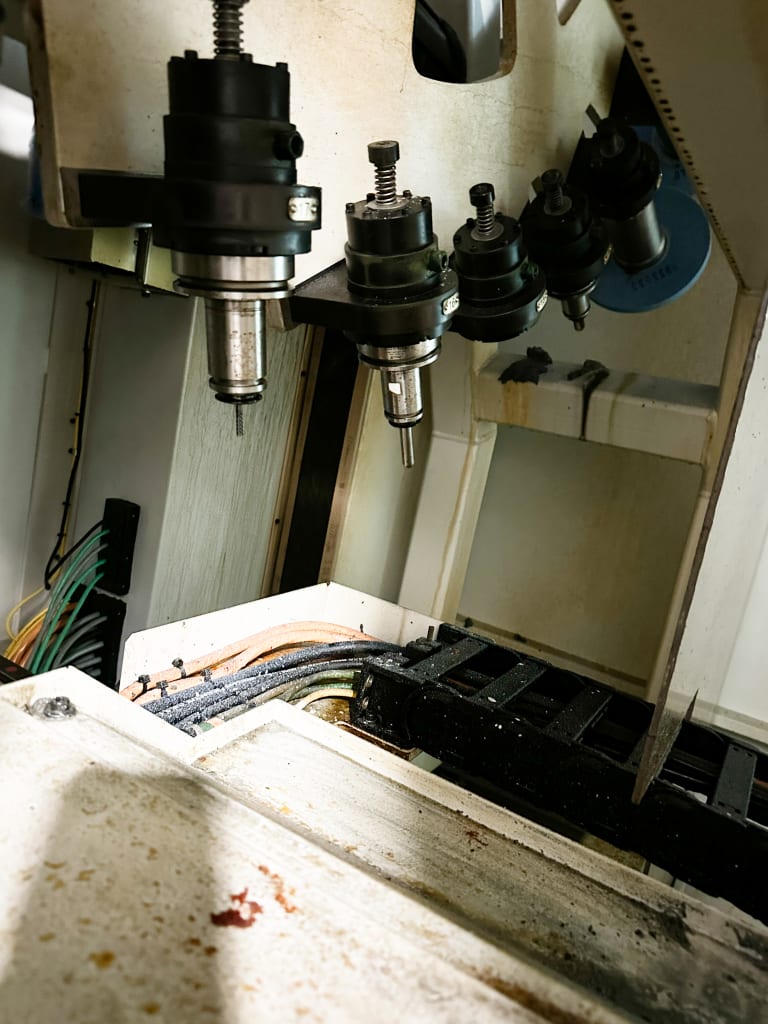

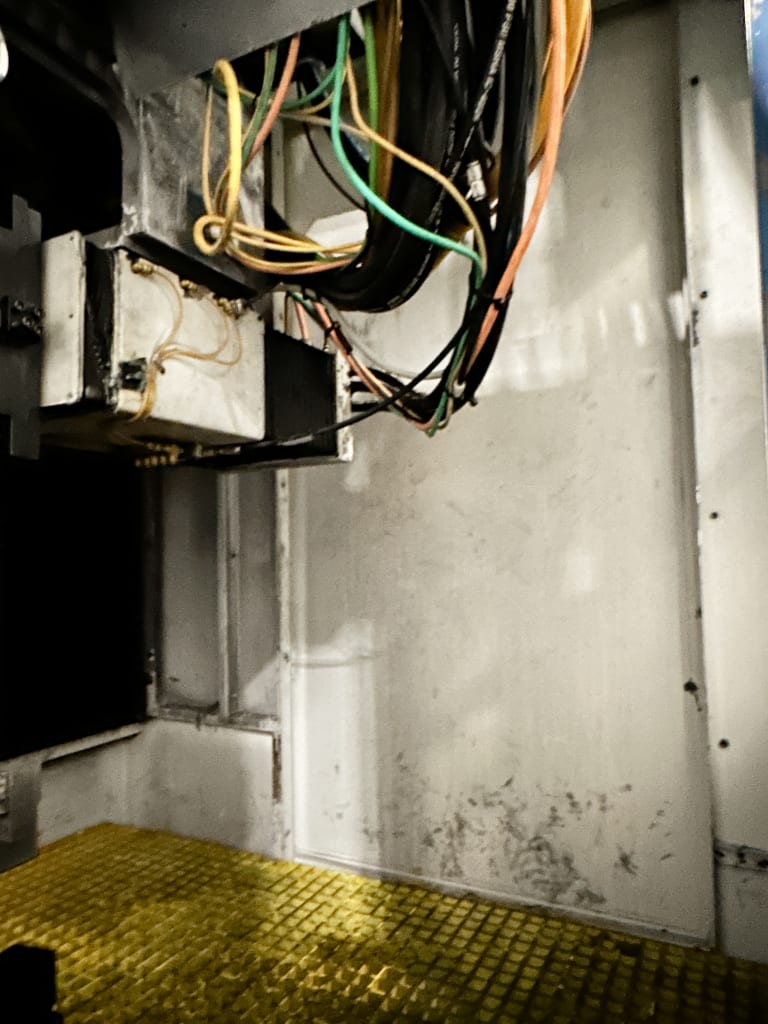

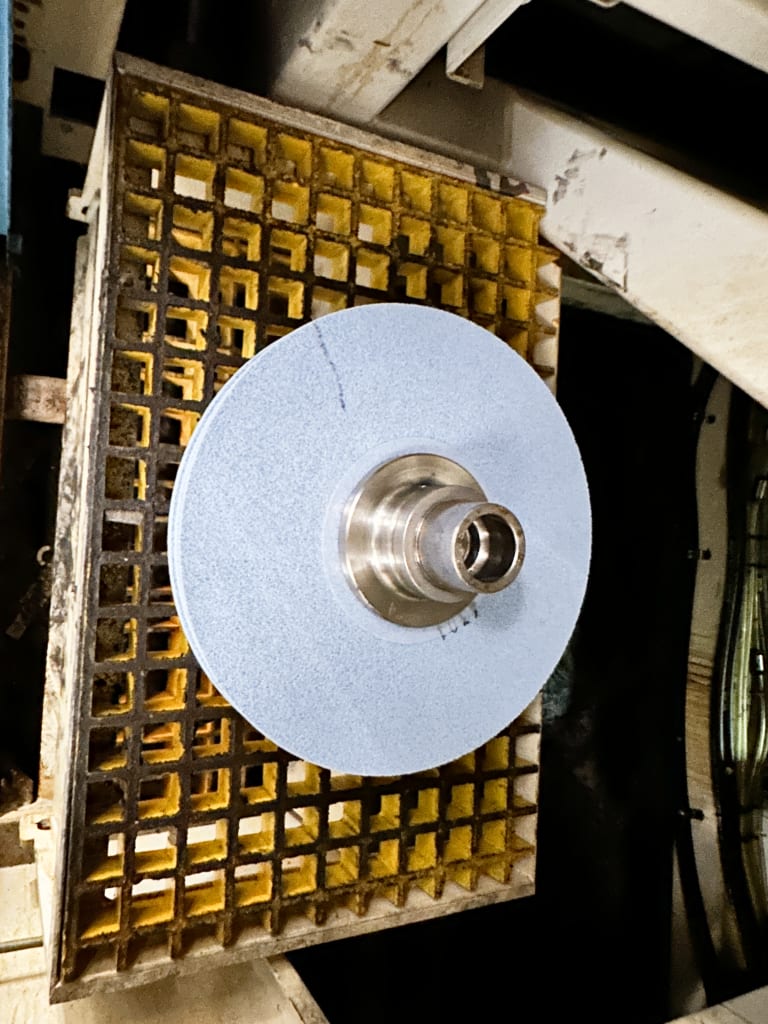

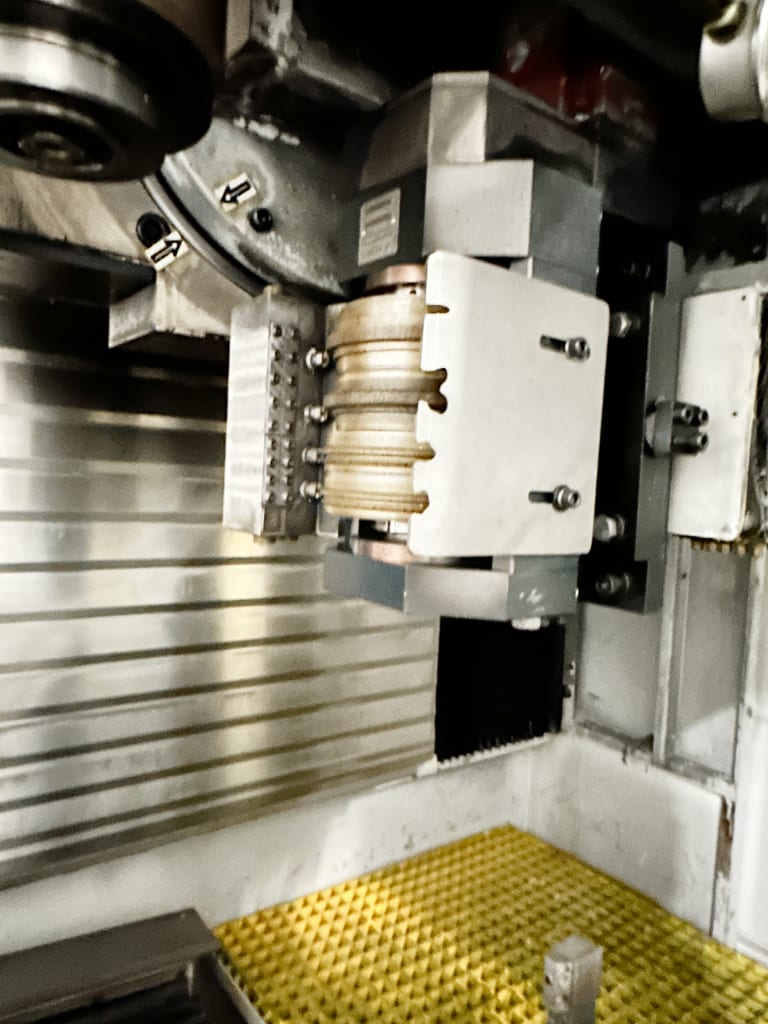

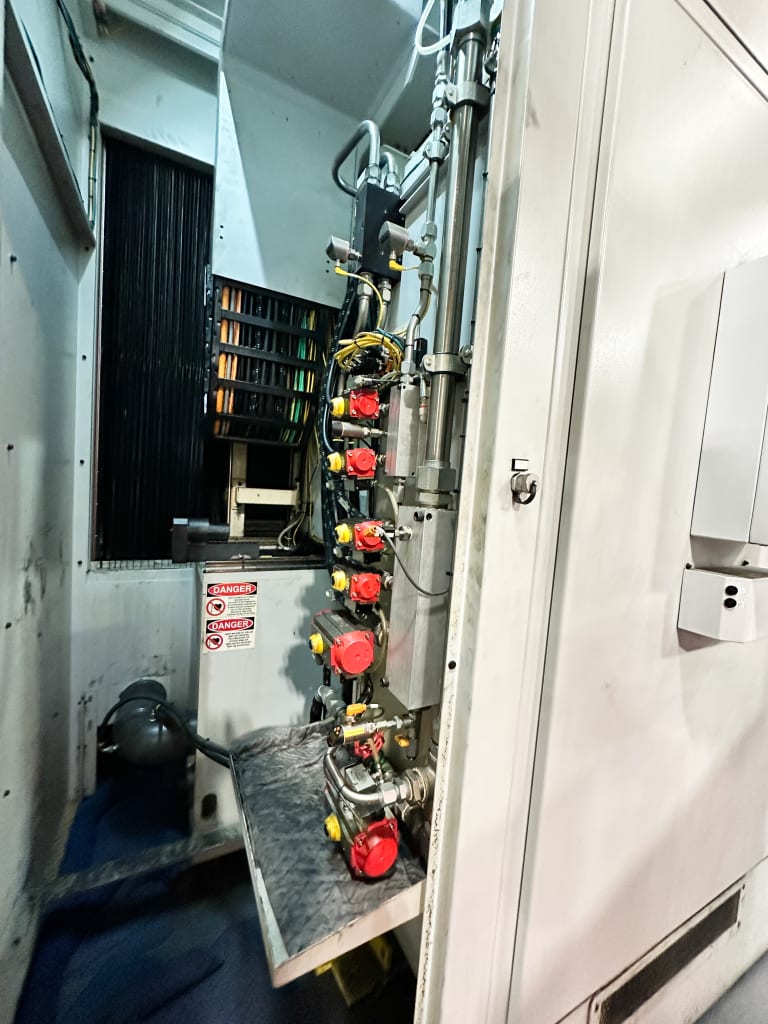

    2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder

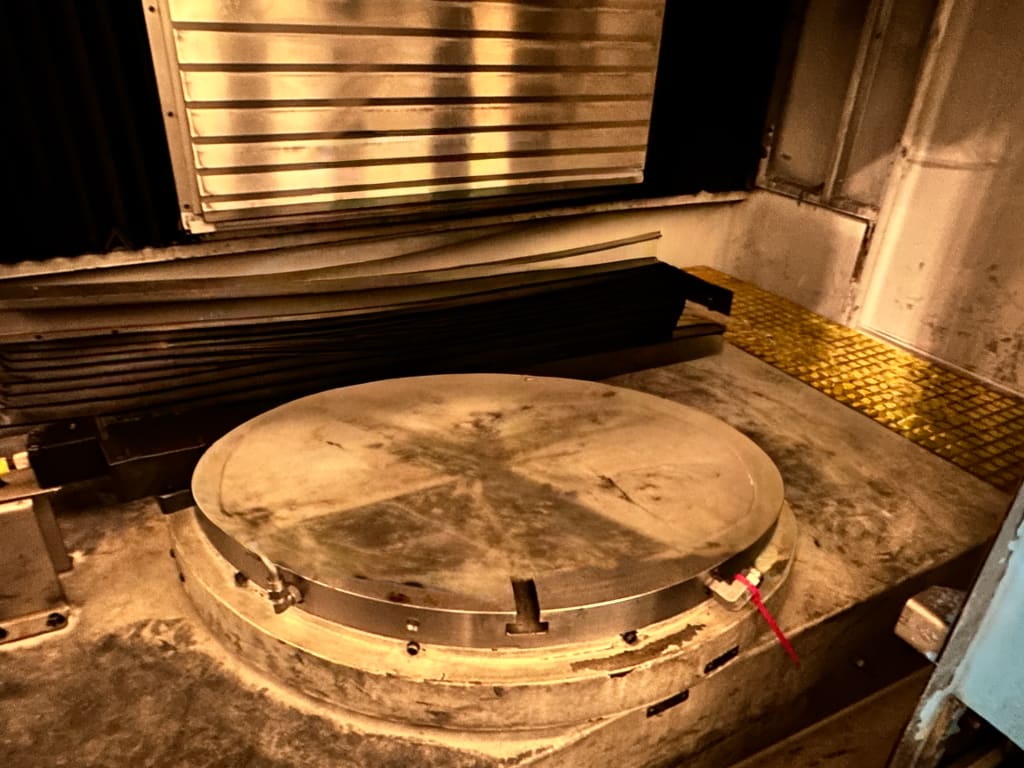

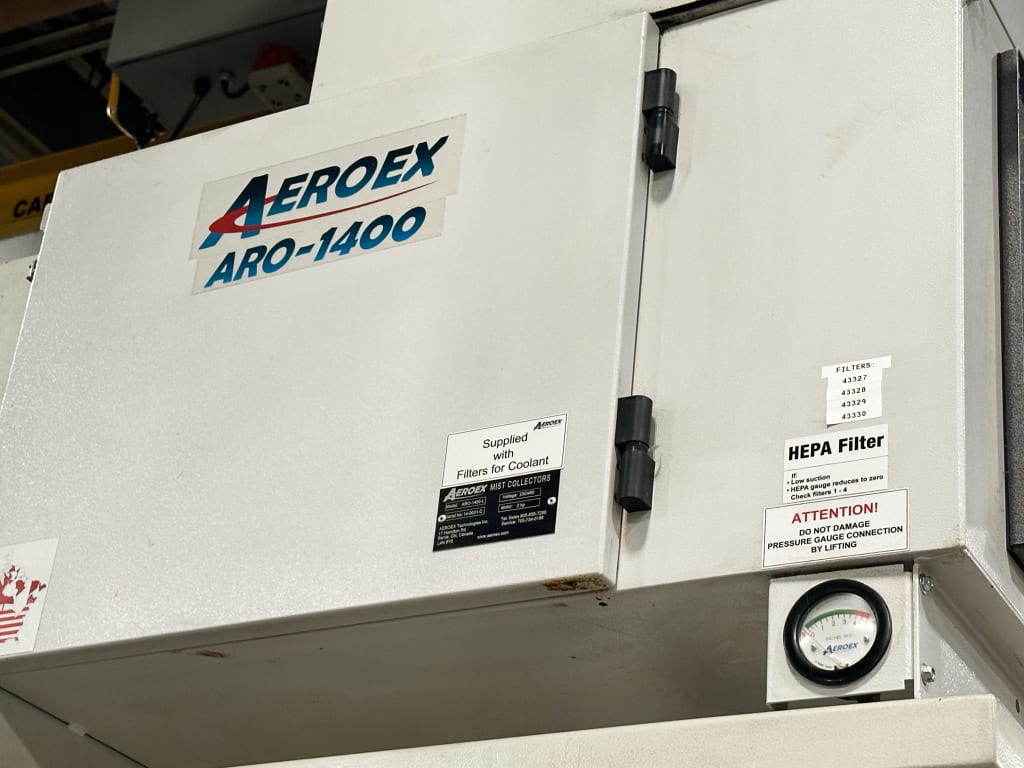

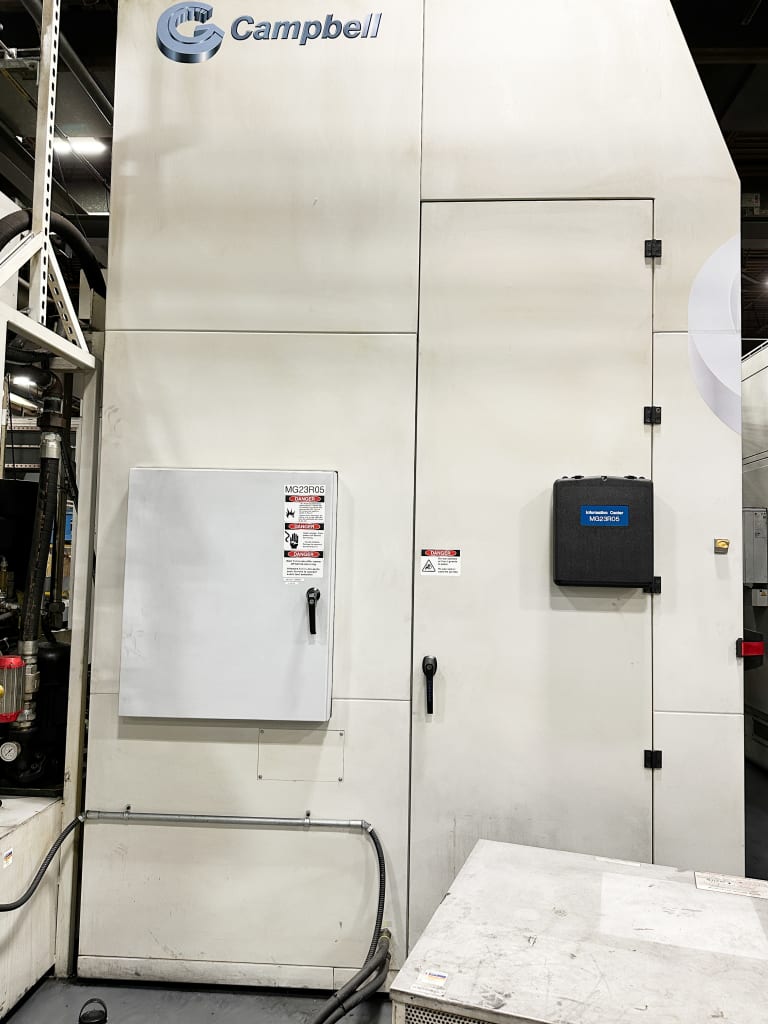

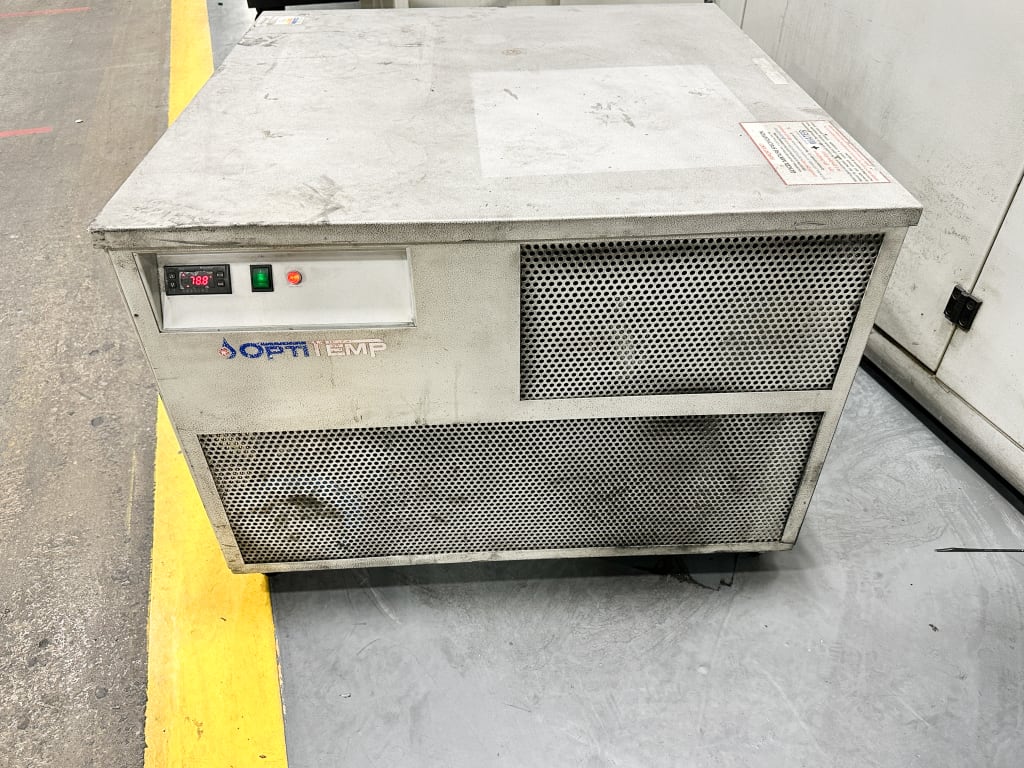

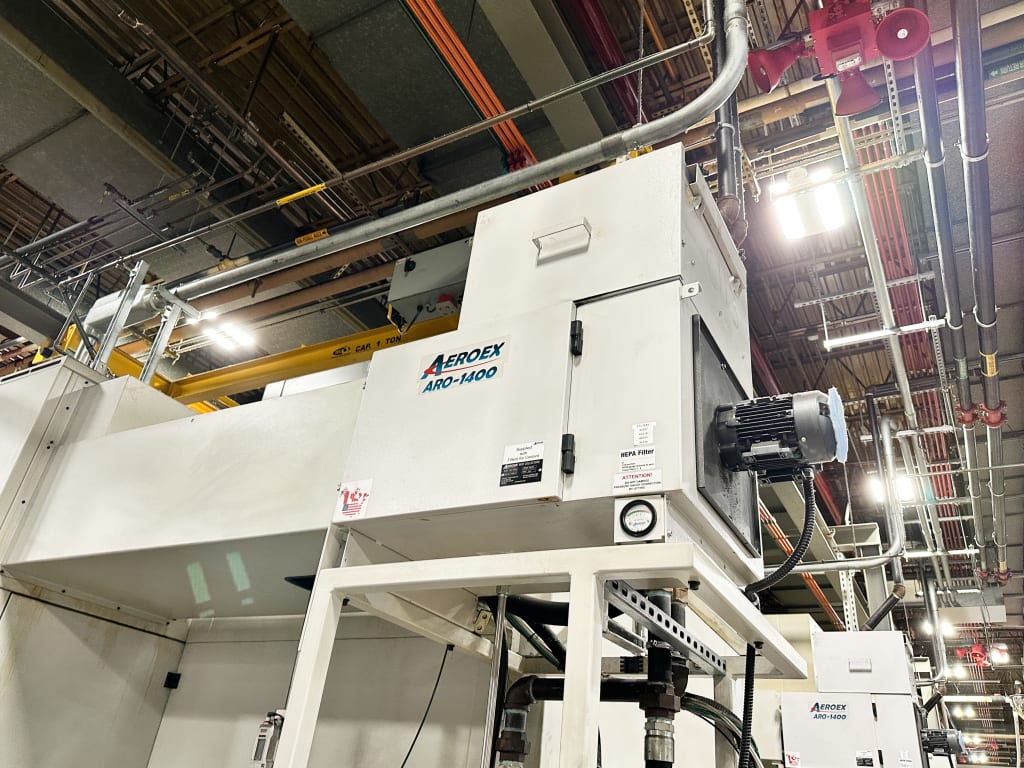

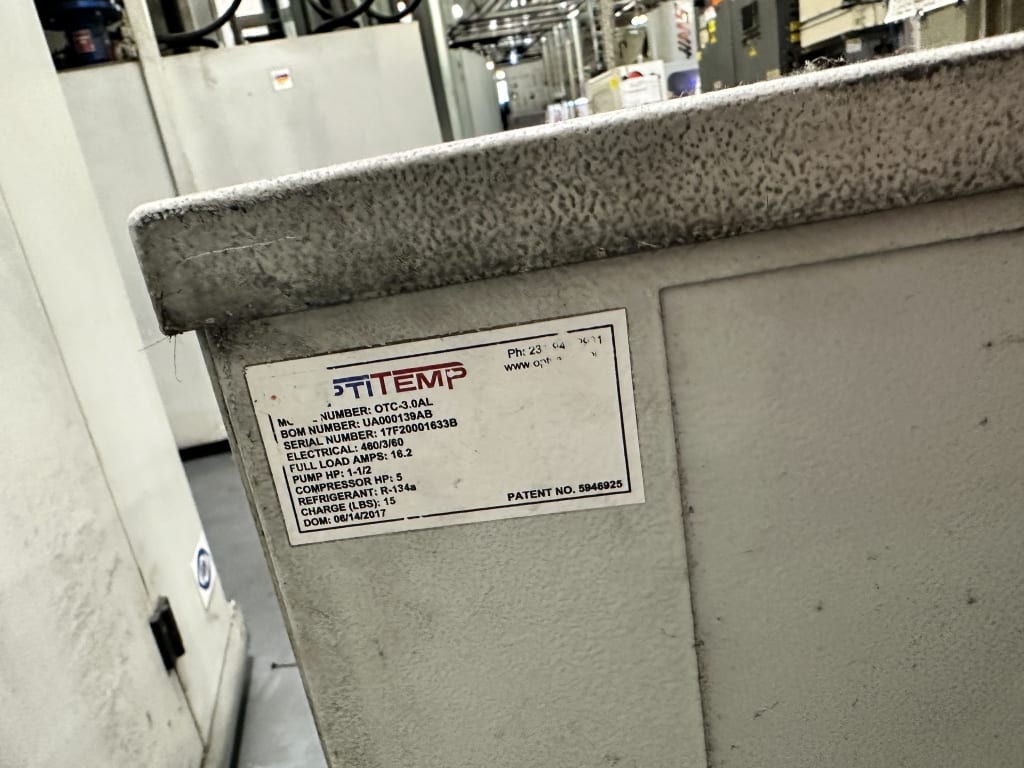

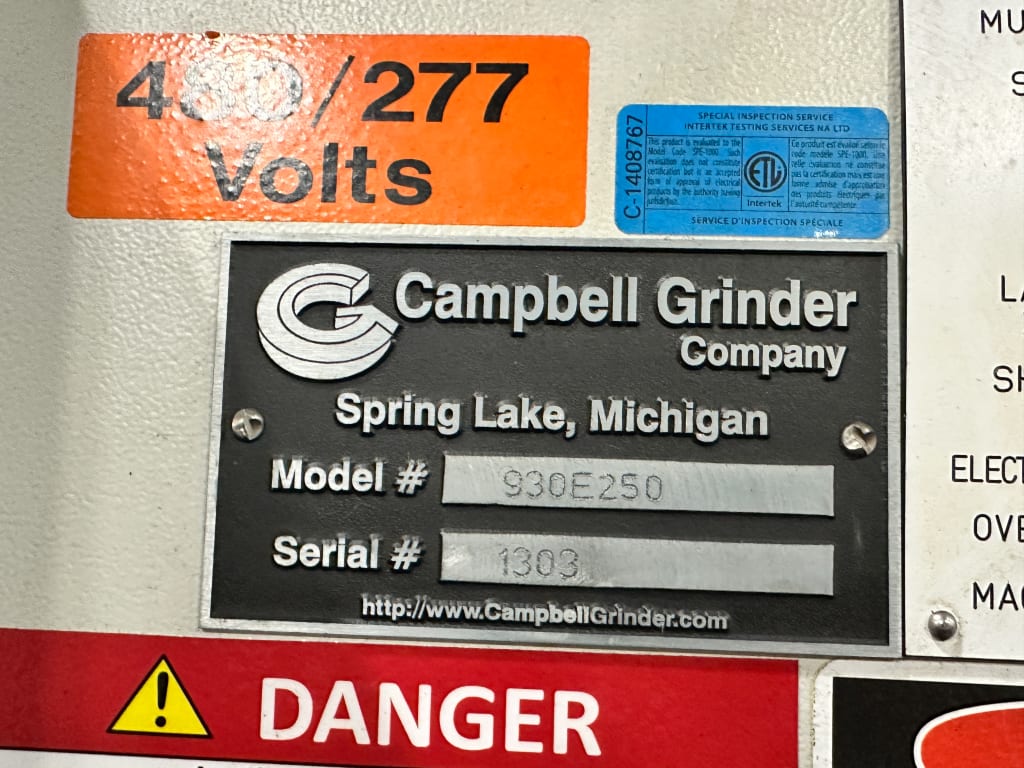

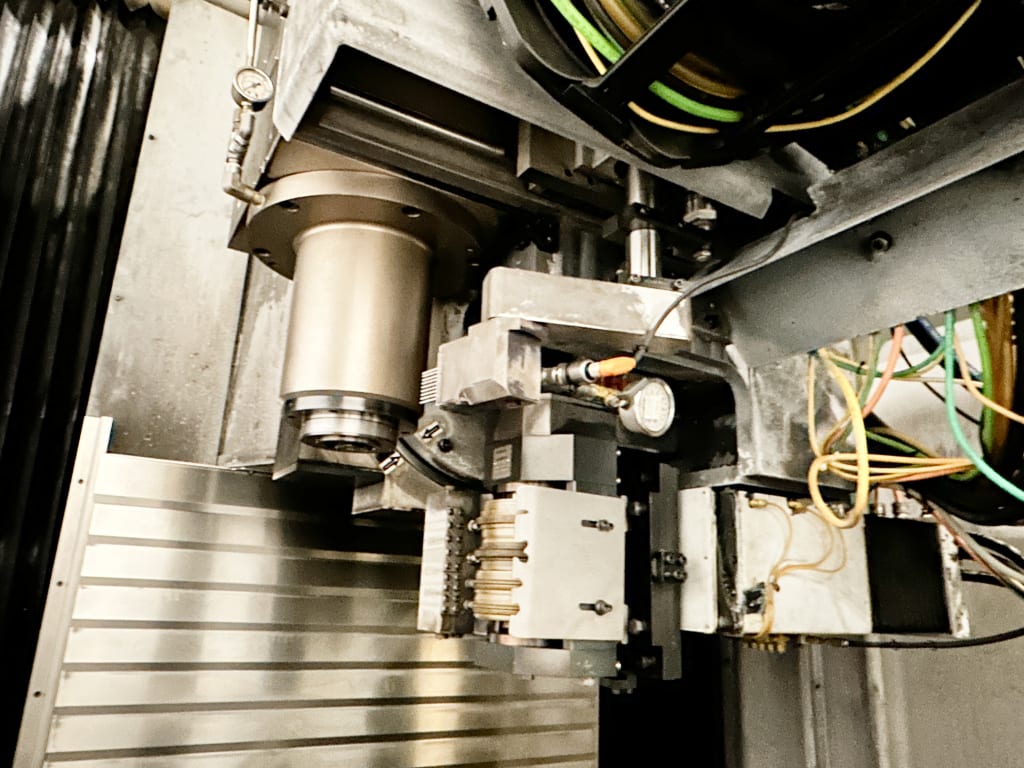

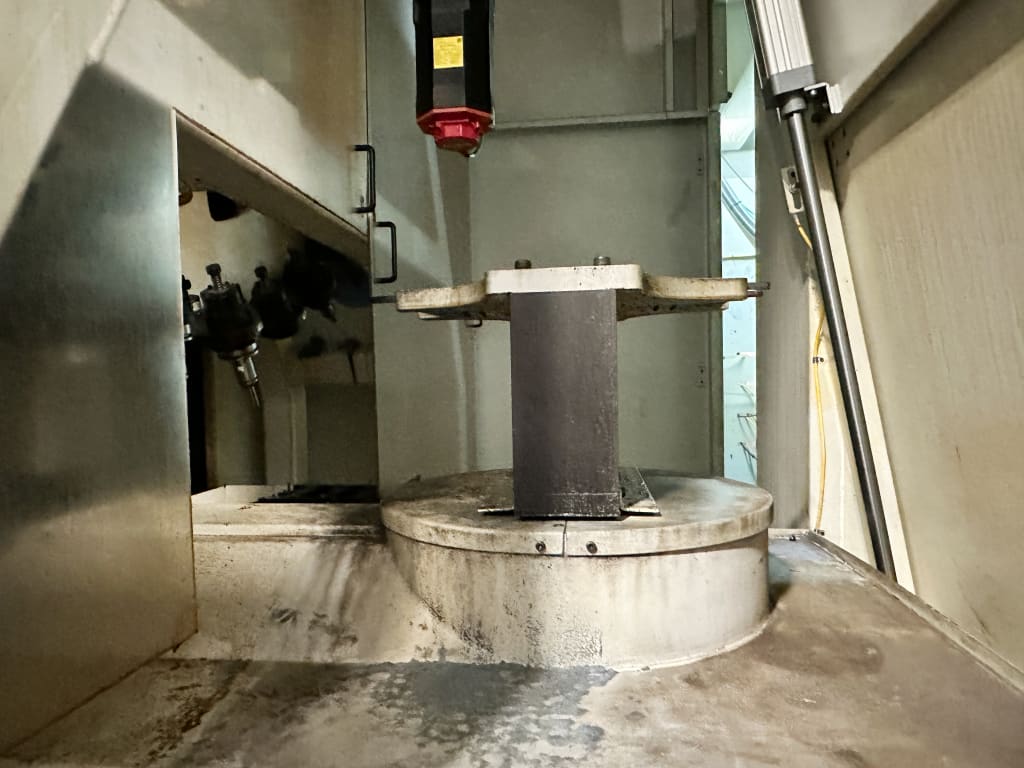

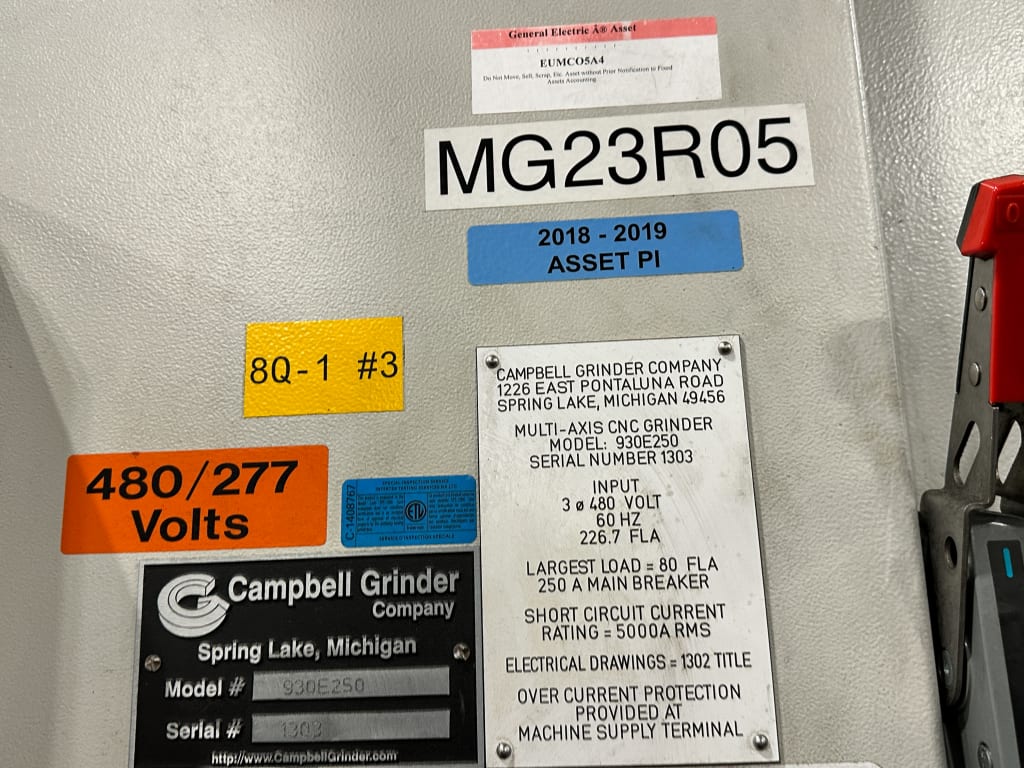

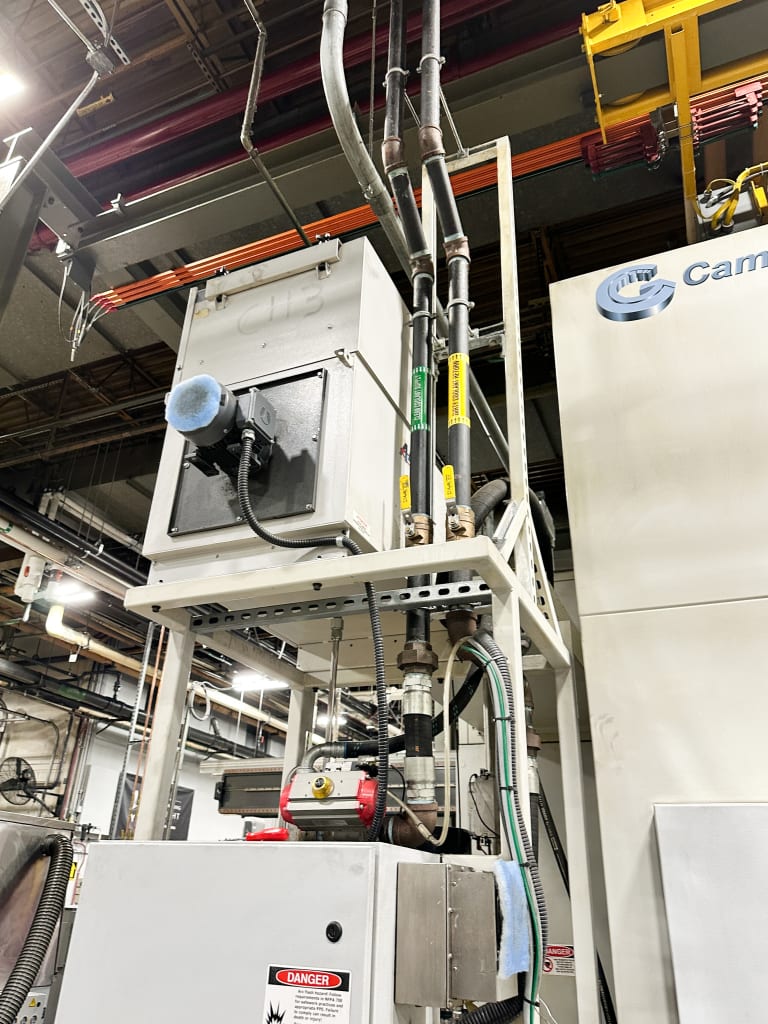

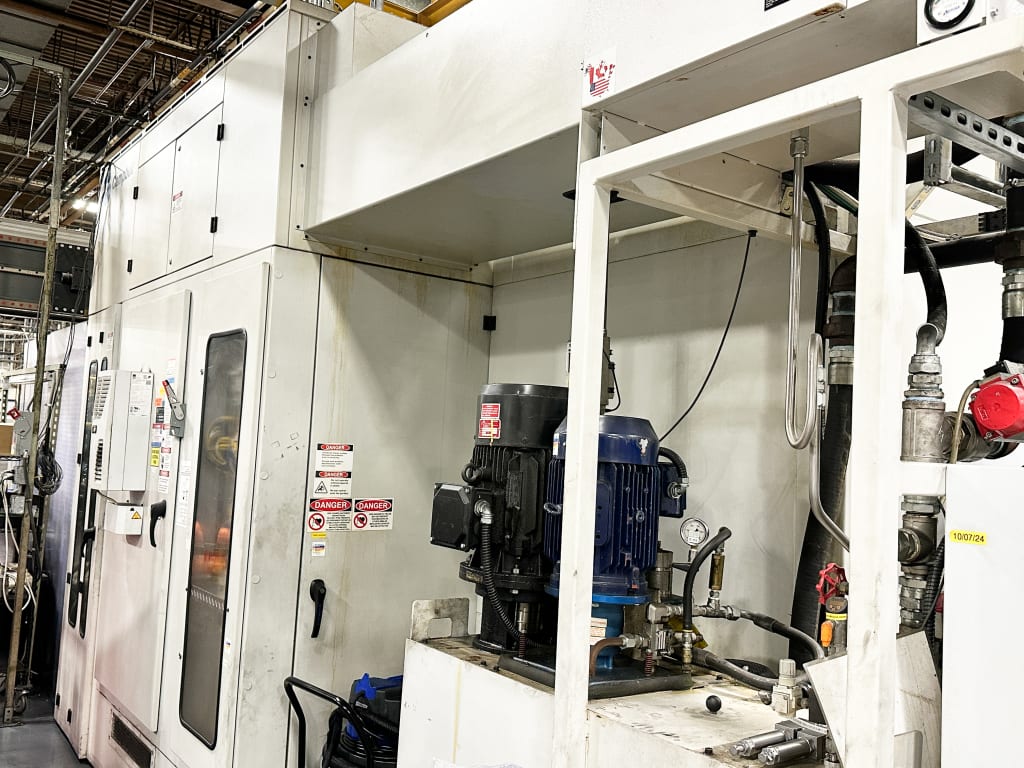

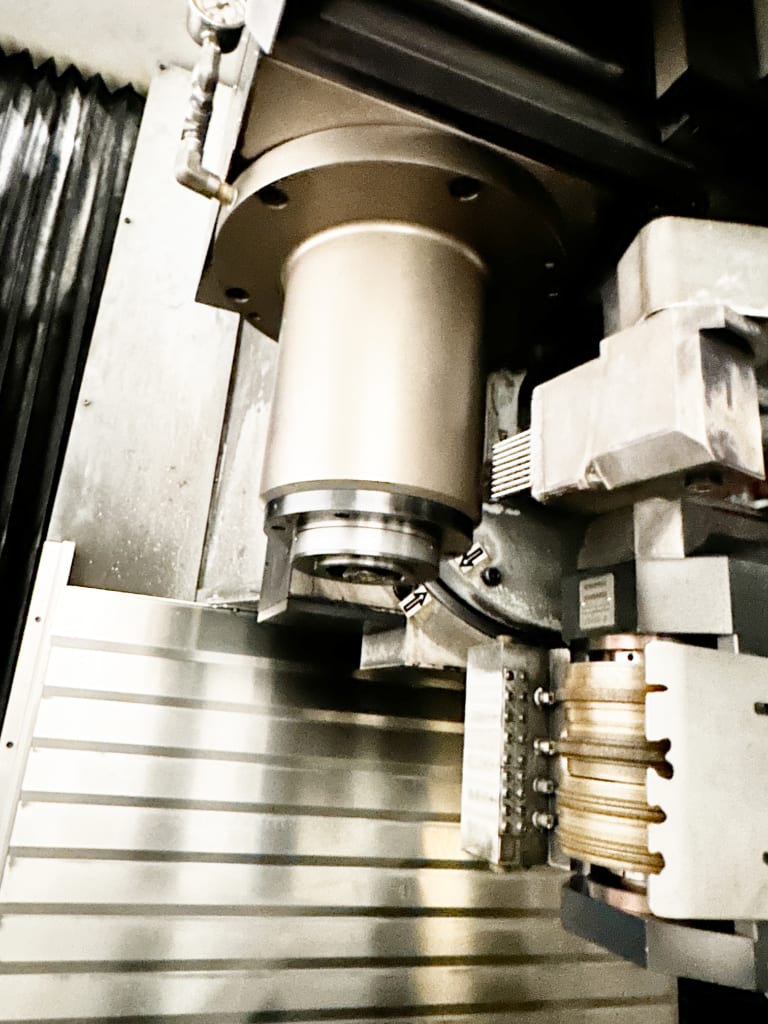

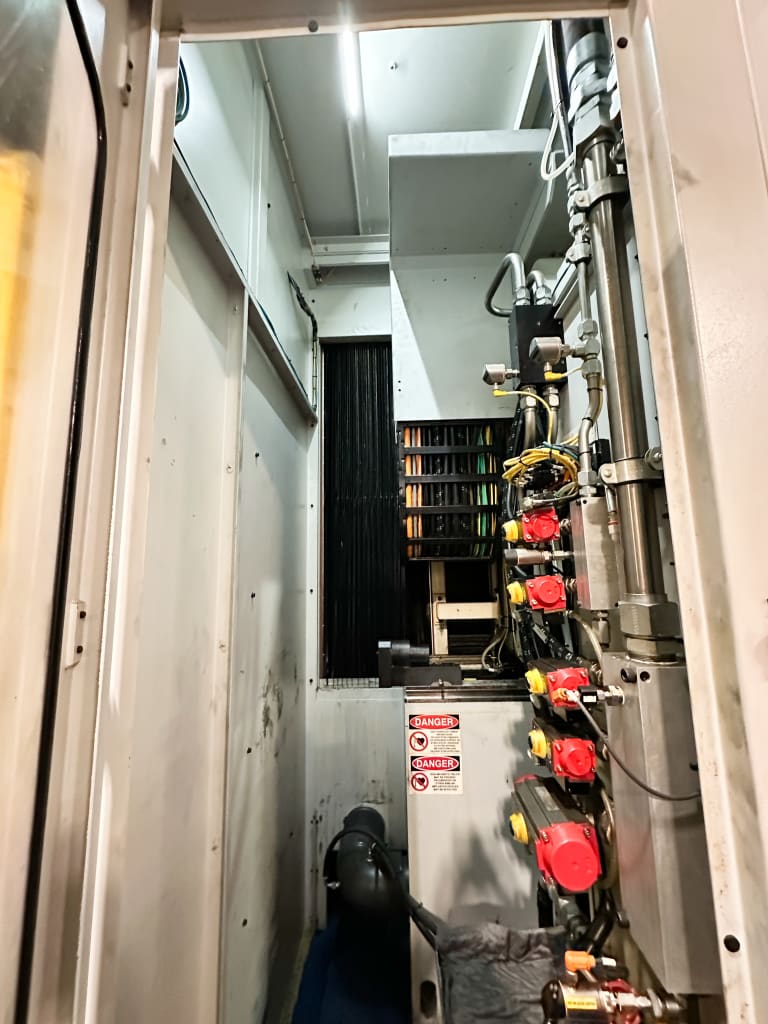

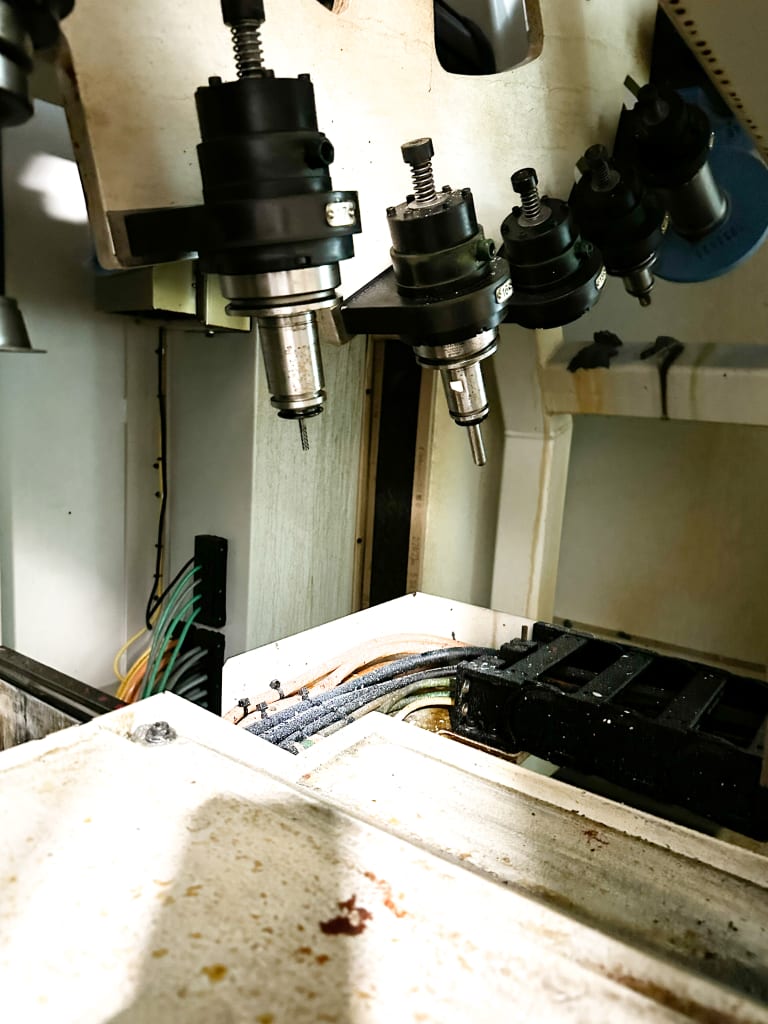

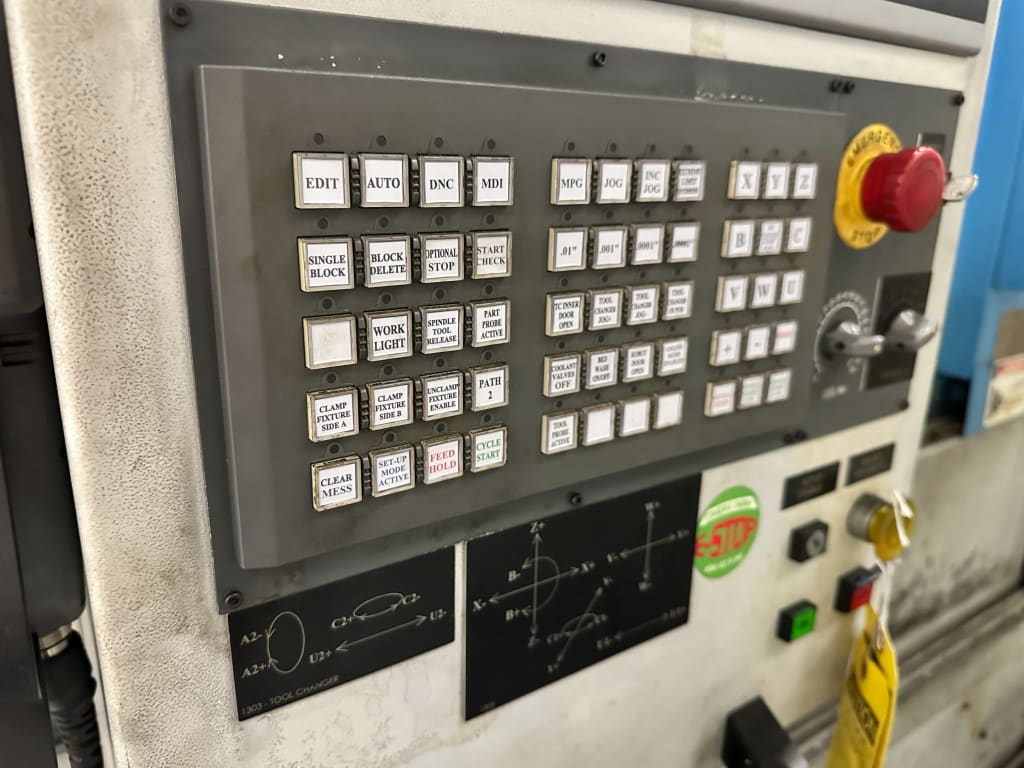

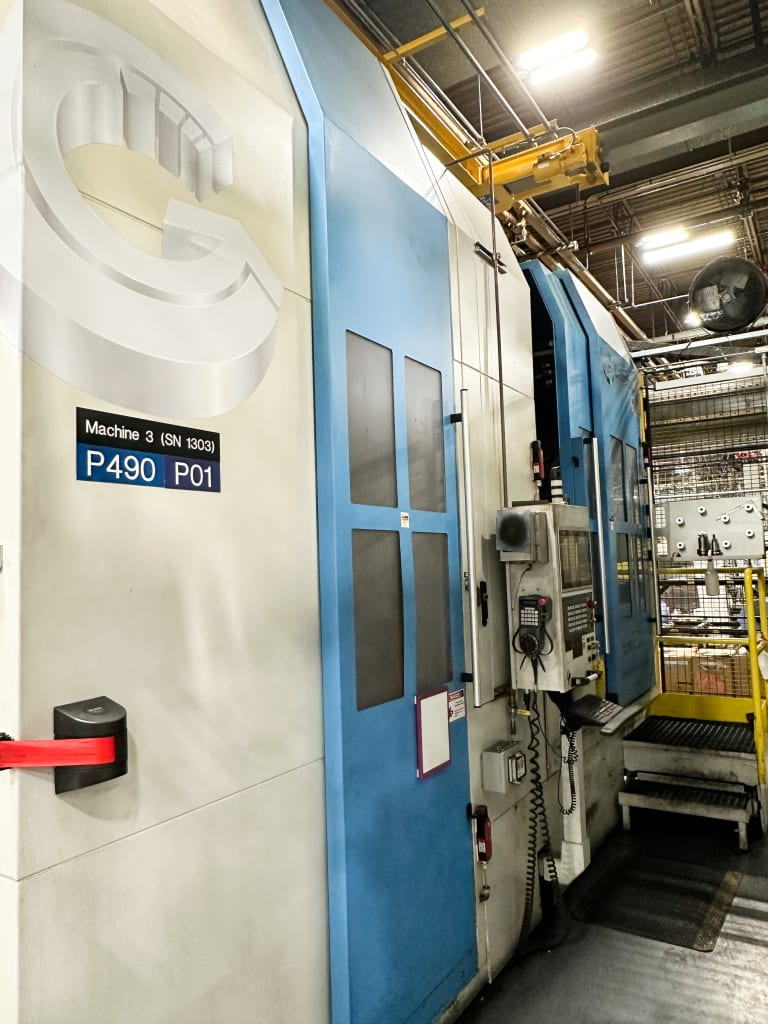

    2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder, Fanuc 32i CNC Controls 5-Axes of Motion, 5-Axes Simultaneous, 10" x 12" x 12" X/Y/Z Work Envelope, B (Spindle Swivel: 10 Arc Seconds, 2.5 Microns (0.002") measured 305mm (12") Above the Table Top CL, C (Rotary Table) 26" Diameter, 5 Arc Seconds, 2.5 Microns (0.002") measured 305mm (12") Above the Table Top CL, 300 IPM Rapid Traverse Speed, 300# Capacity, 30-HP, 1,500-10,000 RPM Grinding Spindle Speed, 2.5 Microns (0.001") Run Out Both Radially and Axially, HSK-80 Spindle Taper, Spindle Mounted Dresser: 0-5,500 RPM Speed, Roll Clamping: 6" Length for 4 Stacked Rolls, 52mm Arbor Diameter, Complete with 20-Positon Tool Changer, 14" Maximum Grinding Wheel, 8" Maximum Tool Length, 50# Capacity, Vertical Position Wheel Orientation, Complete with Precison Roller Ways - All Axes Through the Table Hydraulics, Direct Motorized Liquid Cooled Grinding Spindle, All Linear Motors, Direct Feedback (All Scales), Stacked Wheel Dresser, Aeroex ARO-1400-L 2-HP Mist Collector, OptiTemp OTCX-3.0AL Chiller, 3,700 Spindle Hours, S/N: 1303 (Note: Wire Harness Needs to be Replaced, Machine Will Come with Replacement Wire Harness, Chuck is Intact, we Removed GE IP from the Photos) (Subject to Bulk Bid)
    View Item
  • 5-1.jpg
    site
    LOT 4

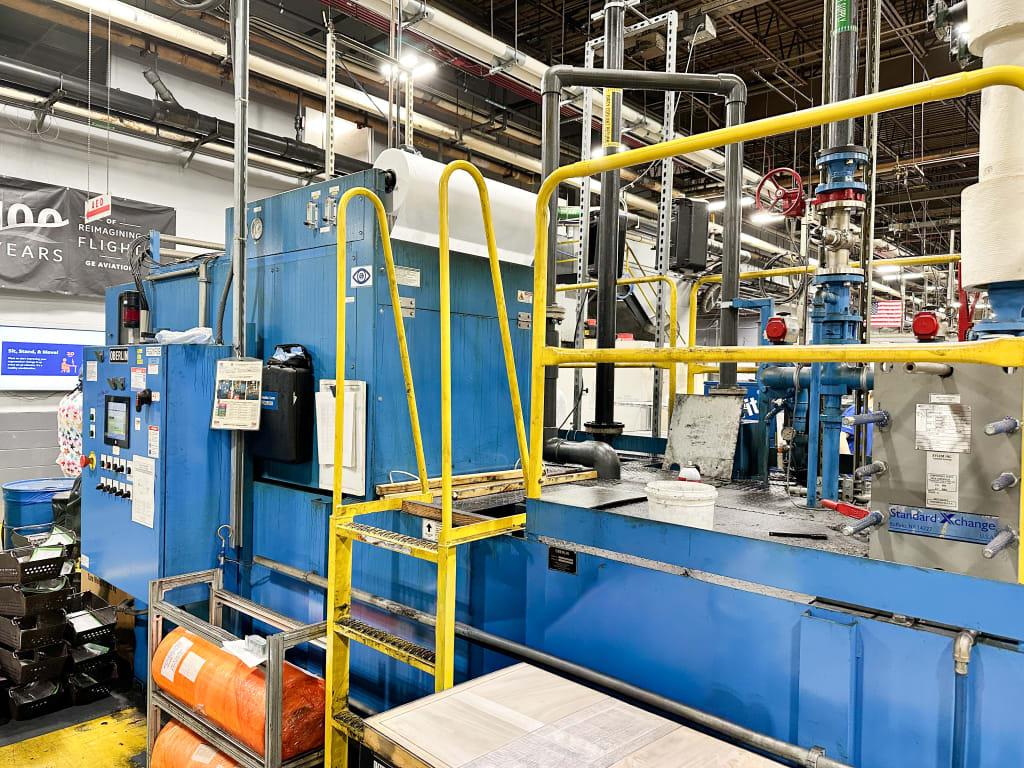

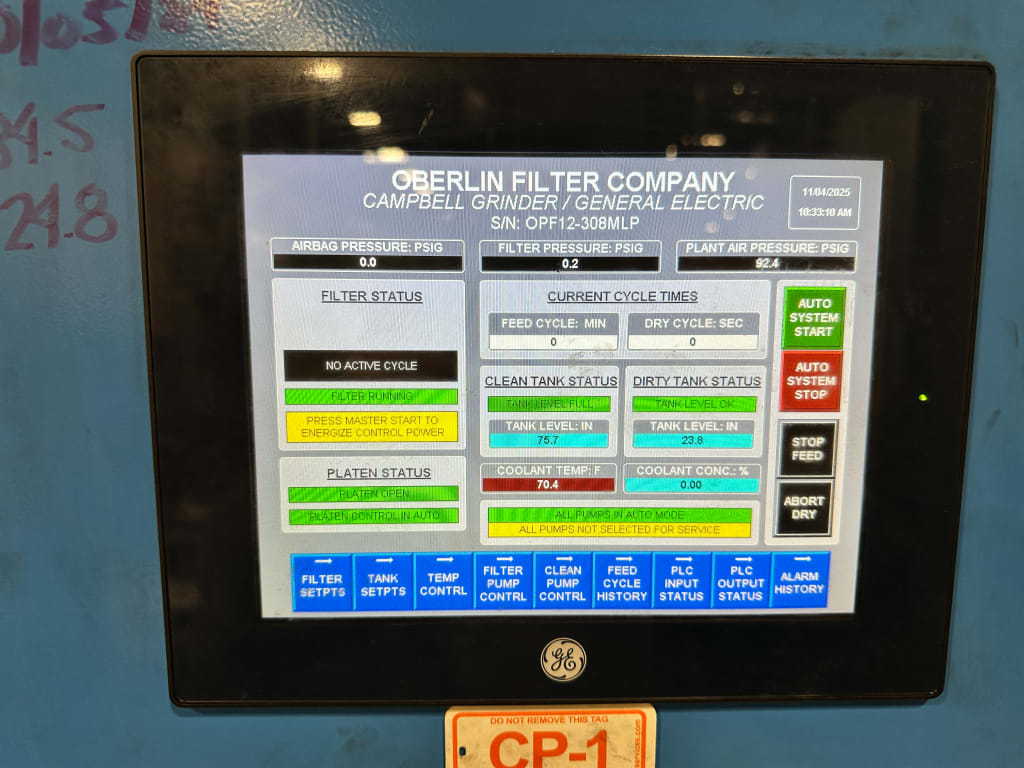

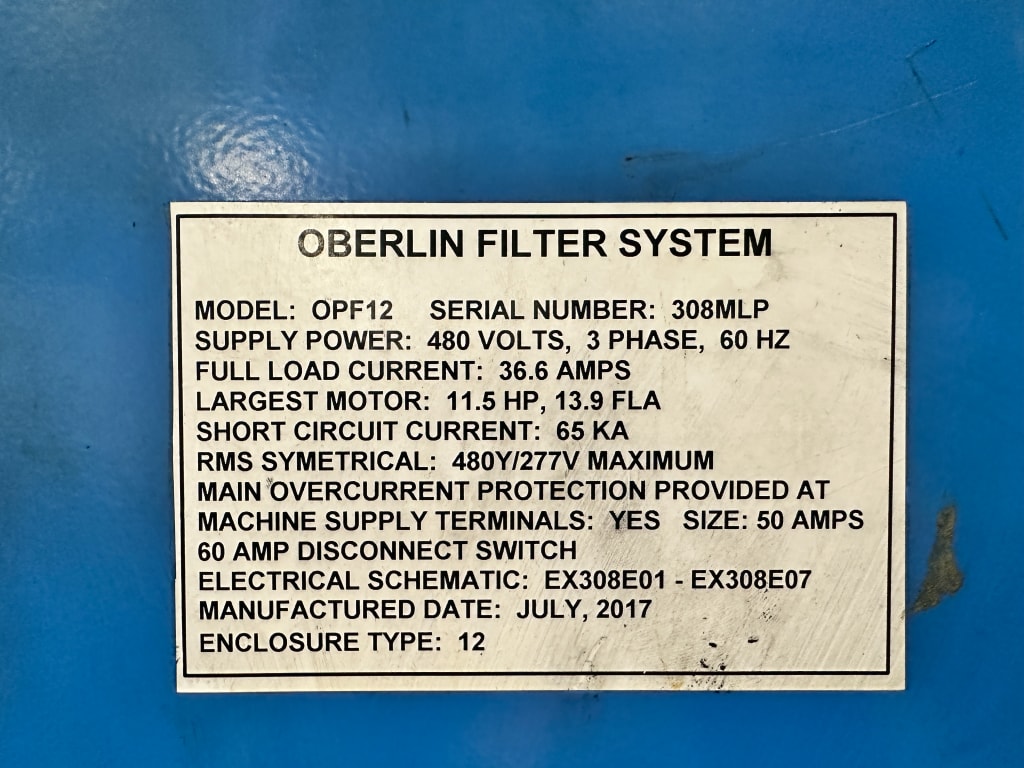

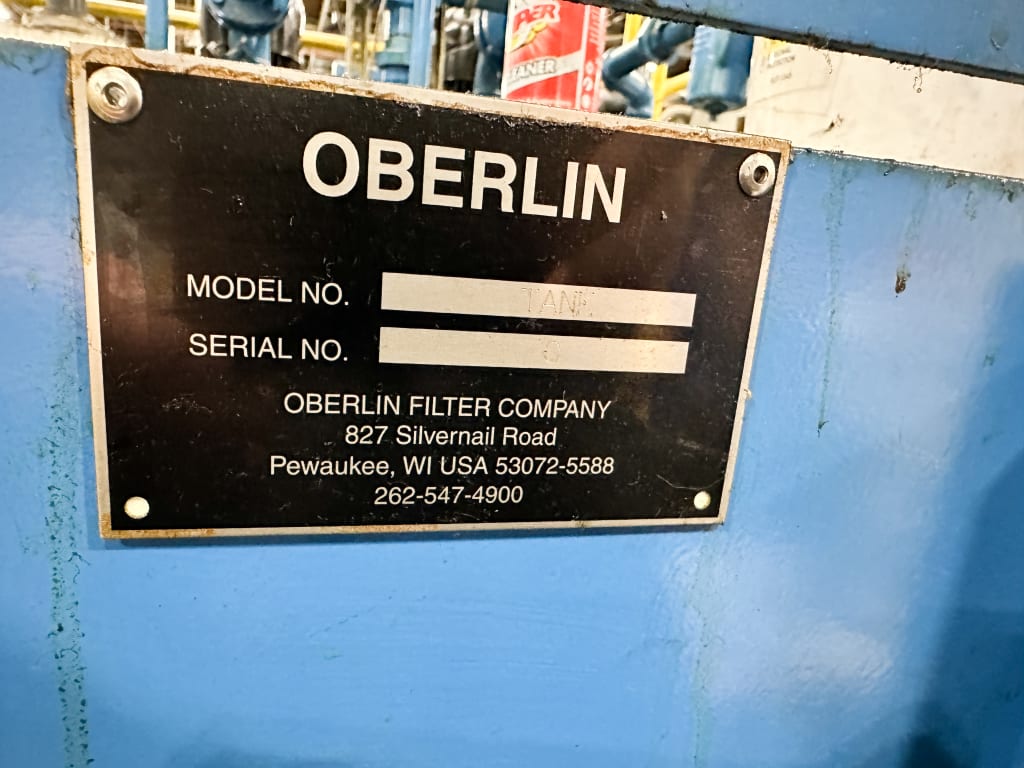

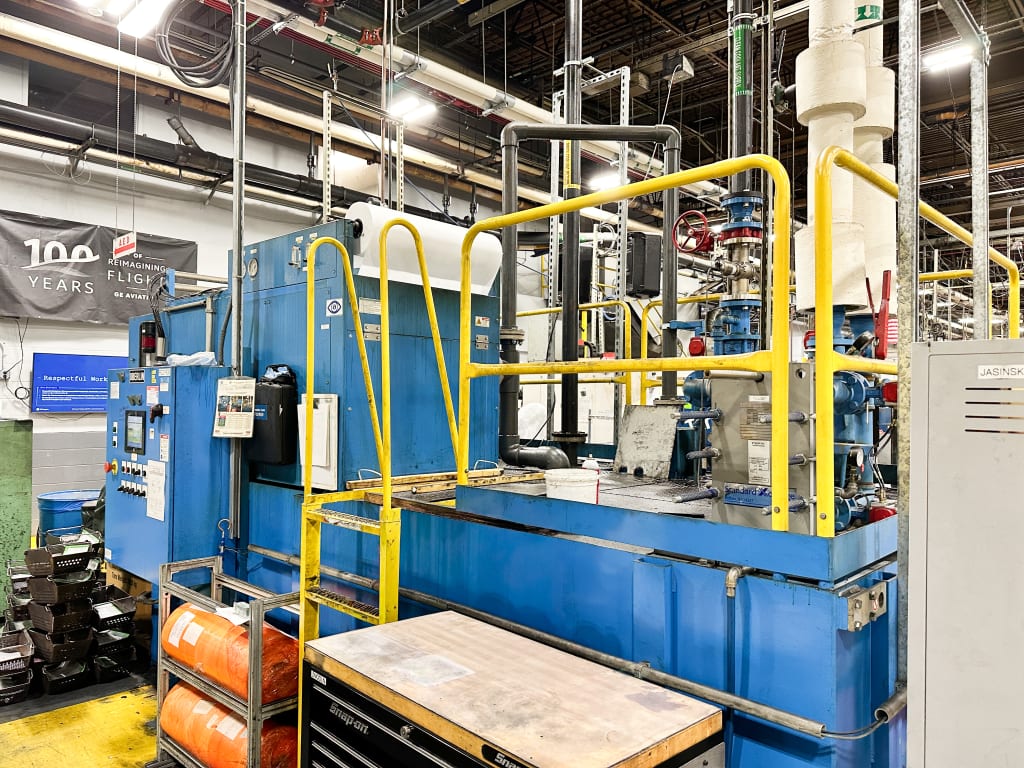

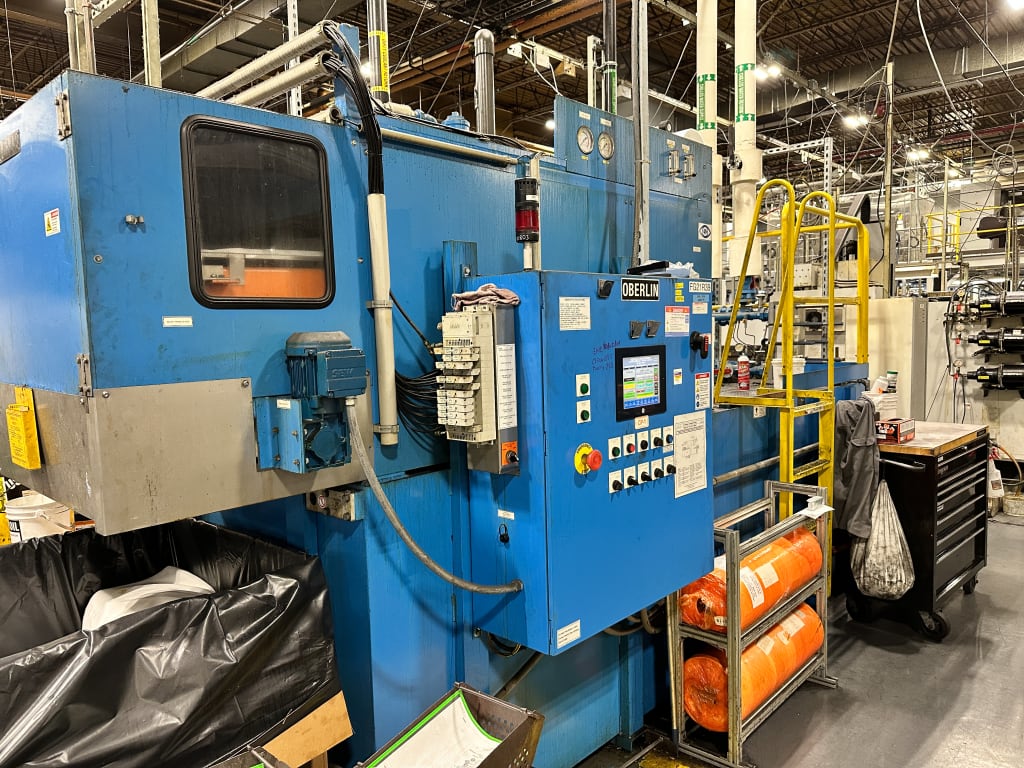

    2017 Oberlin Model OPF12 Pressure Filtration System

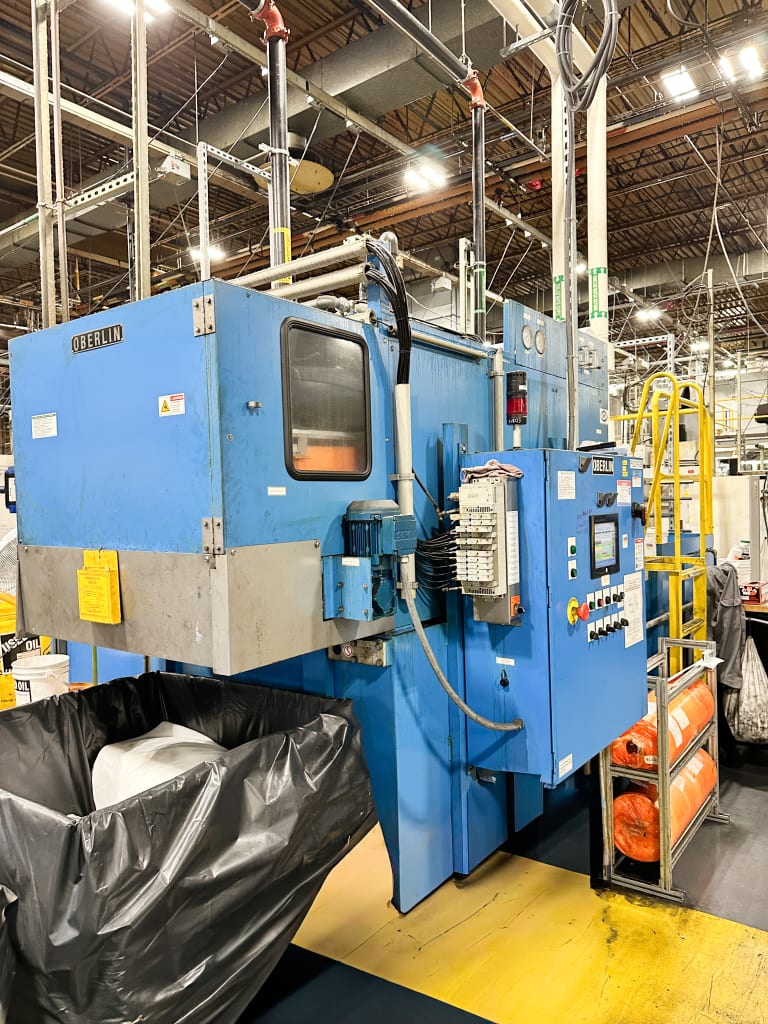

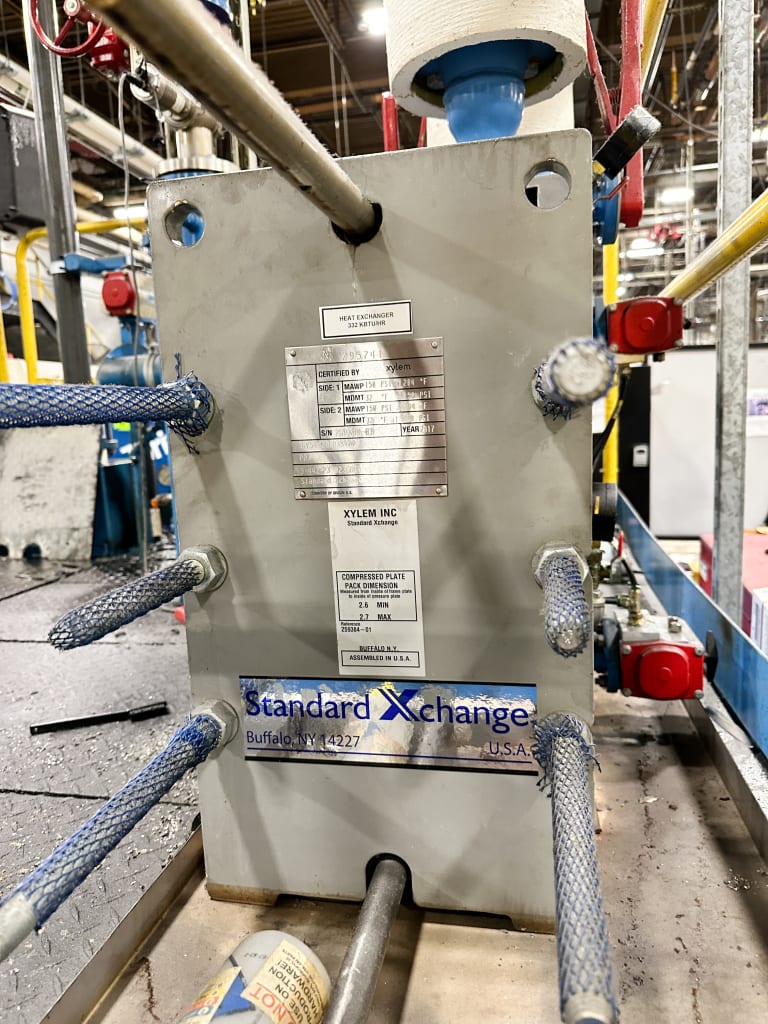

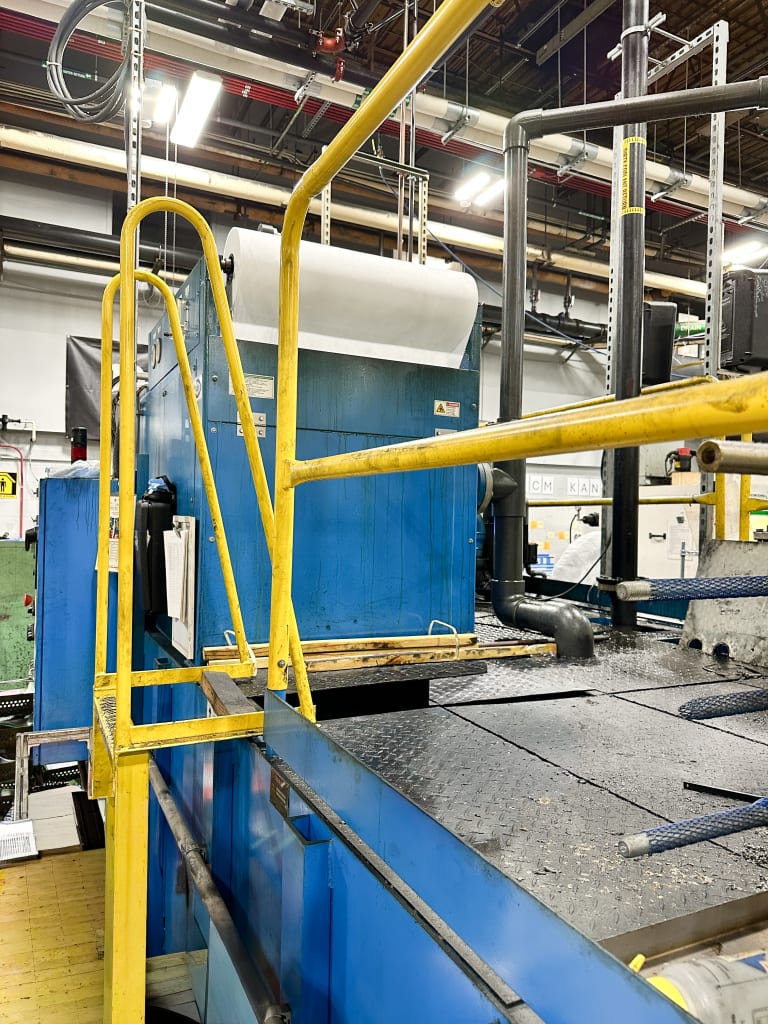

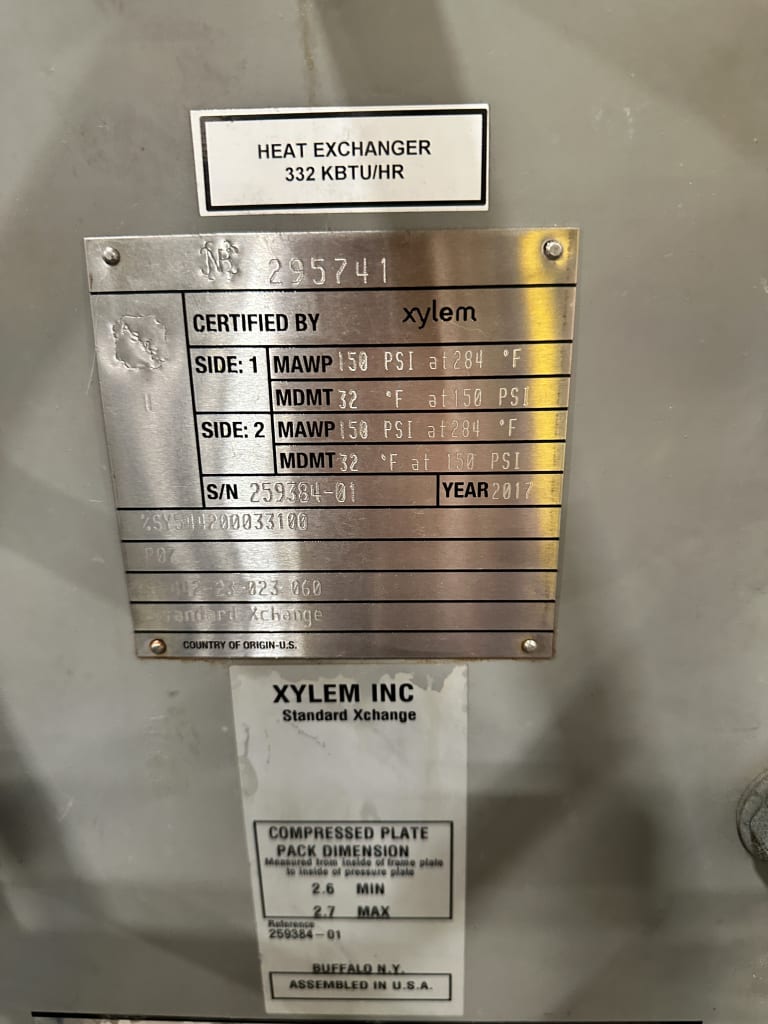

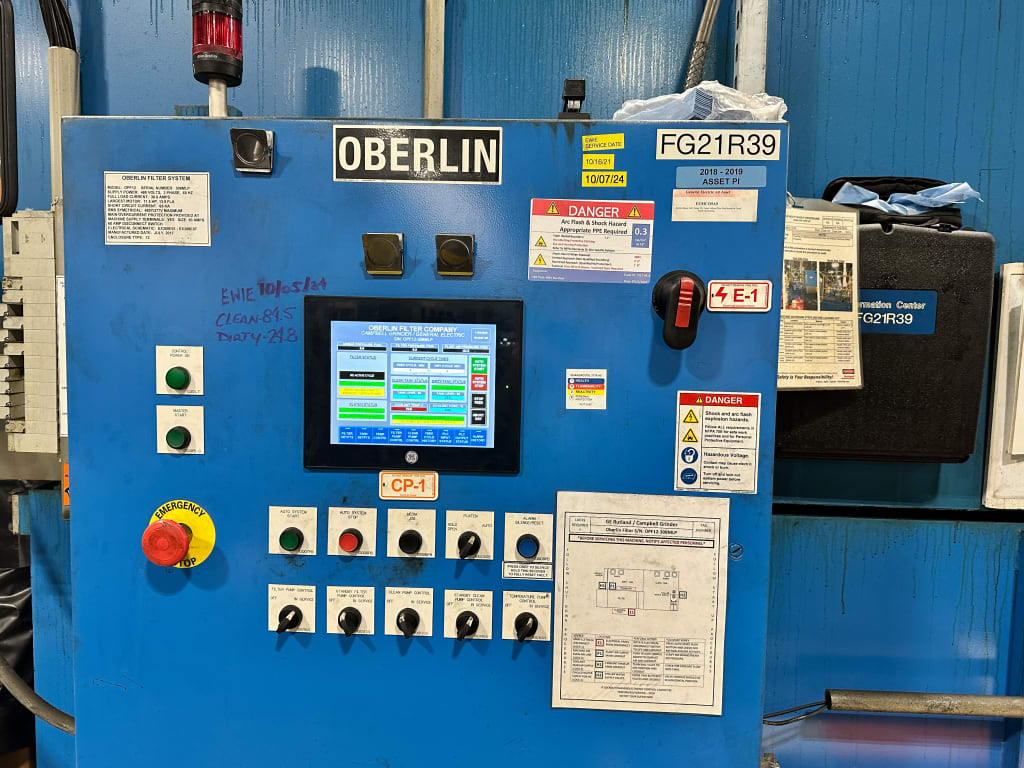

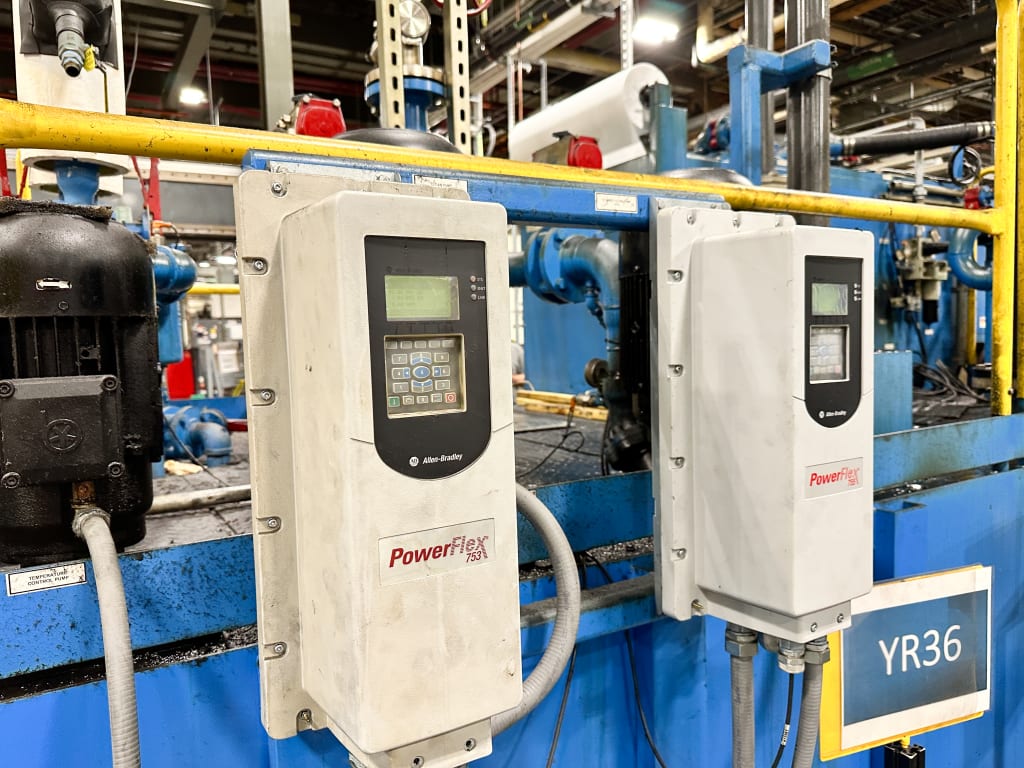

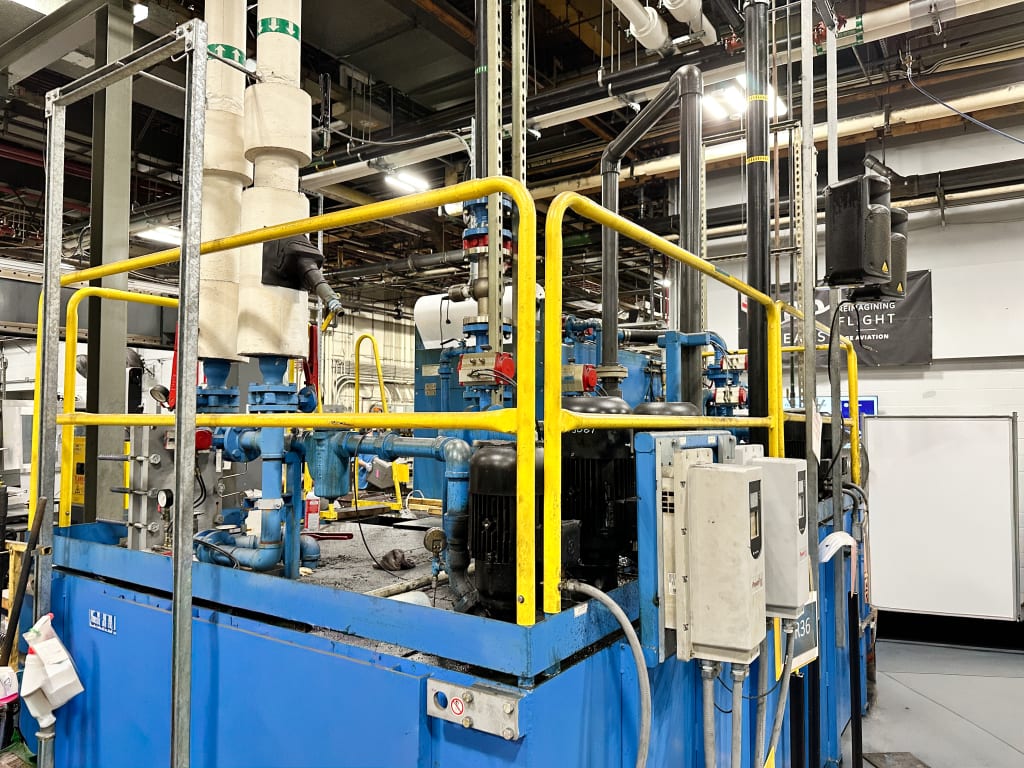

    2017 Oberlin Model OPF12 Pressure Filtration System, 12 SQ Ft. Filtering Area, 480 GPM Water Base, 200 Ssu Oil, 156" x 100" x 36" Tank Size, Complete with Plate Type Heat Exchanger, PLC Opetator Interface, Allen Bradley PowerFlex 753 VFD's, S/N: 308MLP (Subject to Bulk Bid)
    View Item
  • 5-1
    5-2
    5-3
    5-4
    5-5

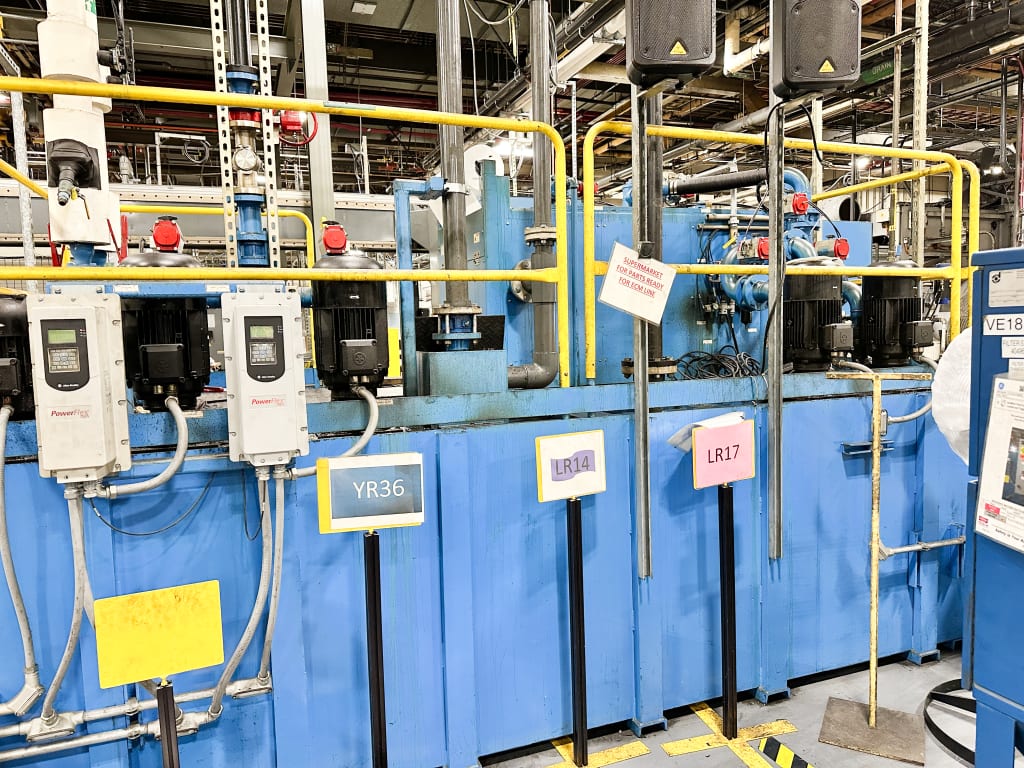

    5-7
    5-8
    site
    LOT 5

    Bulk Lot Consisting of (3) 2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder, 2017 Oberlin OPF12 Filtration System

    Bulk Bid Lots 1-4 Consisting of (3) 2017 Campbell 930E250 5-Axis CNC Creep Feed Grinder, 2017 Oberlin OPF12 Filtration System (Sale Subject to Individual Lots)

    View Item
