(2) Nakamura-Tome NTRX-300 High-Rigidity Multitasking Machines, Complete with Halter Parts Loaders
Starts: 17 December 2025 at 09:30 GMT
Ends: 11 February 2026 at 15:00 GMT
Surplus to requirements of ongoing business. Please see the sale information section for any additional fees that may be applicable upon purchasing an item. NOTE: Vendor to approve all closing bids prior to Apex final invoicing.
Share:
Showing 2 of 2 lots
- LOT 1
![site]()

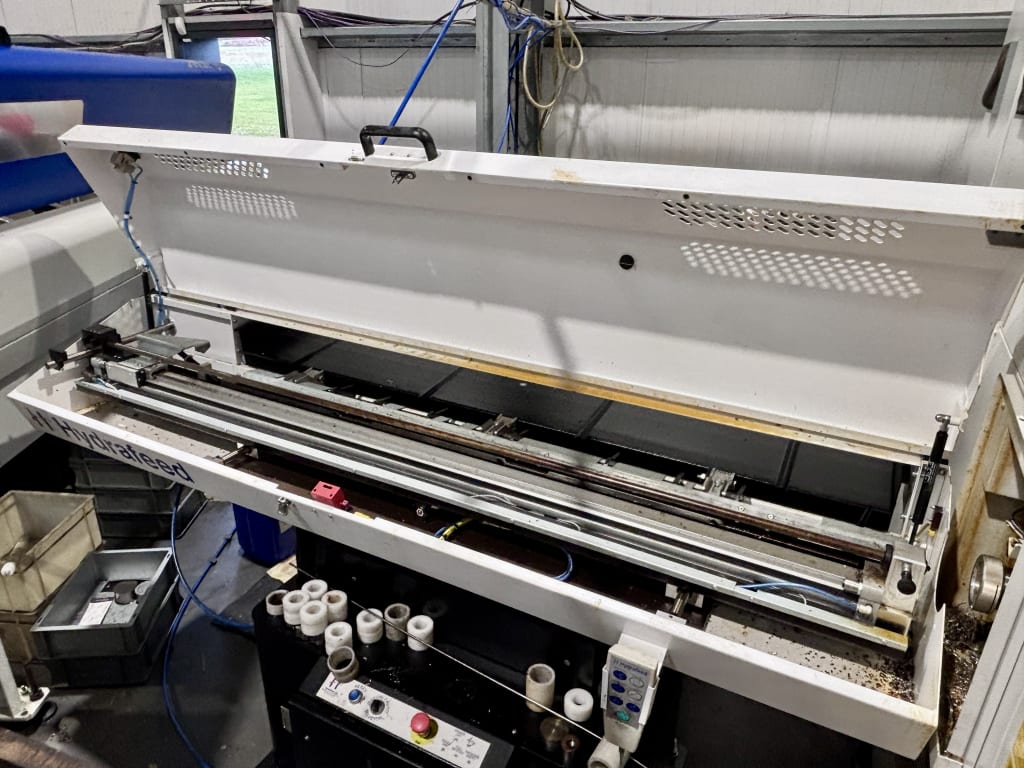

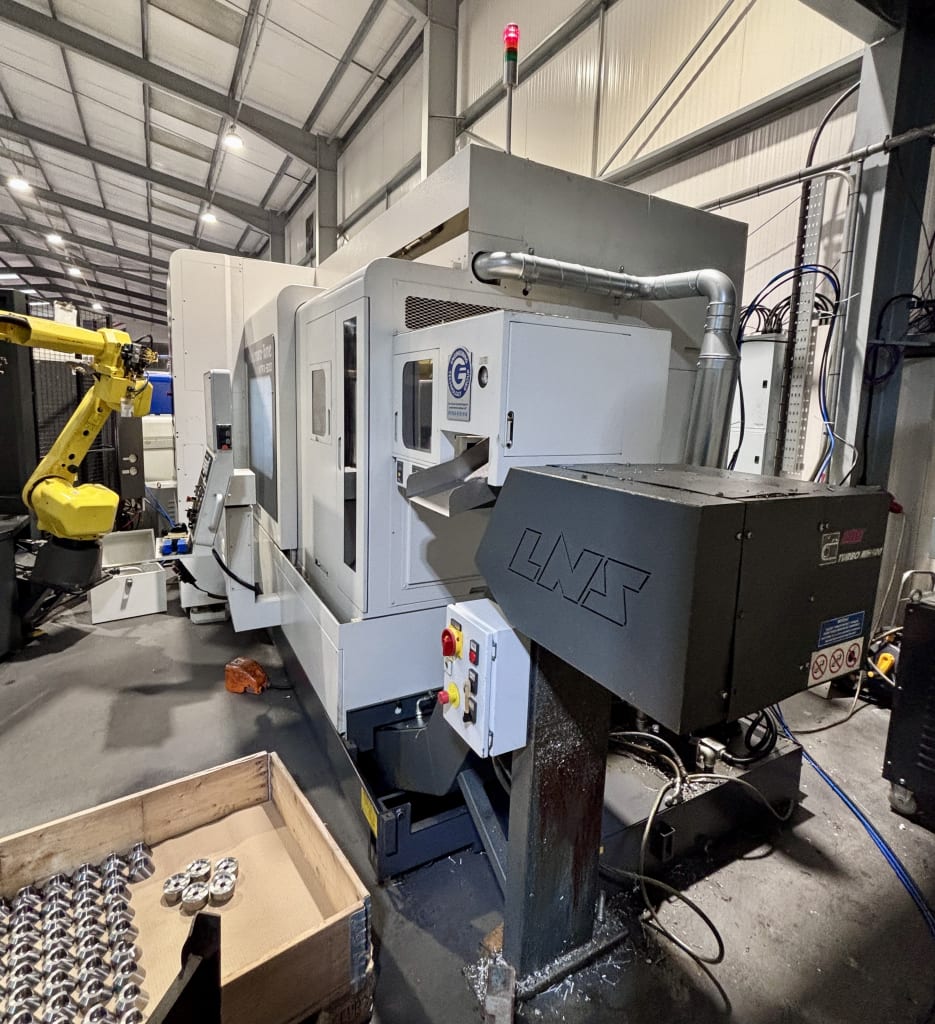

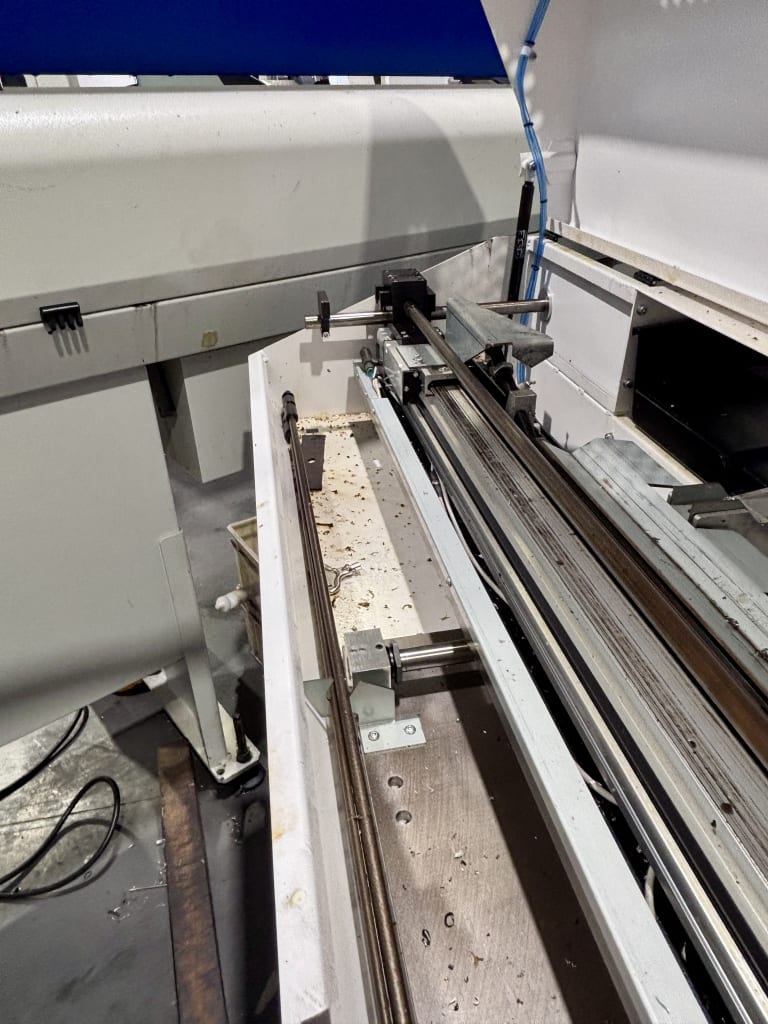

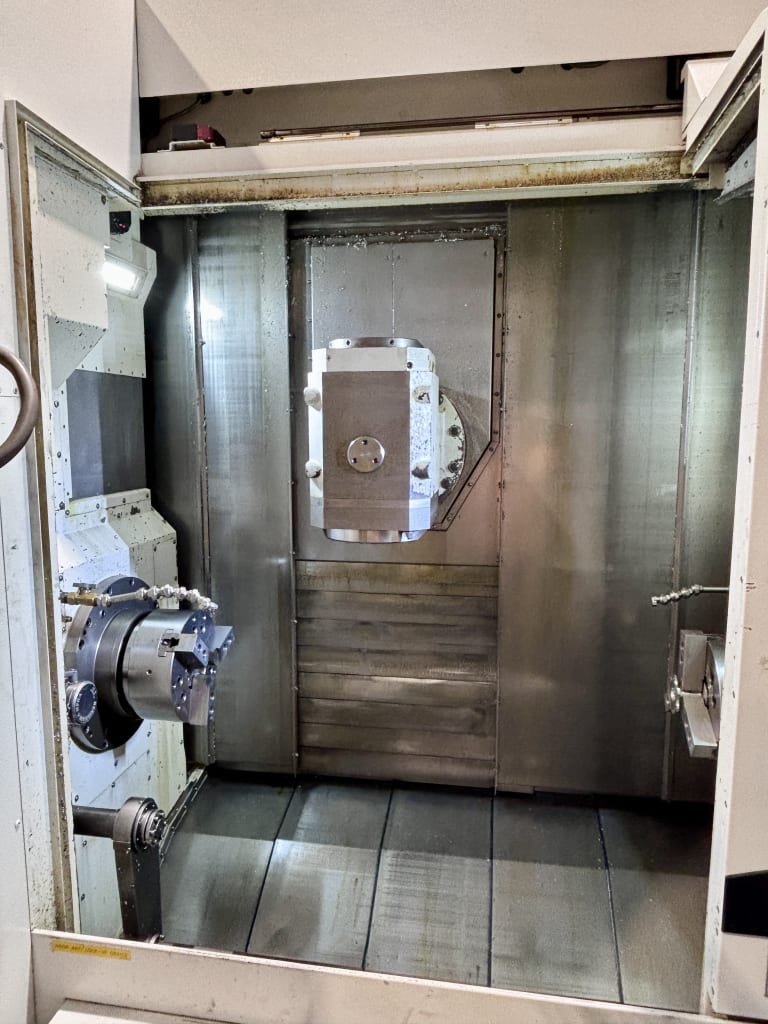

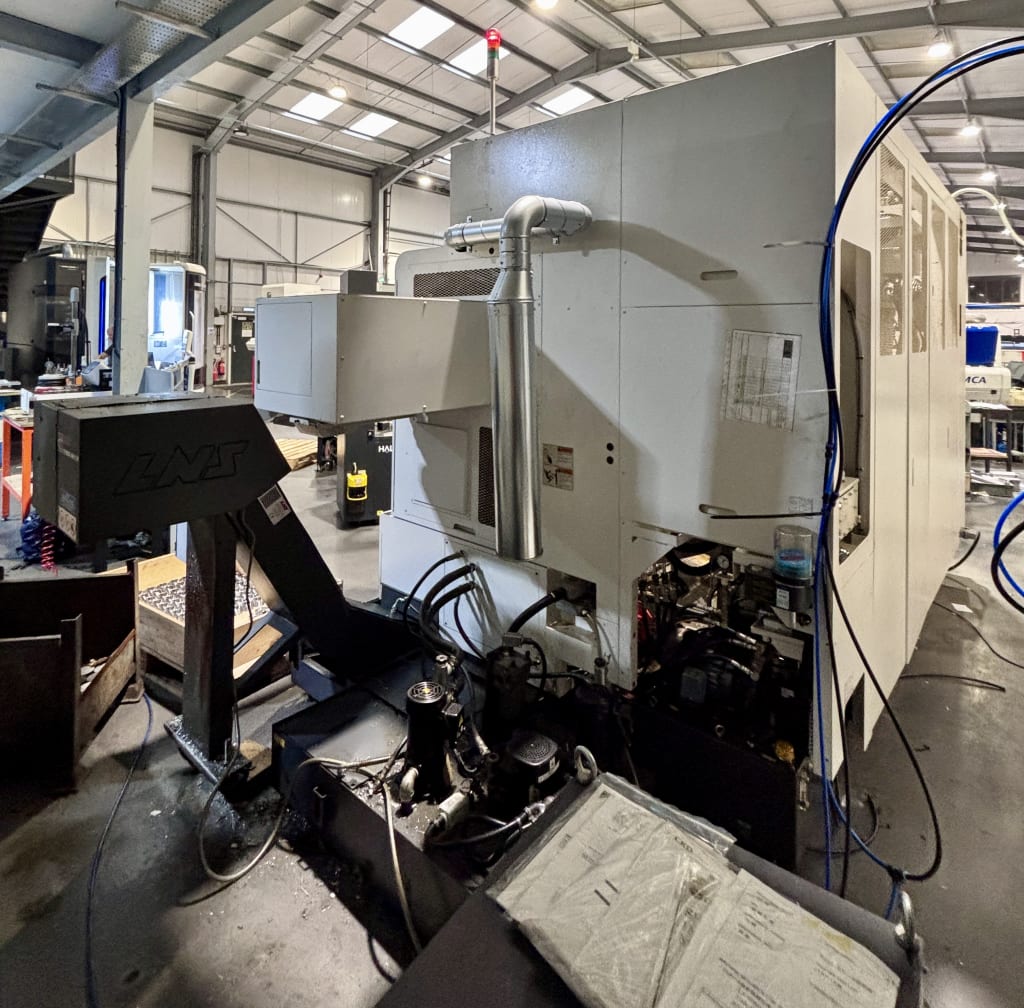

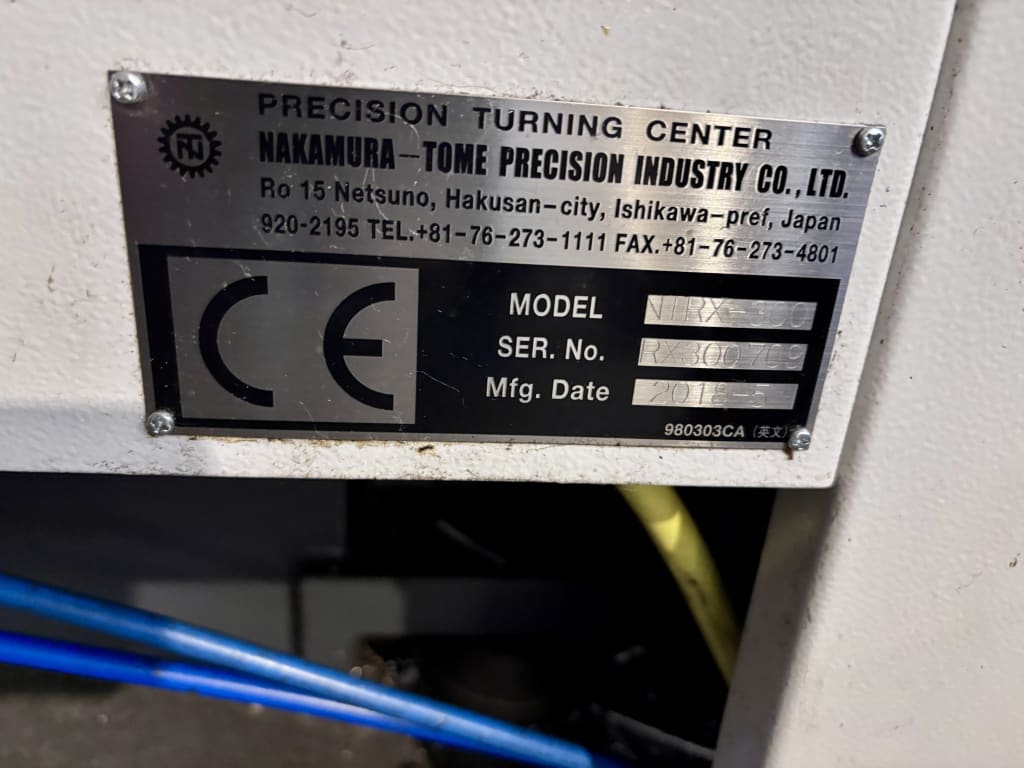

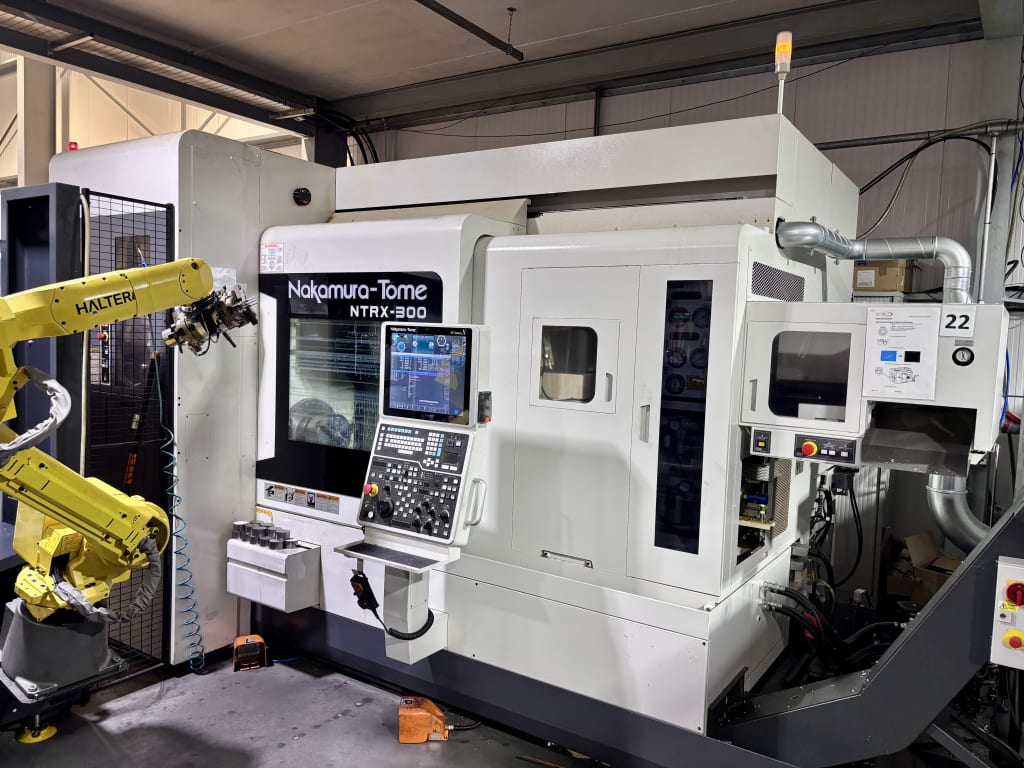

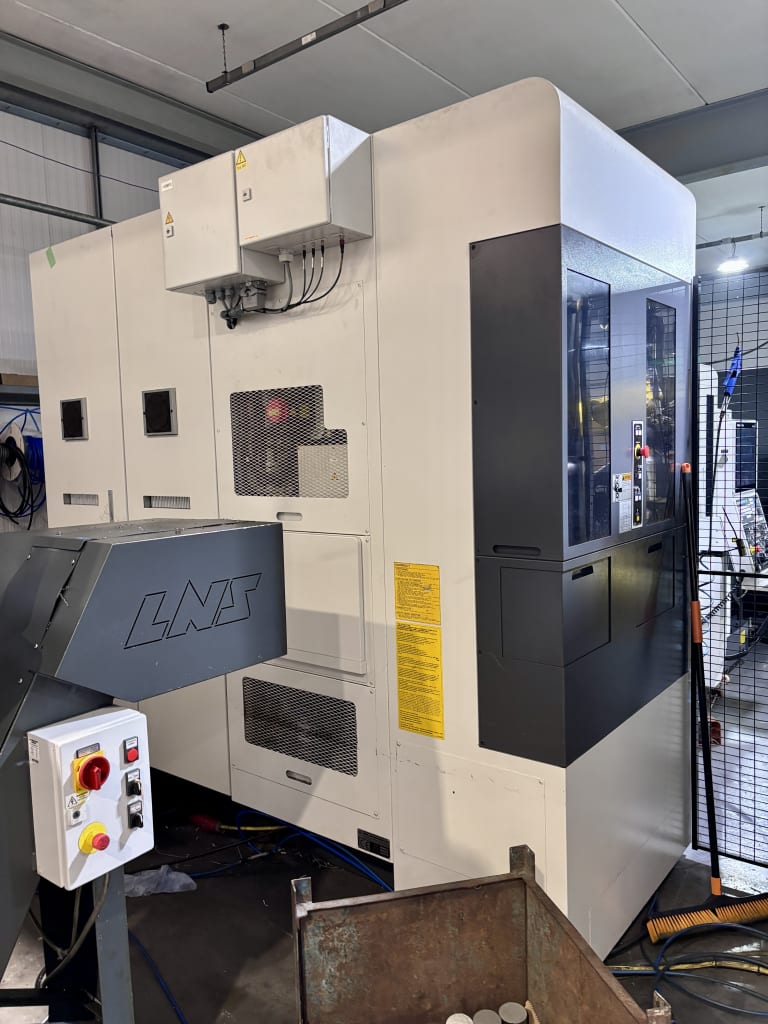

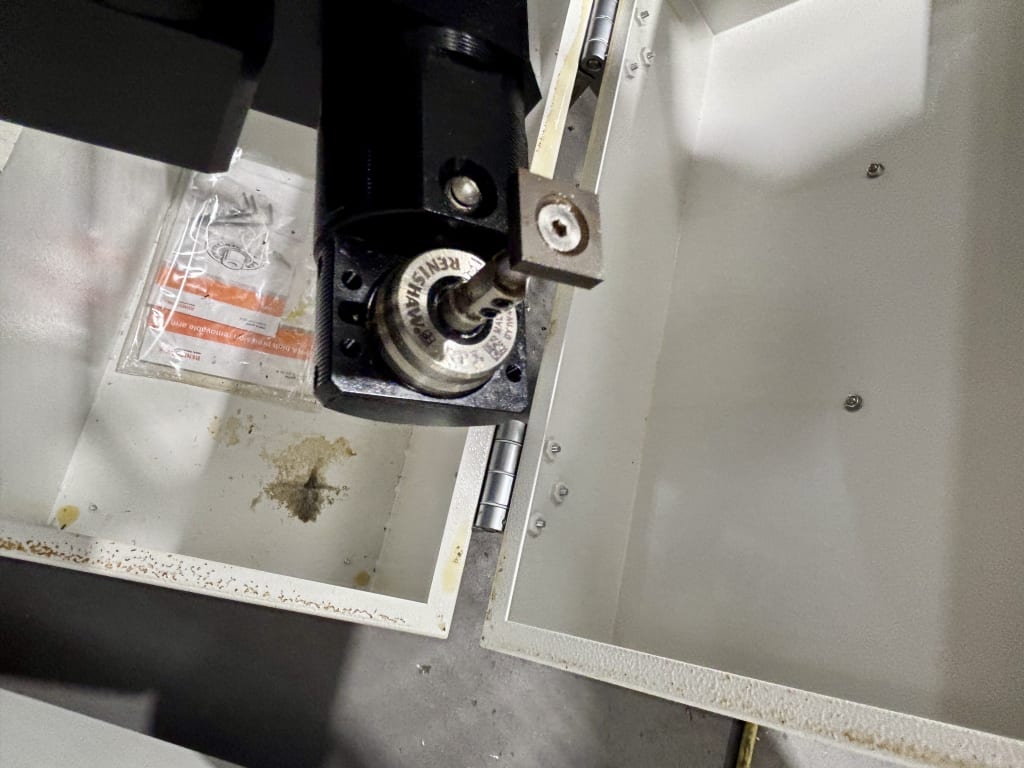

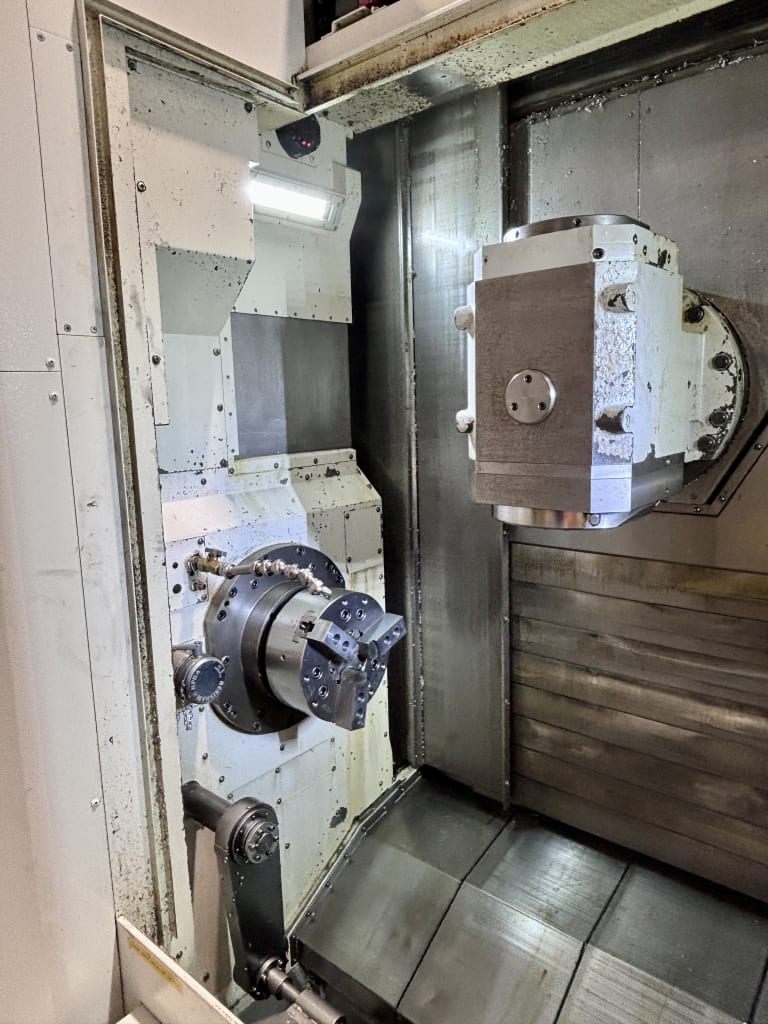

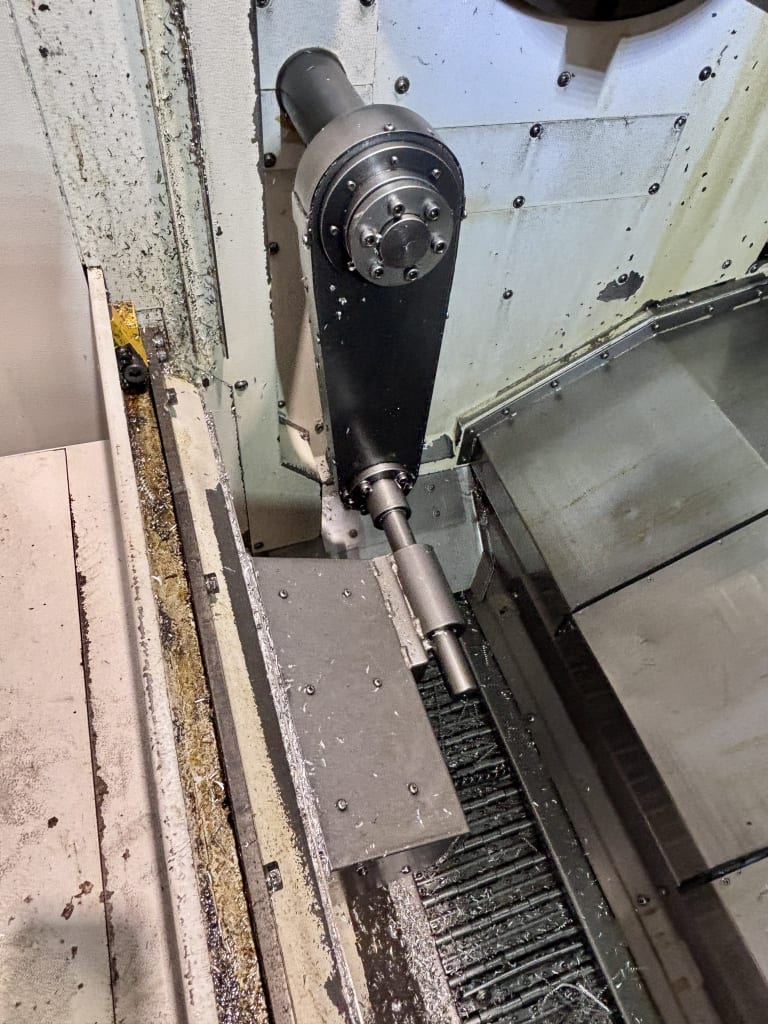

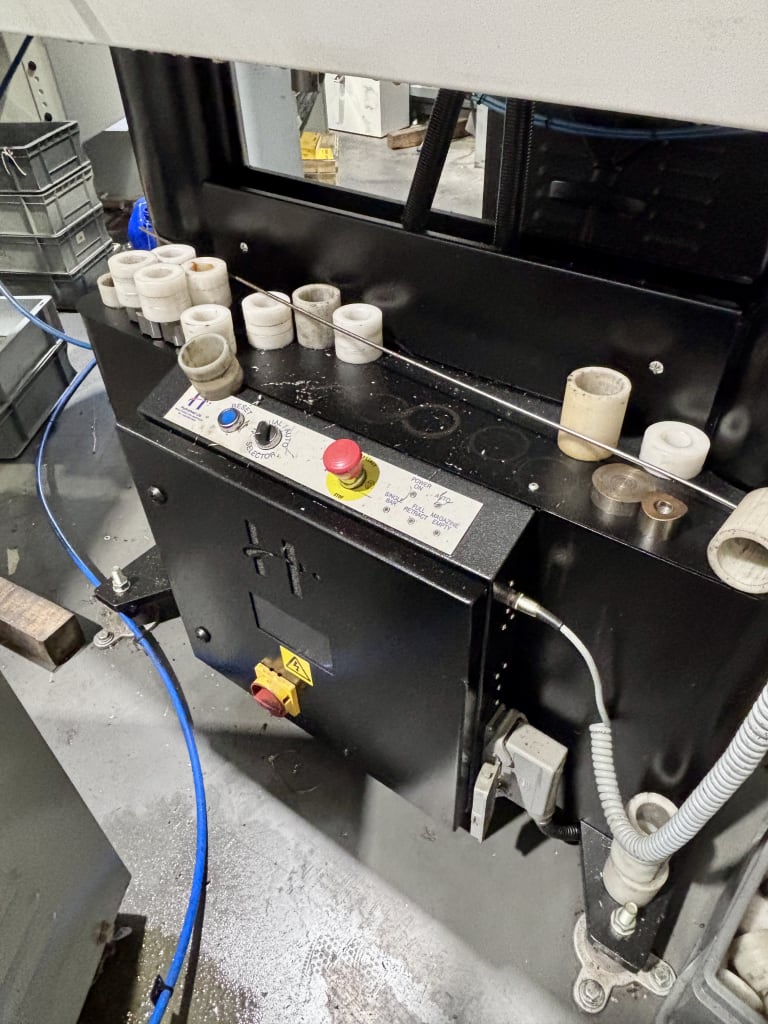

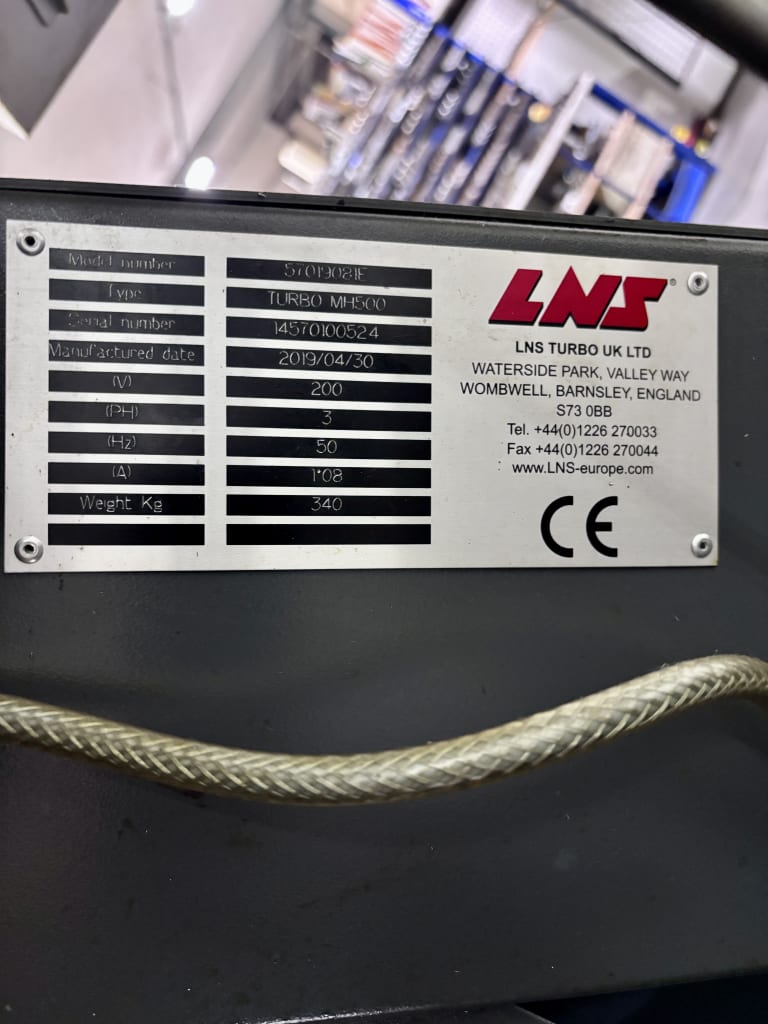

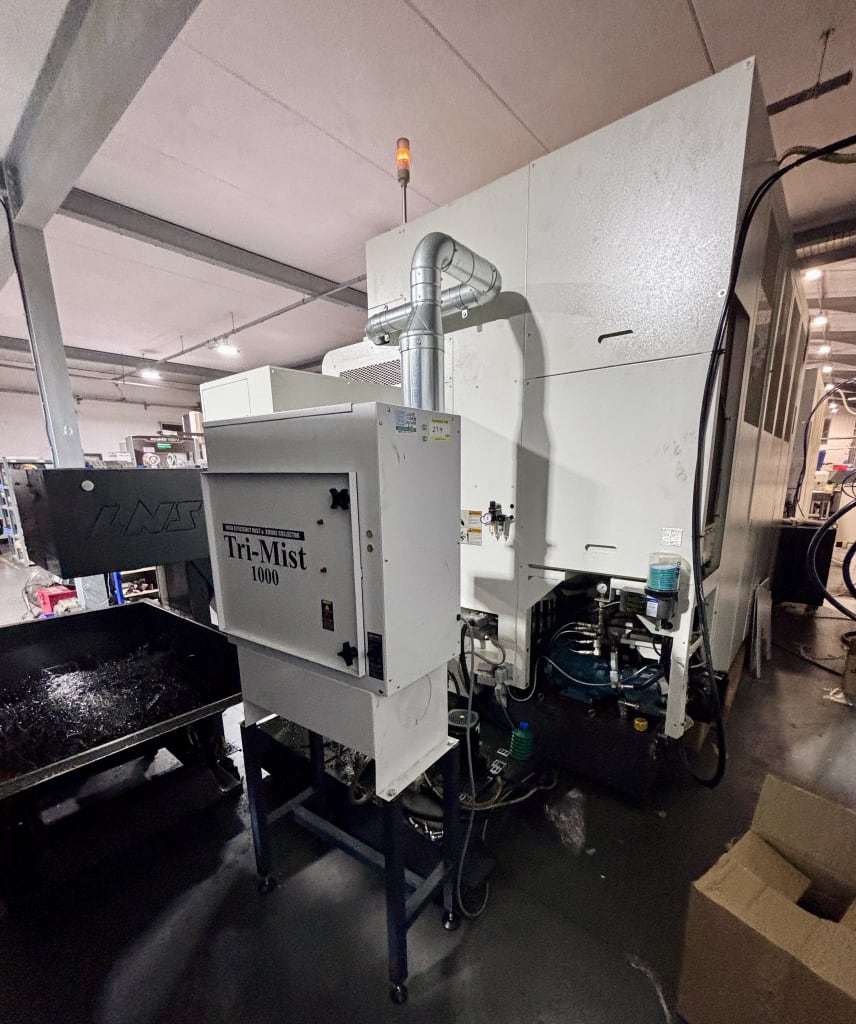

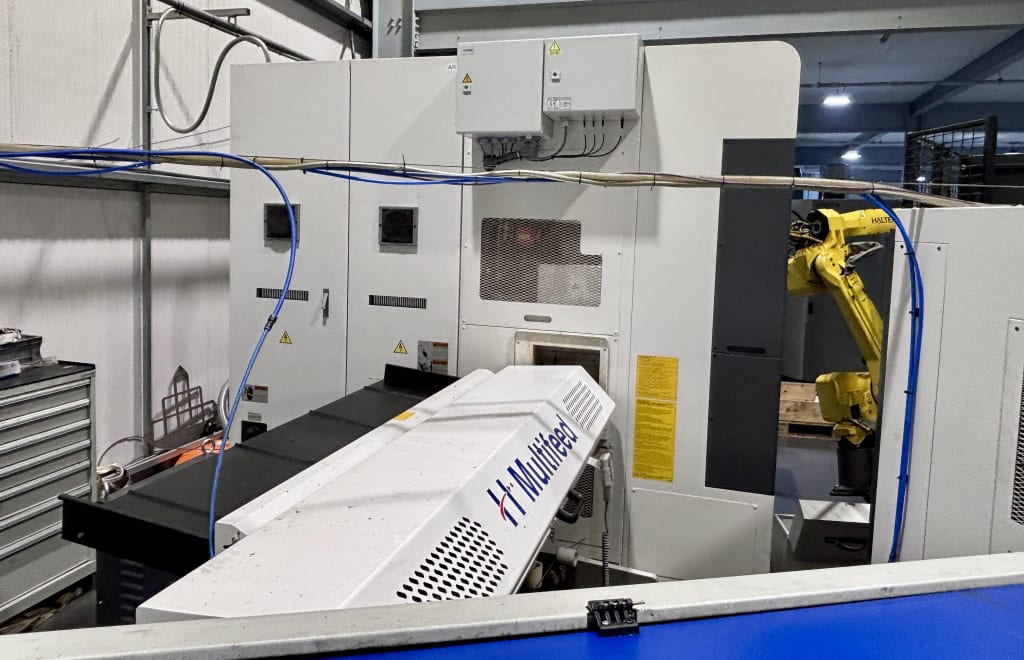

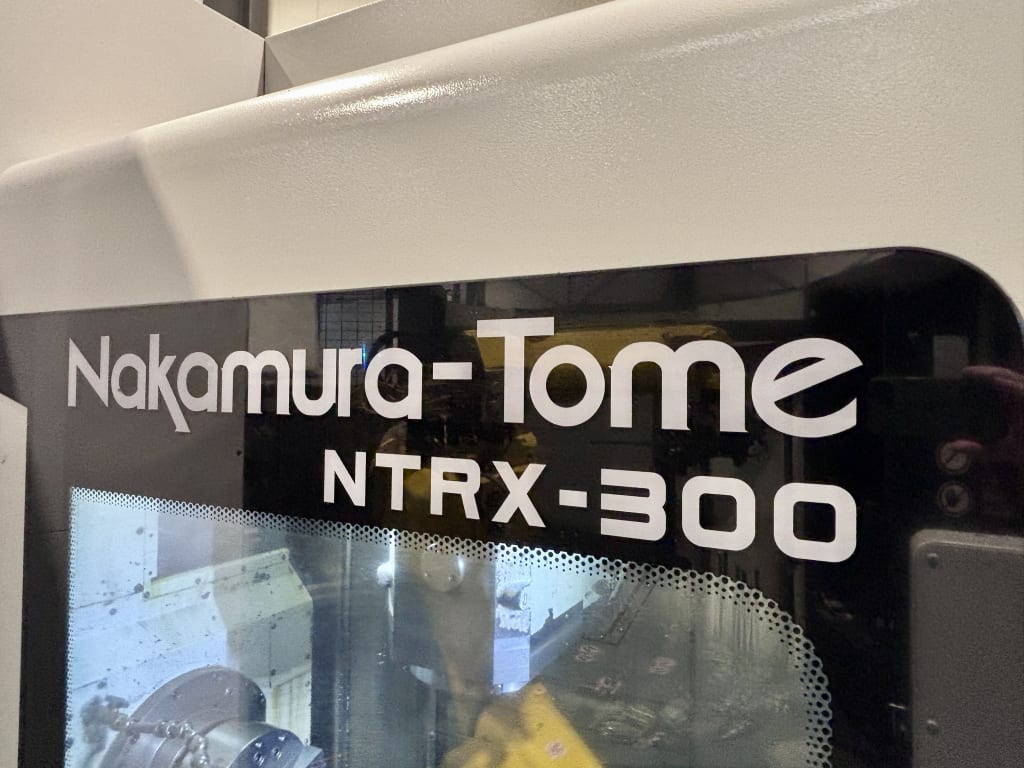

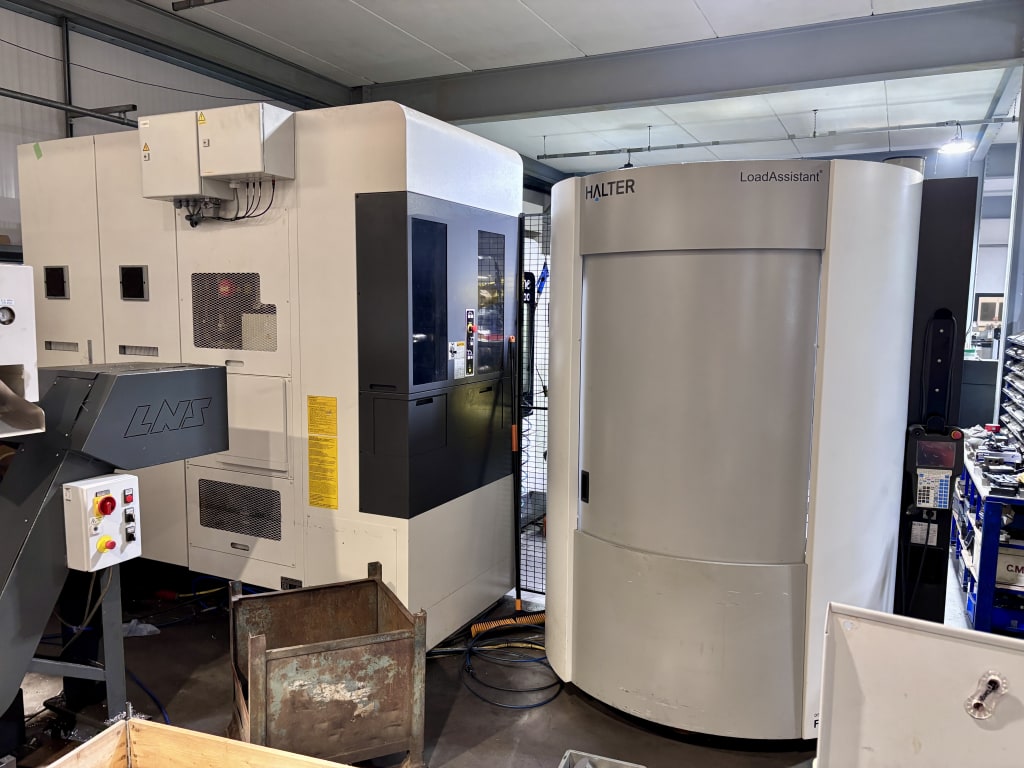

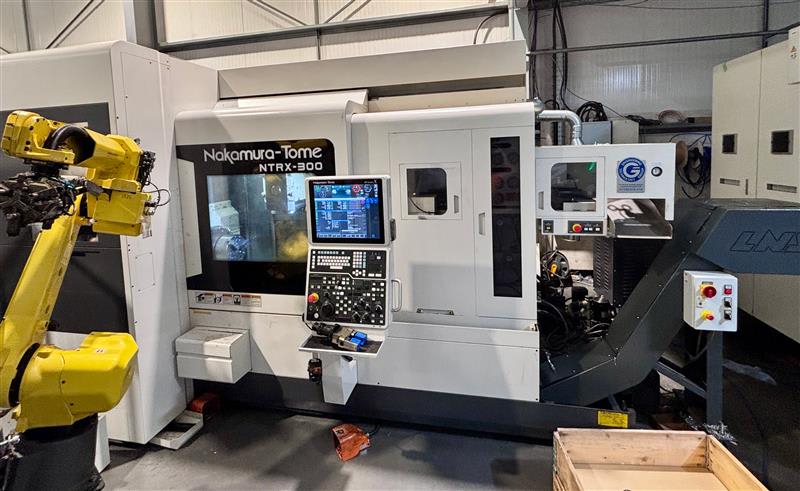

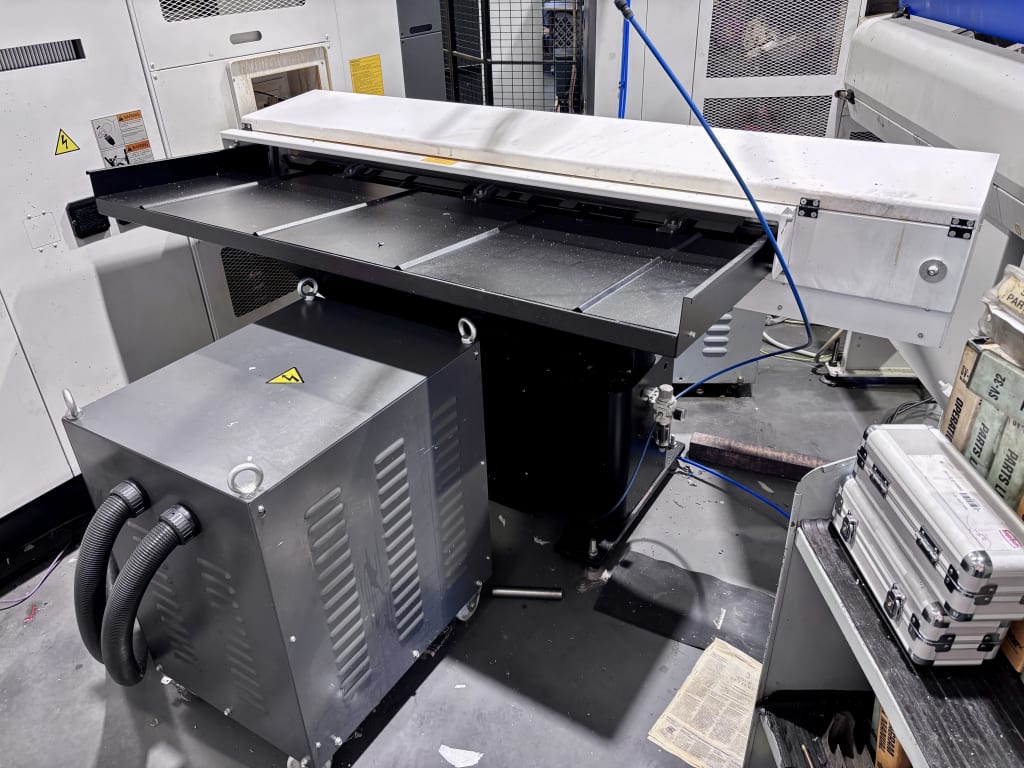

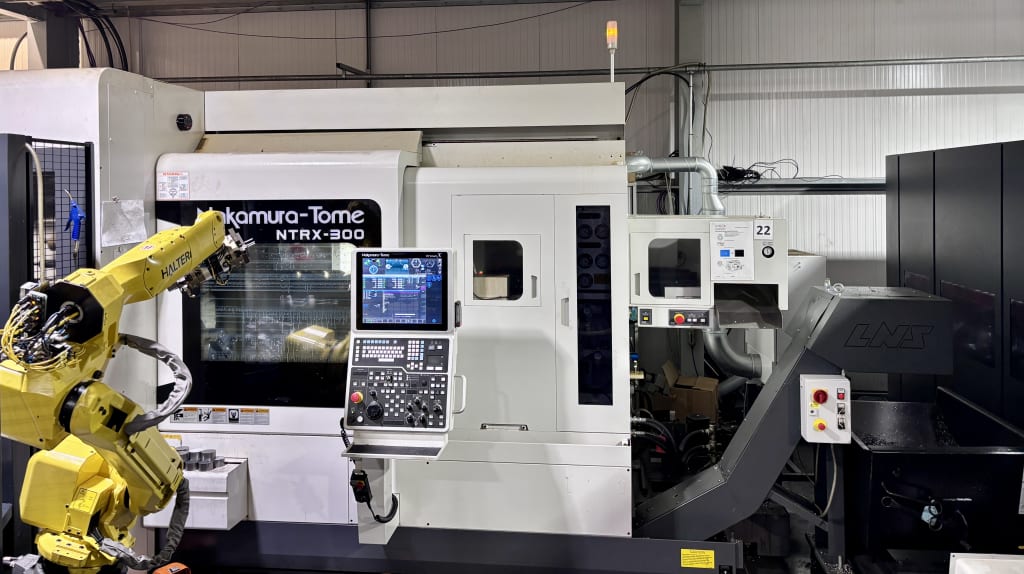

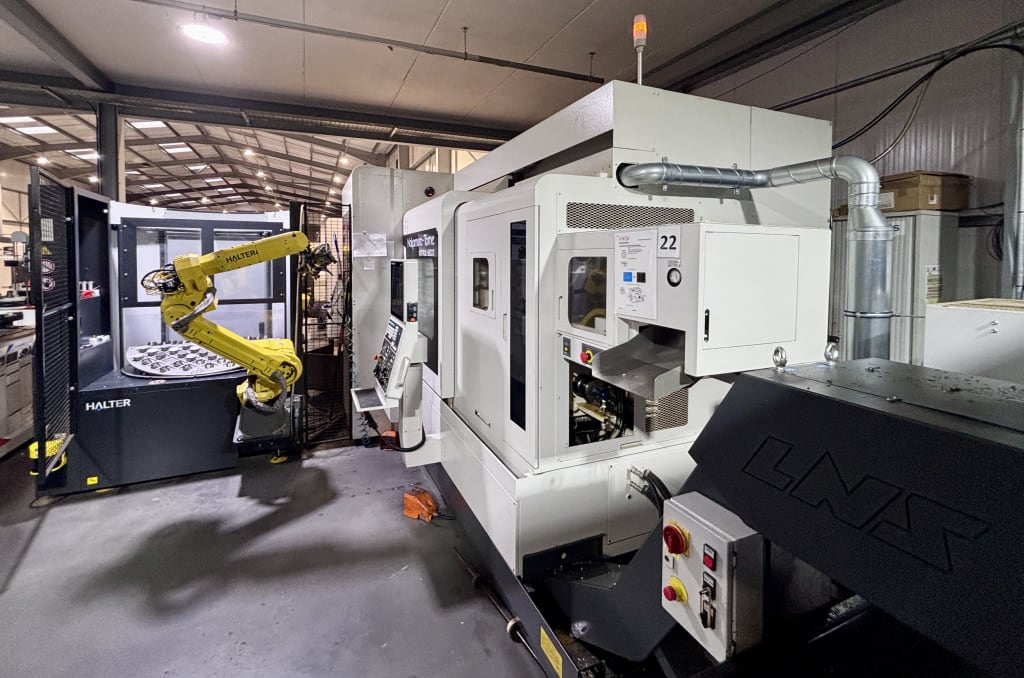

Nakamura-Tome NTRX-300 High Rigidity Multitasking Machine with Halter Parts Loader, Fanuc Robot & Hydrafeed Barfeeder

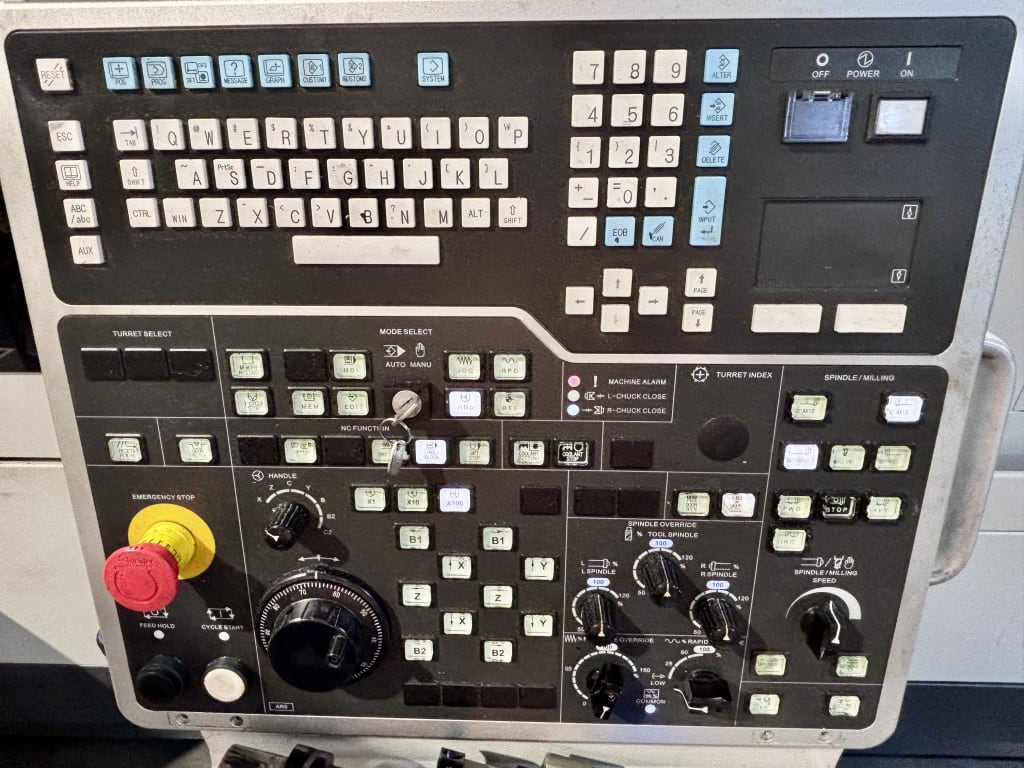

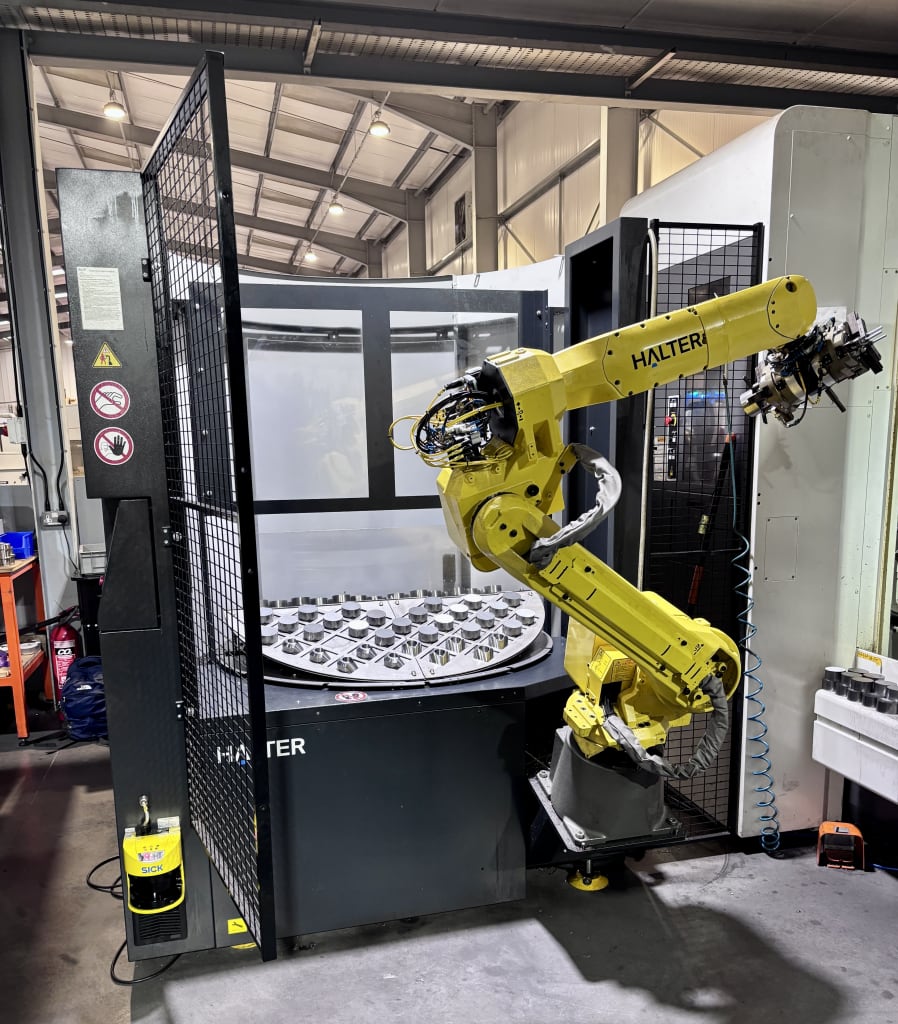

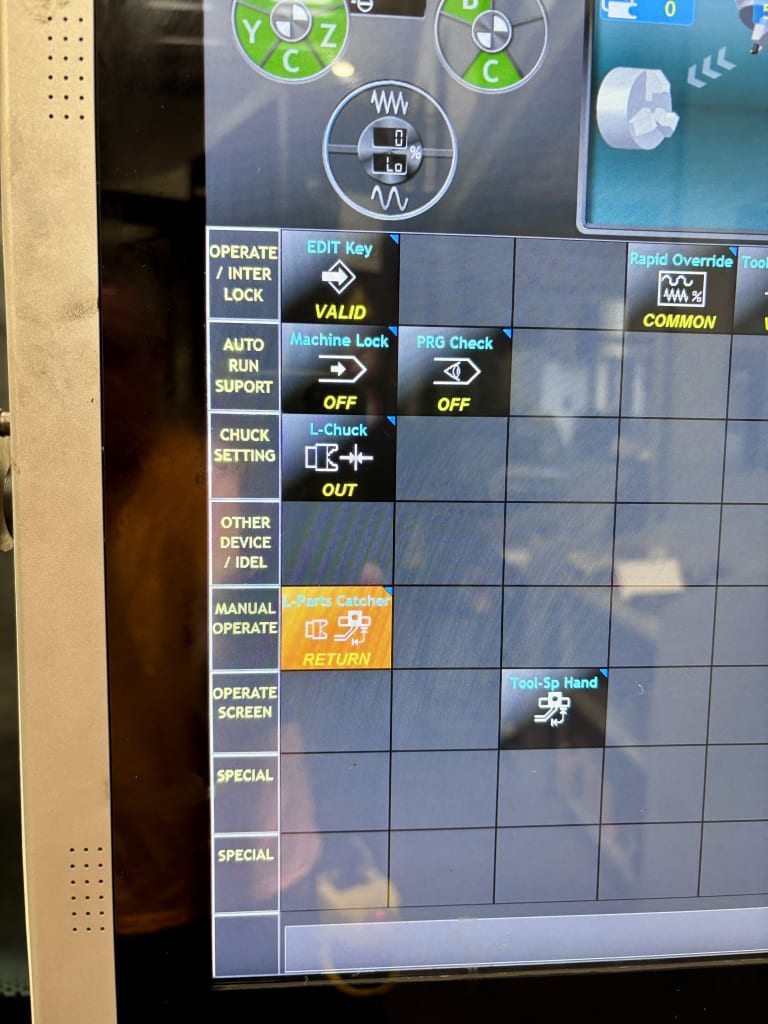

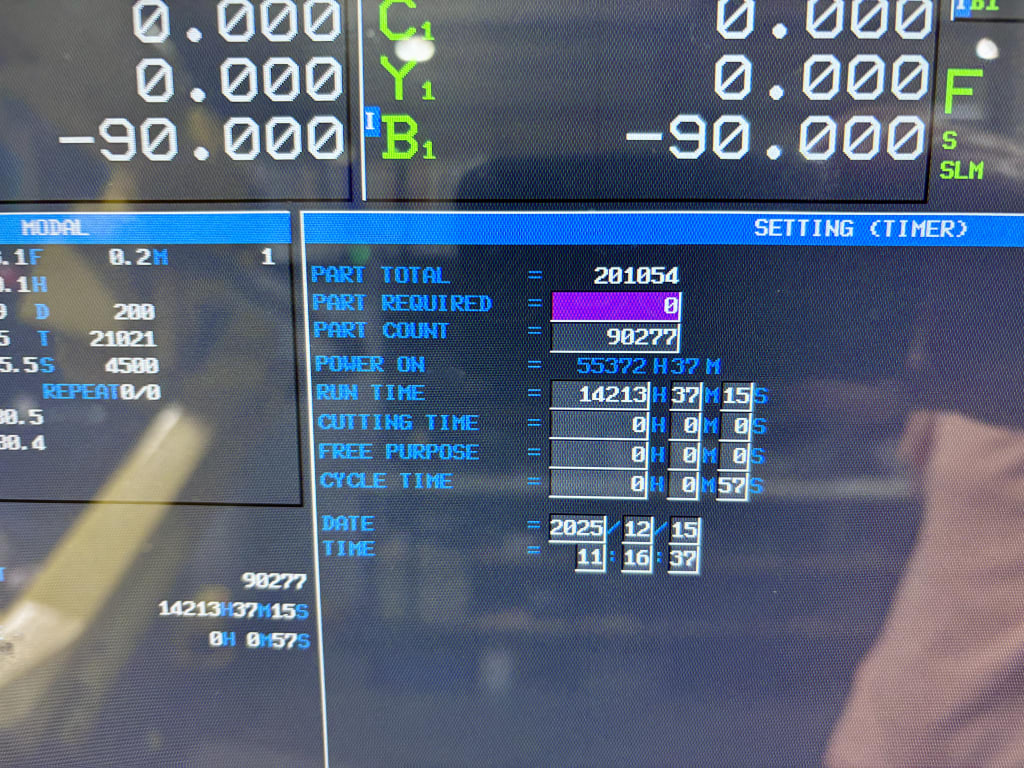

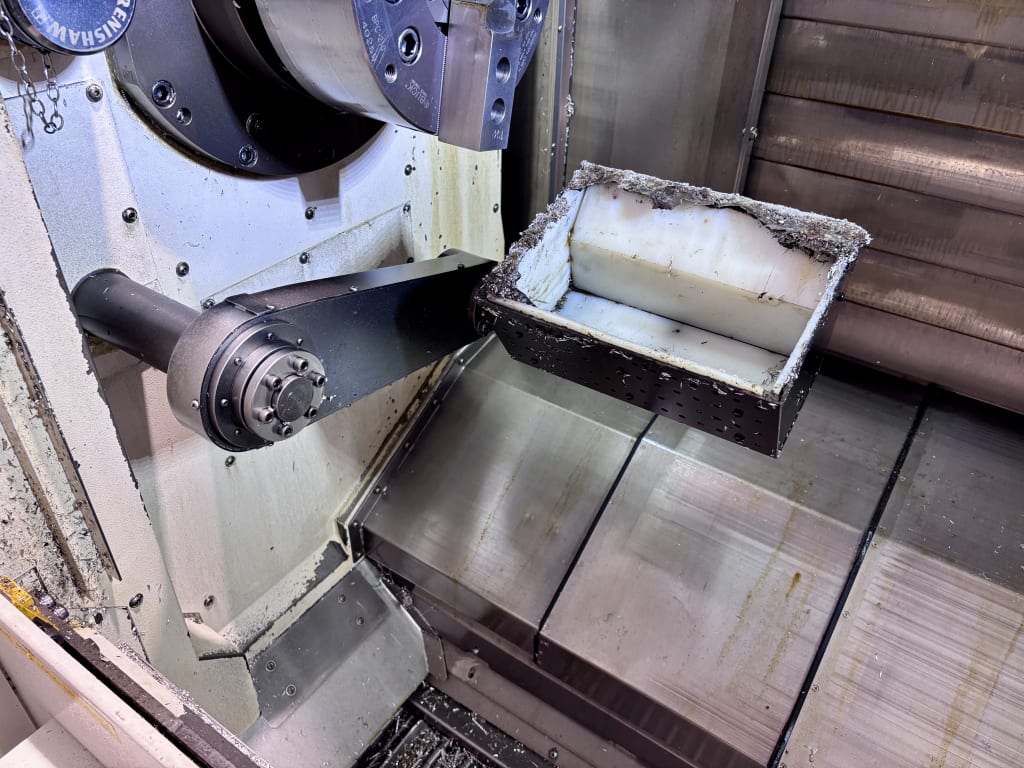

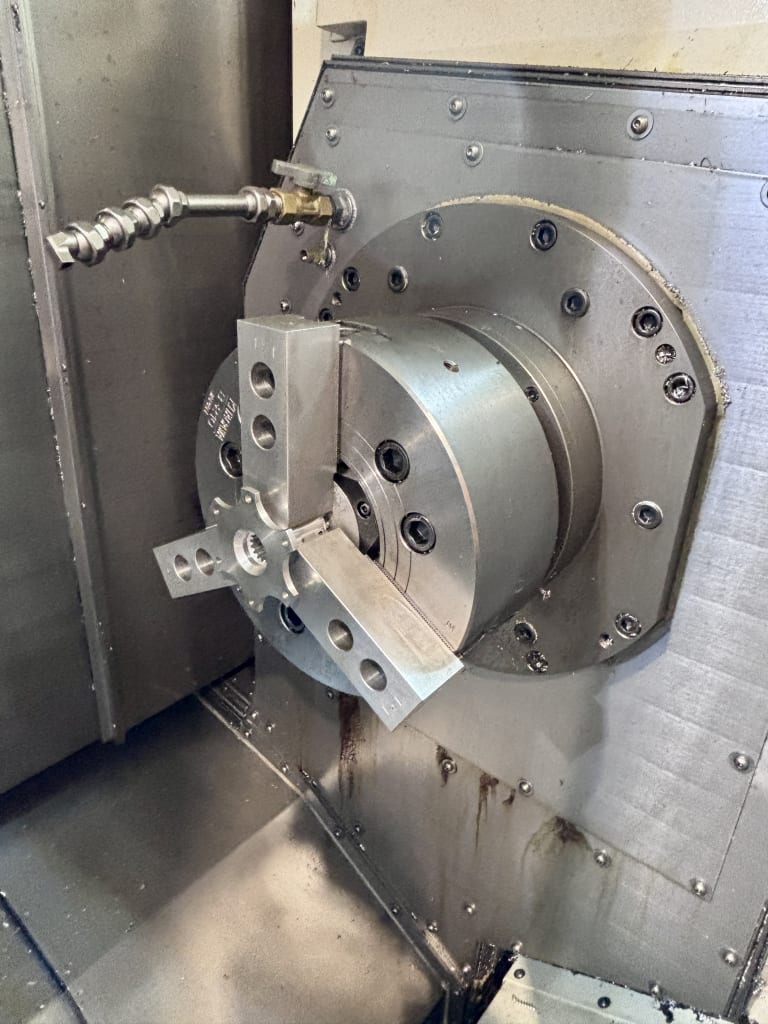

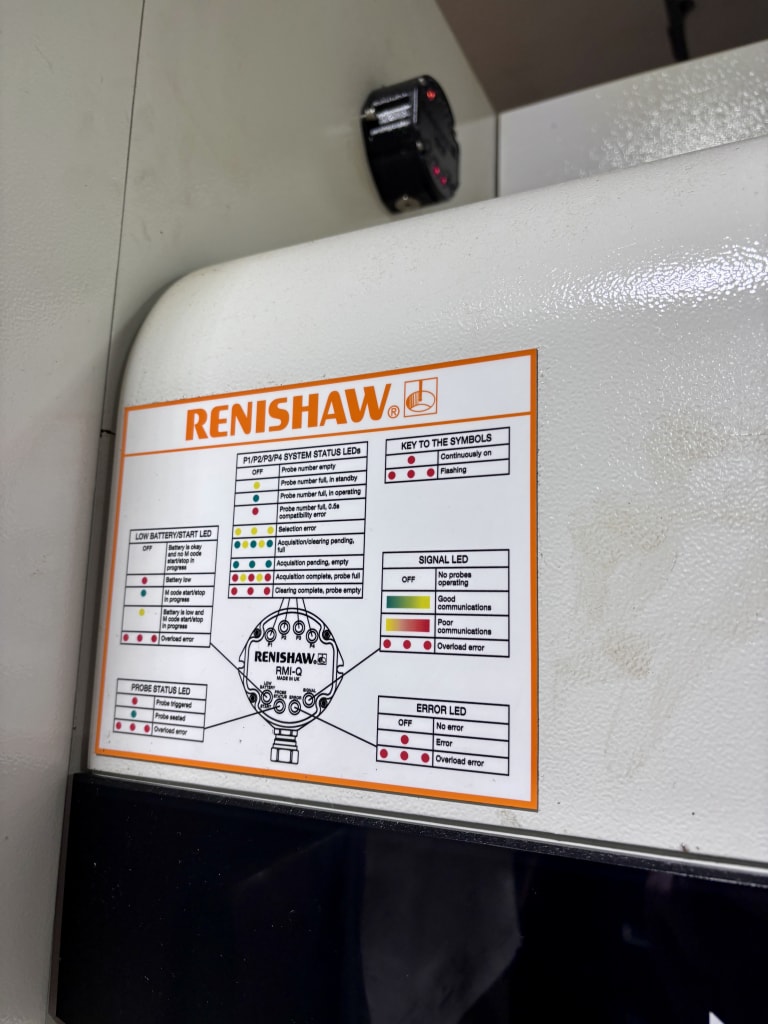

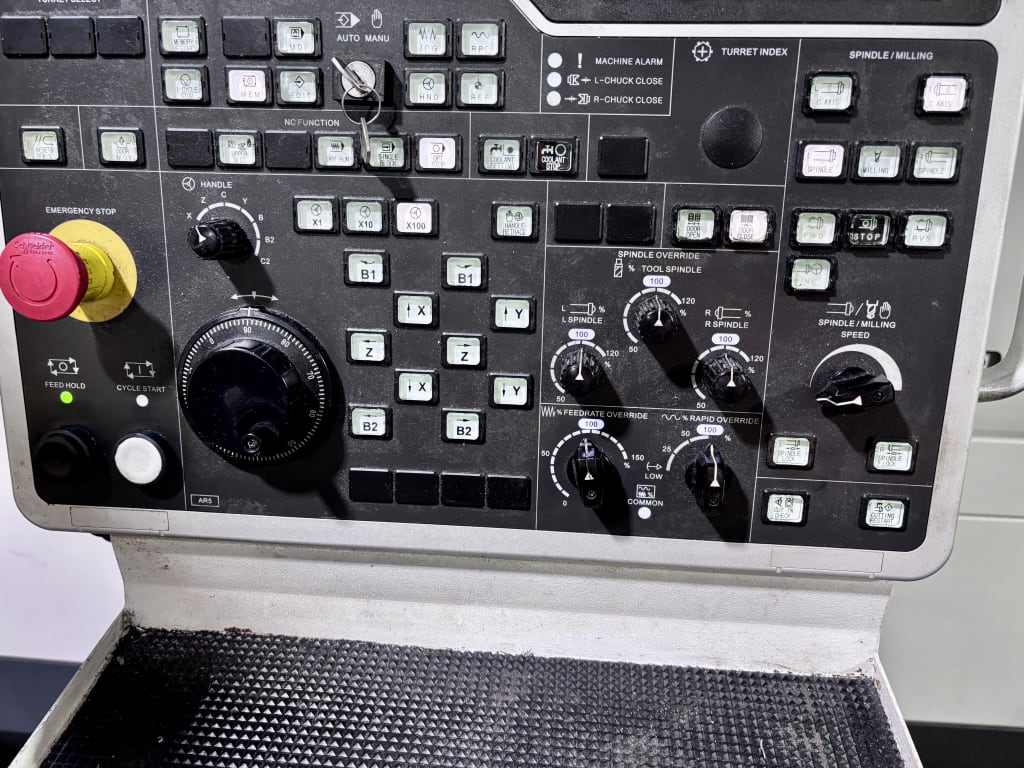

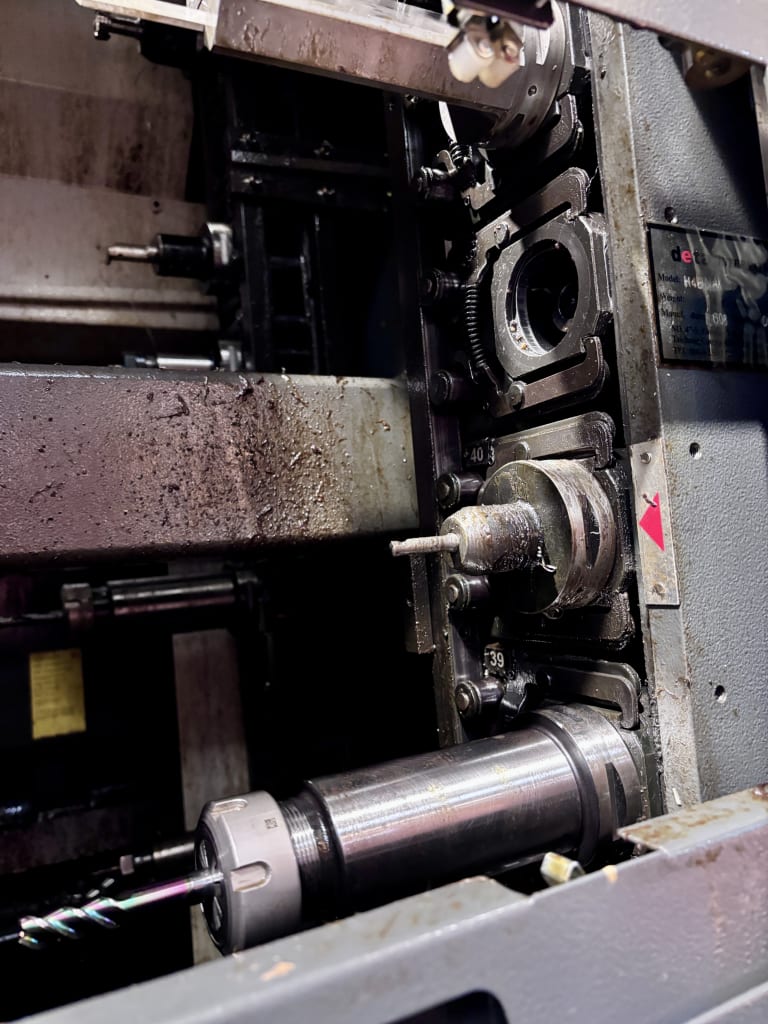

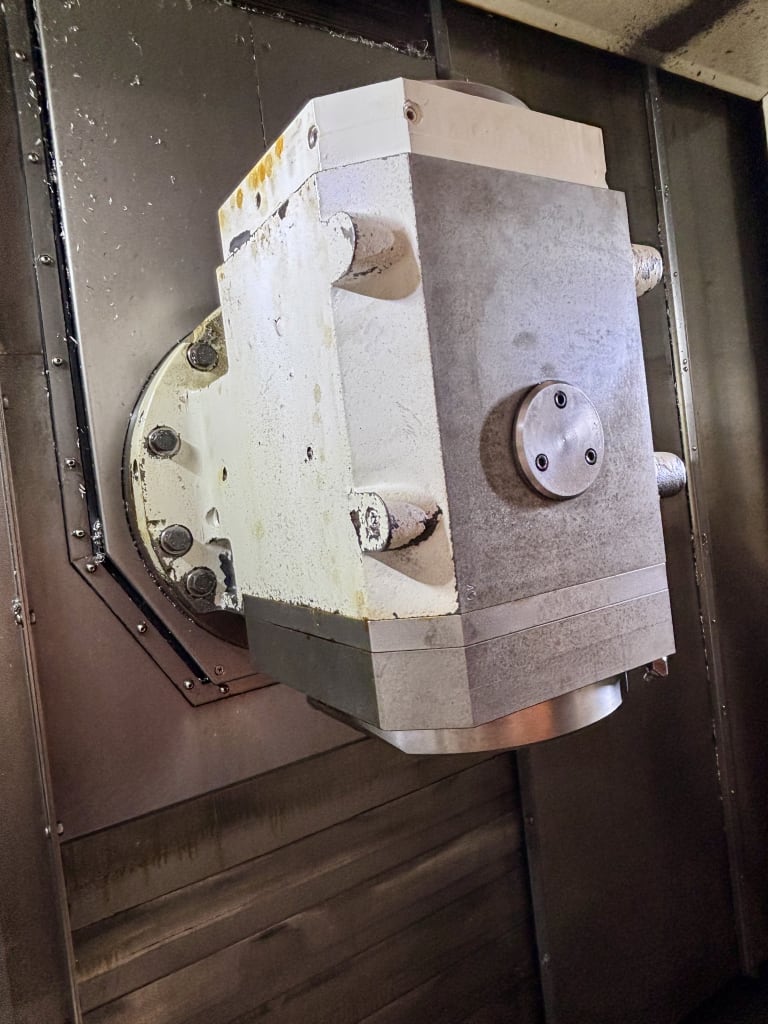

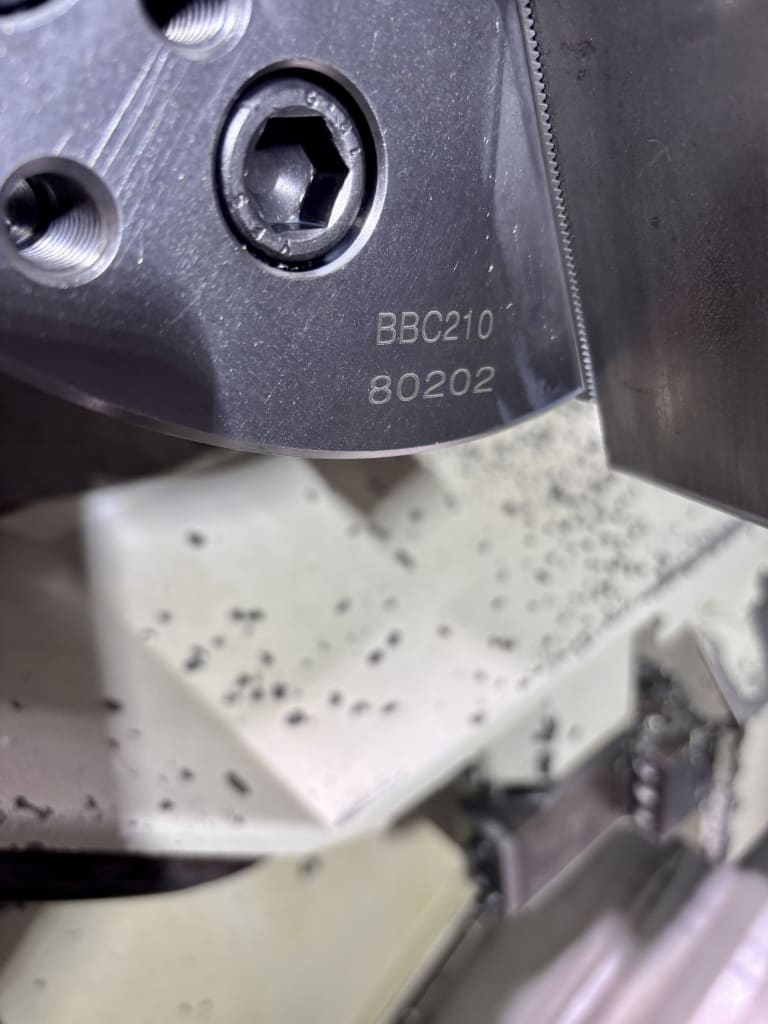

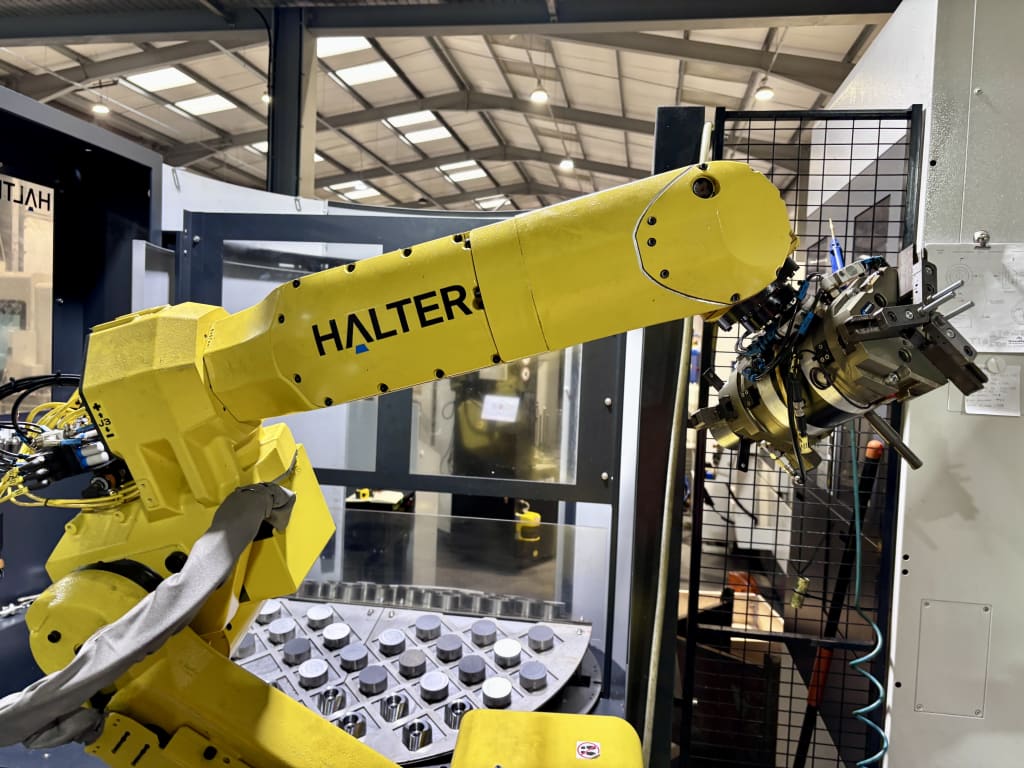

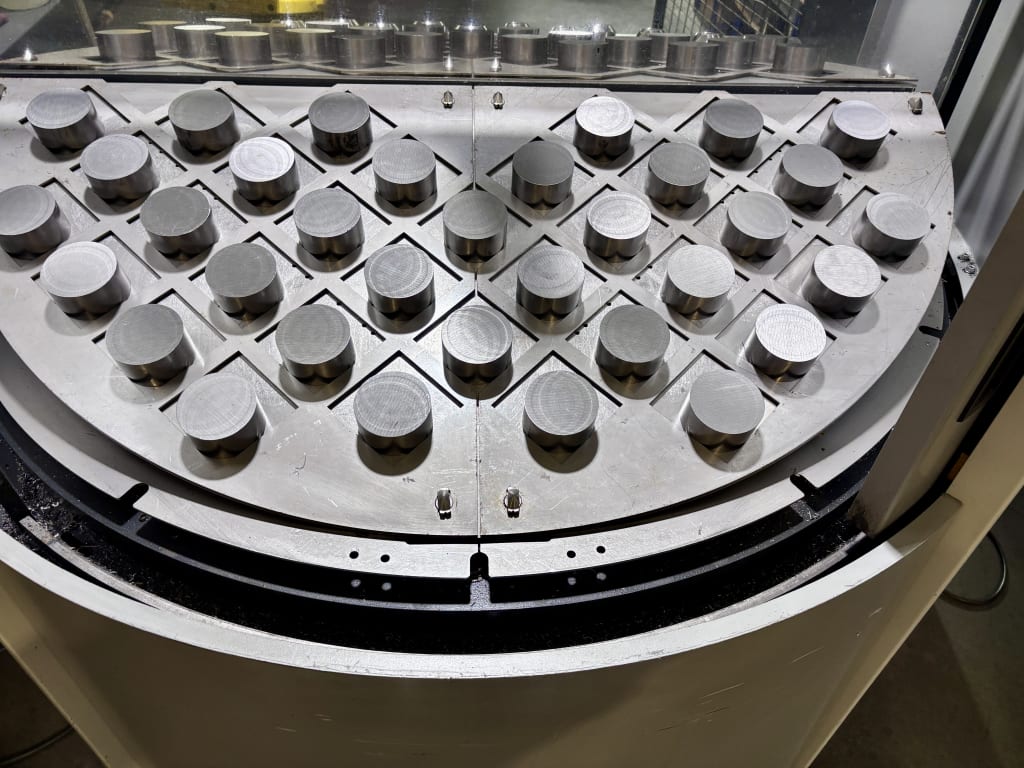

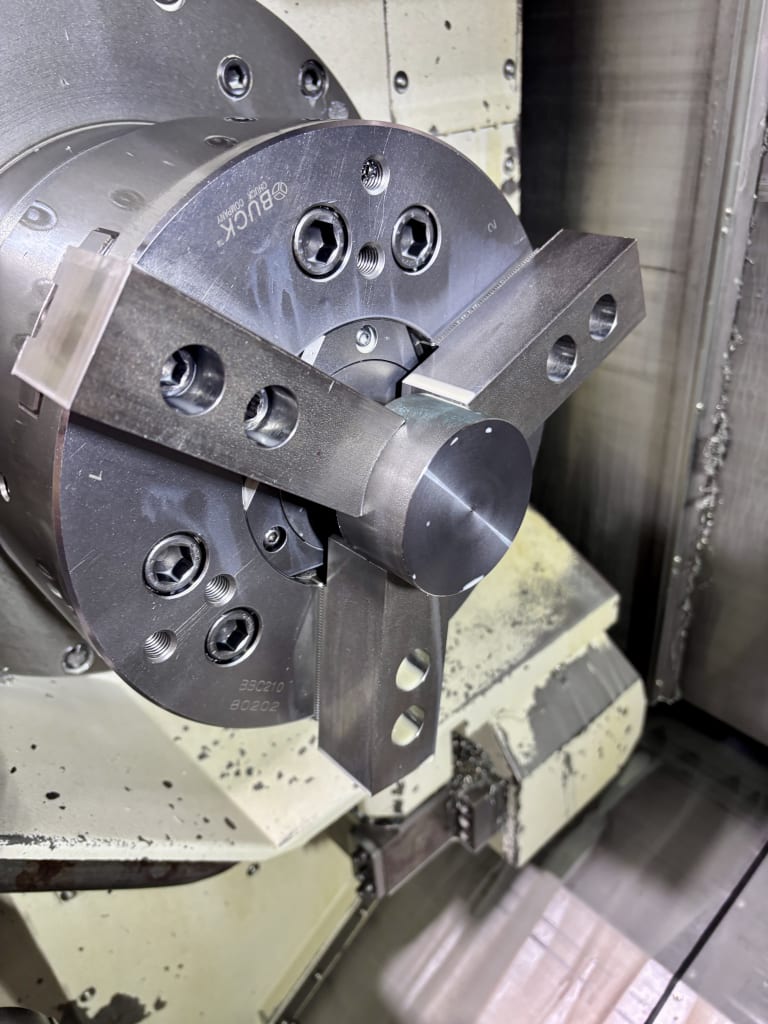

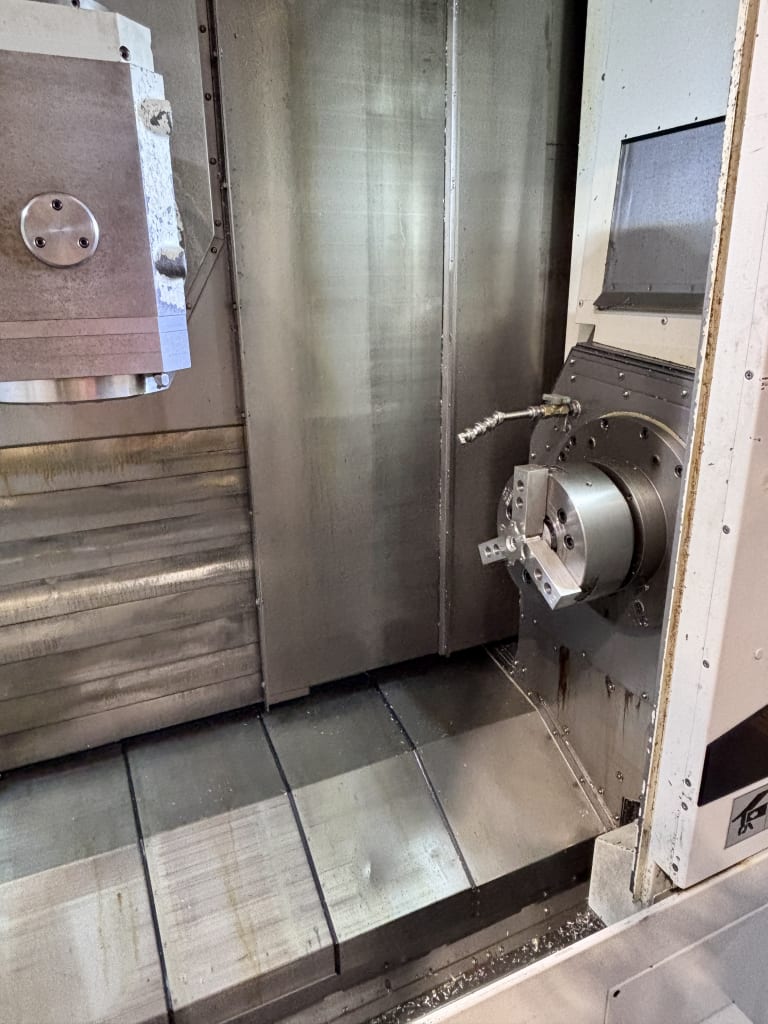

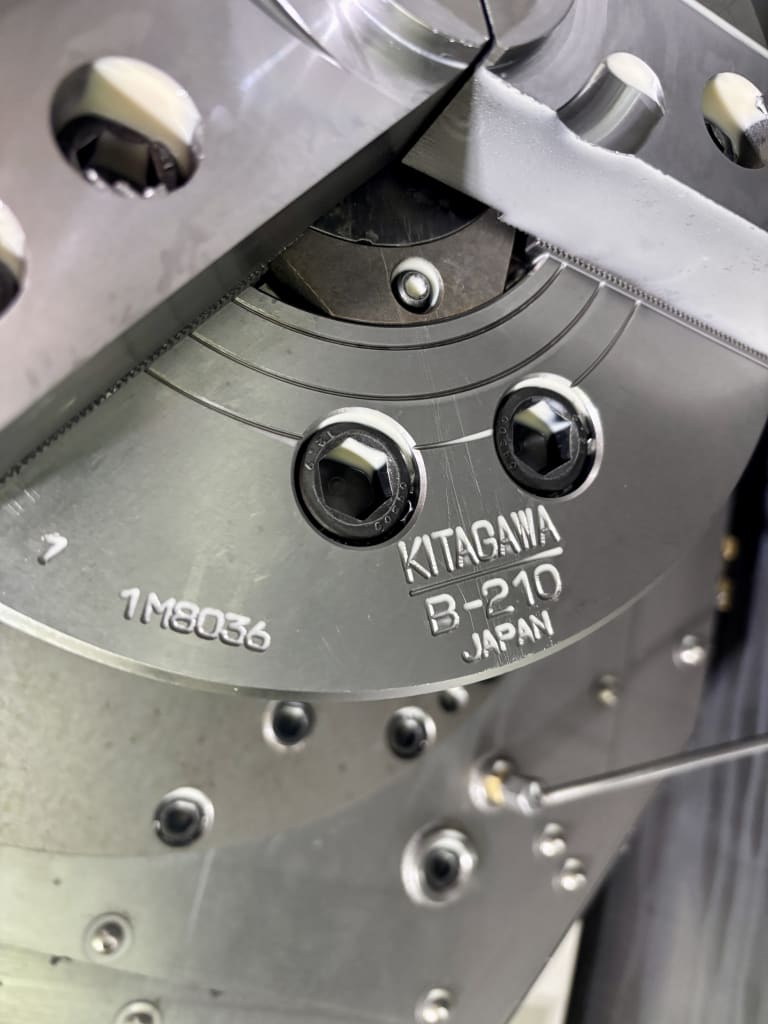

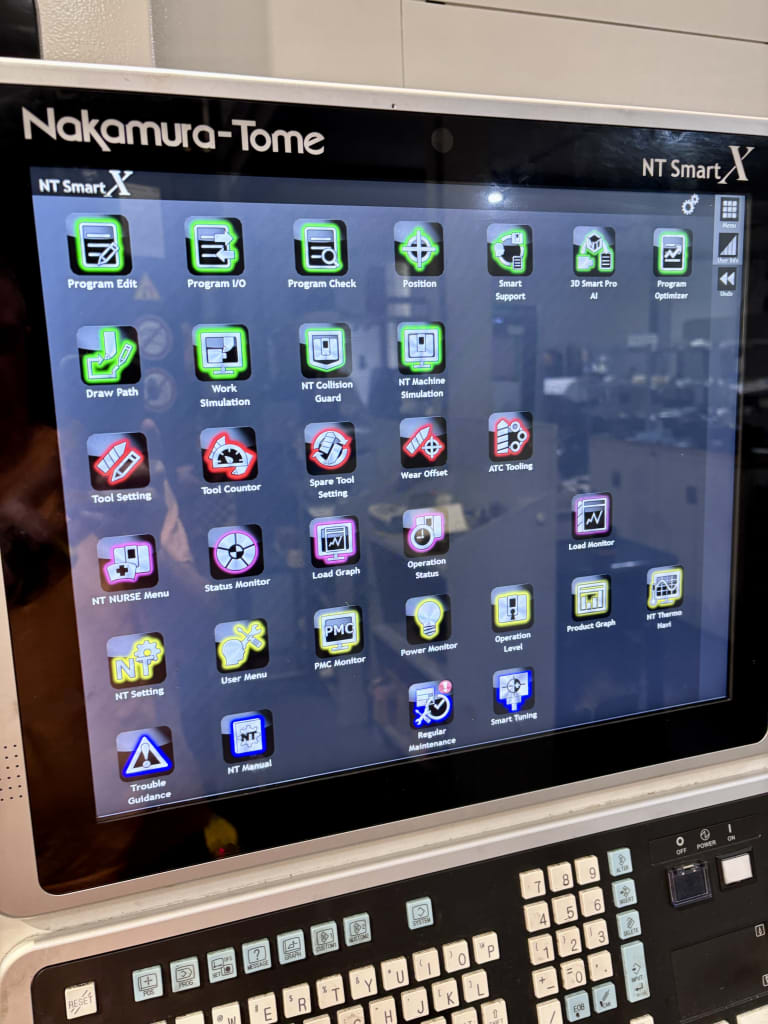

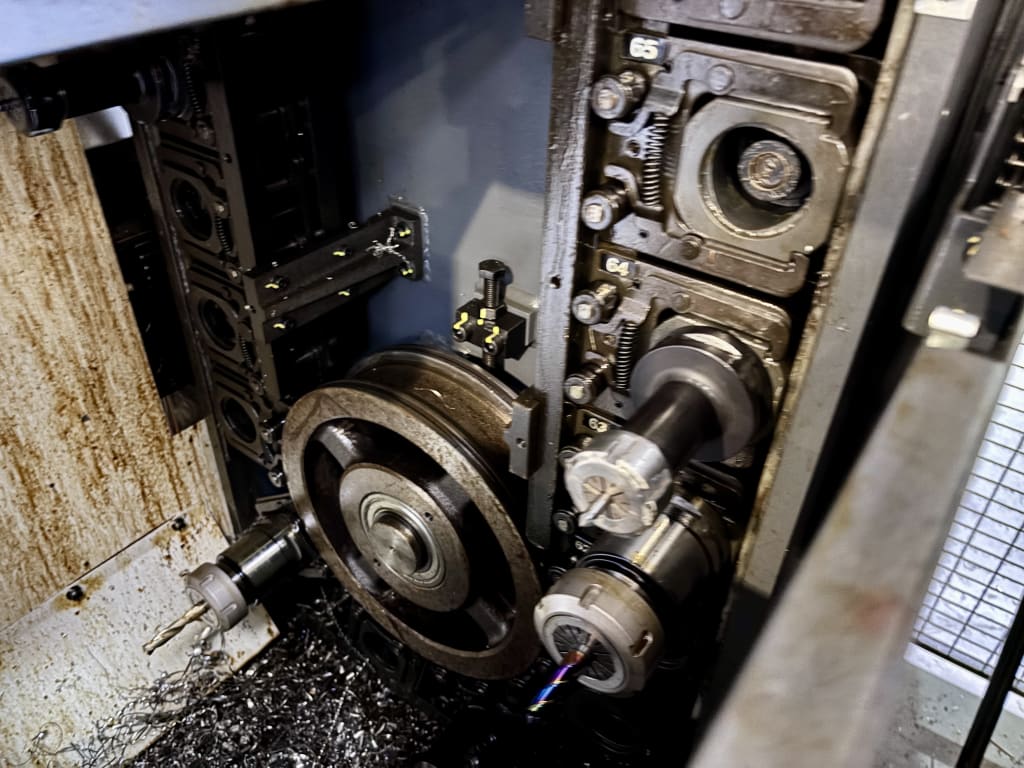

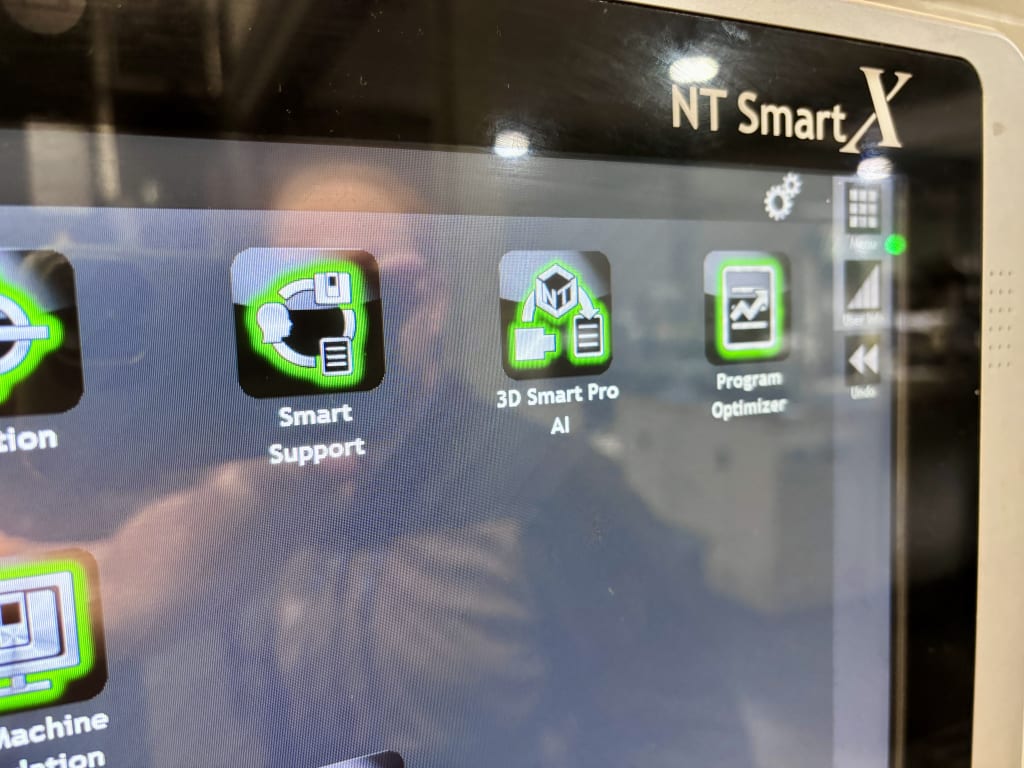

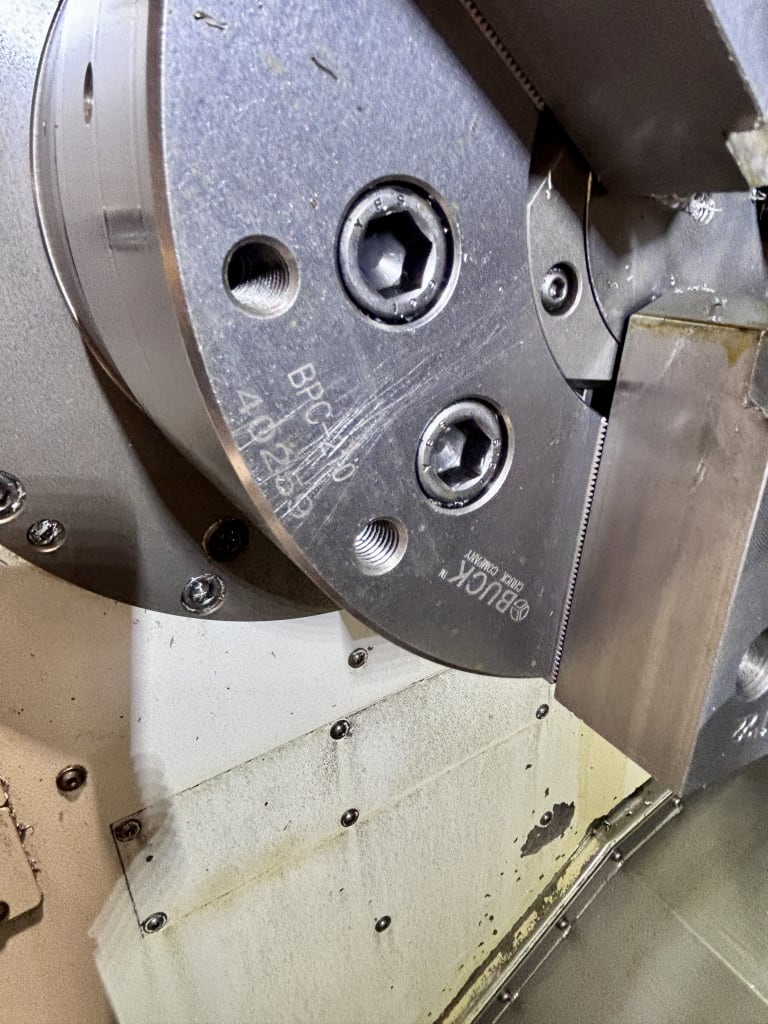

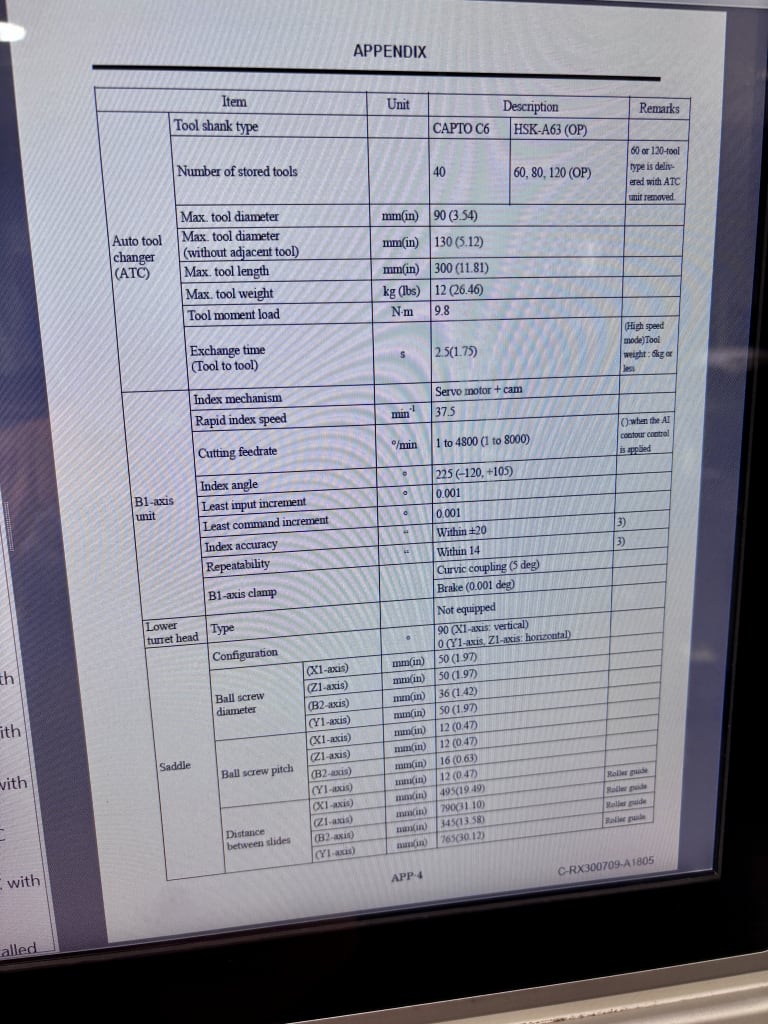

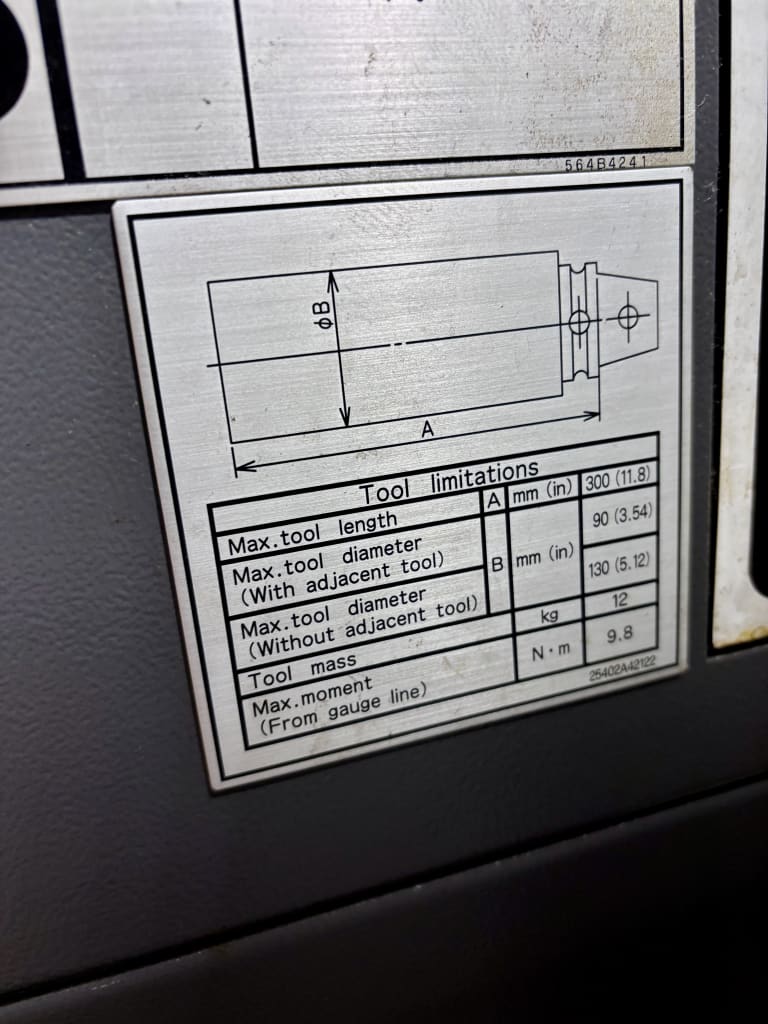

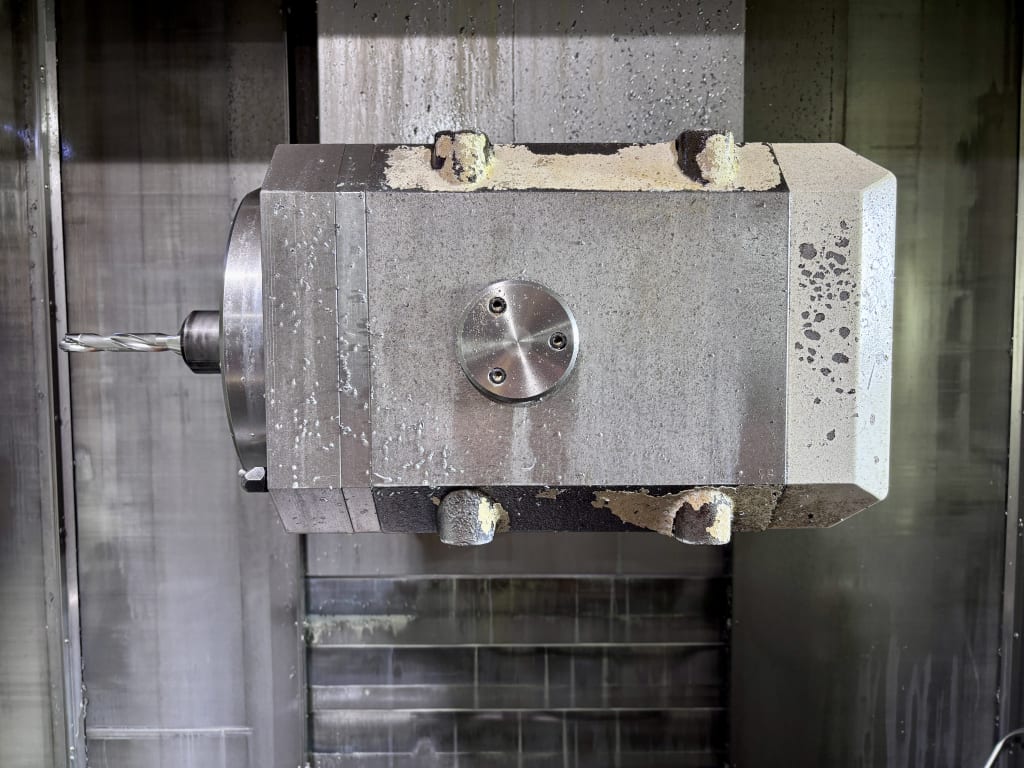

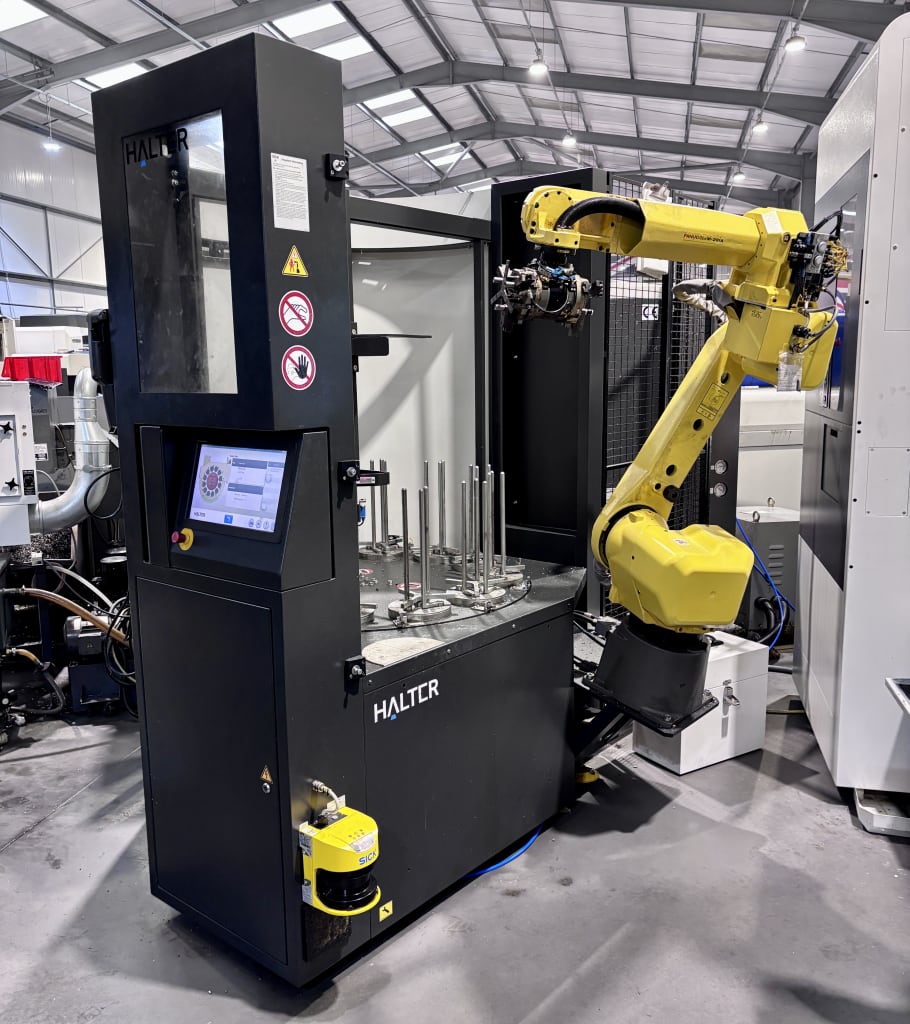

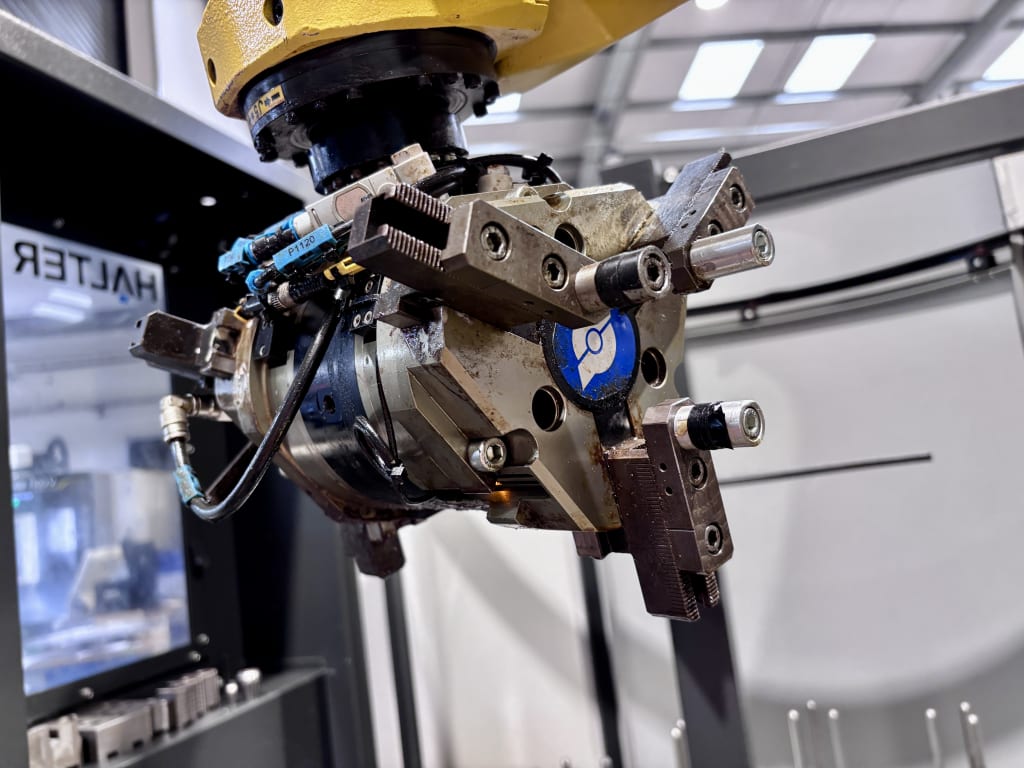

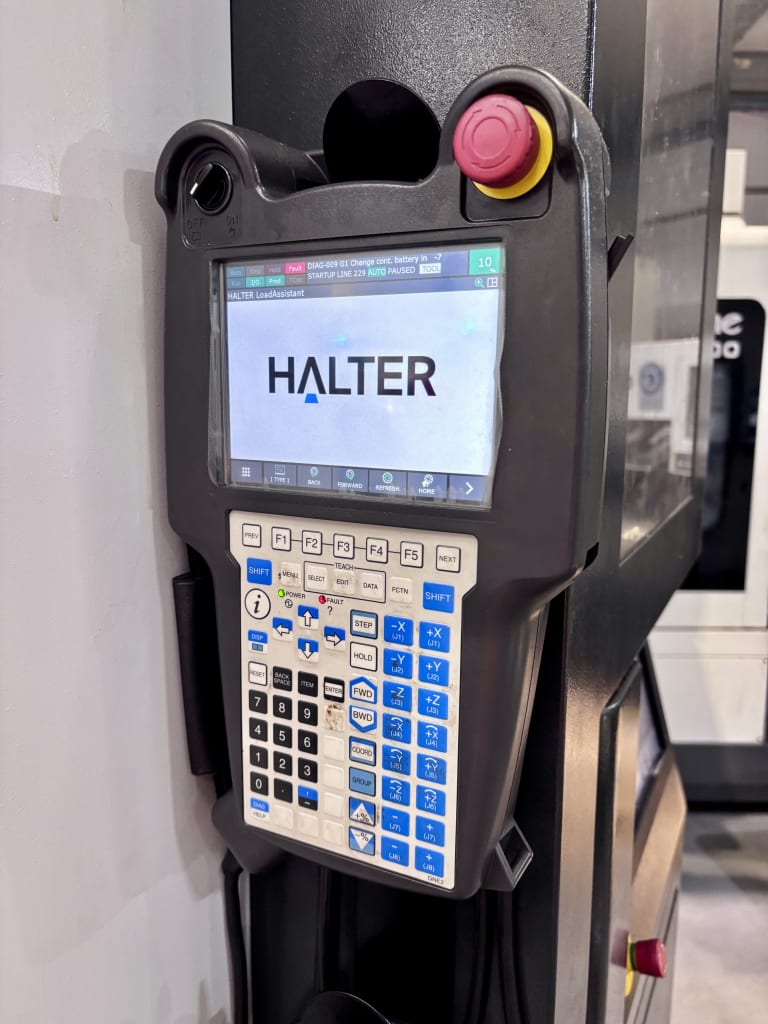

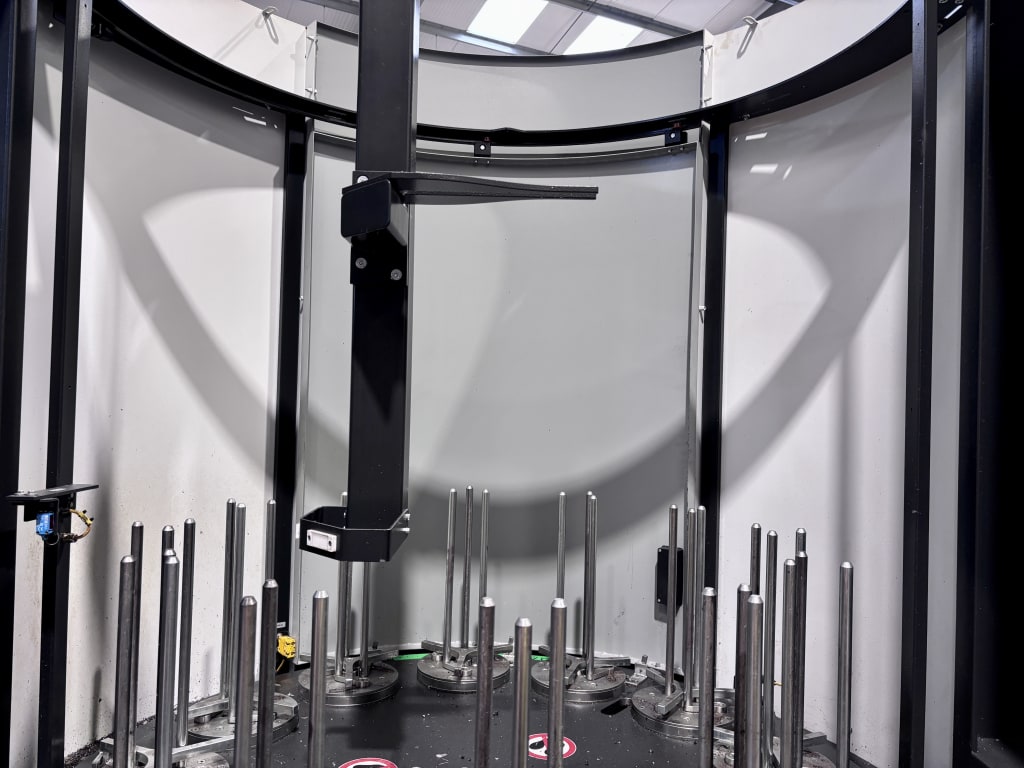

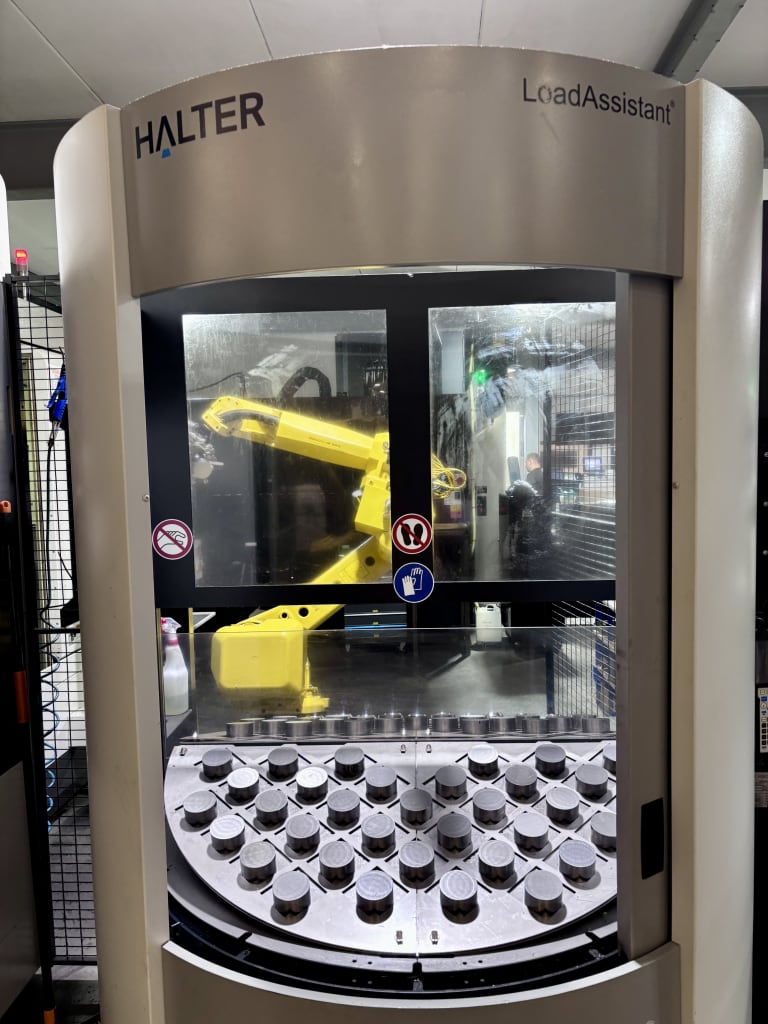

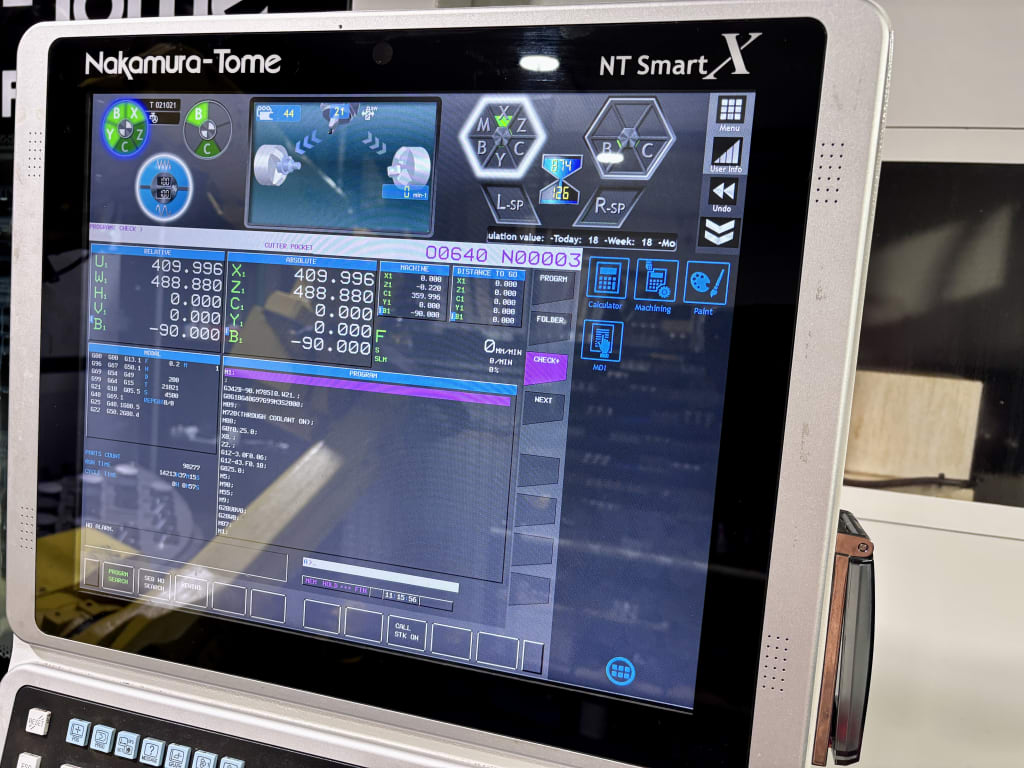

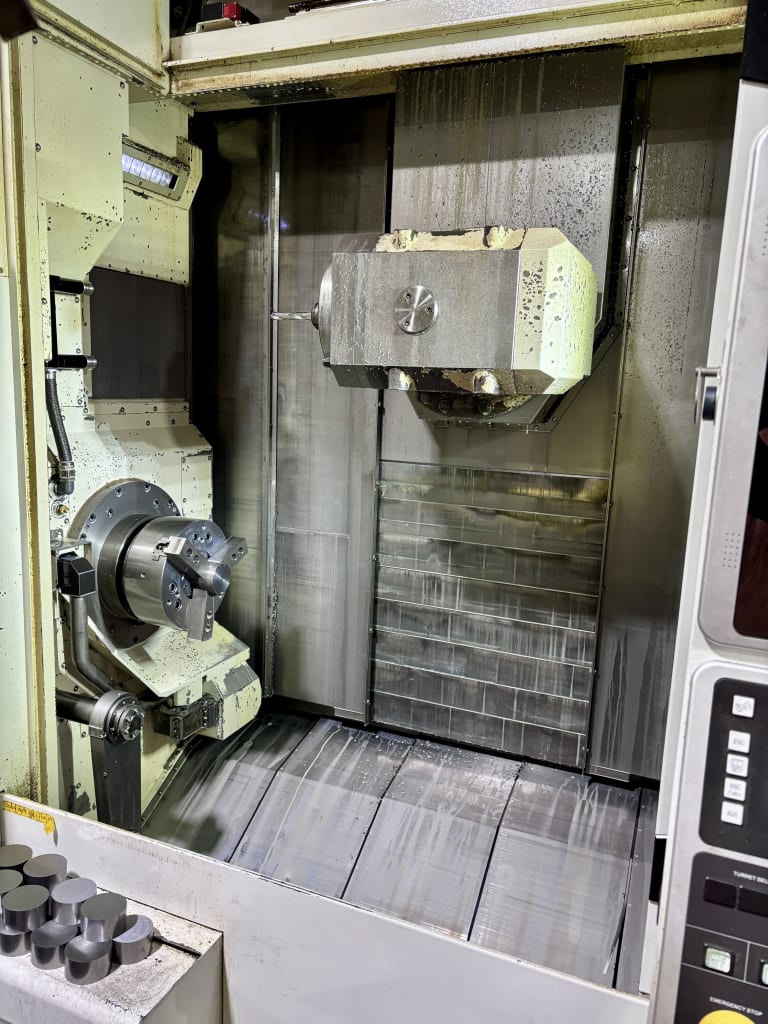

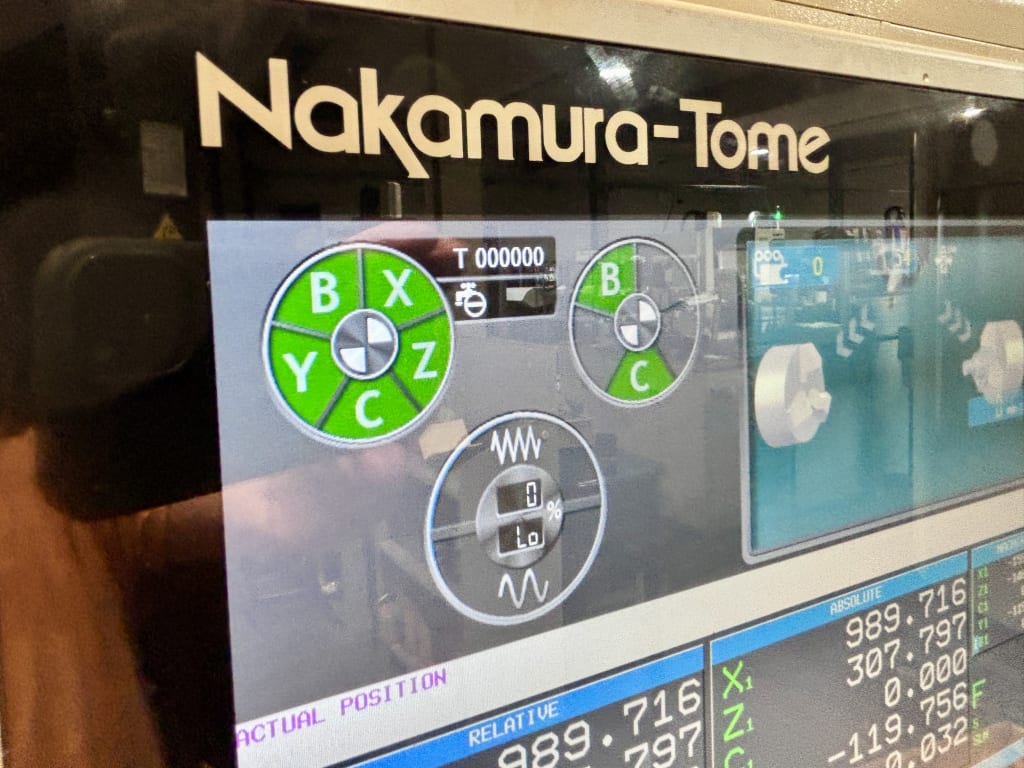

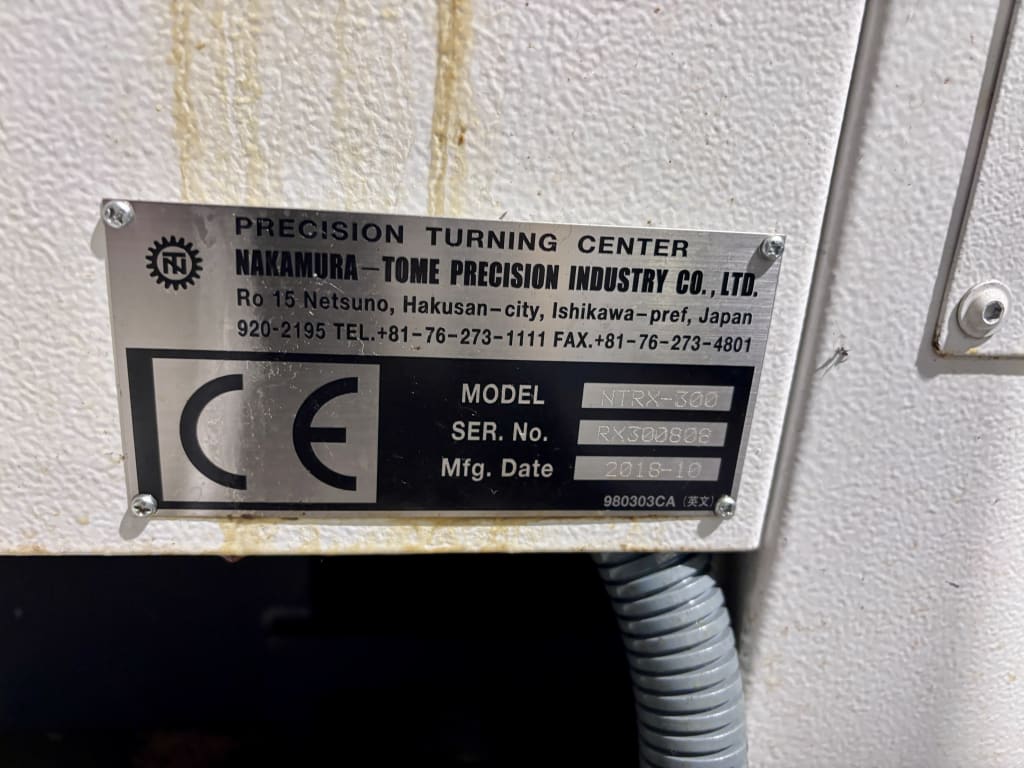

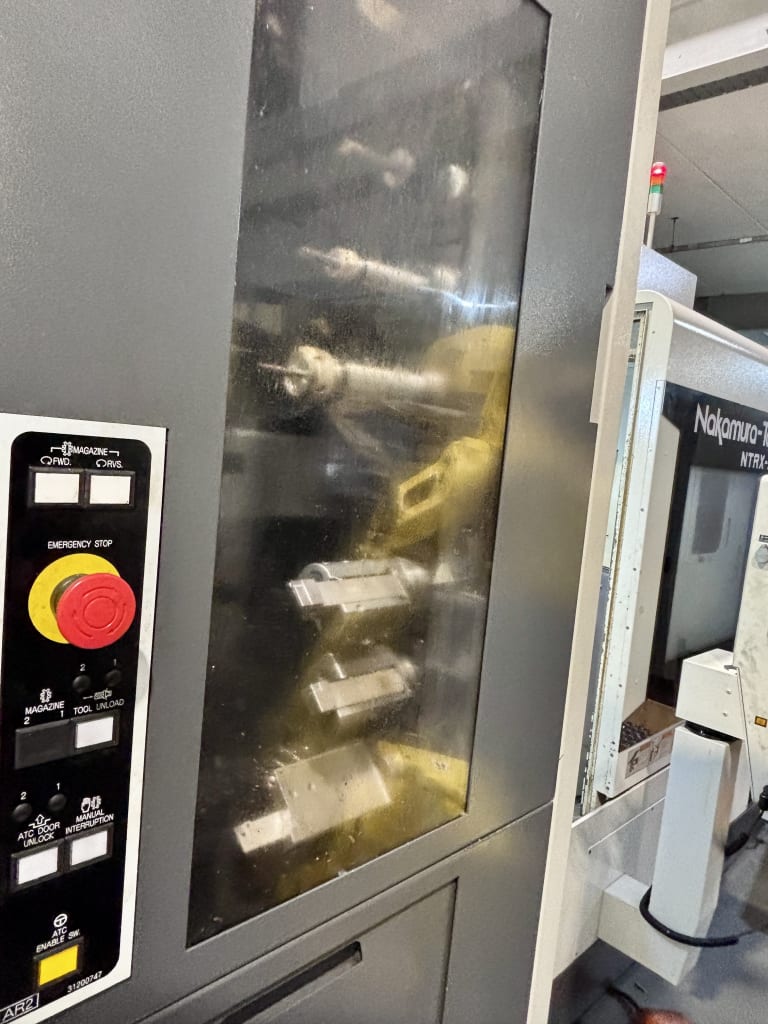

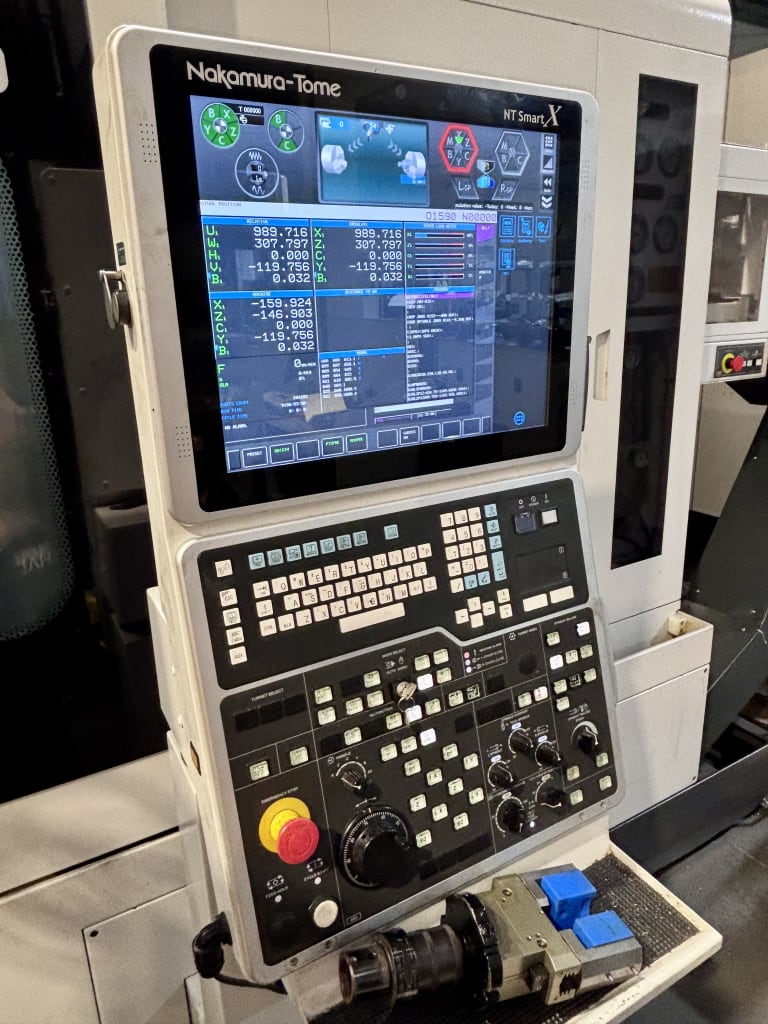

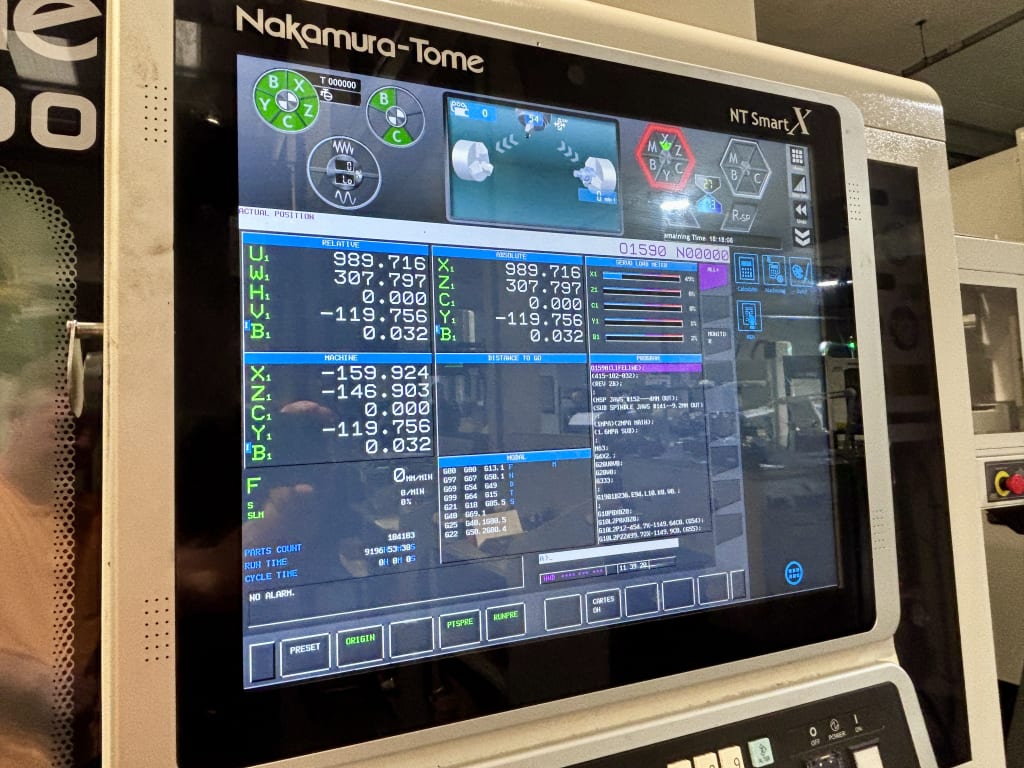

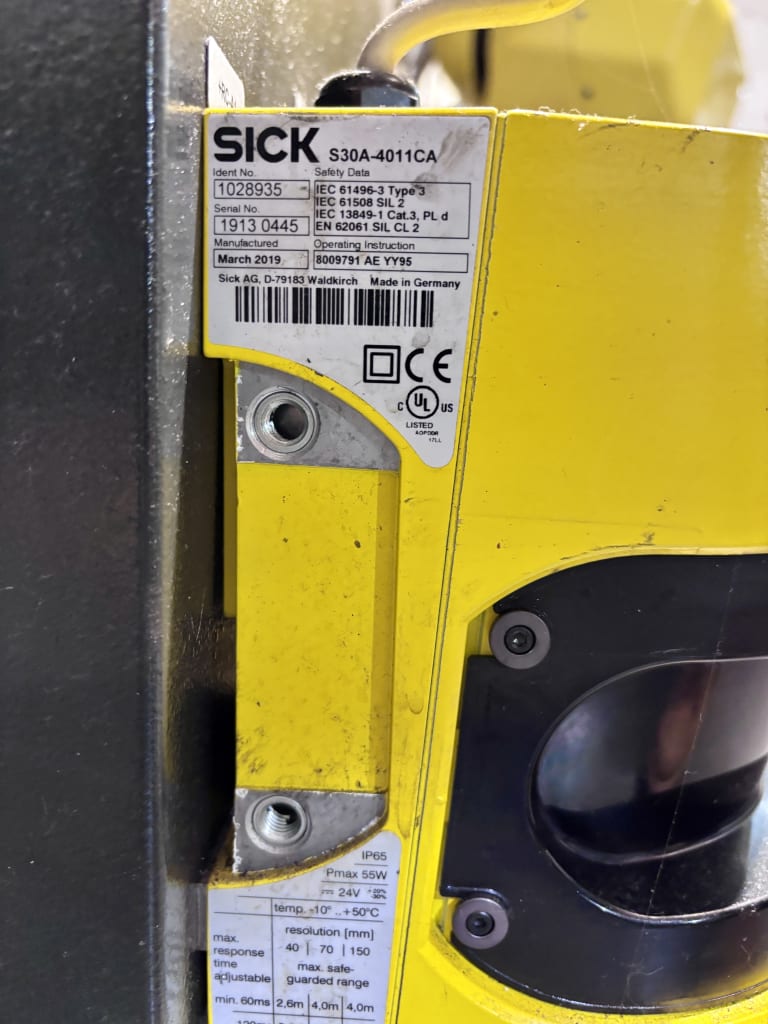

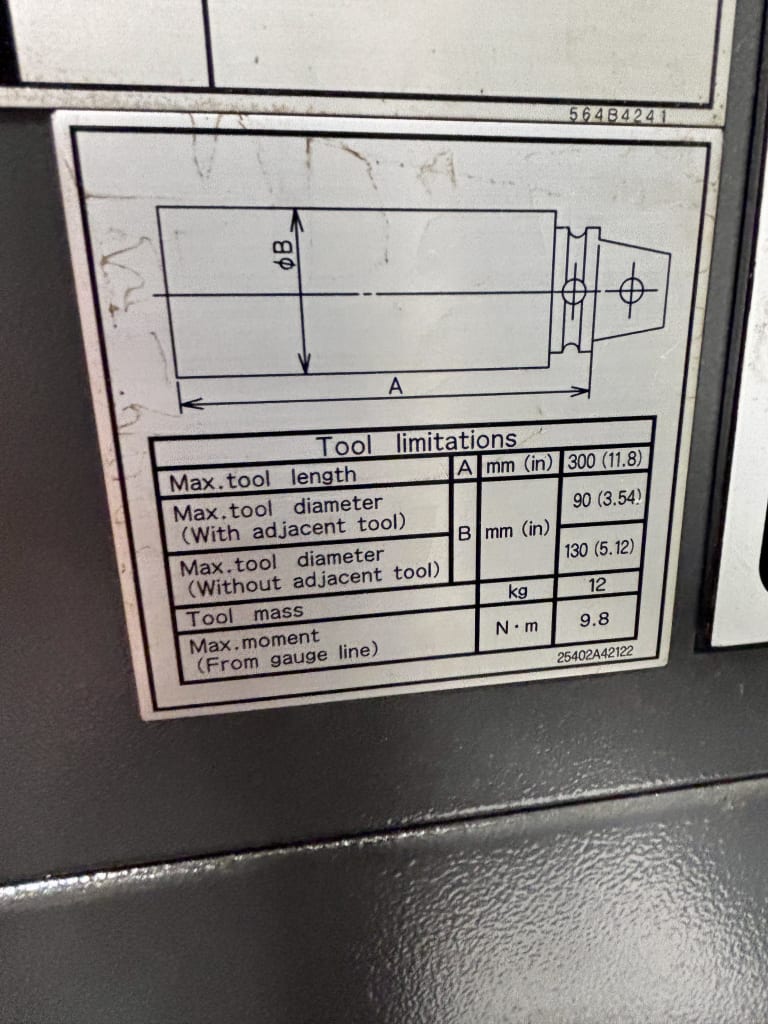

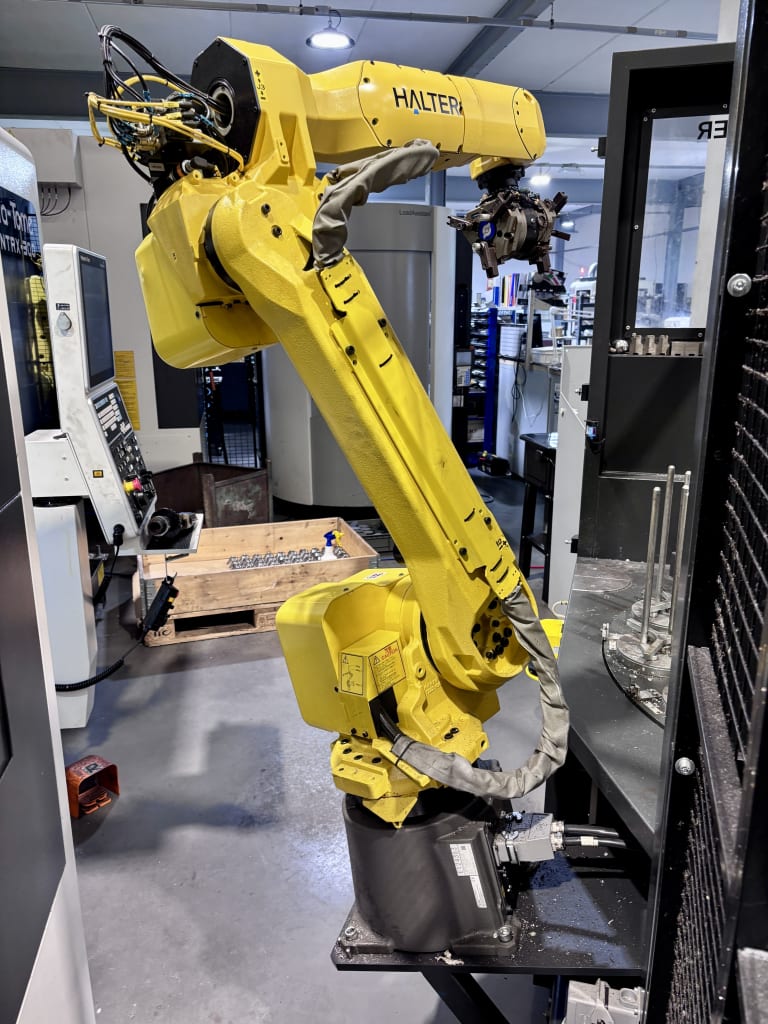

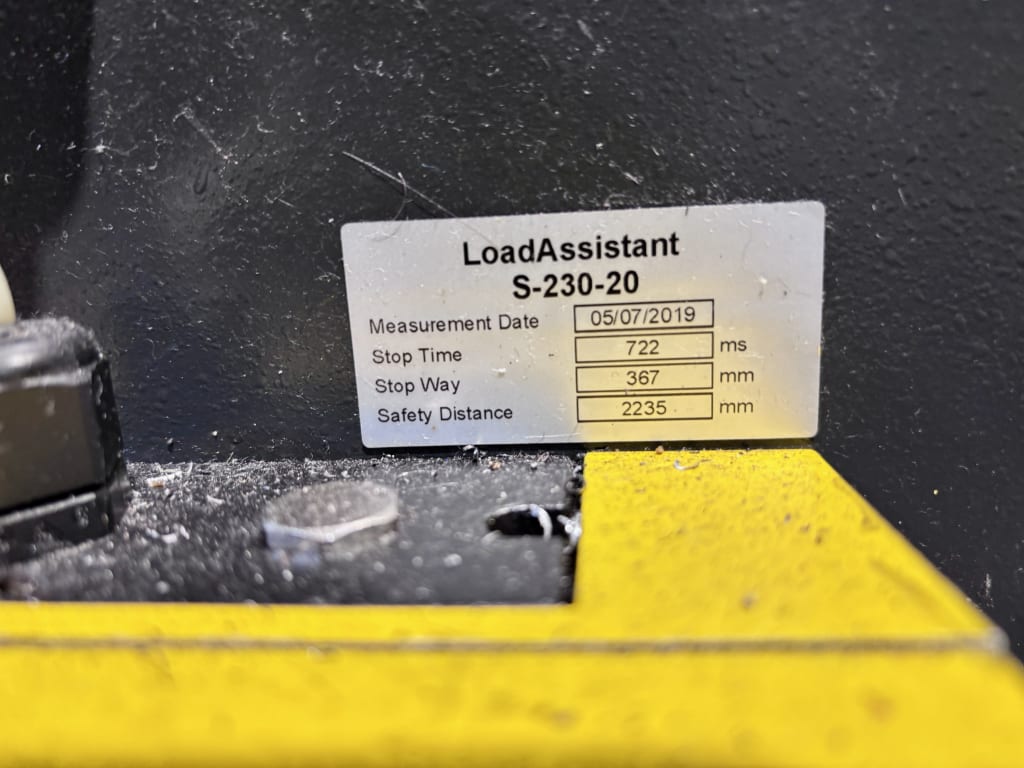

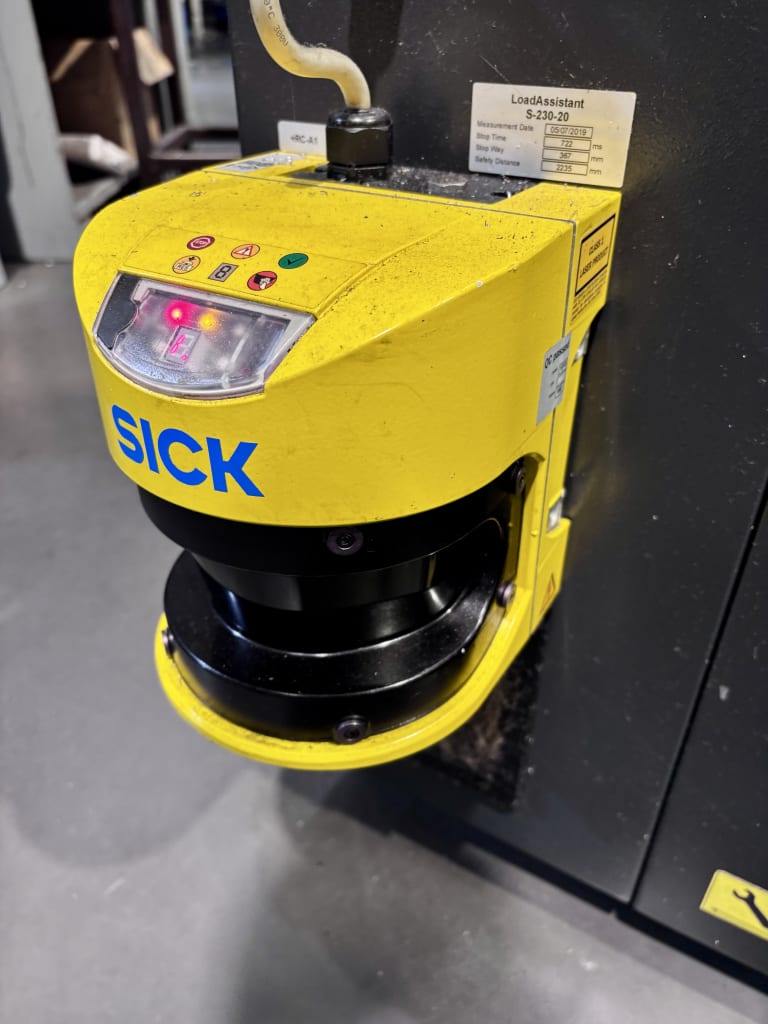

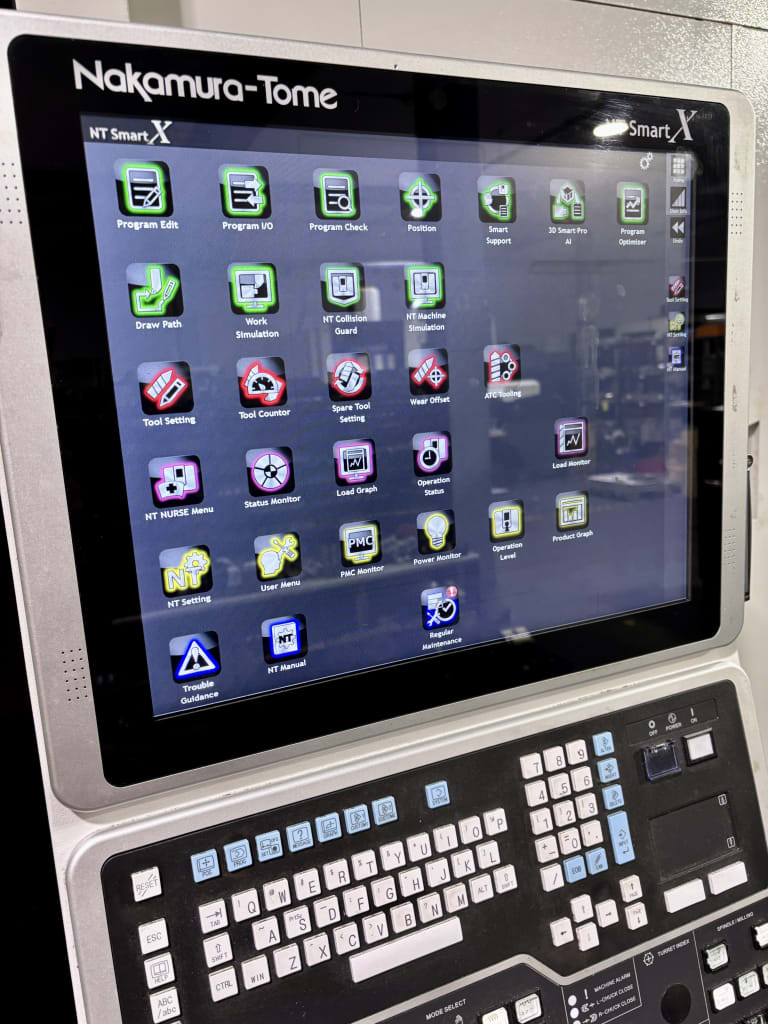

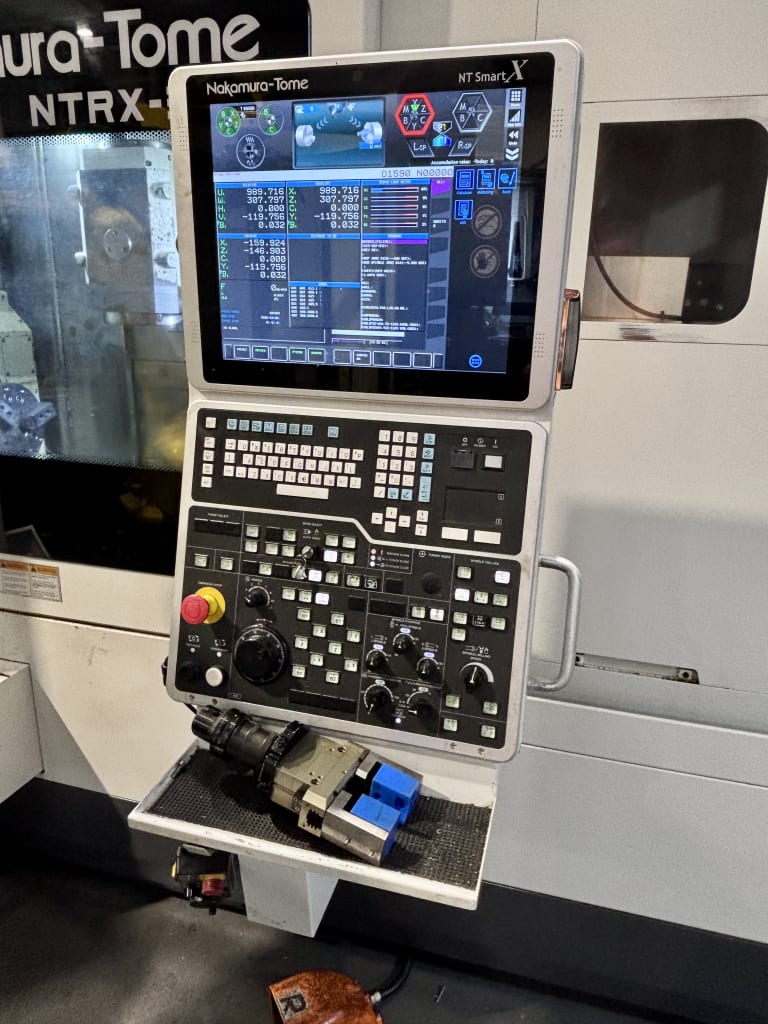

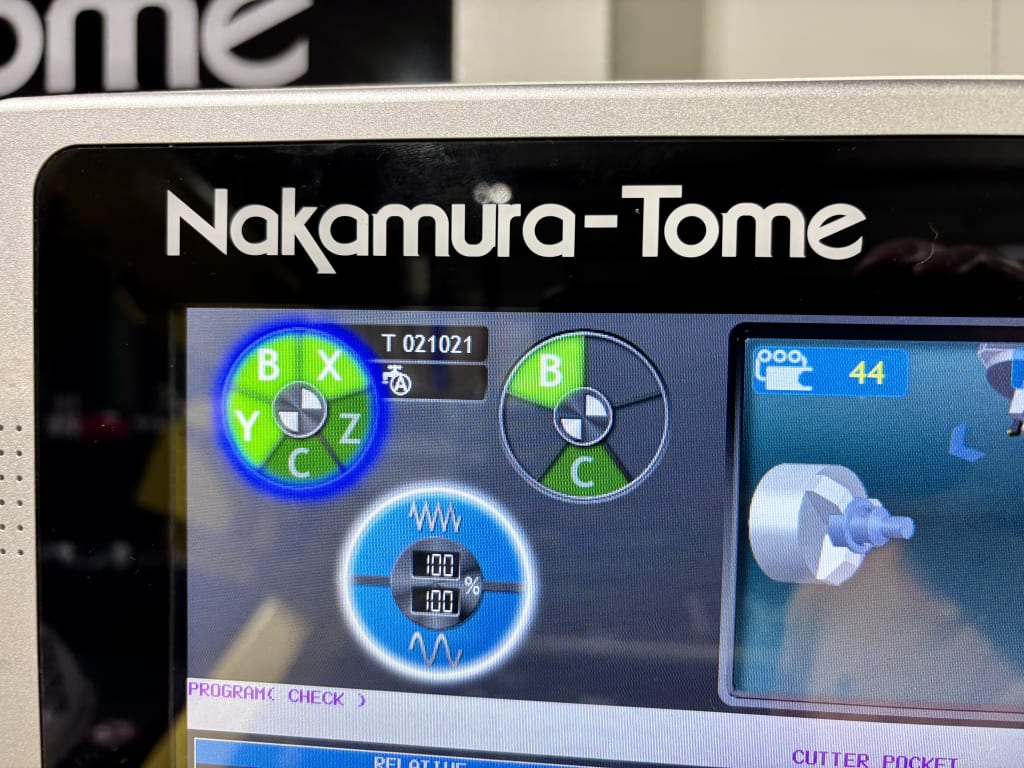

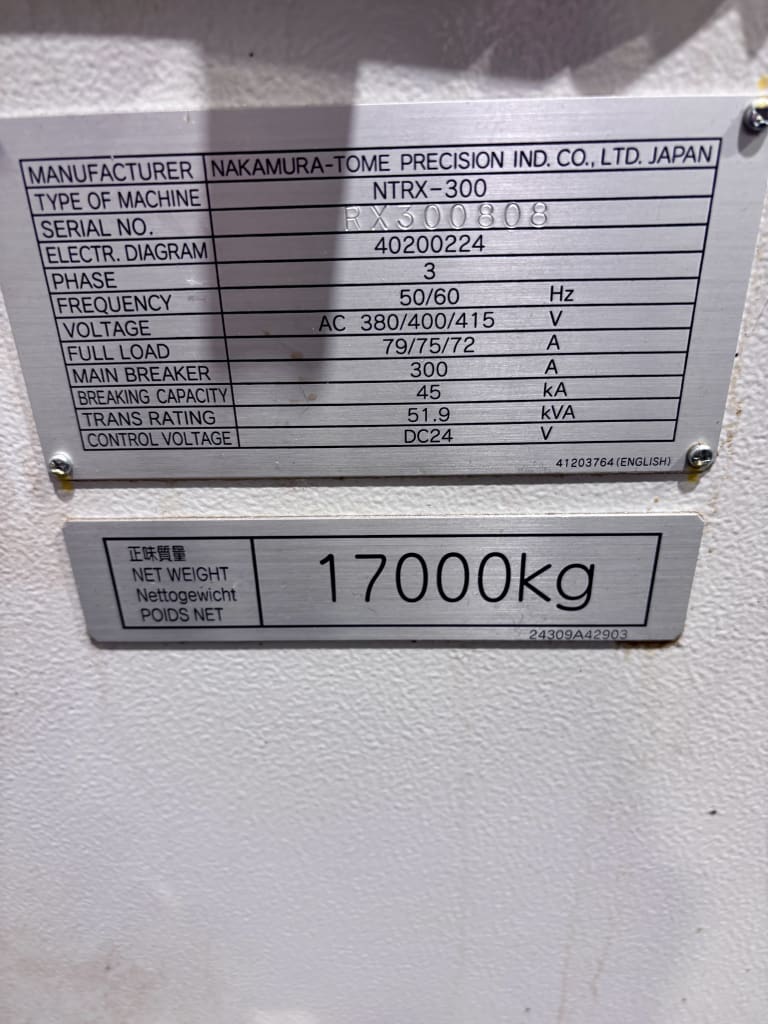

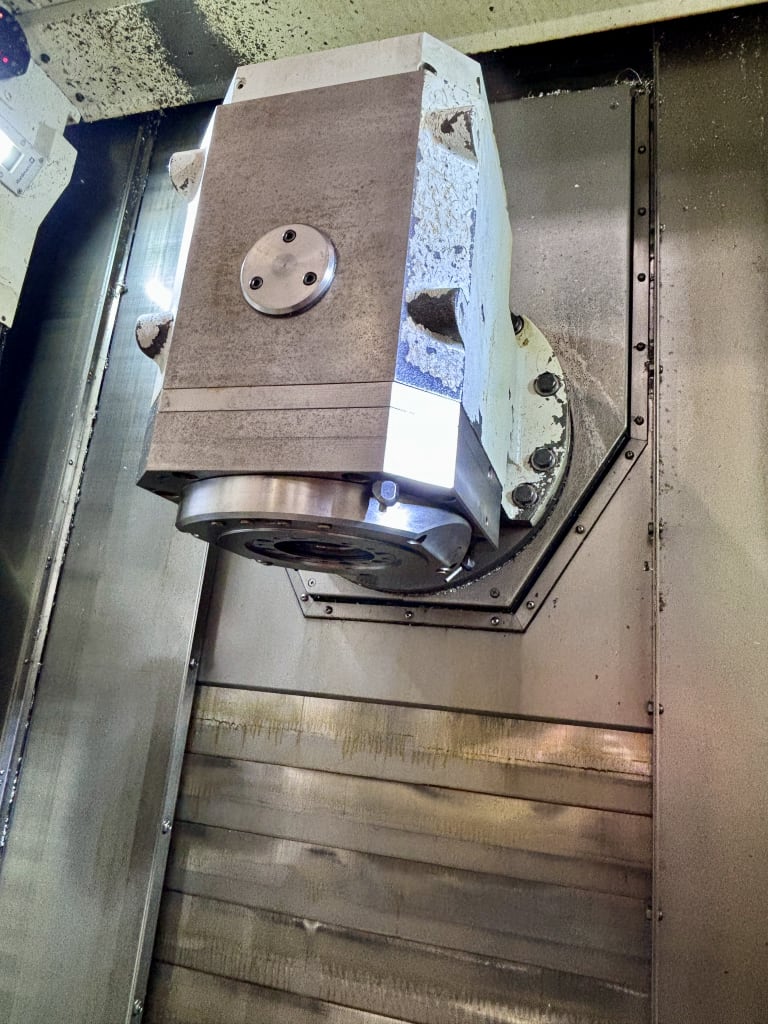

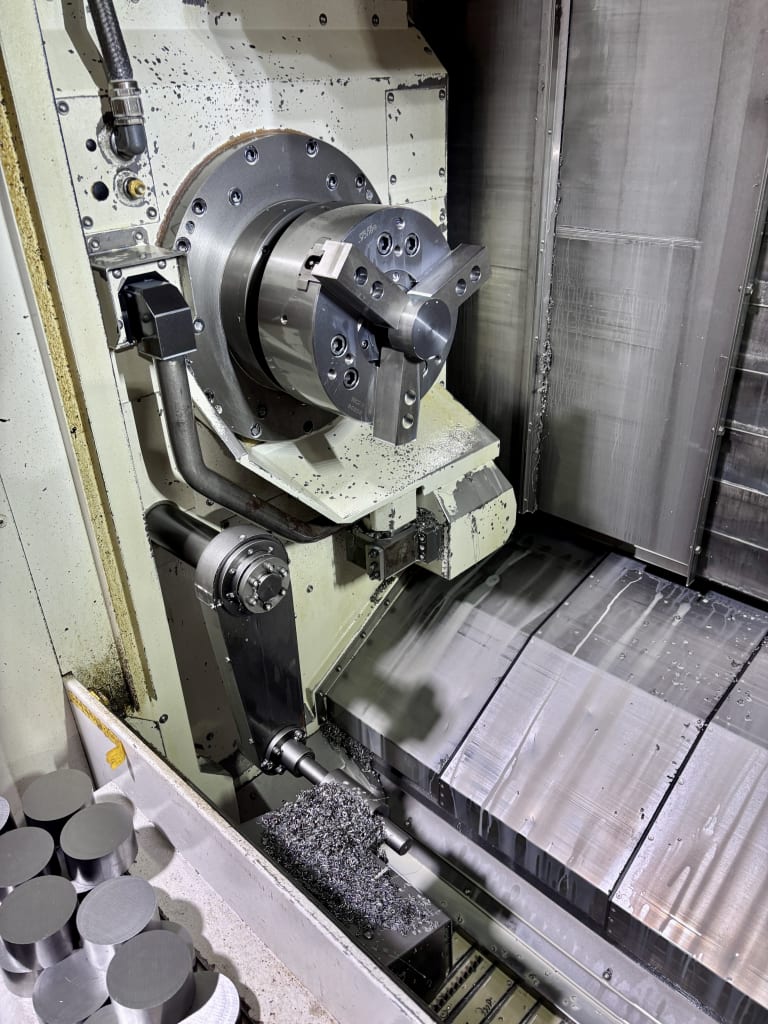

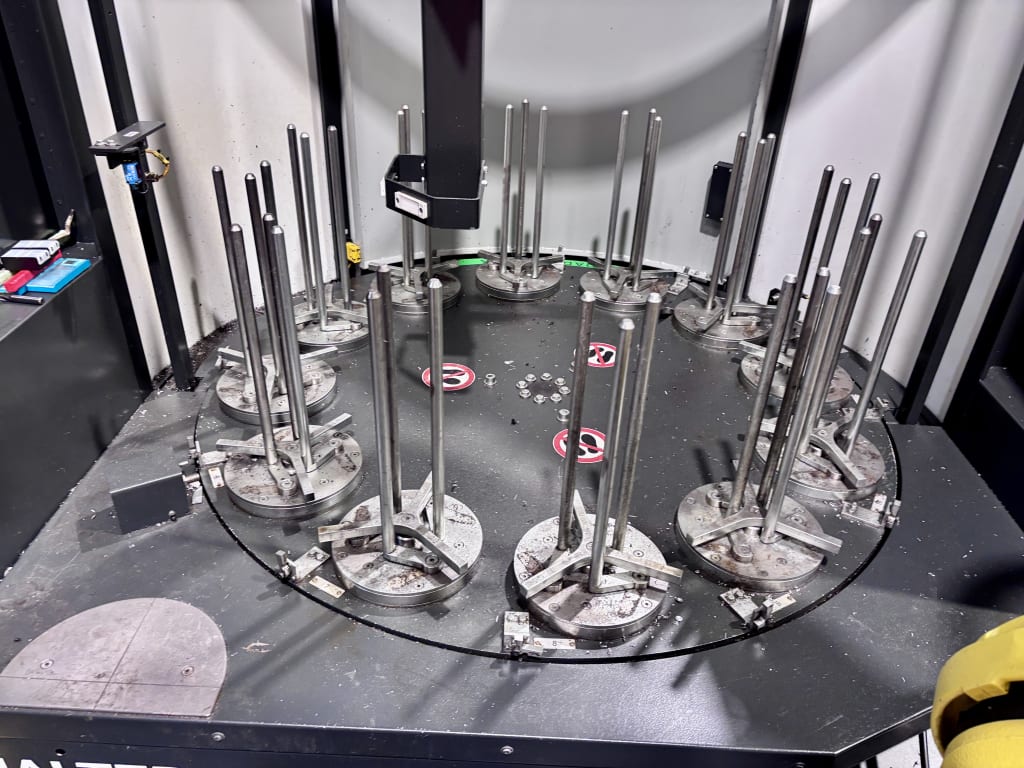

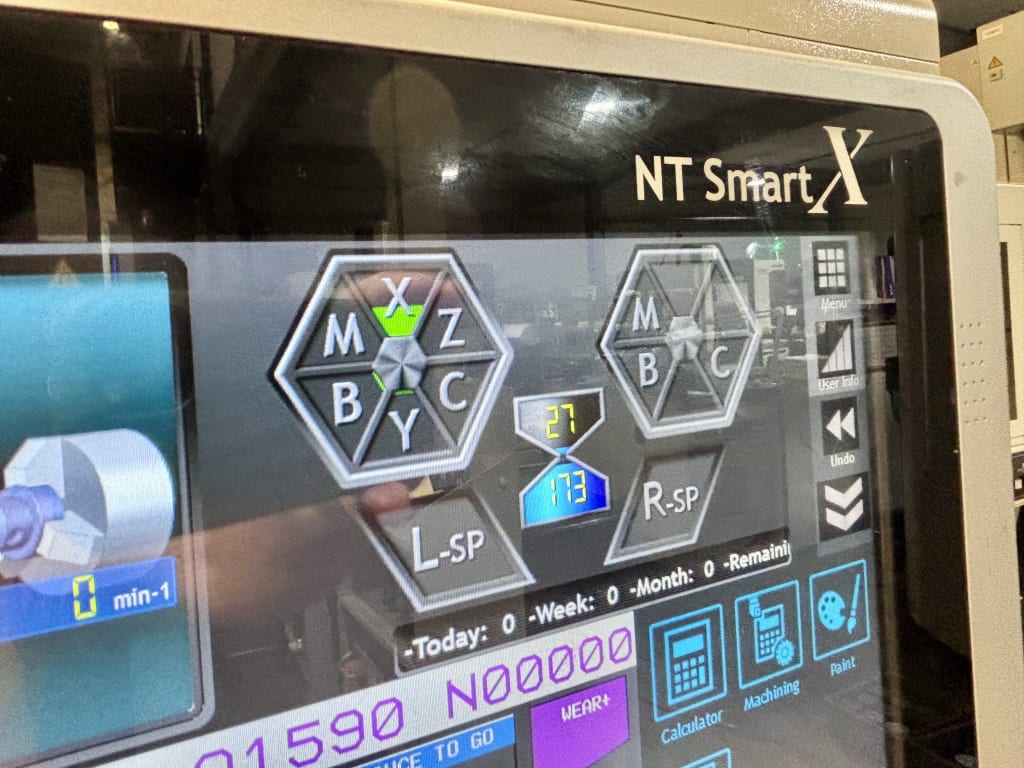

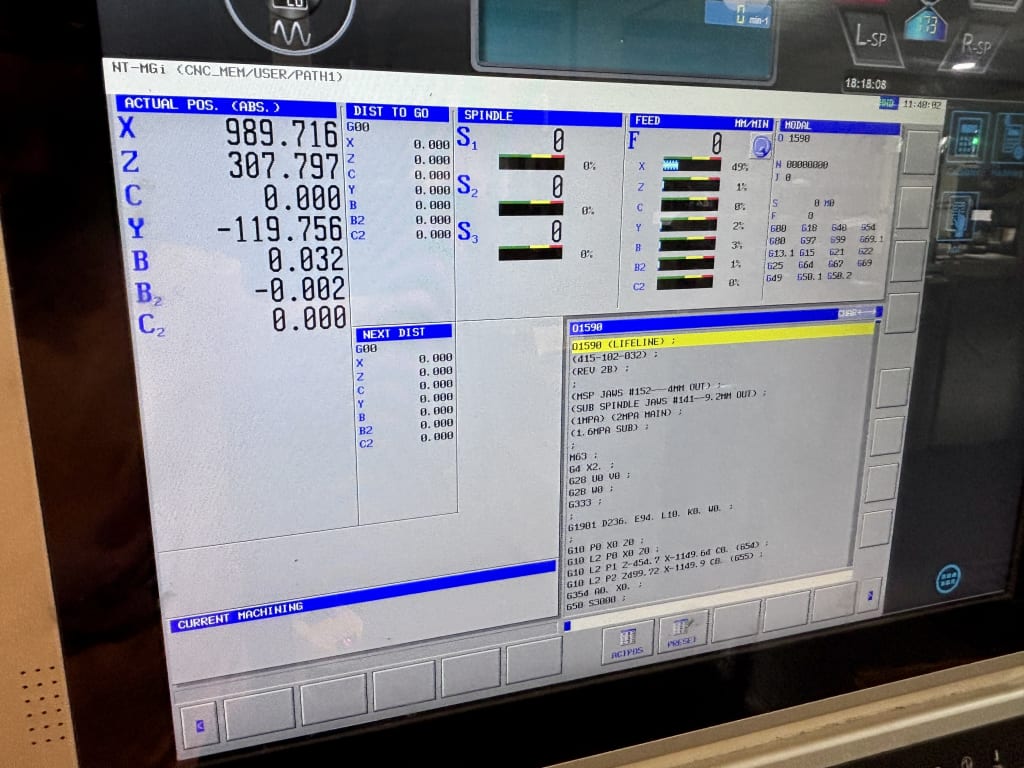

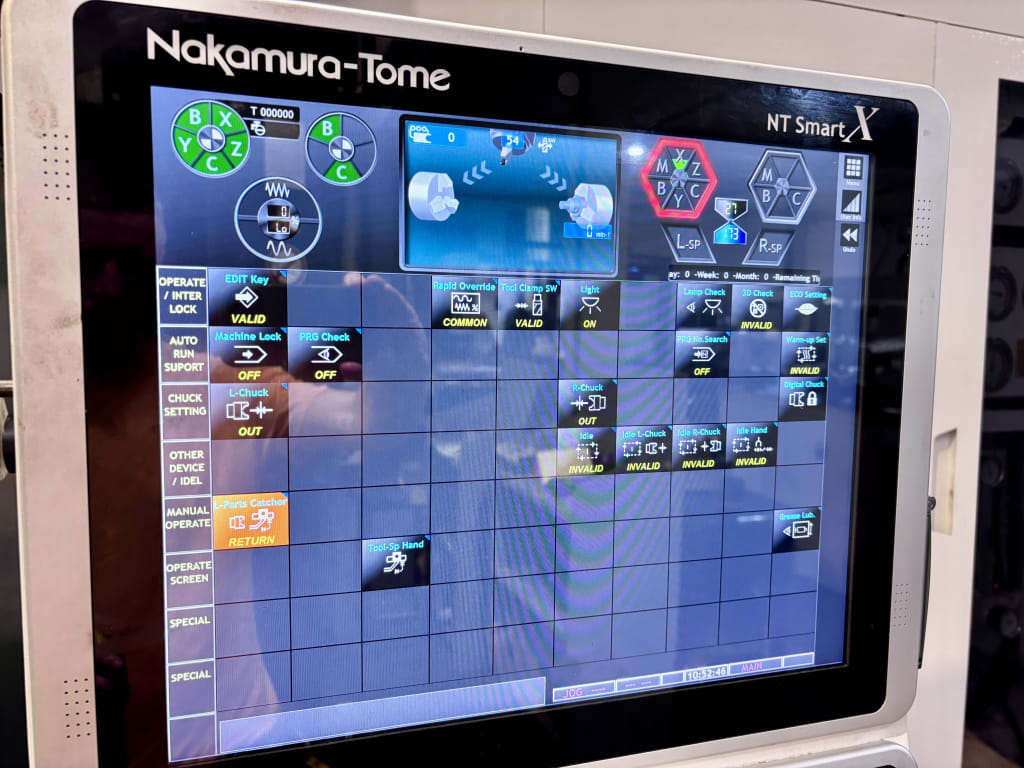

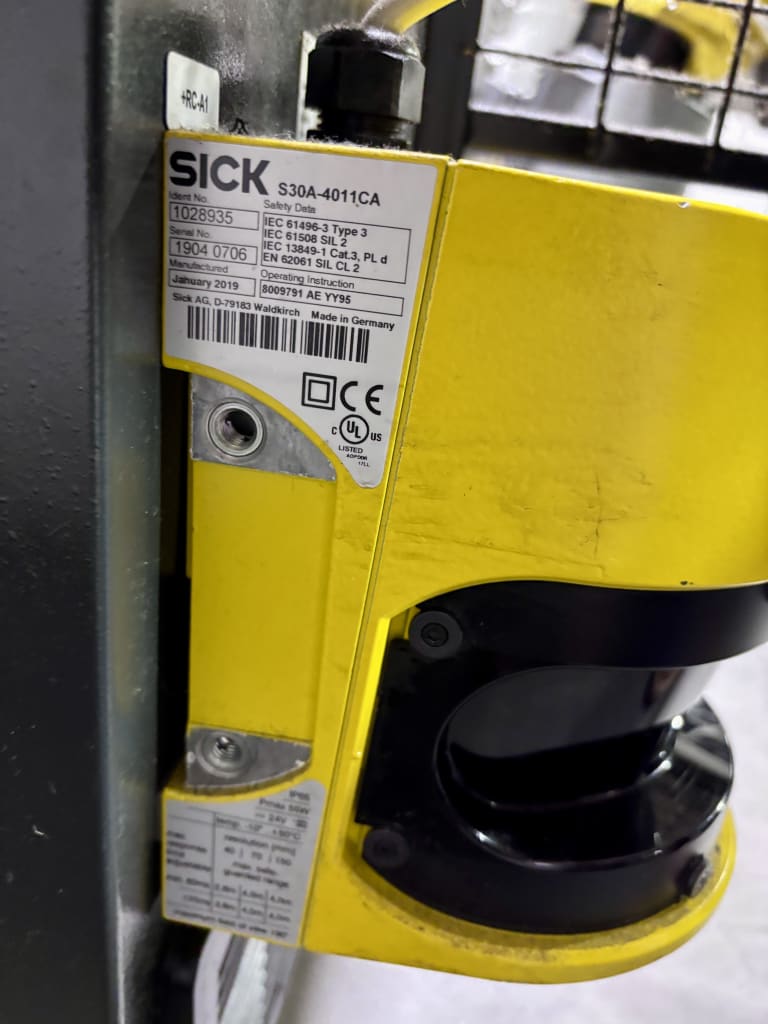

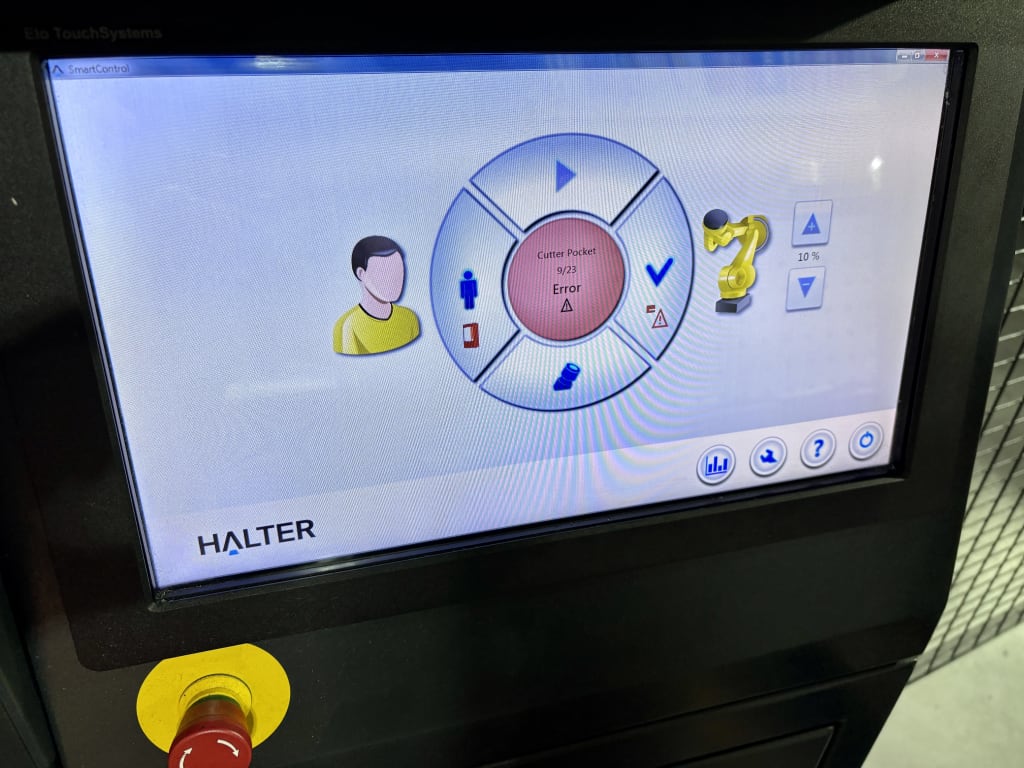

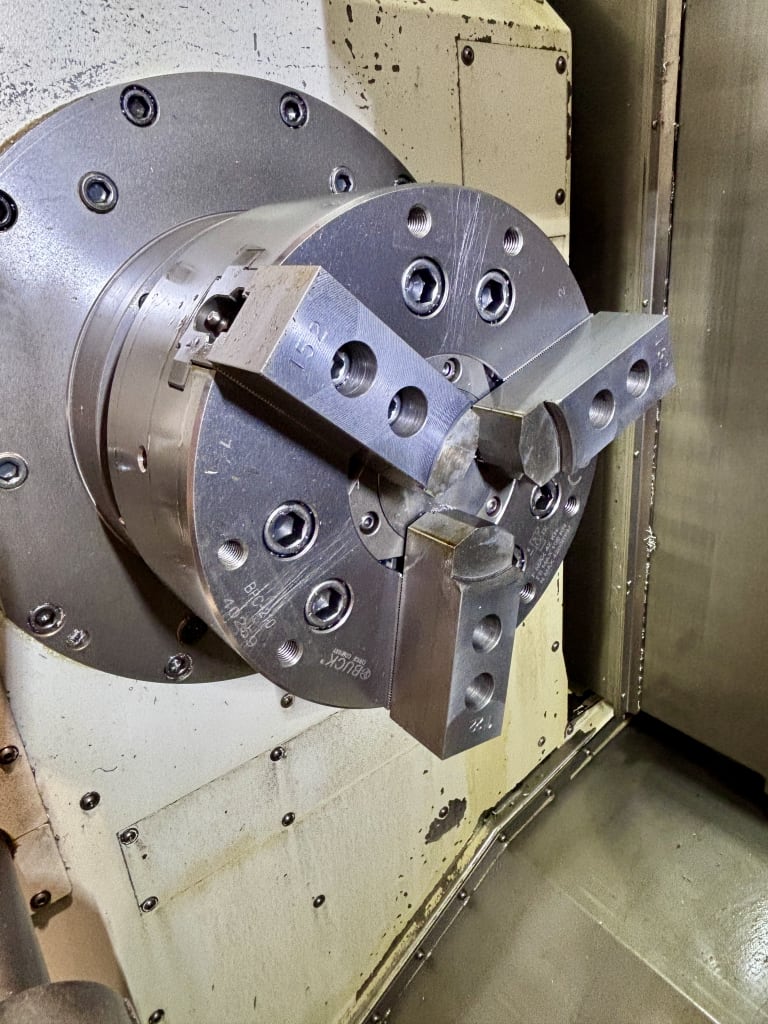

With NT Smart X (Fanuc 31i-Guide i) Control. Maximum Turning Ø640mm. Maximum Turning Length 1,100mm. Distance Between Spindles Min/Max 250-1,350mm. Main Spindle- Buck BBC 210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Sub Spindle- Kitagawa B-210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Axis Travel 'X'=700mm, 'Z'=1,125mm, 'Y'= ± 125mm, 'B2'=1,100mm. Driven Tool (Milling) Maximum Spindle Speed 12,000rpm (22/15kW Motor). Swivel Range 225° (-120°/+105°). Spindle Taper Capto C6. 40 Position ATC. Maximum Tool Ø90/Ø120mm (Non-Adjacent Tool). Maximum Tool Length 300mm. Maximum Tool Weight 12kg. S/No. RX300808 (2018). Halter Load Assistant S-230-20 Parts Loader with HALTER Smart Touchscreen Control- 12 Position Stacker. Workpiece Diameter (Min-Max) Ø43-230mm. Maximum Height of Workpiece 175mm. Maximum Load Capacity of Robot Arm 20kg. Maximum Total Weight on Rotating Table 1,250kg. Maximum Stacking Height 350mm. Number of Stacking Stations (1 Empty) 12. Maximum Weight Per Station 115kg. With Sick S30A-4011CA Safety Laser Scanner. S/No. DCH0300 (2019). Fanuc Robot M-20iA Type A05B-1225-B252- 6 Axis, Payload 20kg, Reach Approx 1,811mm. S/No. R18Y00642 (2018). Hydrafeed Multifeed Barfeeder Length 2,100mm. S/No. 6849. - LOT 2
![site]()

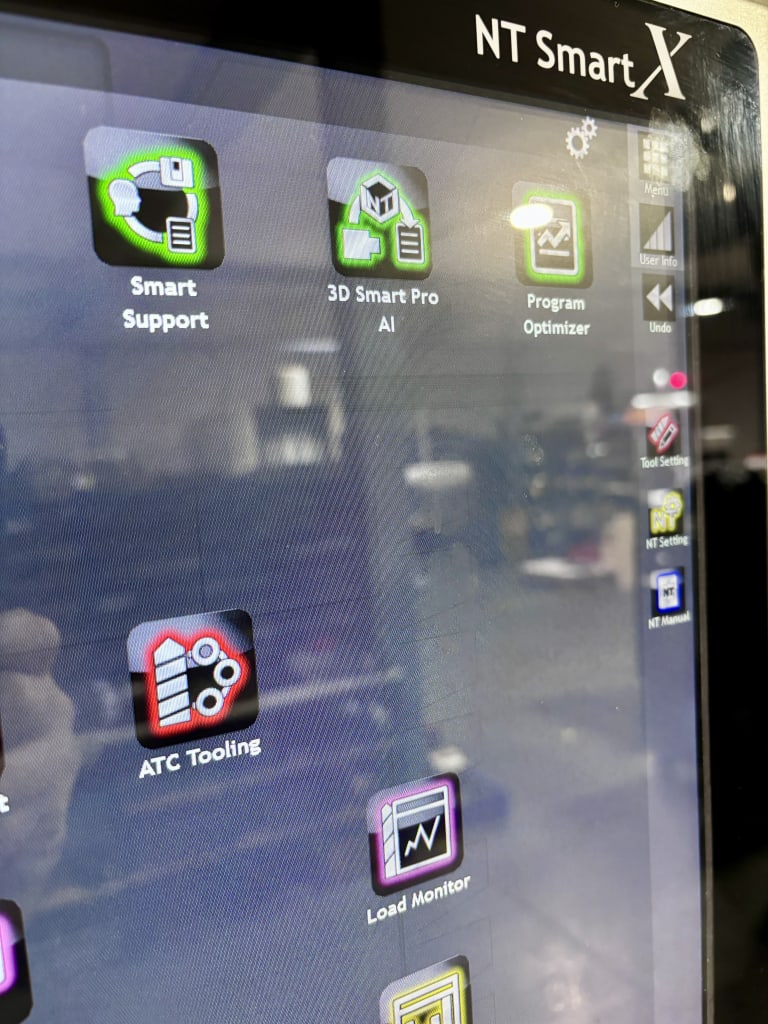

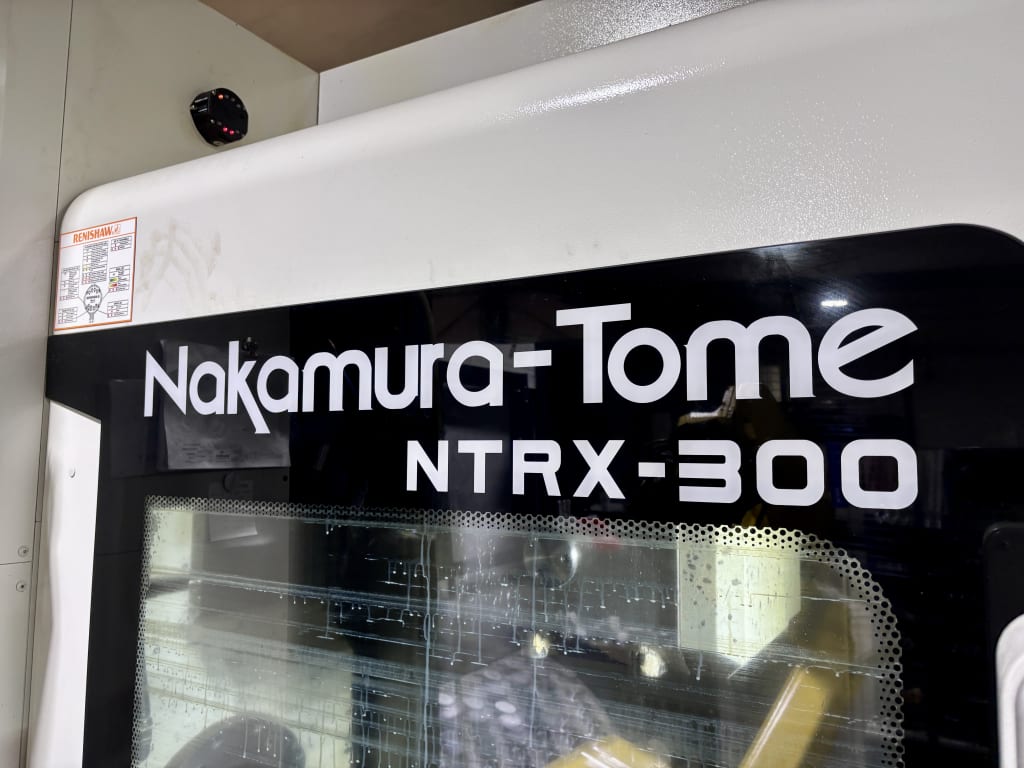

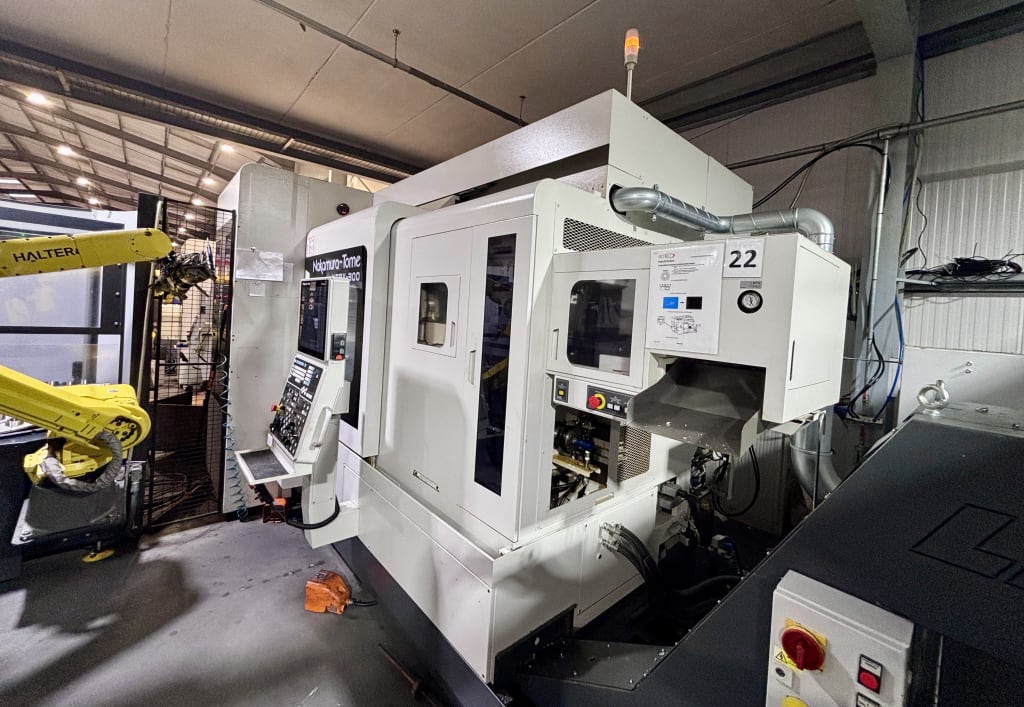

Nakamura-Tome NTRX-300 High Rigidity Multitasking Machine with NT Smart X Control, Halter Parts Loader & Fanuc Robot

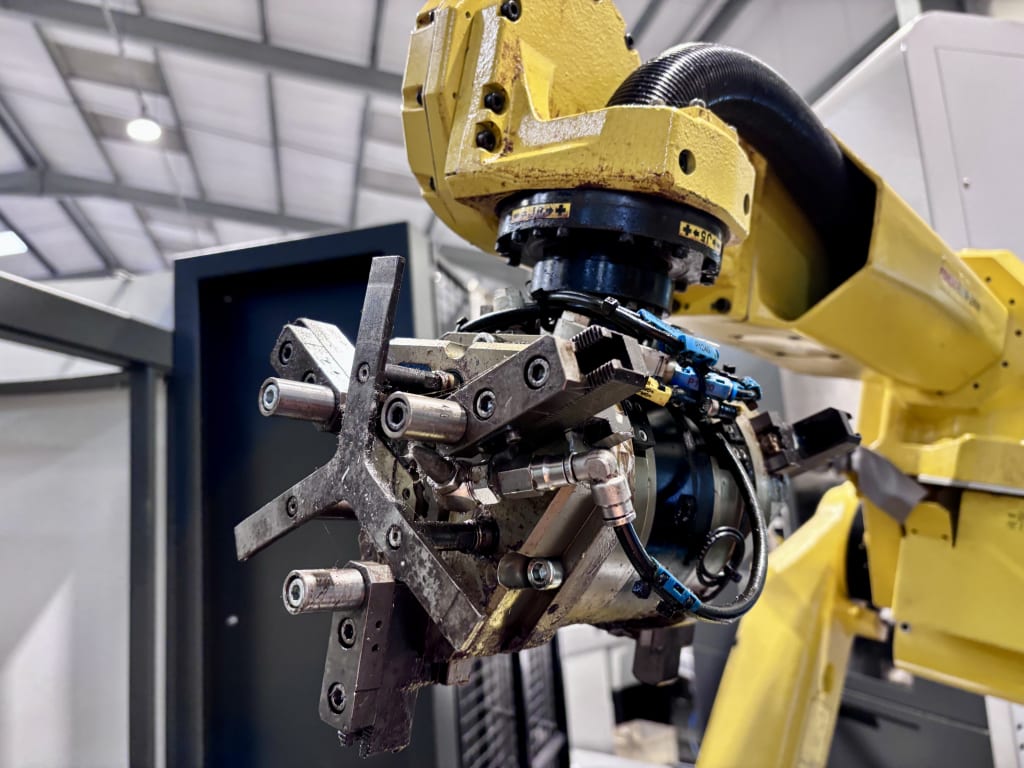

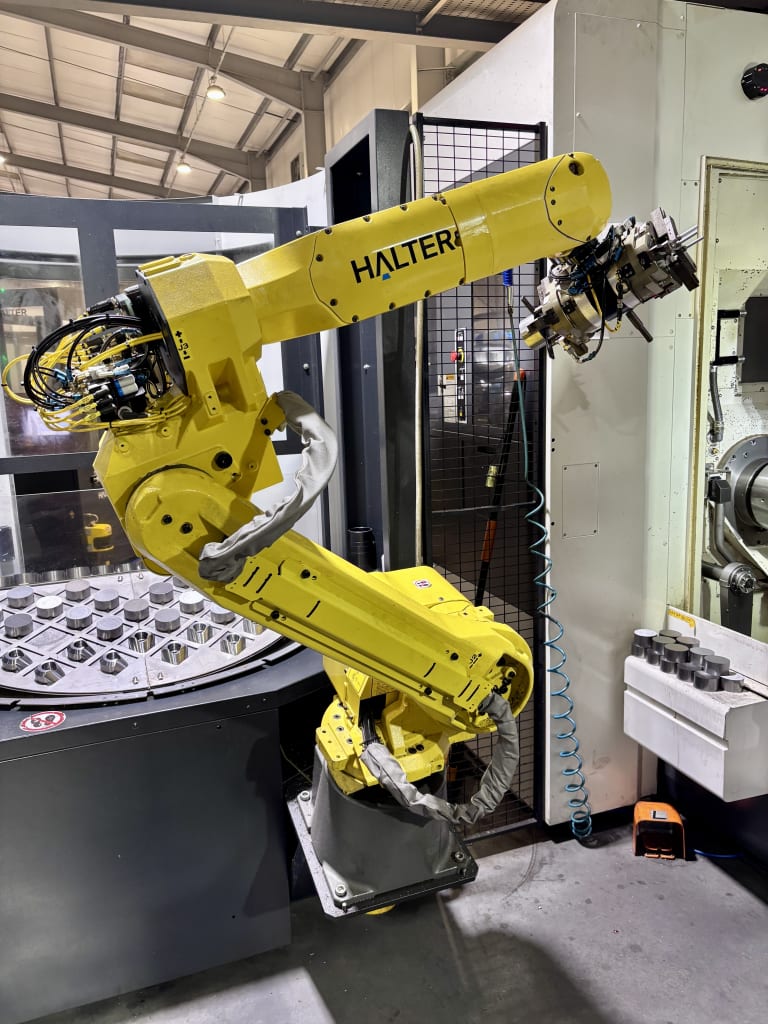

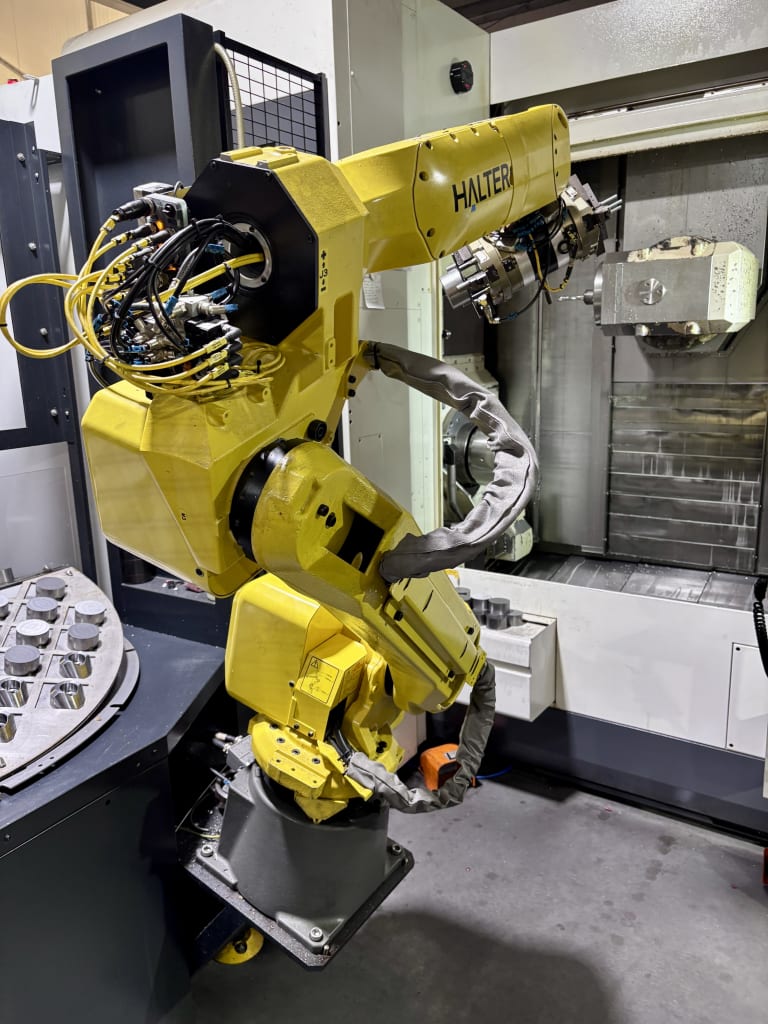

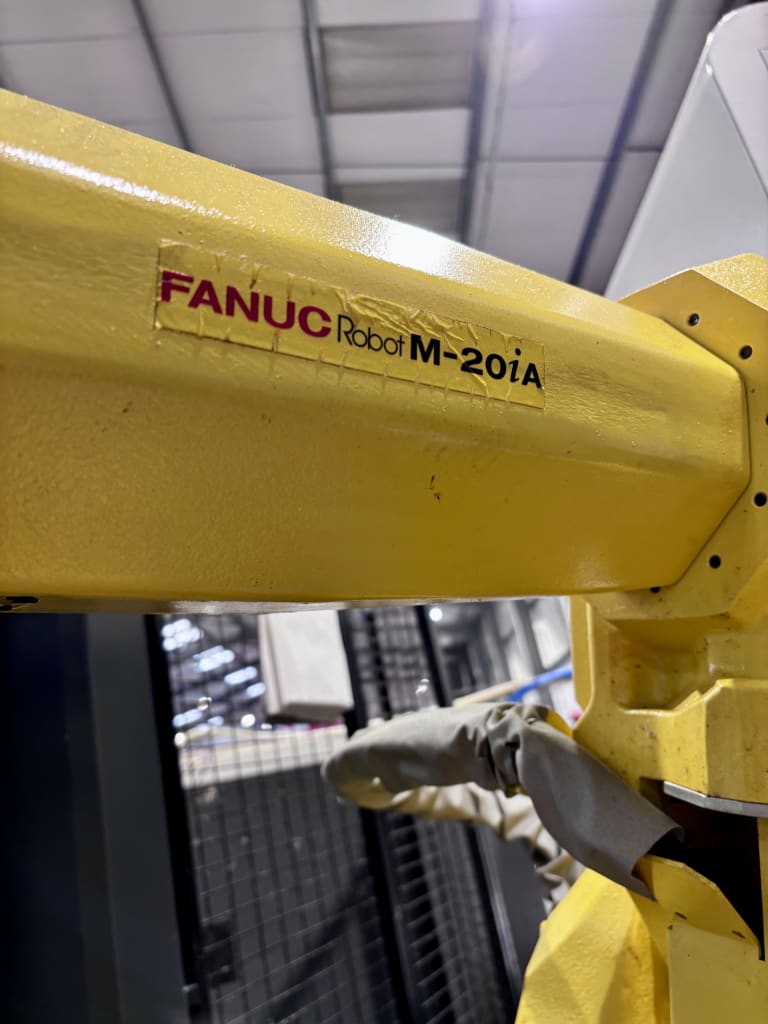

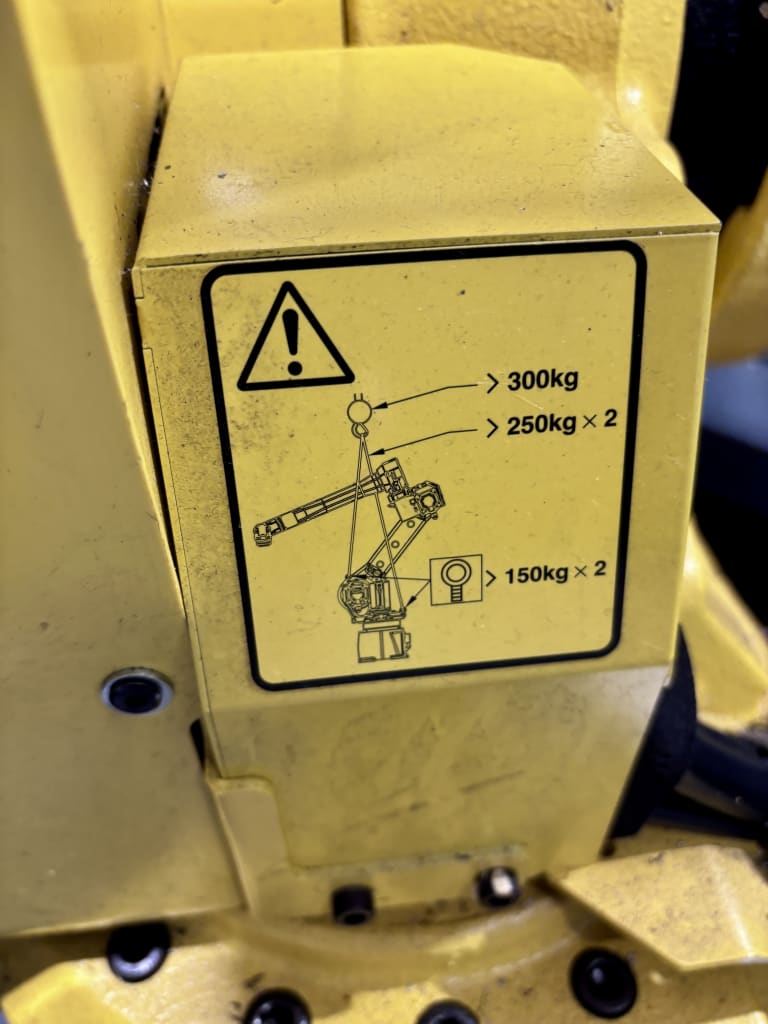

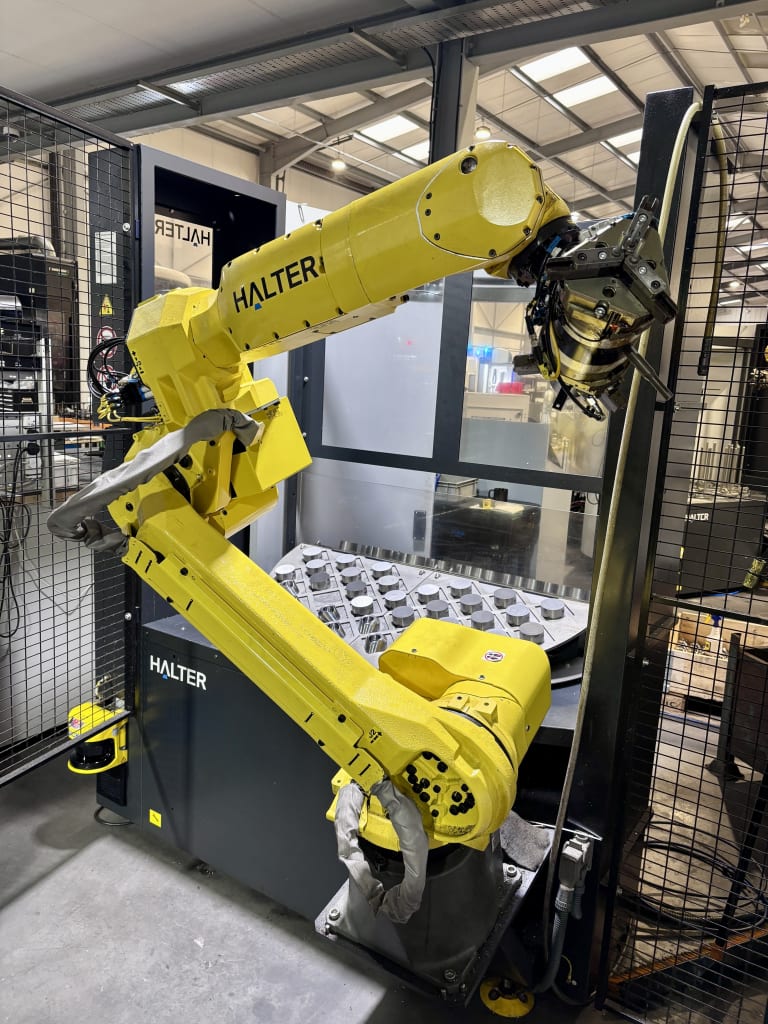

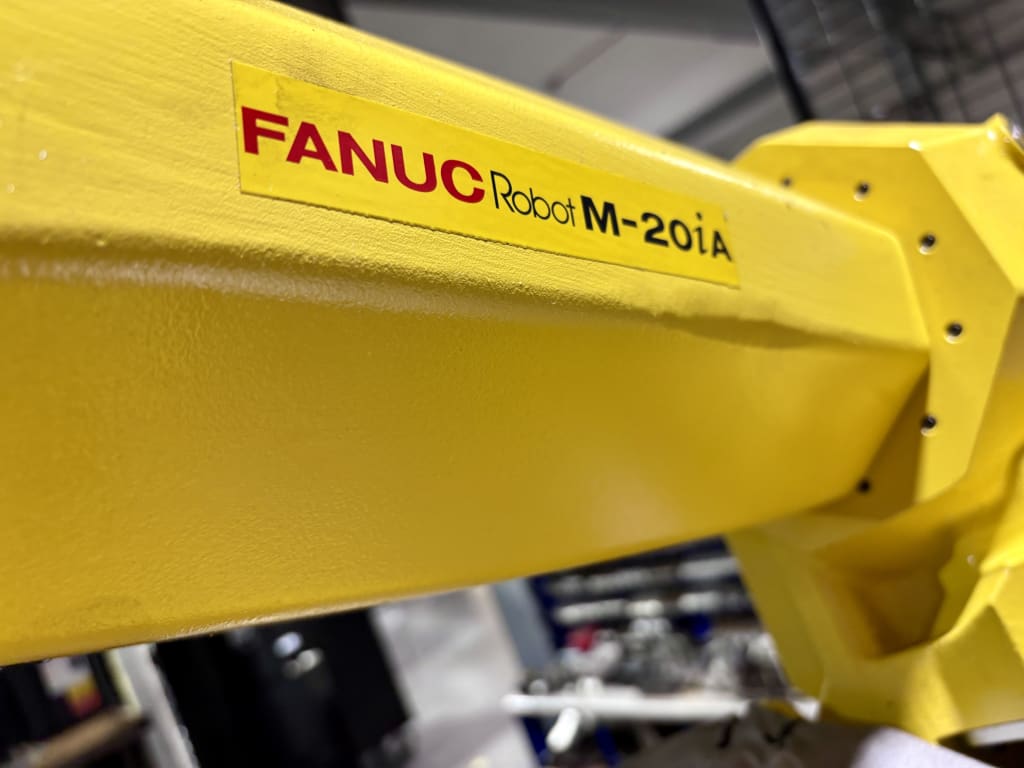

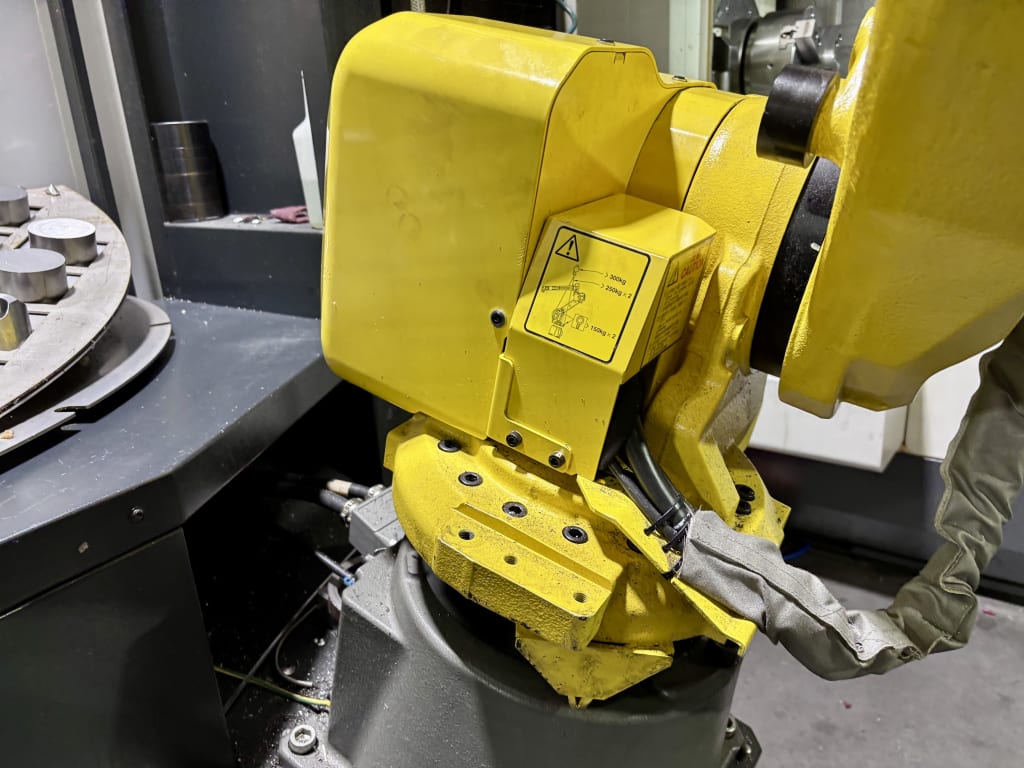

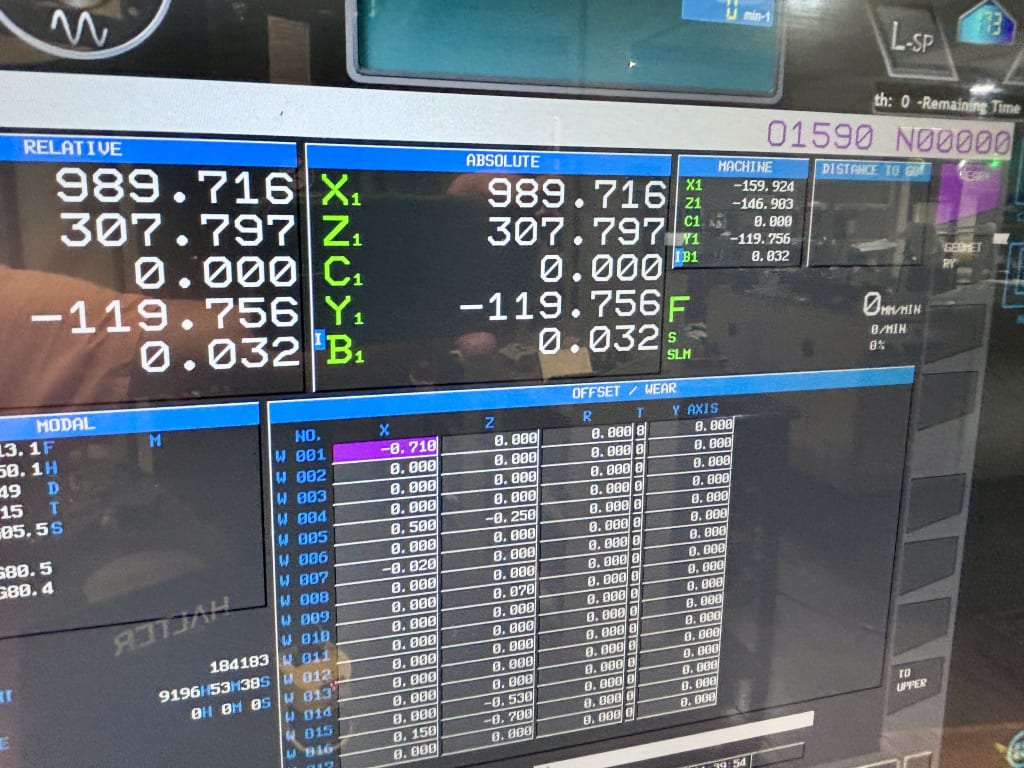

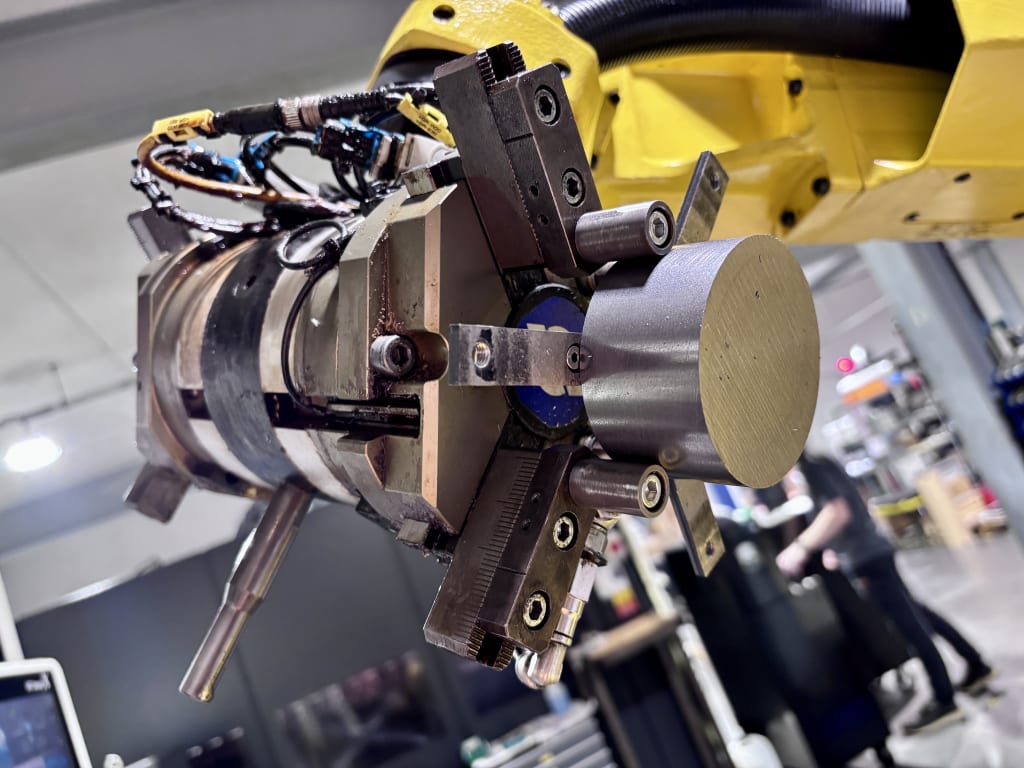

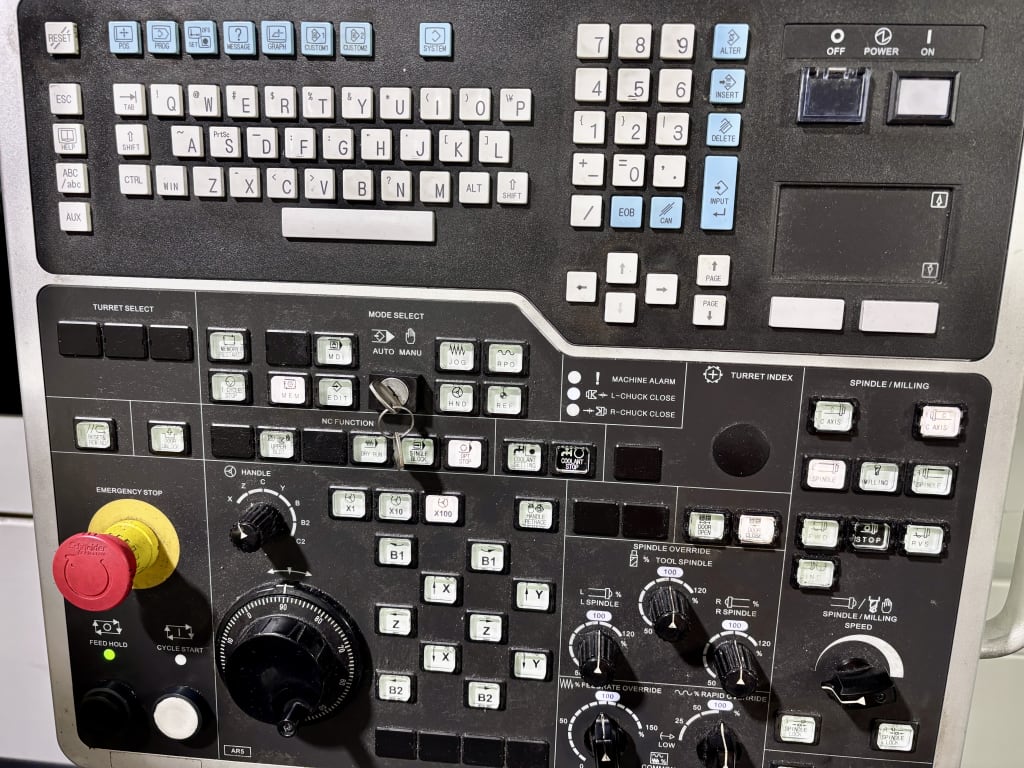

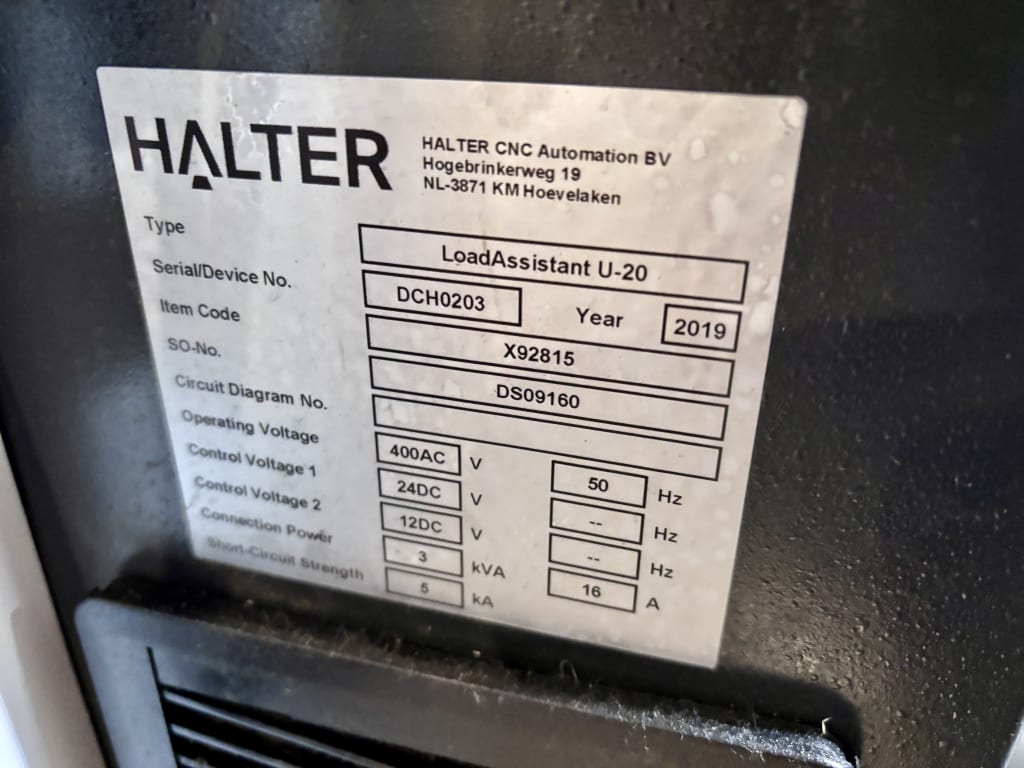

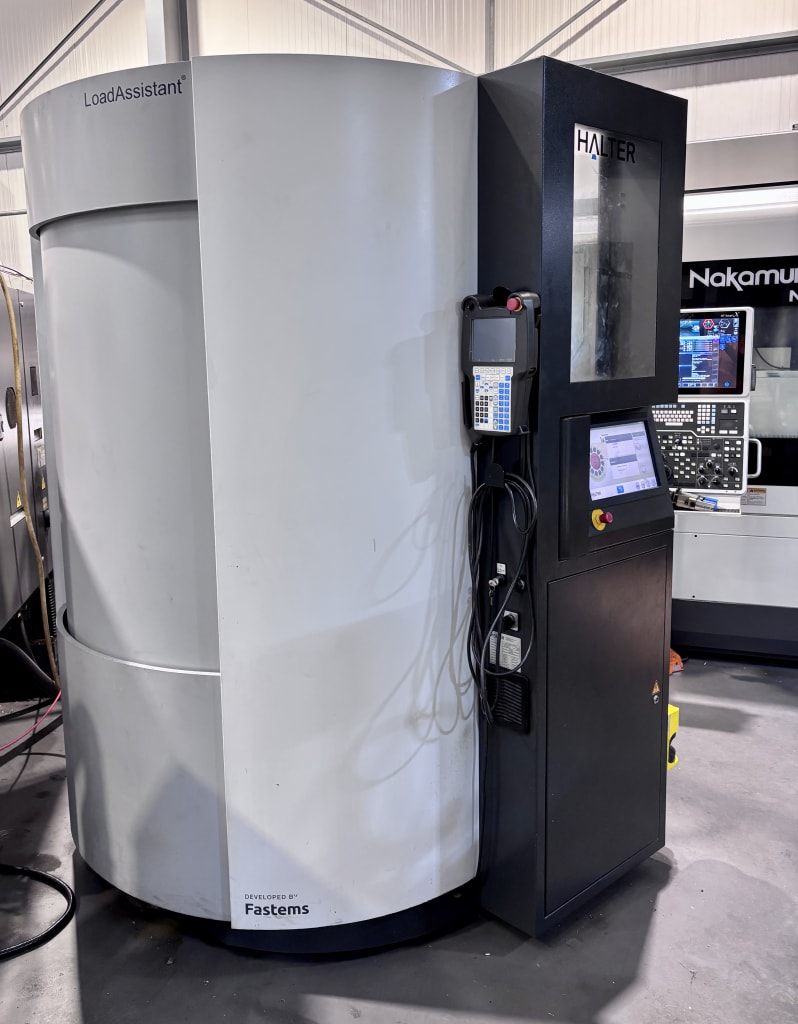

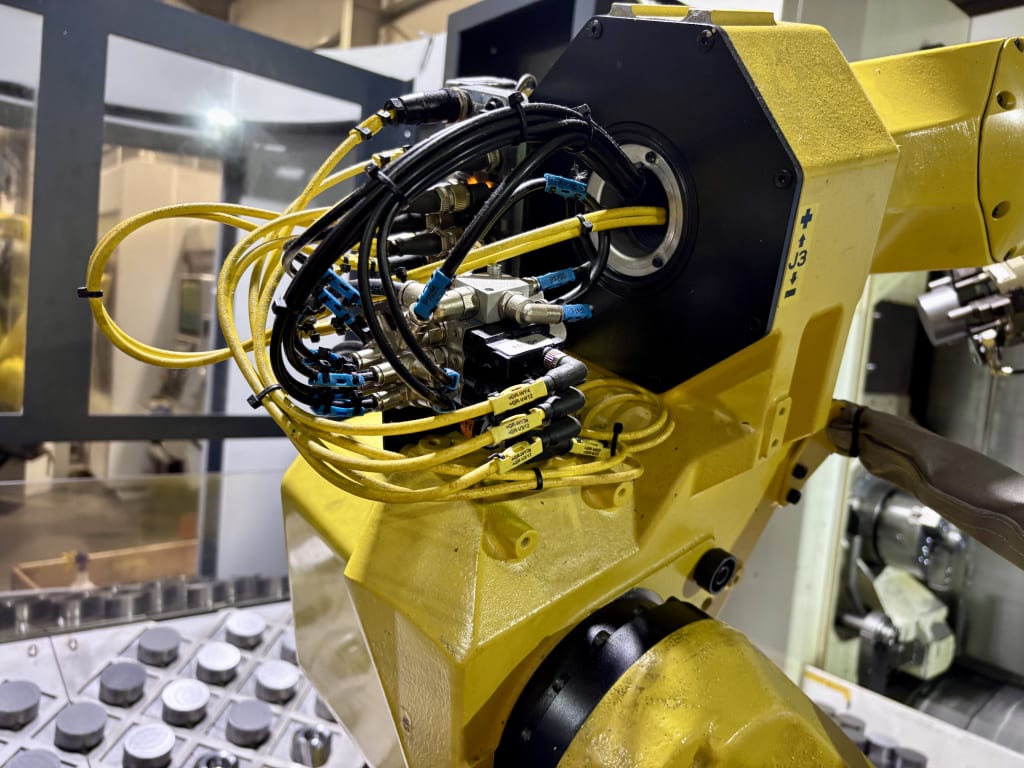

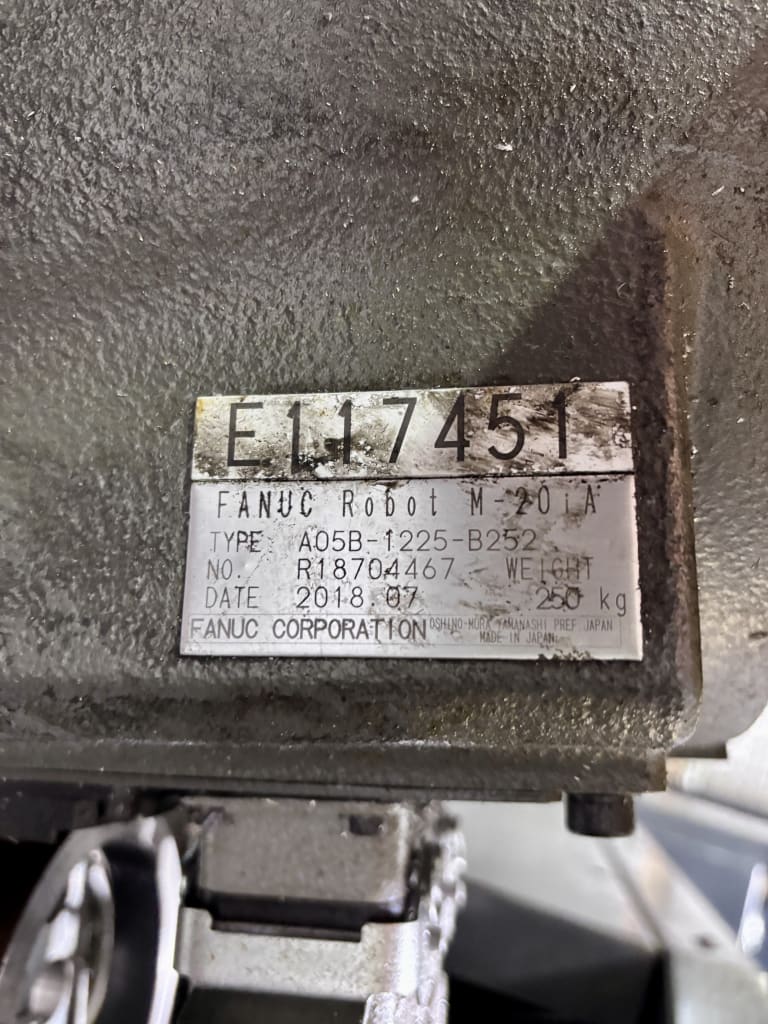

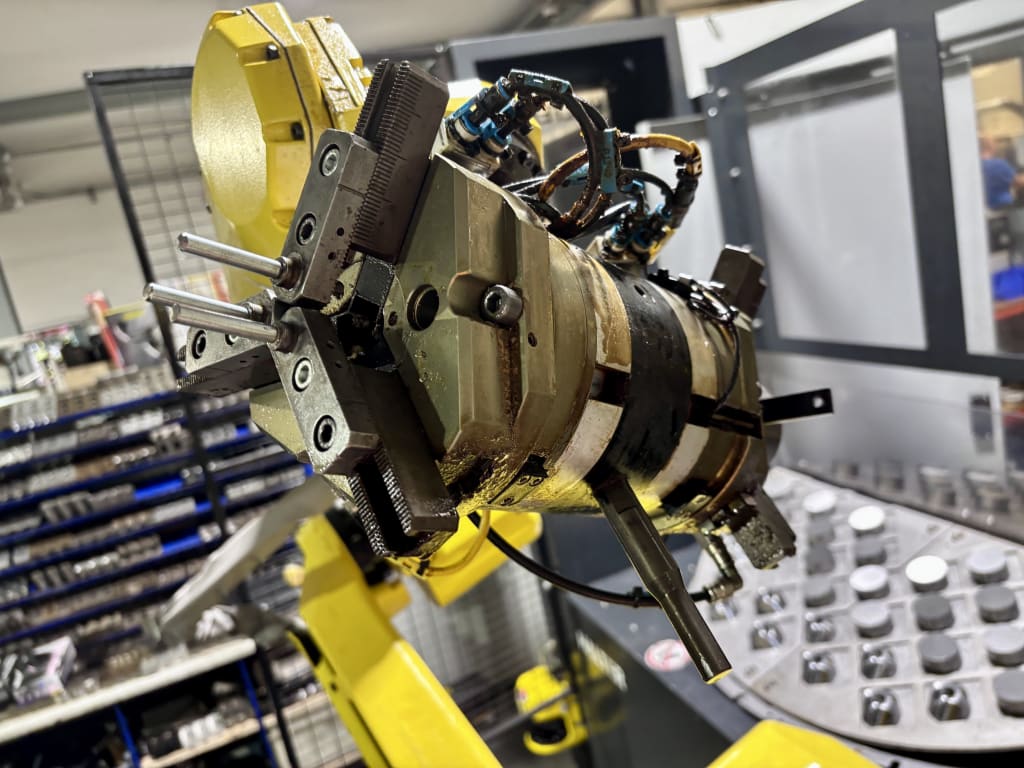

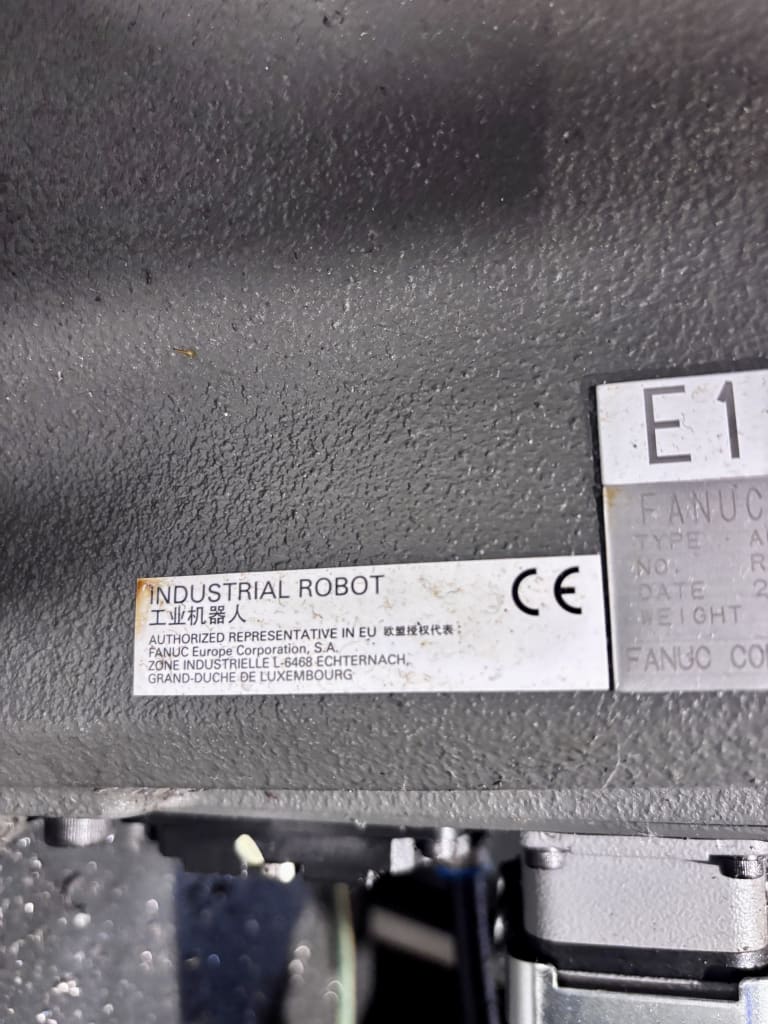

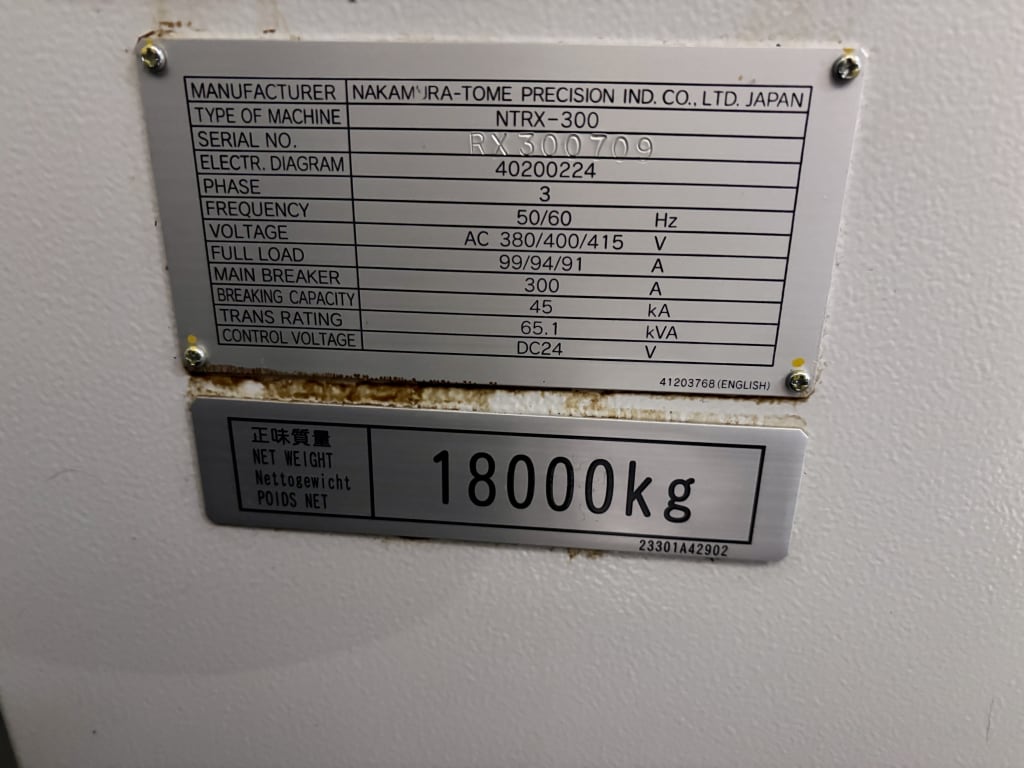

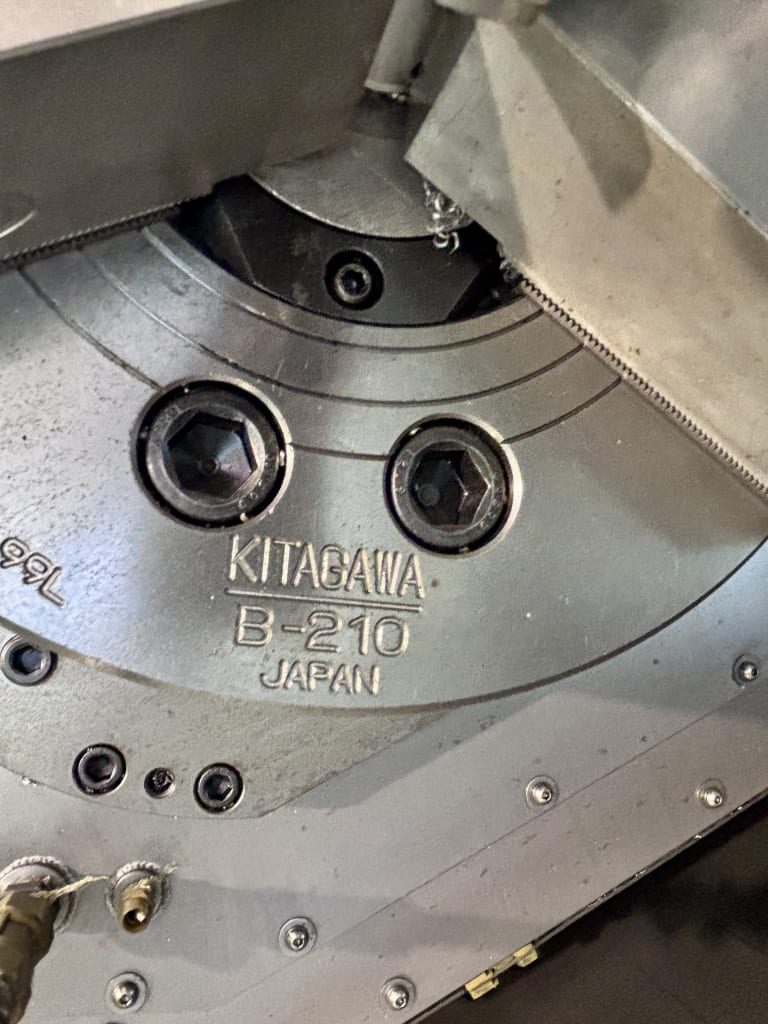

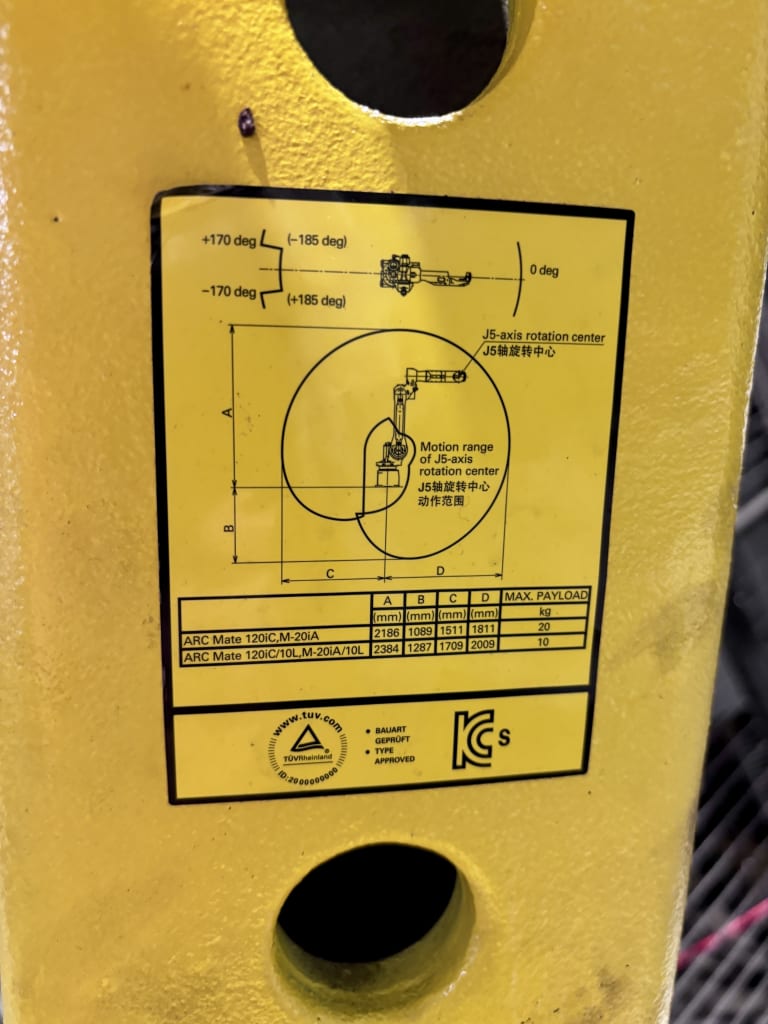

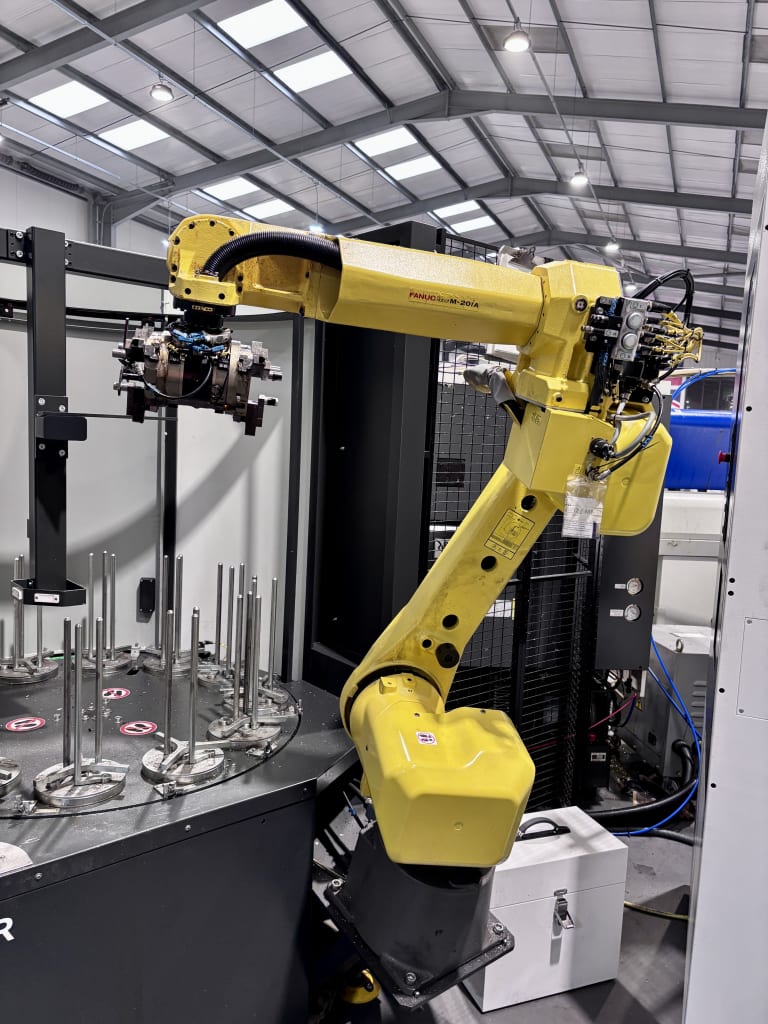

NT Smart X (Fanuc31i-Guide i). Maximum Turning Ø640mm. Maximum Turning Length 1,100mm. Distance Between Spindles Min/Max 250-1,350mm. Main Spindle- Buck BBC 210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Sub Spindle- Kitagawa B-210 3 Jaw Power Chuck. Maximum Spindle Speed 3,500rpm (22/18.5kW Motor). Spindle Nose A2-8. Bar Capacity Ø80mm. Axis Travel 'X'=700mm, 'Z'=1,125mm, 'Y'= ± 125mm, 'B2'=1,100mm. Driven Tool (Milling) Maximum Spindle Speed 12,000rpm (22/15kW Motor). Swivel Range 225° (-120°/+105°). Spindle Taper Capto C6. 80 Position ATC. Maximum Tool Ø90/Ø120mm (Non-Adjacent Tool). Maximum Tool Length 300mm. Maximum Tool Weight 12kg. S/No. RX300709 (2018). Halter Load Assistant U-20 Parts Loader with HALTER Smart Touchscreen Control- 72 Workpiece Positions. Workpiece Diameter (Min-Max) Ø10-230mm. Minimum Workpiece (L x W) 10 x 10mm. Maximum Workpiece (L x W) 230 x 230mm. Maximum Height of Workpiece 250mm. Maximum Load Capacity Robot Arm 20kg. With Sick S30A-4011CA Safety Laser Scanner. S/No. DCH0203 (2019). Fanuc Robot M-20iA Type A05B-1225-B252- 6 Axis, Payload 20kg, Reach Approx 1,811mm. S/No. R18704467 (2018).
